Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGB3B045V

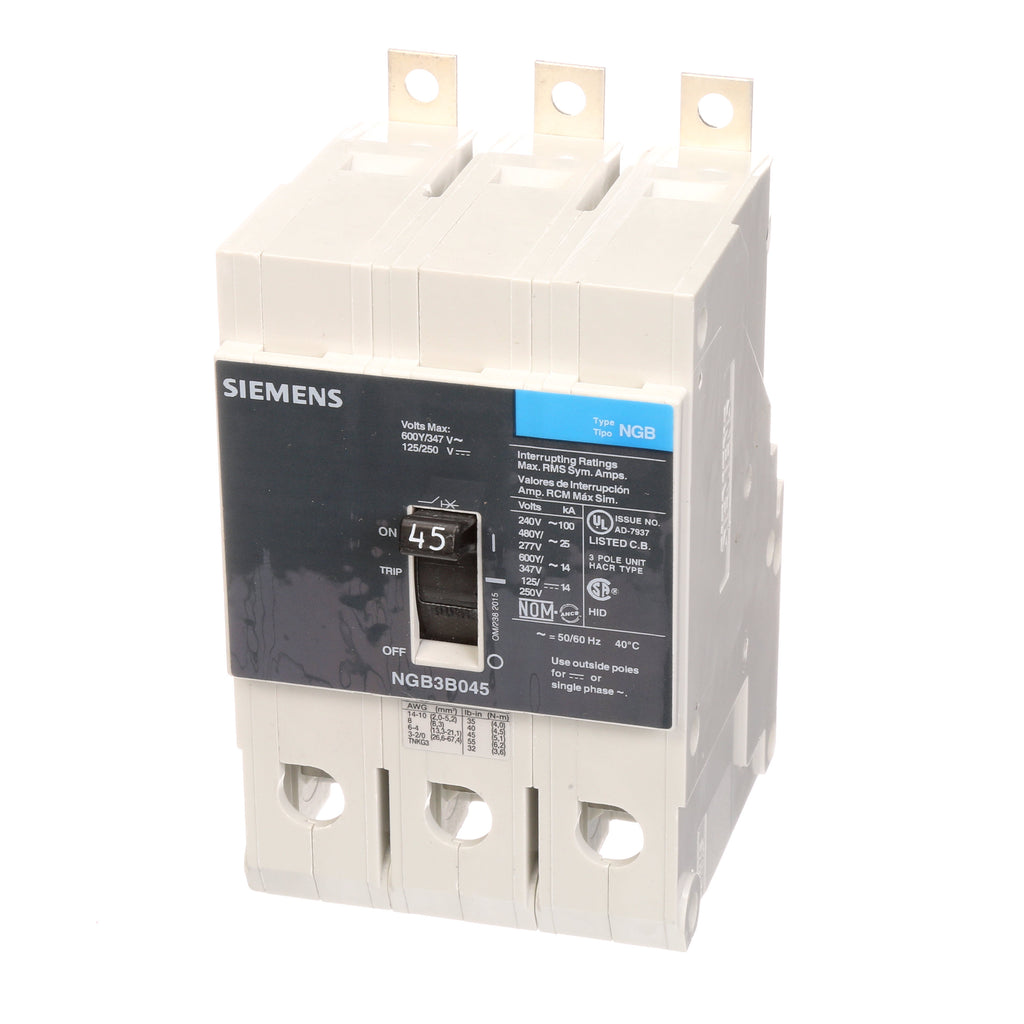

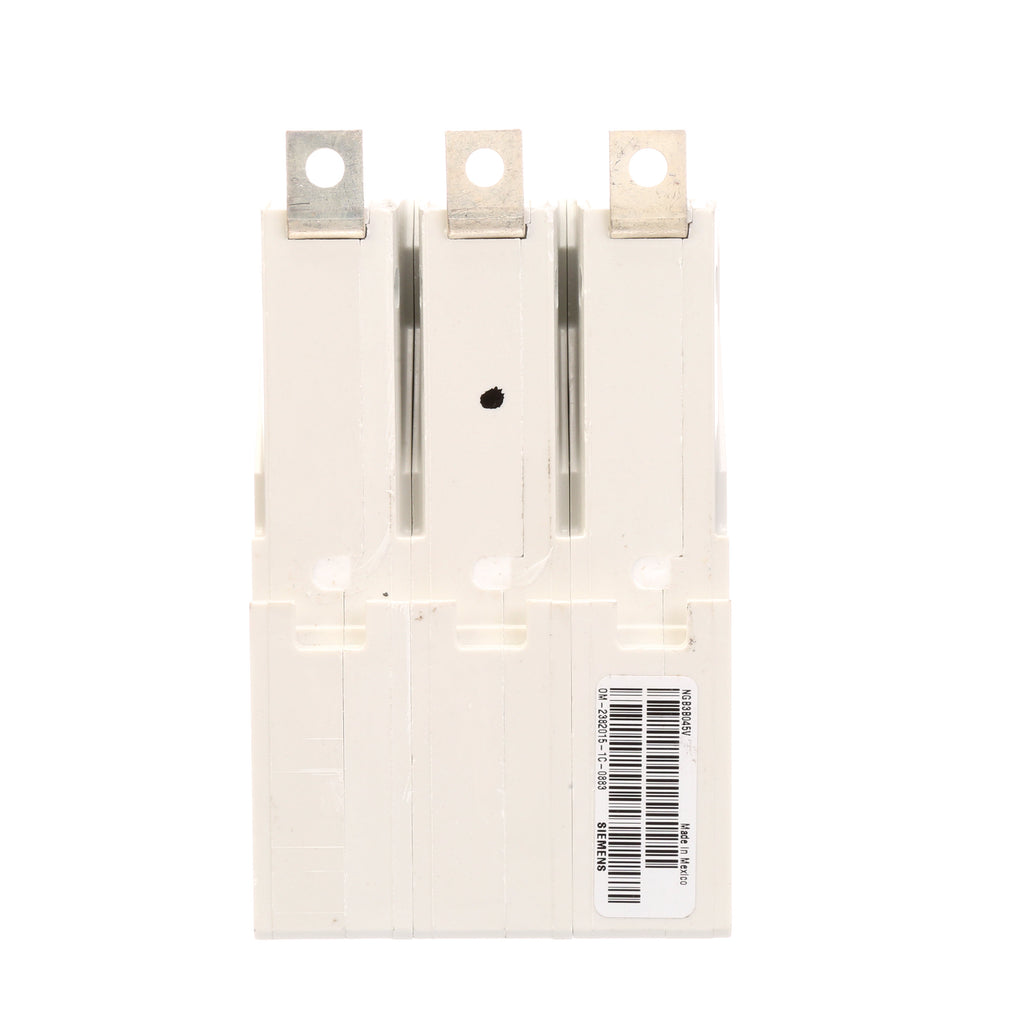

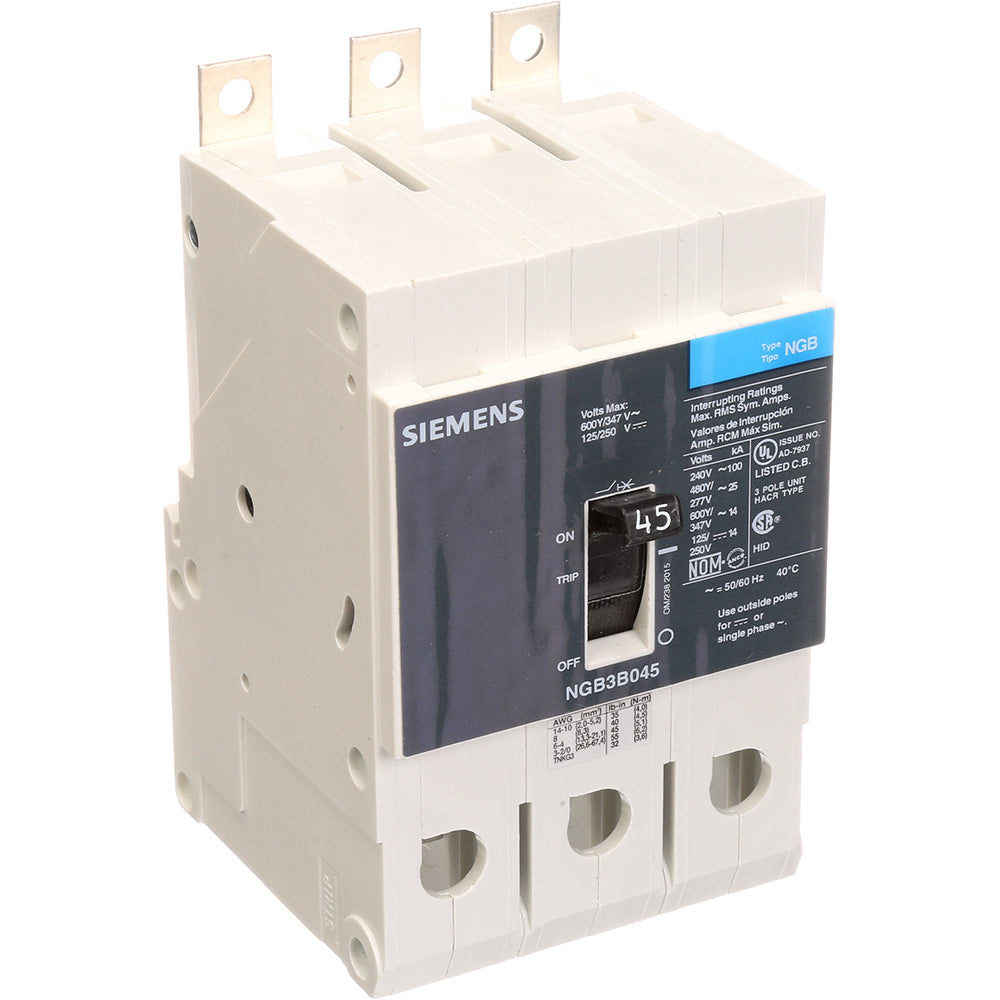

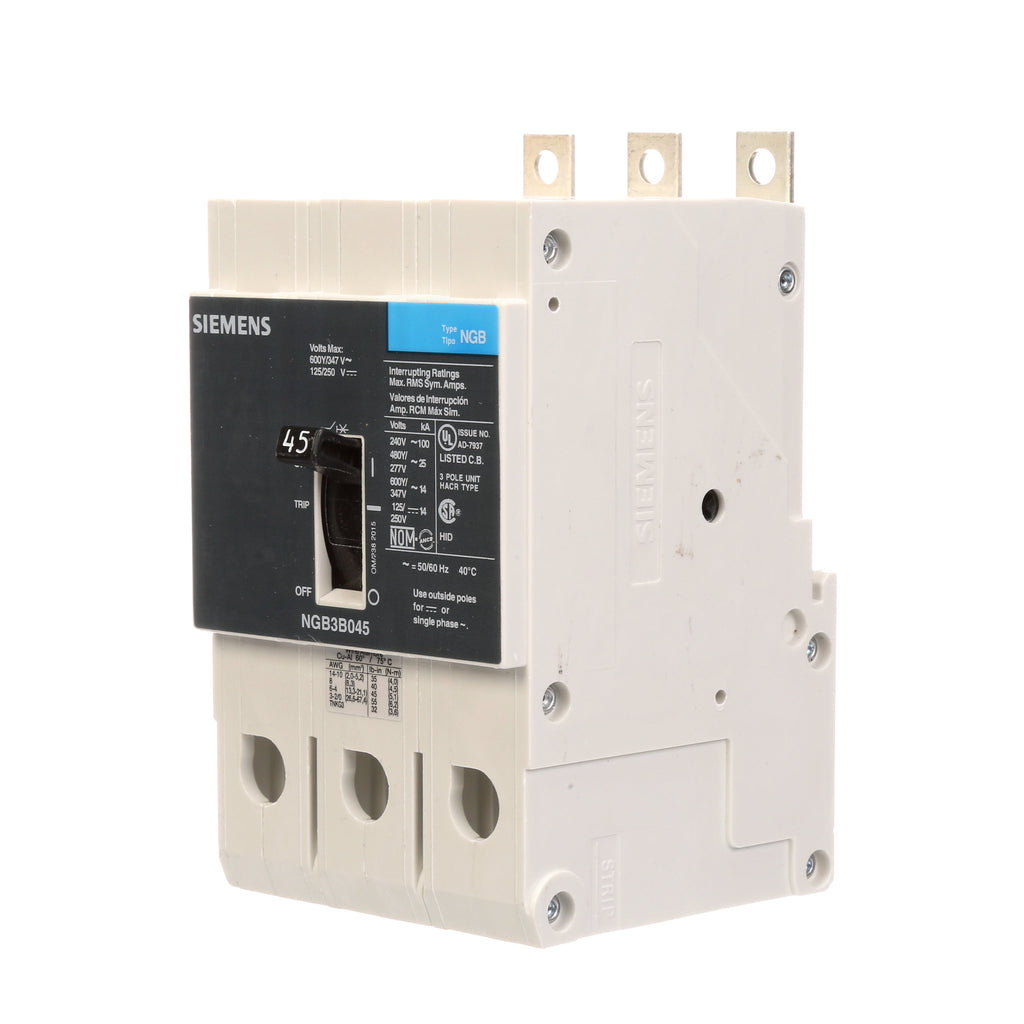

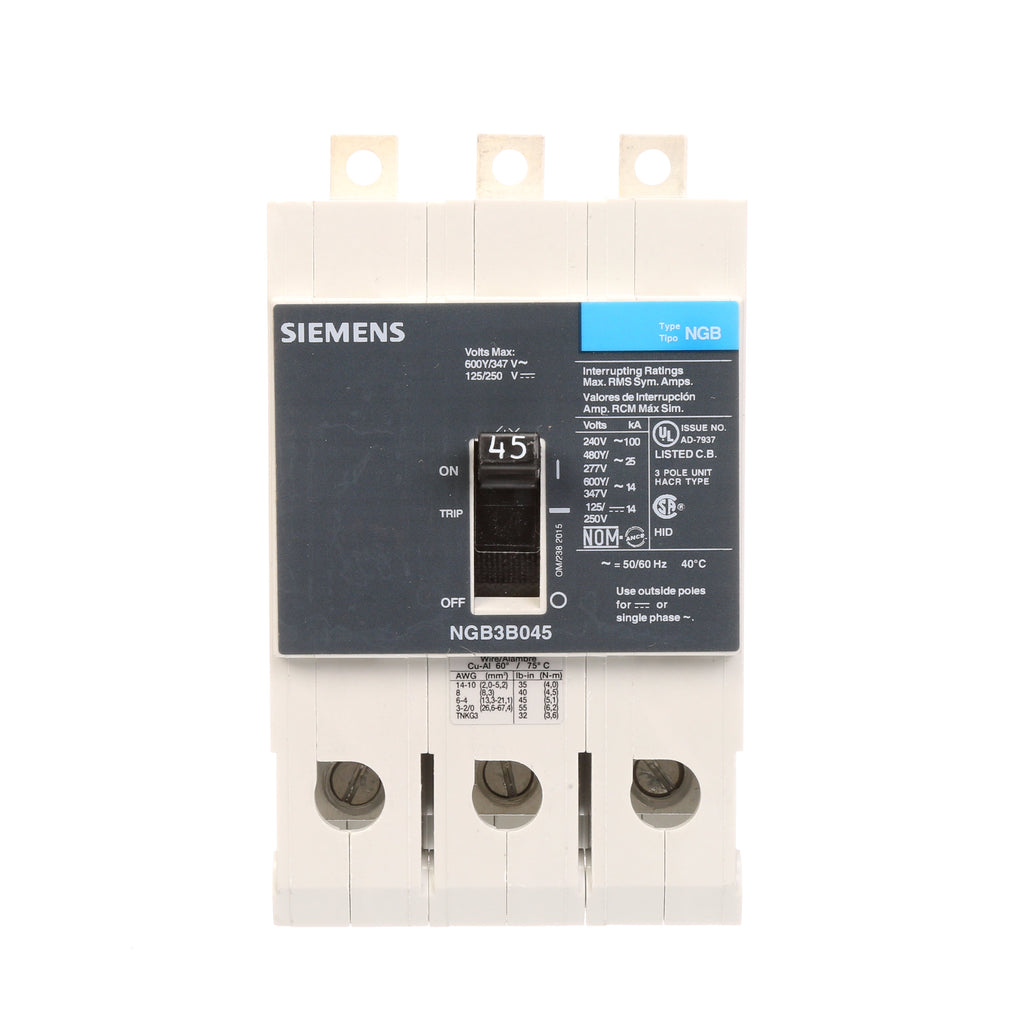

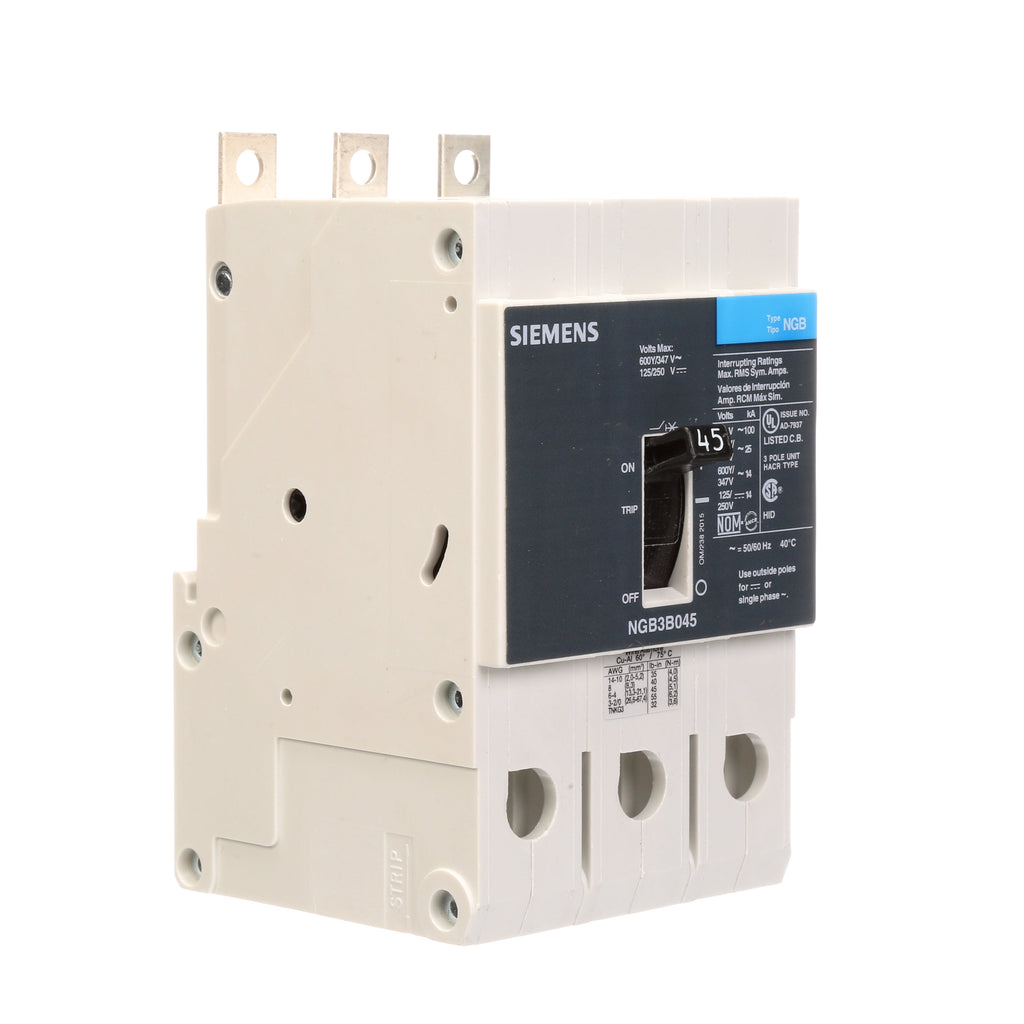

NGB3B045V is a Siemens 3-pole molded case circuit breaker rated for 45 amps and 600 volts designed for bolt-on mounting. NGB3B045V provides reliable thermal magnetic trip protection with long-time and instantaneous trip units. It is certified to UL489 standards and suitable for use in 600Y/347V AC systems with a high interrupt rating of 25kA at 480Y/277V. This breaker is part of the Siemens NGB series, known for durability and compatibility with panelboards requiring bolt-on breakers.
- Amperage: 45 Amps
- Voltage Rating: 600Y/347V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA @ 480Y/277V
- Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
- Series/Frame: NGB
- Certification: UL489
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: NGB3B045V
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643555389
- GTIN : 00783643555389
- Country of Origin : Mexico
- Weight : 15.825
- Certification : UL, IEC
