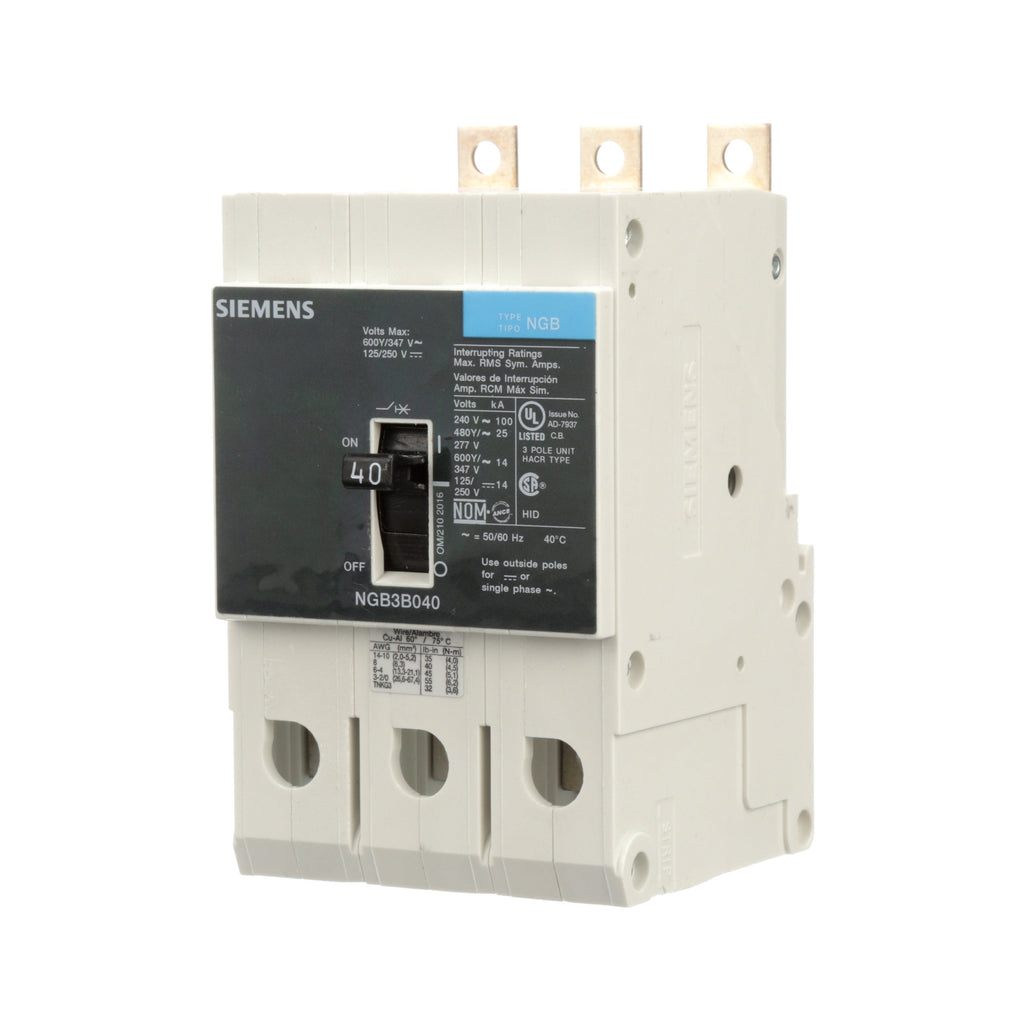

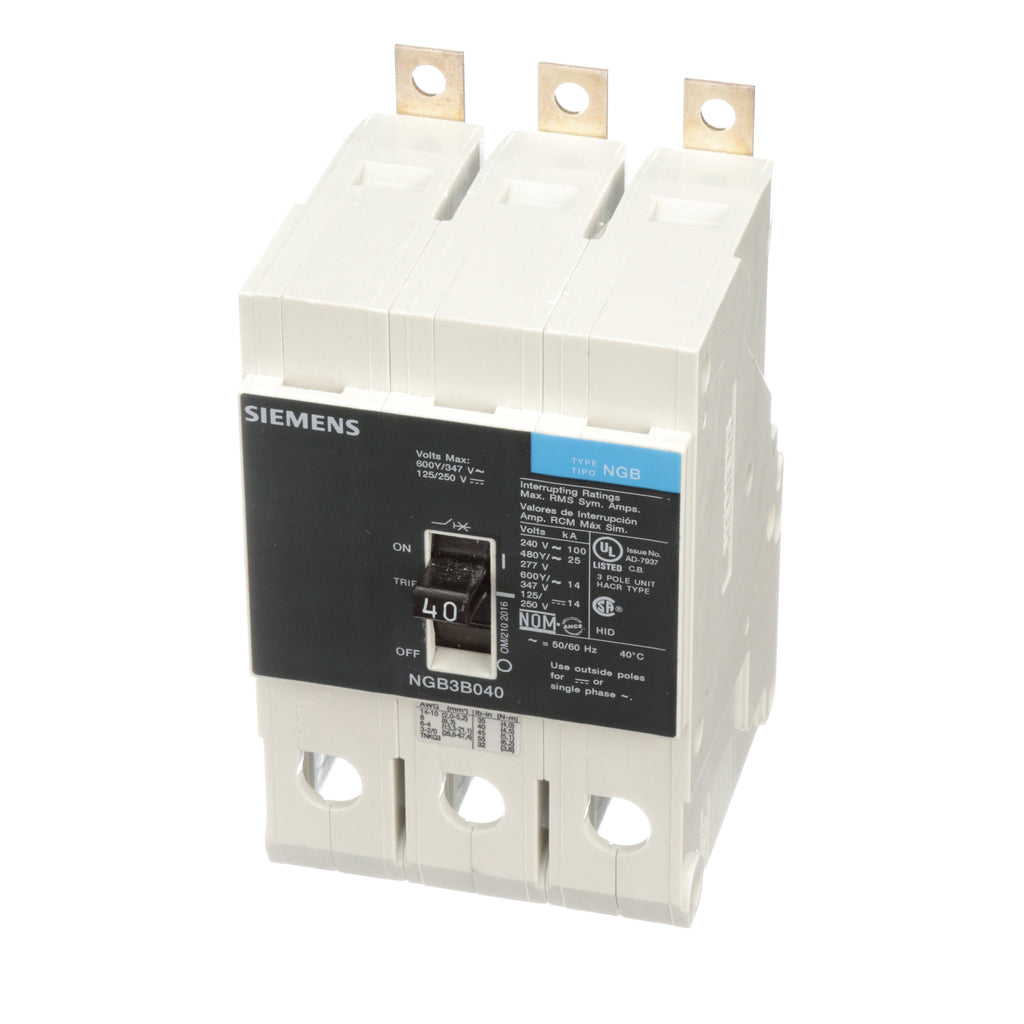

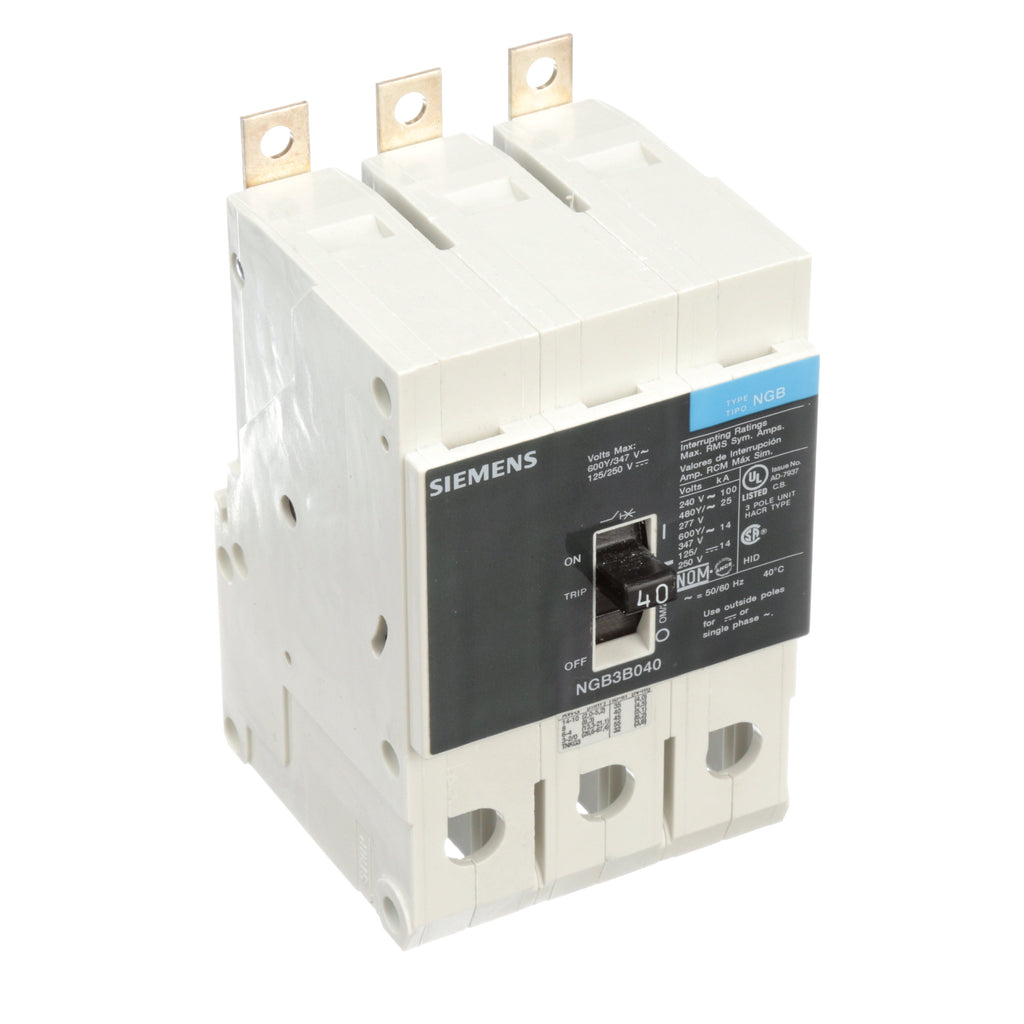

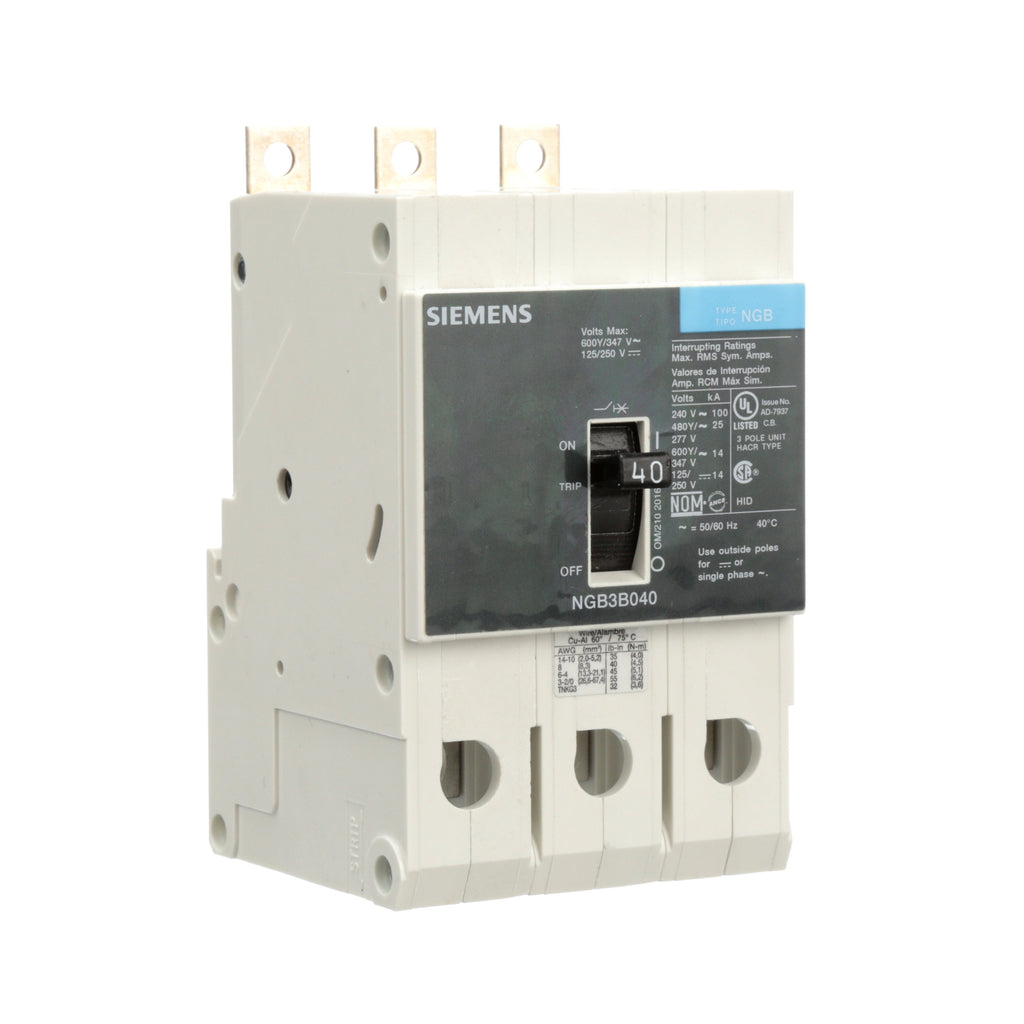

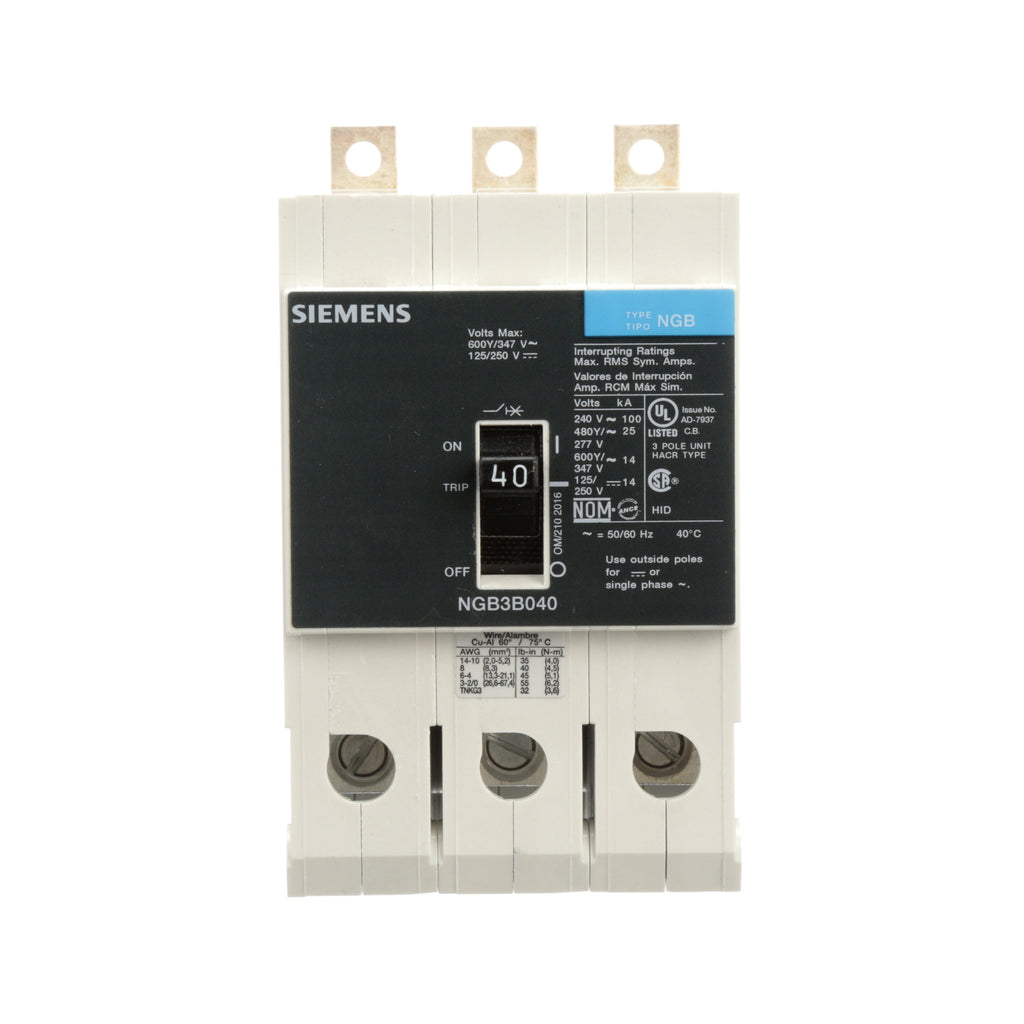

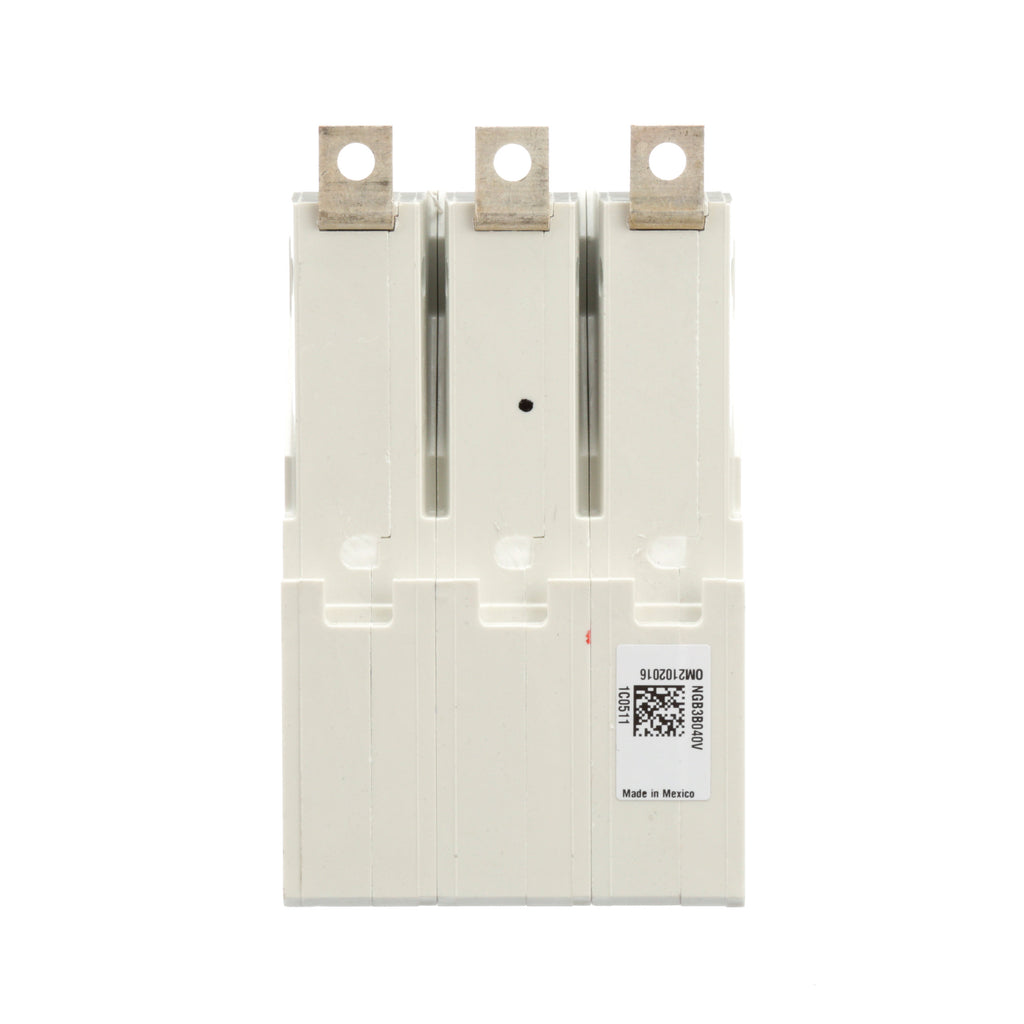

NGB3B040V - Siemens 40A 3 Pole 600Y/347 VAC Molded Case Circuit Breaker Type NGB

NGB3B040V

NGB3B040V is a Siemens Type NGB molded case circuit breaker designed for low voltage applications with a 40 ampere rating and 3 poles.

This circuit breaker operates at a maximum voltage of 600Y/347 VAC and features a thermal/magnetic trip unit. It is panel mounted and offers an interrupt rating of 14 kA at 600Y/347 VAC, with a NEMA interrupt rating of 25 kA at 480Y/277 VAC. The breaker is UL489 certified, ensuring compliance with industry safety standards.

• Manufacturer: Siemens
• Part Number: NGB3B040V
• Type: NGB Molded Case Circuit Breaker
• Amperage: 40 A
• Voltage Rating: 600Y/347 VAC
• Poles: 3
• Interrupt Rating: 14 kA @ 600Y/347 VAC, 25 kA @ 480Y/277 VAC (NEMA)
• Trip Unit: Thermal/Magnetic
• Mounting Type: Panel Mounted
• Certification: UL489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: NGB3B040V
• Manufacturer : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : NGB
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : GG Frame
• Temp Rating : -13¡F-158¡F
• Protection : Thermal Magnetic

Product Data

• UPC : 783643555372
• GTIN : 00783643555372
• Country of Origin : Mexico
• Weight : 3.448
• Certification : UL, IEC
