Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGB3B030

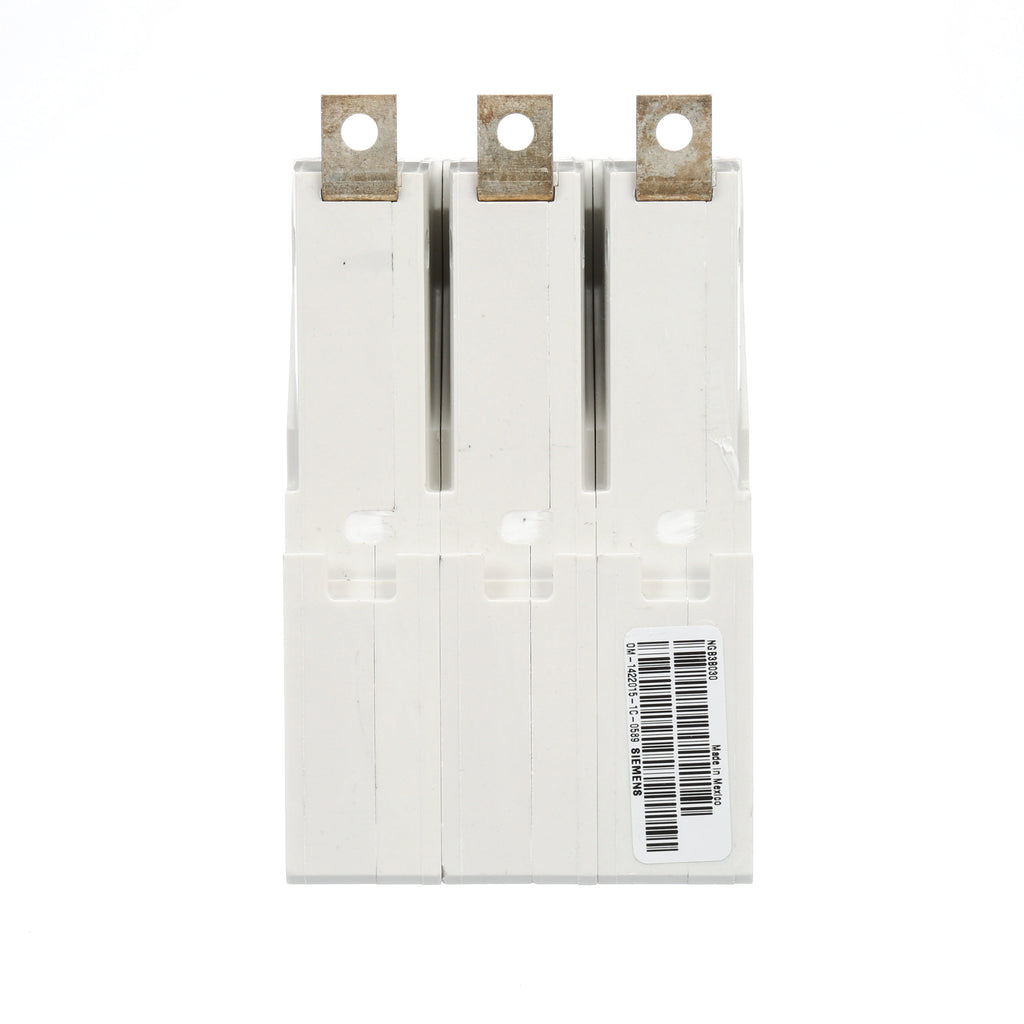

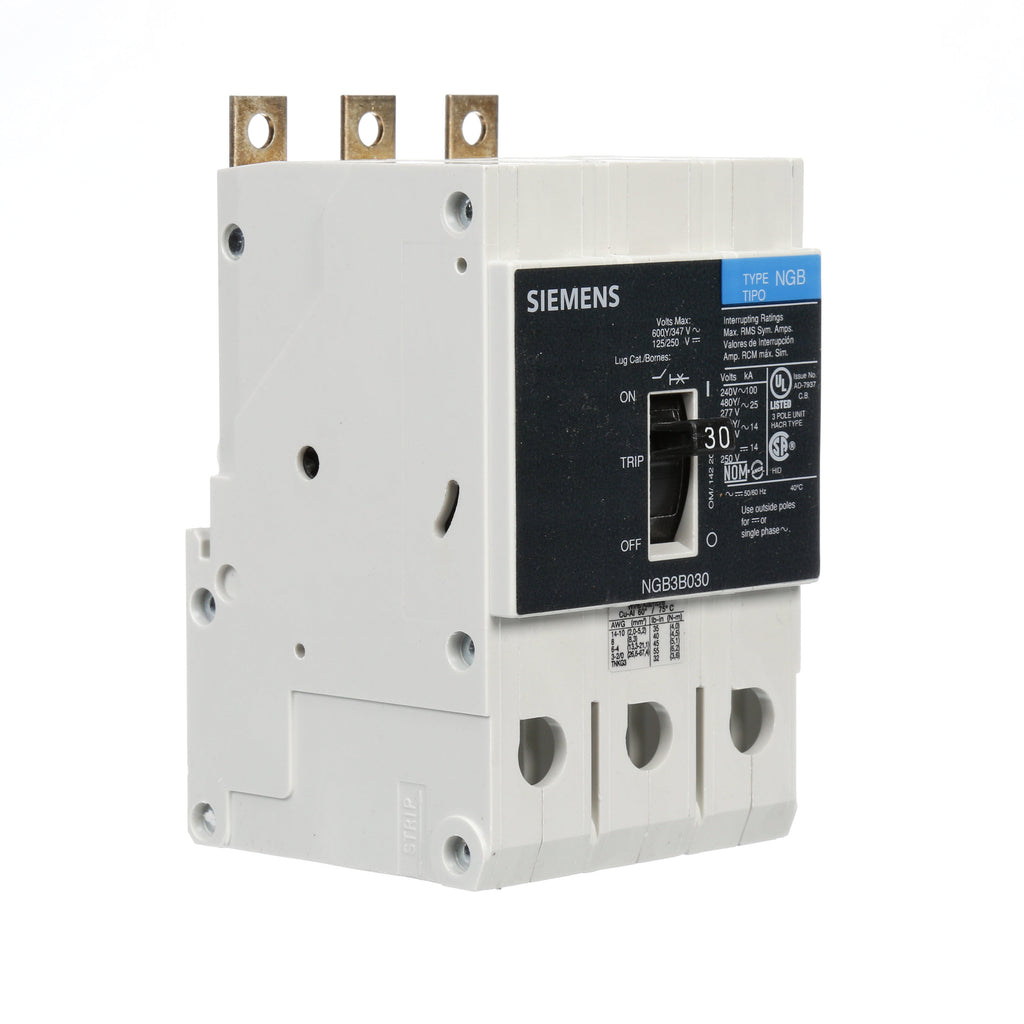

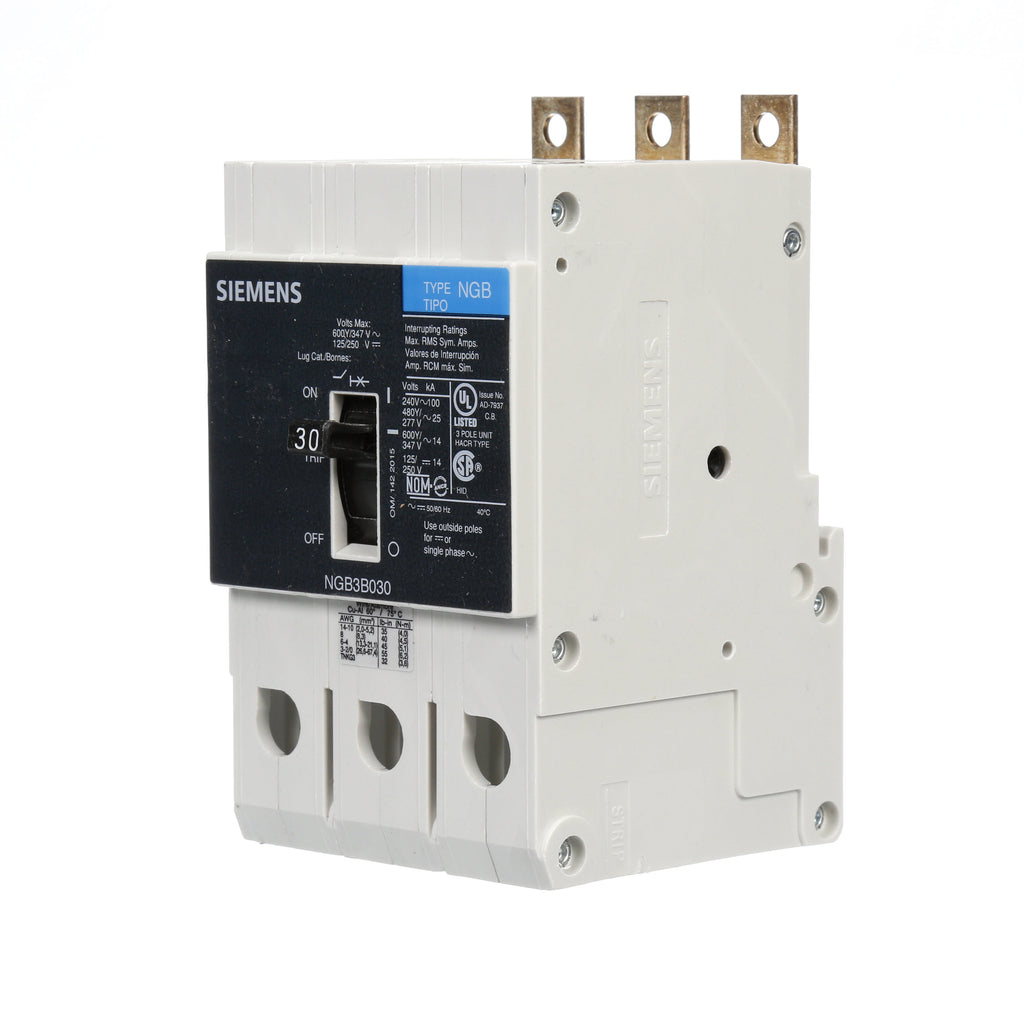

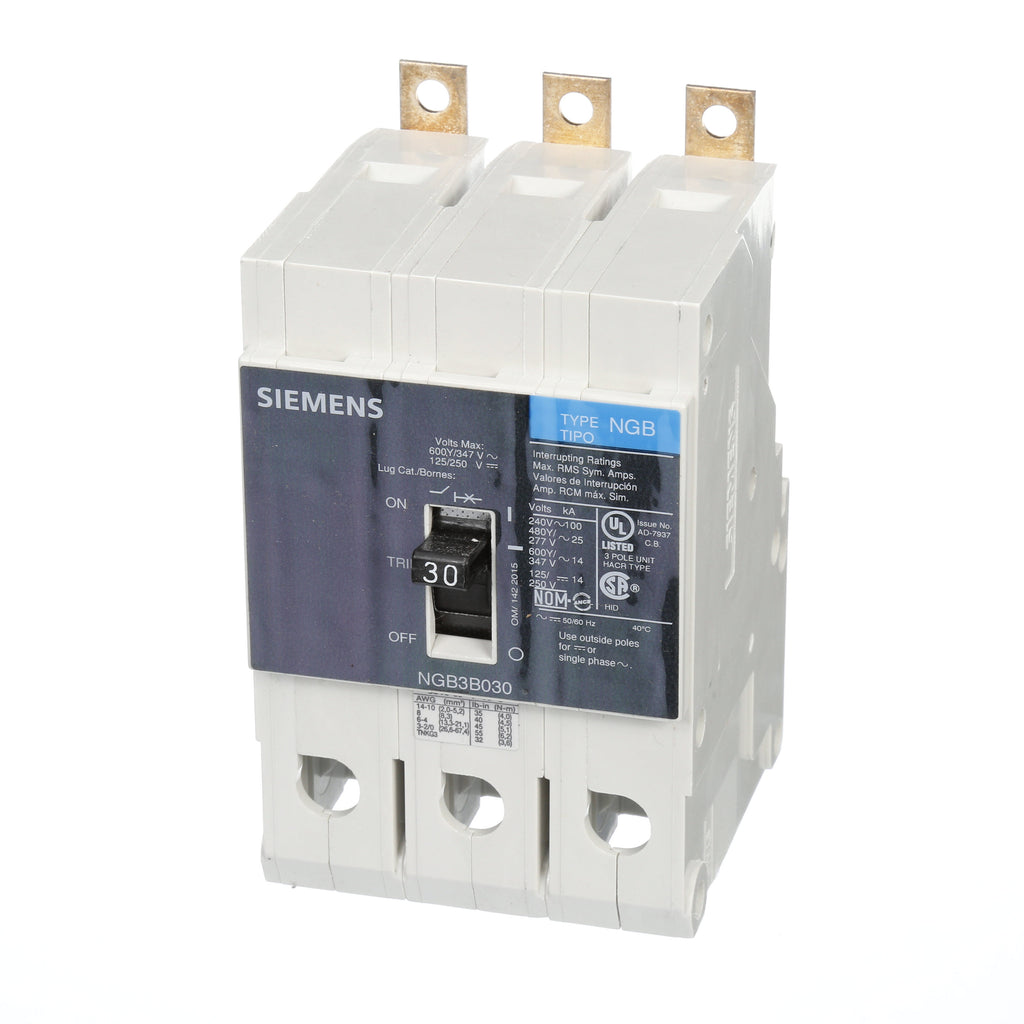

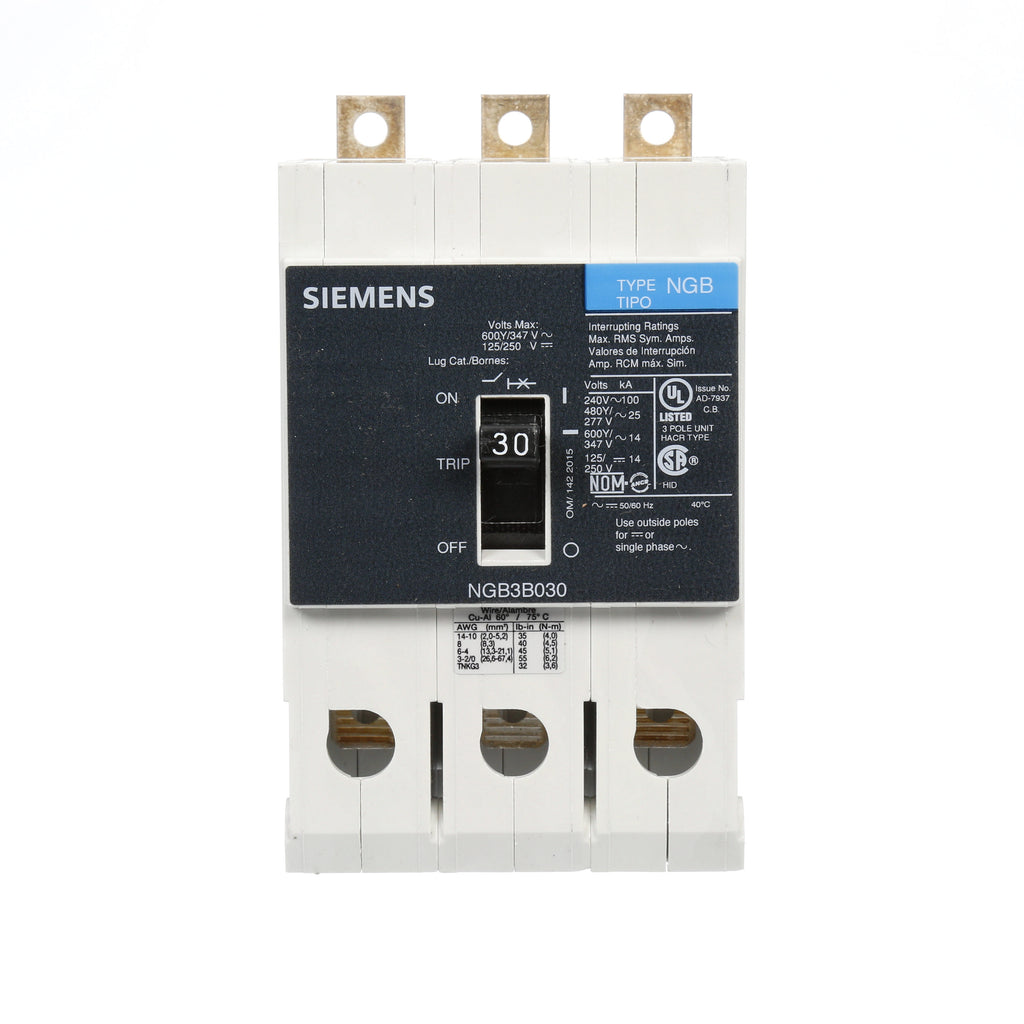

NGB3B030 is a Siemens VL Series molded case circuit breaker designed for reliable circuit protection in panelboard applications.This 3-pole, 30 Amp, 600 Volt breaker features a bolt-on mounting type and thermal magnetic trip unit with LI (Long-Time and Instantaneous) trip functions. It offers a 25kA interrupting rating at 480V and is suitable for reverse feed applications. The compact dimensions are 3" x 5.54" x 2.8" and it complies with UL489 certification standards.
- Manufacturer: Siemens
- Series/Frame: VL Series, Type NGB
- Amperage: 30 Amp
- Voltage: 600 Volt AC
- Poles: 3
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic with LI functions
- Interrupt Rating: 25kA at 480V
- Certifications: UL489
- Dimensions: 3" H x 5.54" W x 2.8" D
- Weight: 2.65 lbs
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: NGB3B030
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643553422
- GTIN : 00783643553422
- Country of Origin : Mexico
- Weight : 2.575
- Certification : UL, IEC
