Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

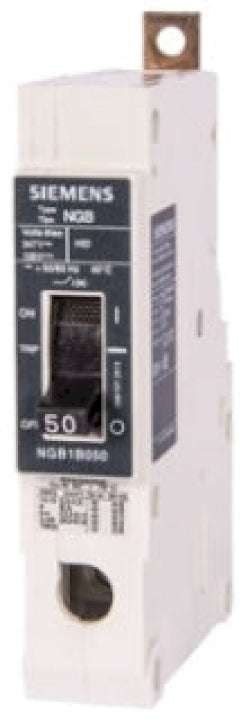

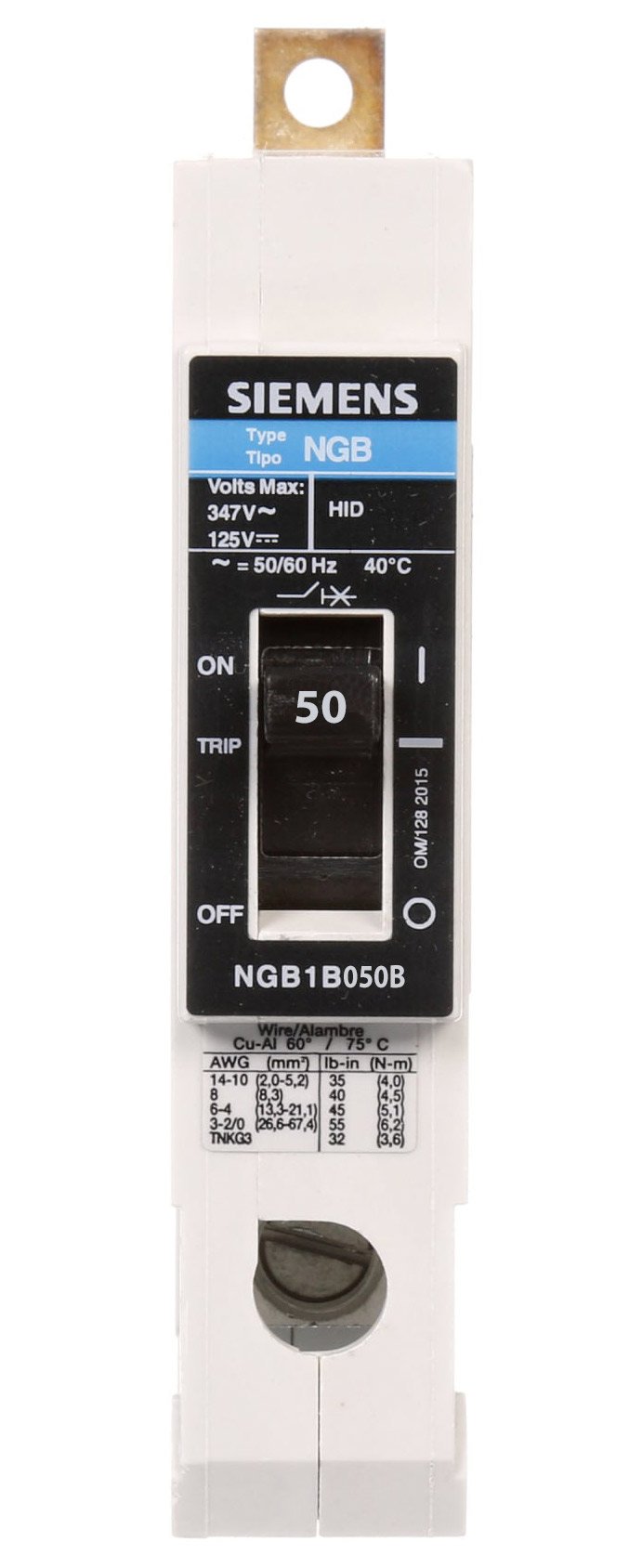

NGB1B050B
NGB1B050B is a Siemens 1-pole, 50-ampere, 347-volt molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications. This thermal magnetic breaker features bolt-on mounting, long-time and instantaneous trip functions, and is suitable for reverse feed applications with load side lug terminals. The NGB series provides dependable performance in panelboard installations with UL489 certification. Key Specifications
- Manufacturer: Siemens
- Type: NGB Molded Case Circuit Breaker
- Poles: 1
- Amperage: 50A
- Voltage: 347V AC
- Connection: Bolt-On
- Trip Function: Thermal Magnetic with Long-Time and Instantaneous
- Interrupting Rating: 25kA @ 277V, 14kA @ 347V
- Wire Size: 4 to 2/0 AWG
- Dimensions: 1 inch x 5.4 inches x 2.8 inches
- Weight: 3 lbs
- Certification: UL489
Specifications
- Part Number: NGB1B050B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 347
- Amperage : 50
- Phase : 1
- Poles : 1
- AIC rating : 25kA@277V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643414020
- GTIN : 00783643414020
- Country of Origin : Mexico
- Weight : 2.998
- Certification : UL, IEC
