Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGB1B020V

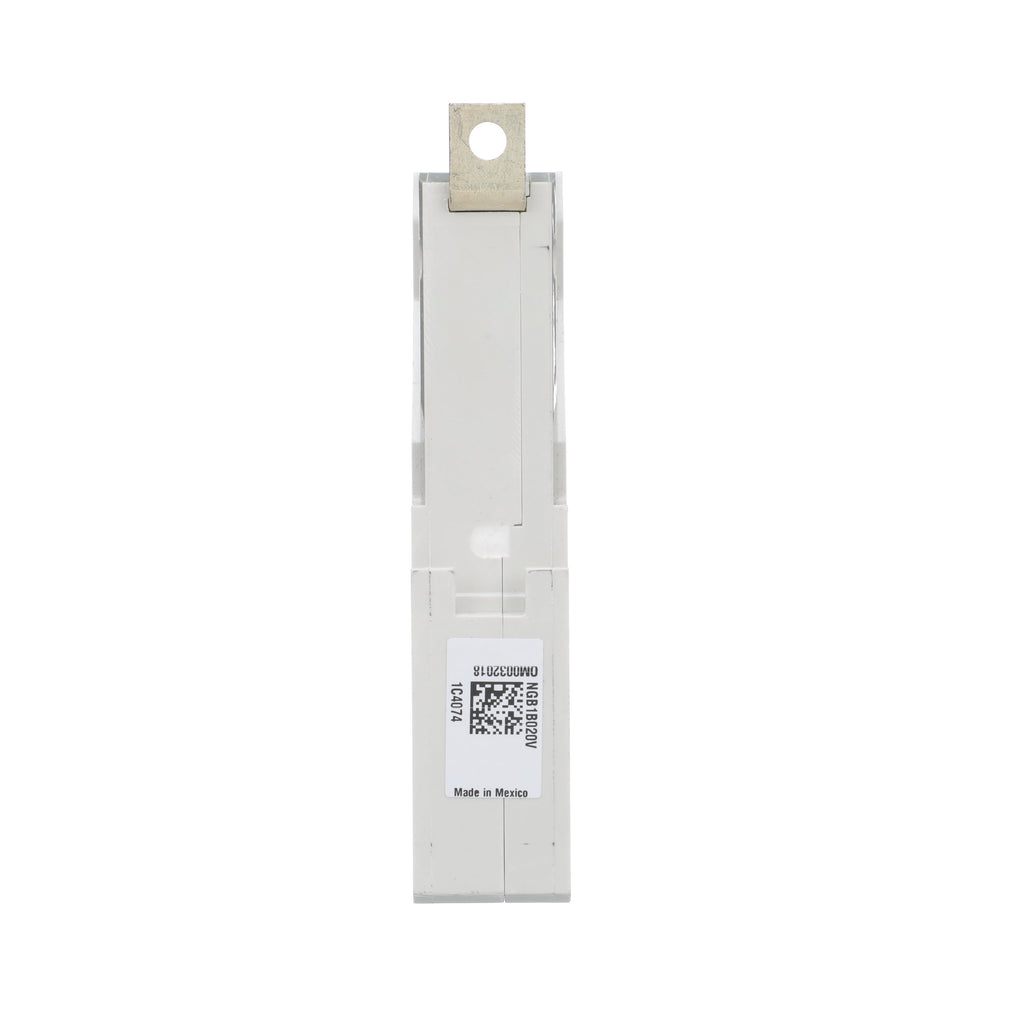

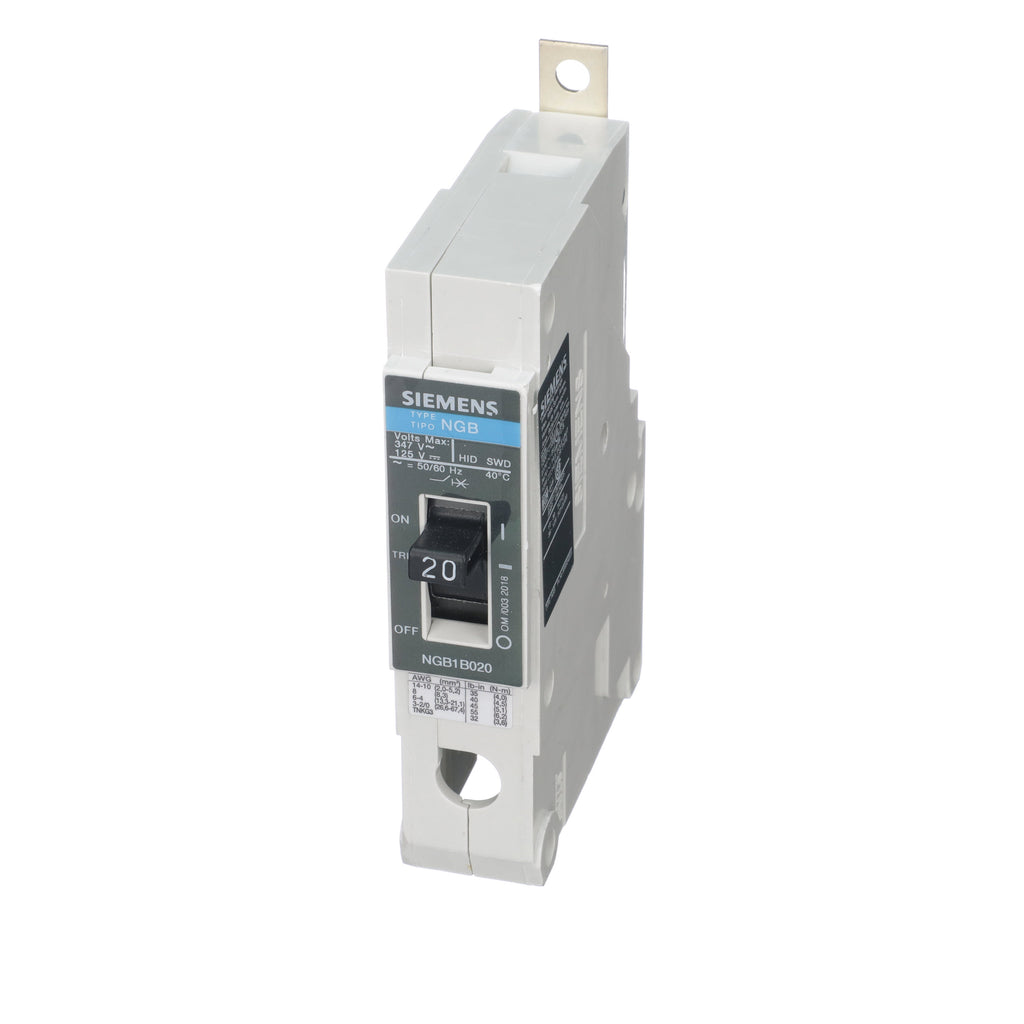

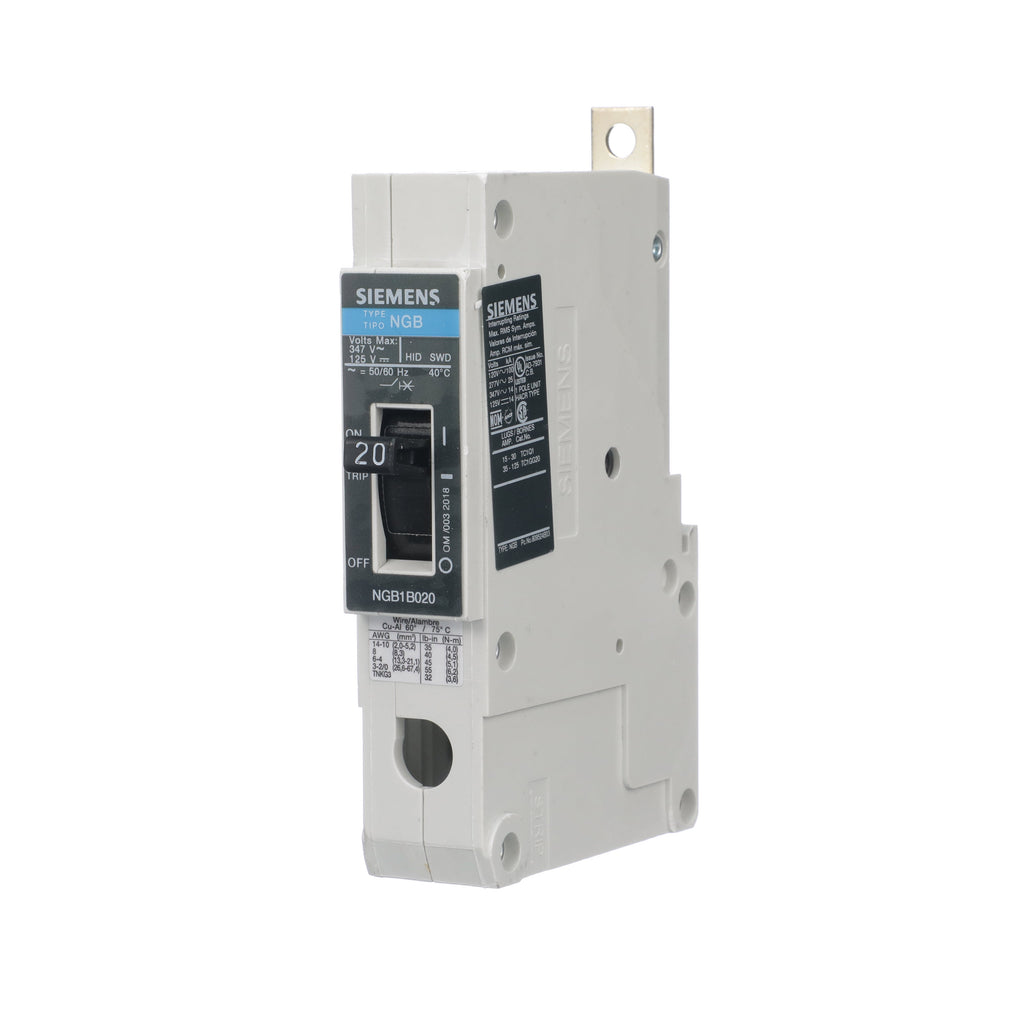

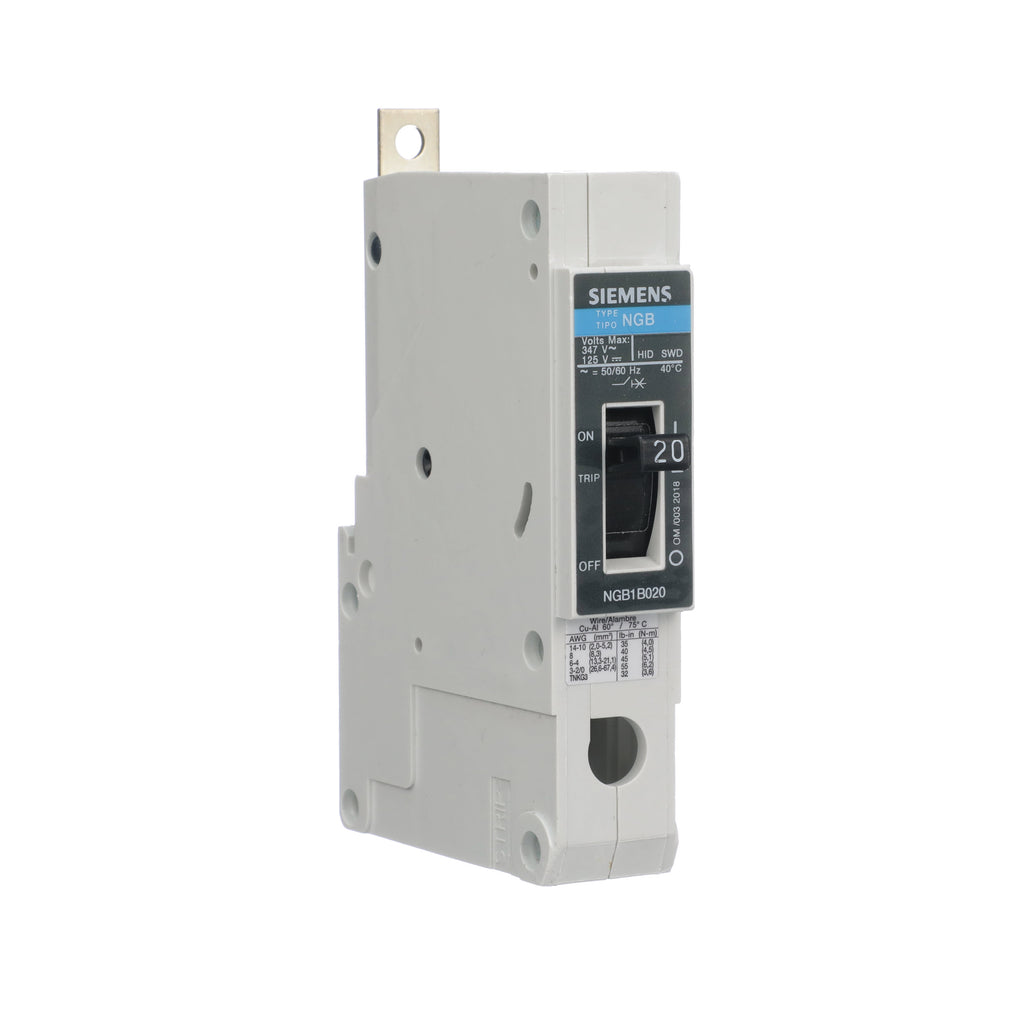

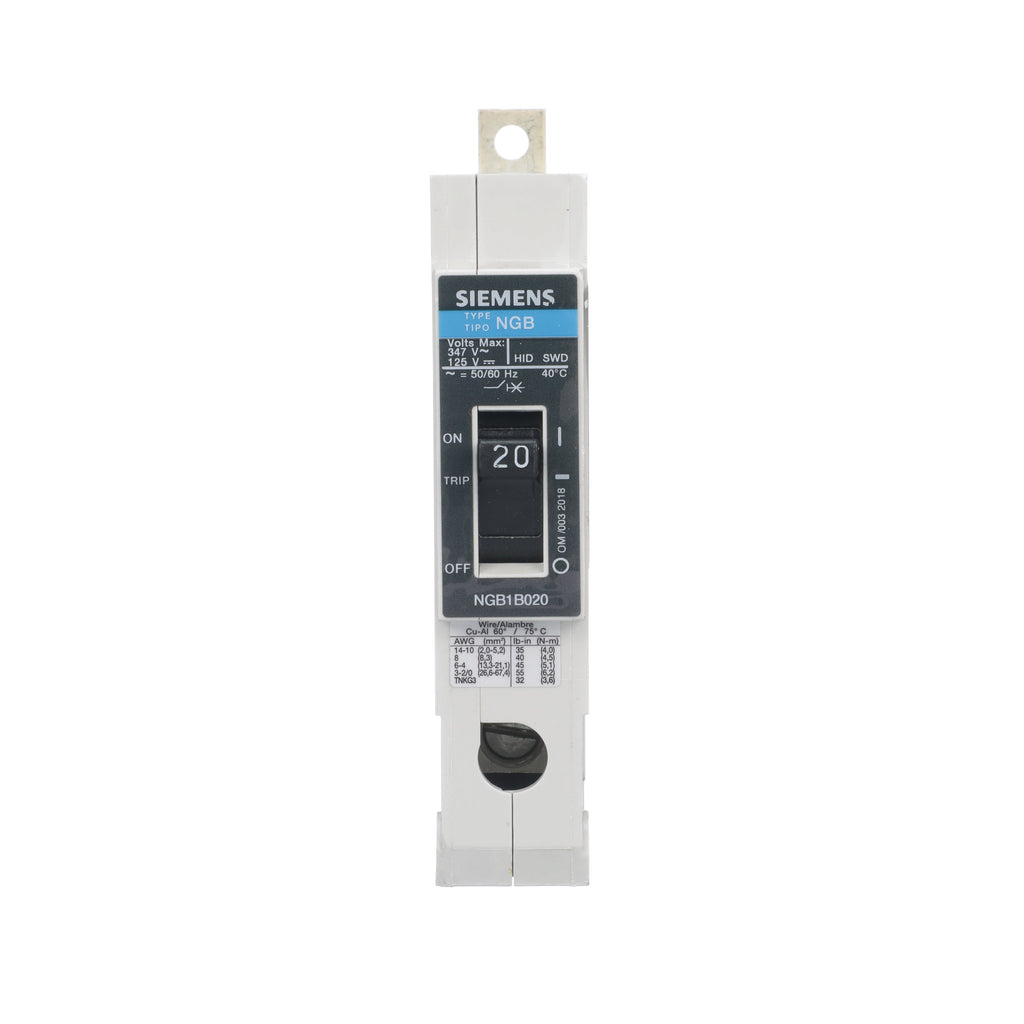

NGB1B020V is a 1 pole, 347 Volt, 20 amp rated circuit breaker designed for industrial applications with bolt-on mounting to compatible panelboards. This NGB series breaker features load side lug terminals and is certified to UL489 standards for reliable performance in power distribution systems. Key Specifications
- Part Number: NGB1B020V
- Manufacturer: Siemens
- Number of Poles: 1 Pole
- Rated Current: 20 Amperes
- Voltage Rating: 347 Volt AC
- Series: NGB
- Interrupt Rating: 14 kAIC @ 347V
- Interrupt Rating: 25 kAIC @ 277V
- Terminal Type: Load Side Lug Terminals
- Mounting: Bolt-On
- Certification: UL489
Additional Information
Lugs are not included
Specifications
- Part Number: NGB1B020V
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 347
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 25kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643555013
- GTIN : 00783643555013
- Country of Origin : Mexico
- Weight : 0.776
- Certification : UL, IEC
