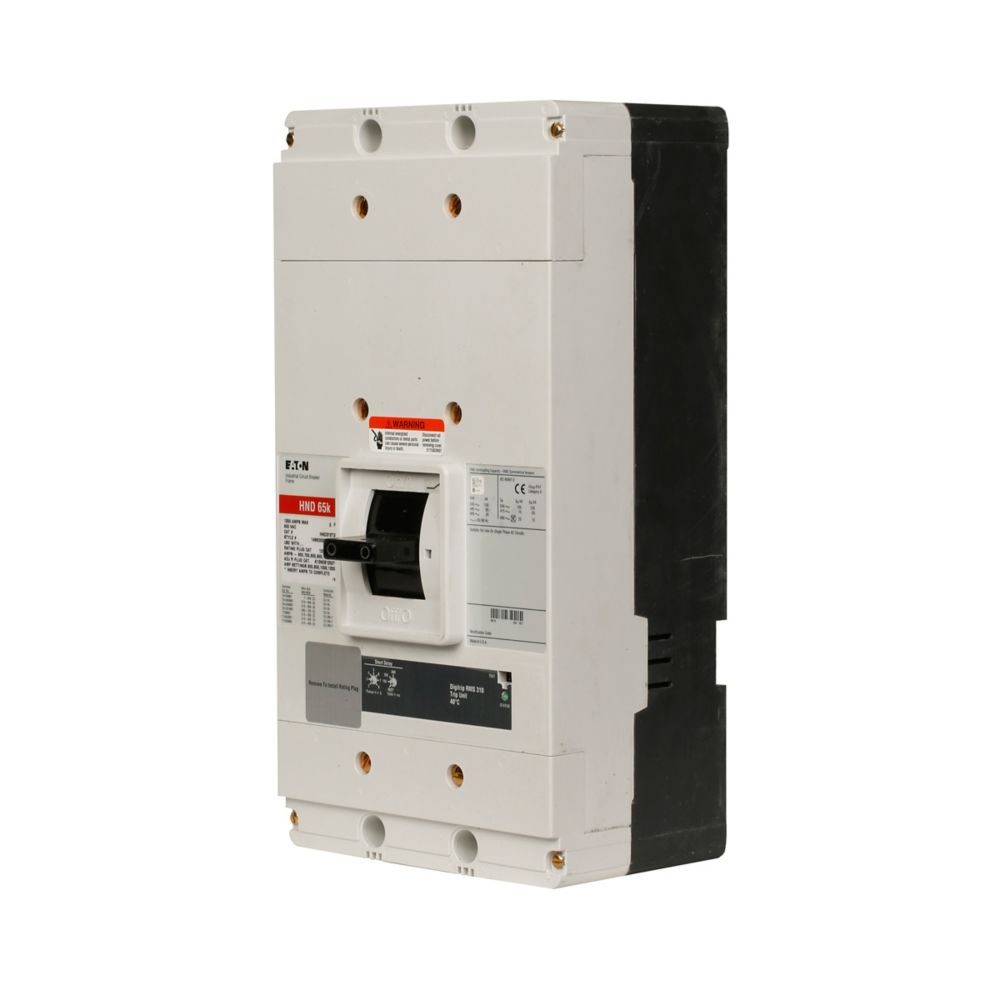

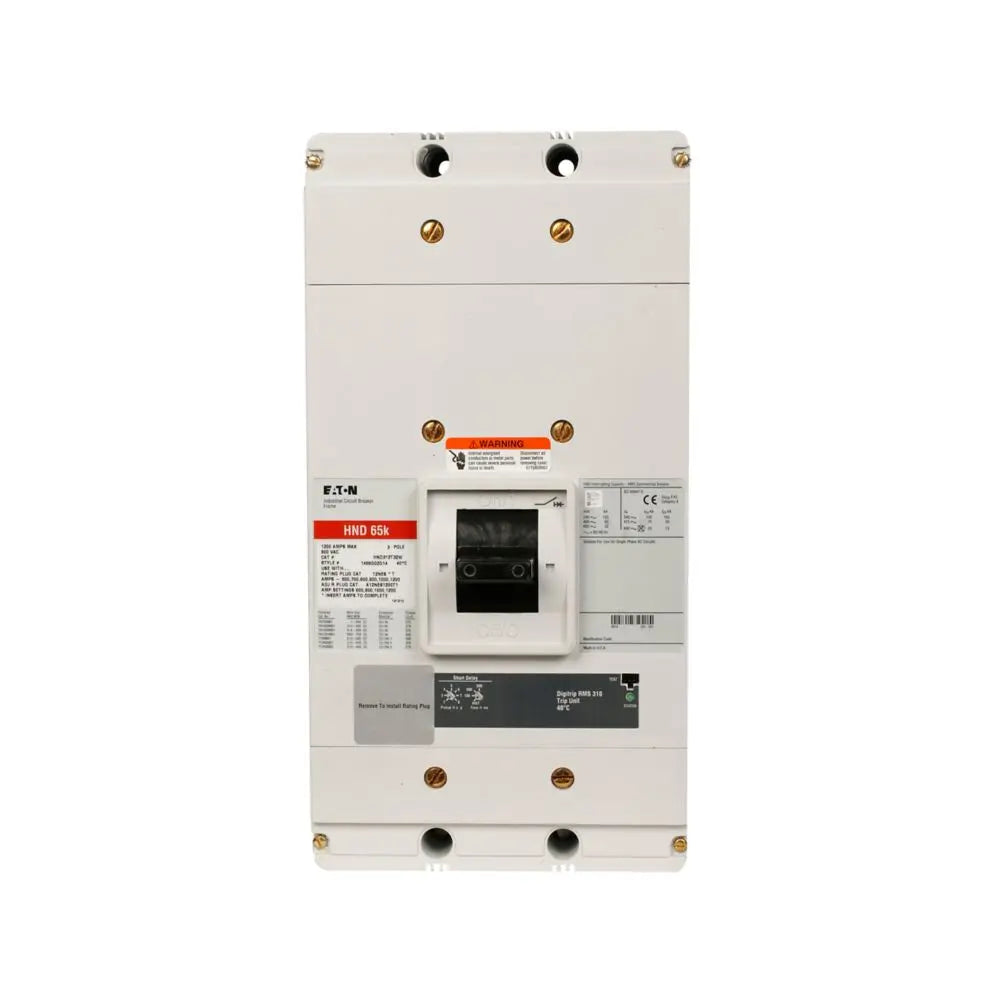

NDC3800T33W - Eaton 800A 600V 3-Pole NDC Series C Molded Case Circuit Breaker, Electronic LS Trip, Bolt-On Mounting, 100 kAIC at 480V

NDC3800T33W

NDC3800T33W is a three-pole, 800A, 600V molded case circuit breaker from Eaton, designed for robust circuit protection in demanding applications.

This Eaton Series C NDC frame breaker features an electronic LS trip unit (Digitrip 310), bolt-on mounting, and an ultra-high interrupting capacity. It is rated for 80% continuous load, offers current limiting, and is HACR rated for HVAC and refrigeration equipment.

Key Specifications
• Amperage: 800A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-on
• Interrupt Rating: 200 kAIC at 240V, 100 kAIC at 480V
• Series/Frame: Series C, NDC (NG) frame
• Trip Unit: Electronic LS (Digitrip 310)
• Certifications: HACR rated
• Continuous Rating: 80%
• Frequency: 50/60 Hz
• Terminals: Without (lugless)
• Weight: 46.3 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NDC3800T33W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : NDC
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LS - Long-Time and Short-Time
• Frame Size : N Frame
• Protection : Solid State

Product Data

• UPC : 786679166161
• GTIN : 00786679166161
• Country of Origin : United States
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 46.3
• Certification : HACR Rated
