ND3800T33W - Eaton Series C 800 A 3-Pole 600 V AC Molded Case Circuit Breaker, Type ND3, Electronic Trip

ND3800T33W

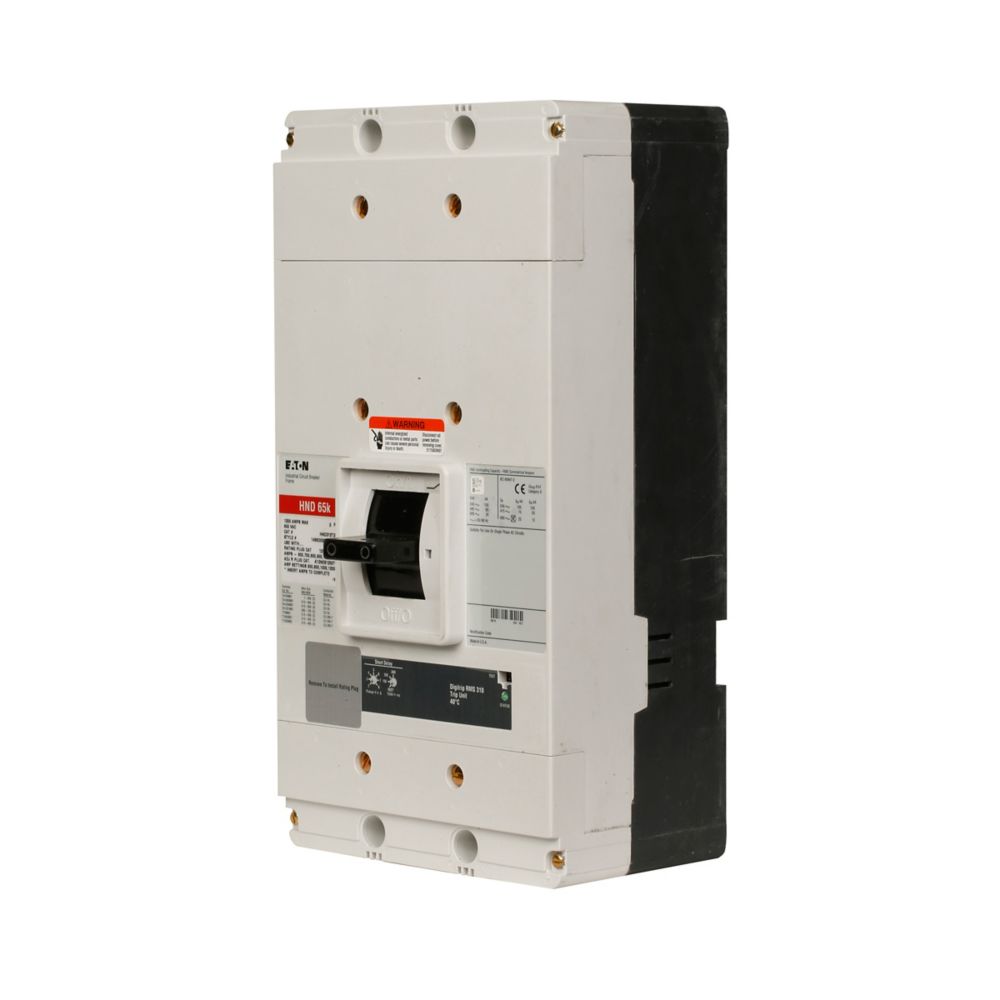

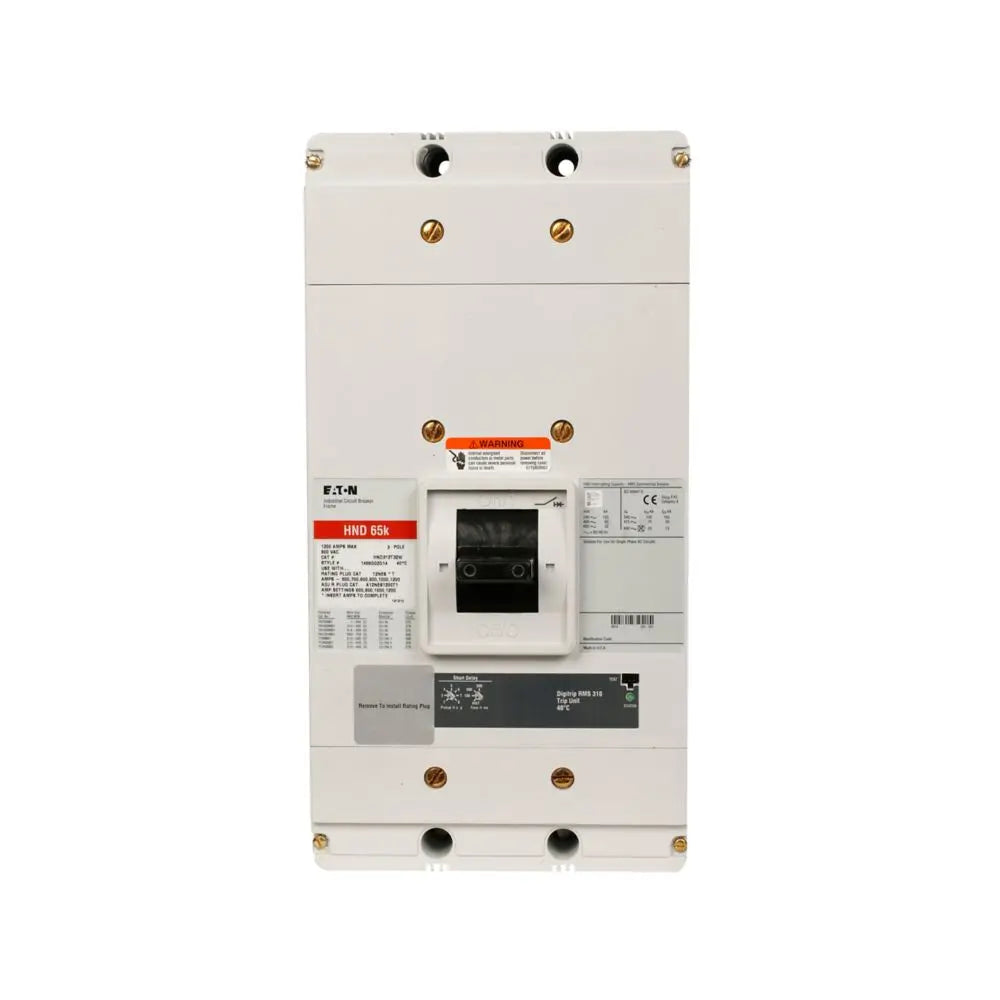

ND3800T33W is a 3-pole molded case circuit breaker manufactured by Eaton as part of the Series C ND3 Frame. It is rated for 800 A and 600 V AC, and features an electronic trip unit for precise and reliable protection against overloads and short circuits. Designed for demanding industrial power distribution systems, the ND3800T33W provides accurate trip settings, high interrupting capacity, and long service life. This breaker is engineered for switchboards, panelboards, and MCCs requiring high performance and compact form. It supports a range of Eaton accessories, including auxiliary contacts, shunt trips, and communication modules.

• Part Number: ND3800T33W
• Manufacturer: Eaton
• Series / Frame: Series C / ND3 Frame
• Product Type: Molded Case Circuit Breaker (MCCB)
• Poles: 3
• Amperage Rating: 800 A
• Voltage Rating: 600 V AC / 250 V DC
• Trip Unit Type: Electronic Trip (Adjustable)
• Interrupting Rating: Up to 65 kA at 480 V AC
• Frame Type: ND3 Frame (Series C)
• Mounting Type: Bolt-on or panel mount
• Application: Feeder and main protection for industrial switchboards and distribution panels
• Certifications: UL 489 Listed, CSA Certified, IEC 60947-2 Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ND3800T33W
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : ND
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : LS - Long-Time and Short-Time
• Frame Size : N Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 786679252963
• GTIN : 00786679252963
• Country of Origin : United States
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 48.1
• Certification : HACR Rated
