2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Molded Case
Description

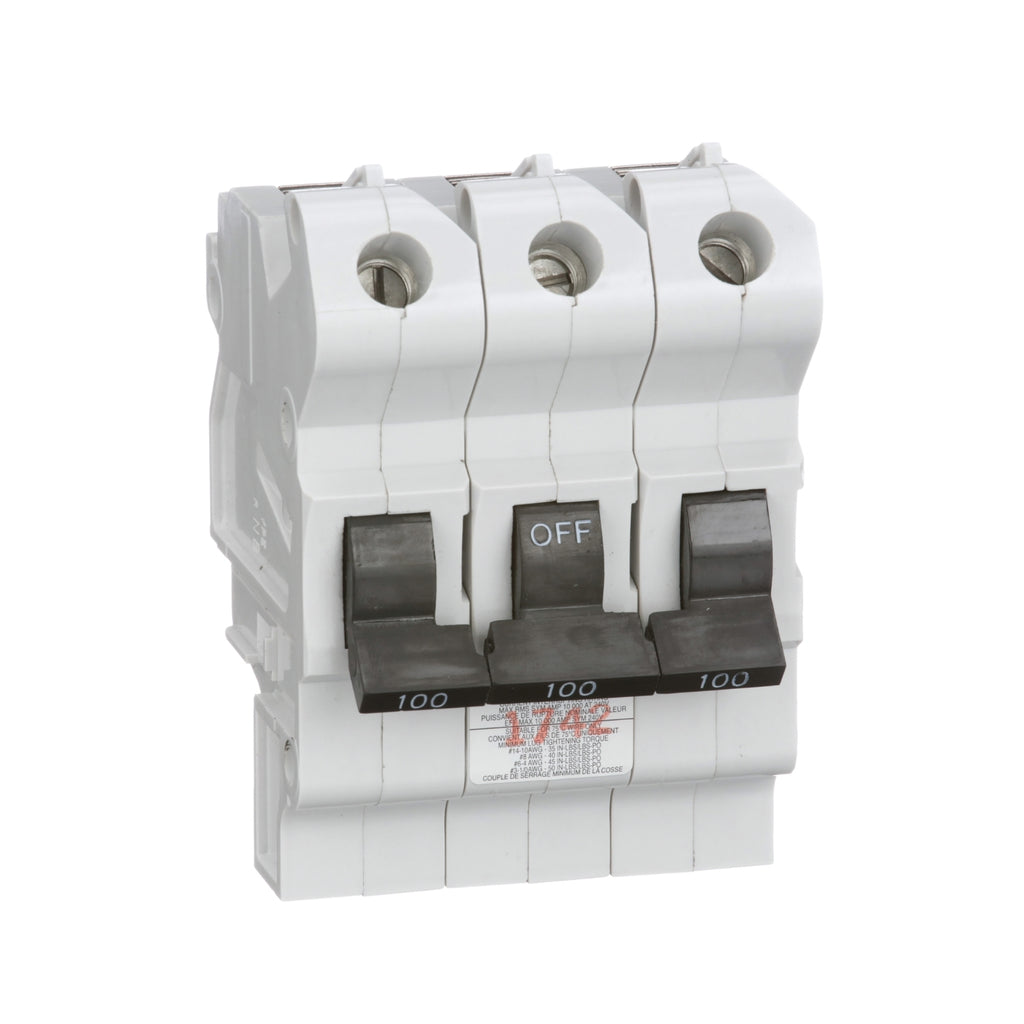

NA3P100
NA3P100 is a 3 pole, 100 ampere rated circuit breaker designed for 240 volt AC applications with a 10 kA interrupt rating. This Stab-Lok plug-in circuit breaker from Federal Pacific Electric (American) features thermal magnetic trip protection and is calibrated at 40 degrees Celsius for reliable performance in standard electrical distribution systems.Key Specifications
- Part Number: NA3P100
- Manufacturer: Federal Pacific Electric / American
- Amperage Rating: 100 A
- Voltage Rating: 240 V AC
- Poles: 3
- Interrupt Rating: 10 kA
- Trip Type: Thermal Magnetic
- Mounting: Plug-in
- Series: Stab-Lok
- Dimensions: 3.25 inches L x 3 inches W x 2.5 inches H
- Weight: 5 lb
Specifications
- Part Number: NA3P100
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Stab-Lok
- Type : NA
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 1
- Certification : CSA
- Wire Size : AWG 14...AWG 1/0 copper
