Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Molded Case
Description
NA2P125

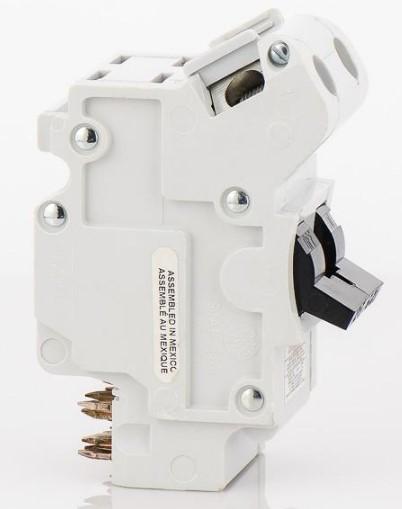

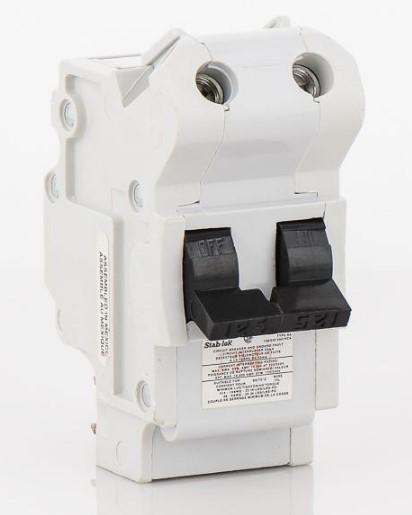

NA2P125 is a 125 amp, 2-pole thermal magnetic circuit breaker designed for plug-in mounting in residential and commercial electrical panels.
This American/Federal Pacific NA2P125 circuit breaker operates at 240 volts AC and features a thermal magnetic trip unit providing reliable long-time and instantaneous trip protection. It has a plug-in connection type compatible with Federal Pacific Stab-Lok style panels. The breaker has an interrupting rating of 10,000 amps at 240 volts, ensuring safe interruption of fault currents.
- Manufacturer: American/Federal Pacific
- Part Number: NA2P125
- Amperage: 125 Amps
- Voltage: 240 Volts AC
- Poles: 2
- Trip Unit: Thermal Magnetic
- Mounting Type: Plug-In
- Interrupt Rating: 10kA at 240V
- Series/Frame: NA Stab-Lok
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: NA2P125
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Stab-Lok
- Type : NA
- Voltage : 240
- Amperage : 125
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 3
- Certification : CSA
- Wire Size : AWG 4...AWG 2/0 copper
