MXF36450G - Square D 450 Amp 600 Volt 3 Pole Molded Case Circuit Breaker MGA Frame G Interrupt Rating

MXF36450G

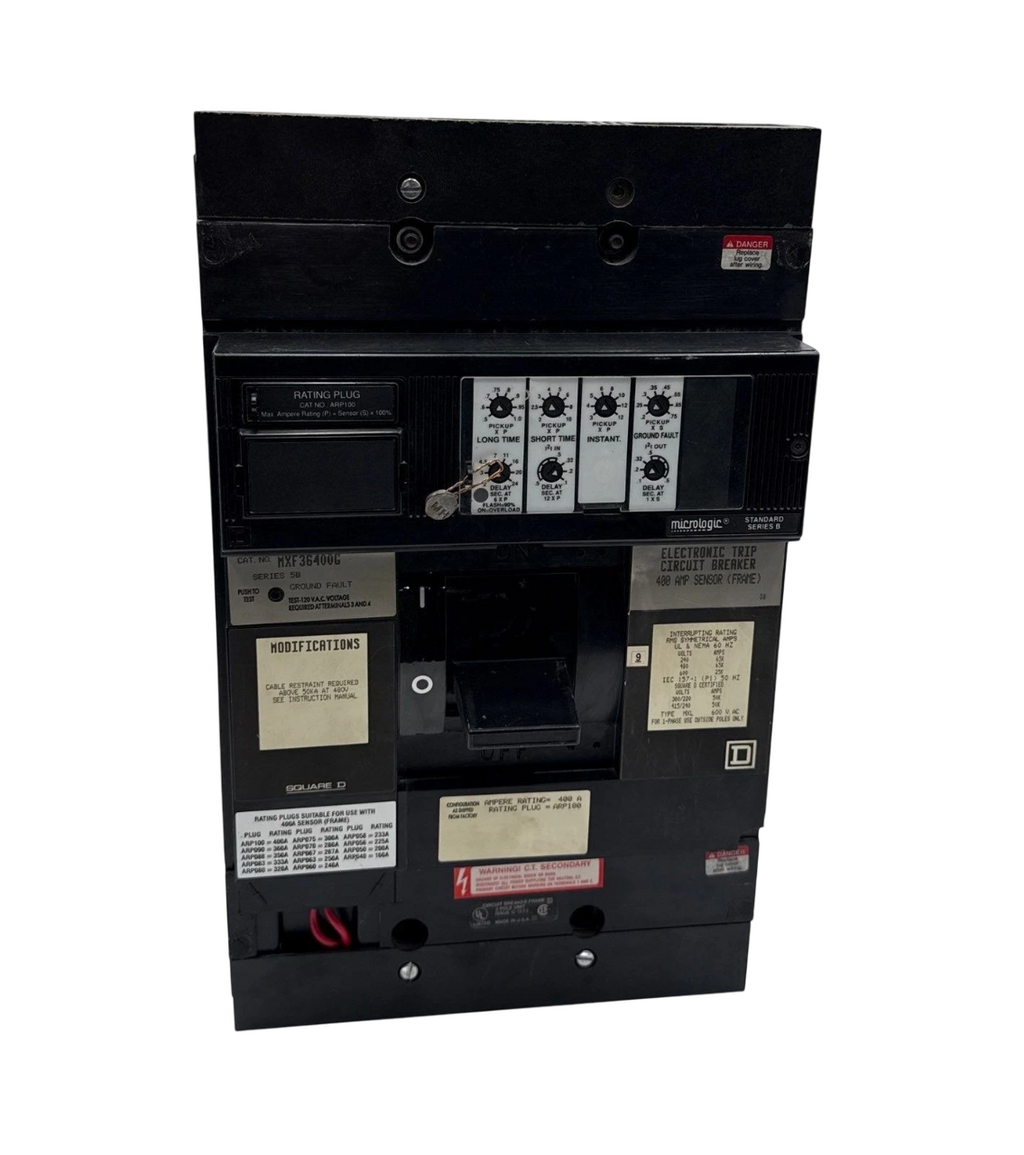

MXF36450G is a Square D 450 Amp, 600 Volt, 3 Pole molded case circuit breaker designed for reliable electrical protection.This circuit breaker features a plug-in I-Line mounting style with a G interrupting rating, suitable for high interrupting capacity applications. It is part of the MGA series/frame and includes long-time and instantaneous trip functions. The breaker is UL listed and designed for use with load side lug terminals, providing solid state protection for industrial and commercial power distribution systems.

Key Specifications
• Amperage: 450 Amp
• Voltage: 600 Volt
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: G Code (35kA @ 480V)
• Series/Frame: MGA
• Trip Unit: Long-Time and Instantaneous
• UL Listed
• Load Side Lug Terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: MXF36450G
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Micrologic
• Type : MXF
• Voltage : 600
• Amperage : 450
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State



Product Data

• Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
• Weight : 50
