Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
MXF36450

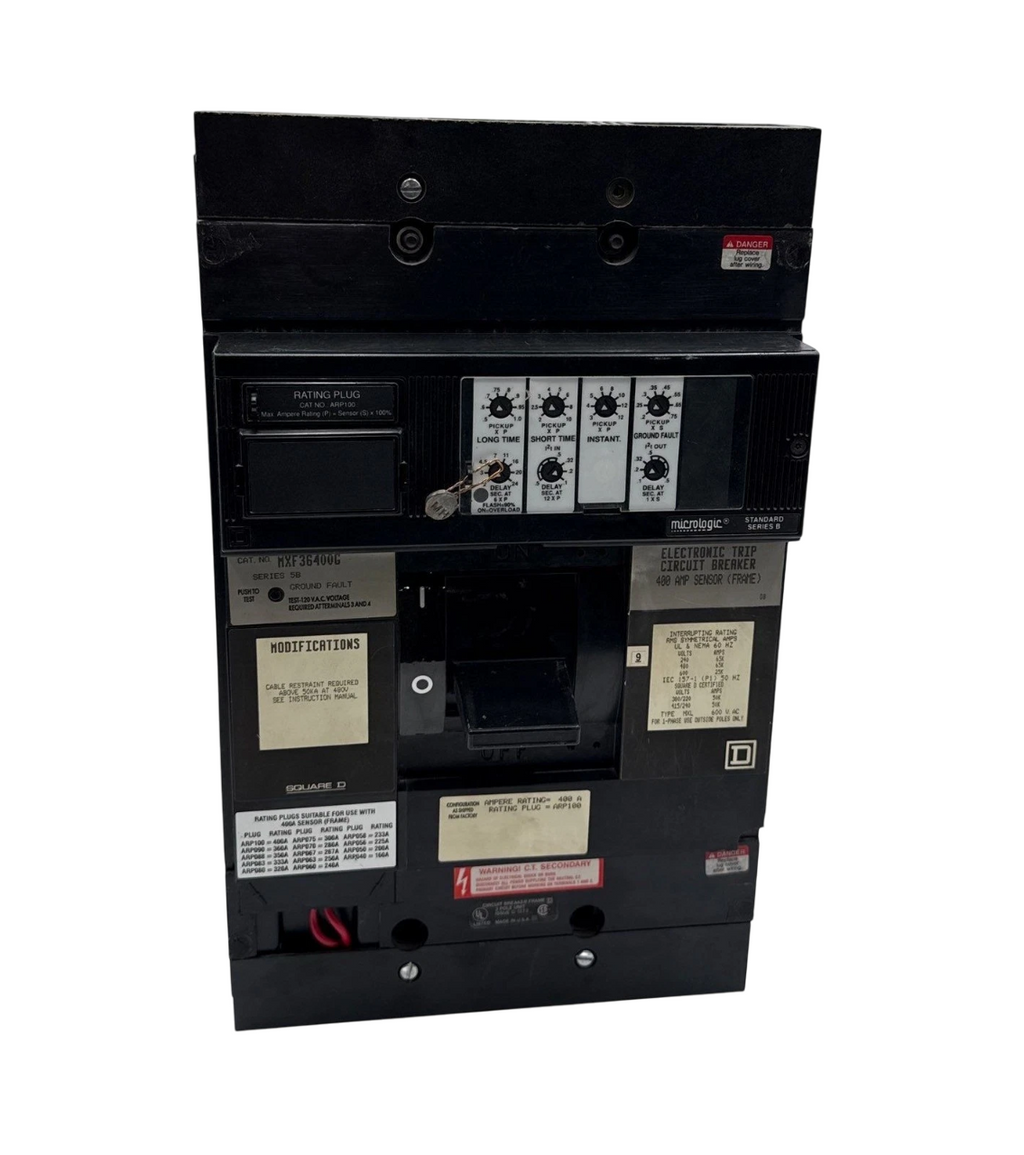

MXF36450 is a Square D molded case circuit breaker designed for industrial power distribution applications. MXF36450 is a 3-pole thermal magnetic molded case circuit breaker with a current rating of 450 amperes and voltage rating of 600VAC, 250VDC. This breaker features Micrologic trip unit technology and bolt-on connection type for secure installation in panelboards and switchboards. The unit includes long time, short time, and instantaneous trip functions for comprehensive circuit protection. Key Specifications
- Amperage: 450A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Series: MXF
- Connection Type: Bolt-On
- Protection Type: Thermal Magnetic with Micrologic
- Trip Functions: Long Time, Short Time, Instantaneous
- Frame Type: MXF
- Certification: UL Listed
- Temperature Rating: 40 degrees Celsius
- Wire Gauge: #3/0 AWG to 500 KCmil
- Weight: 17 lbs
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: MXF36450
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Micrologic
- Type : MXF
- Voltage : 600
- Amperage : 450
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
- Weight : 50
