Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
MHL3680036DC1680

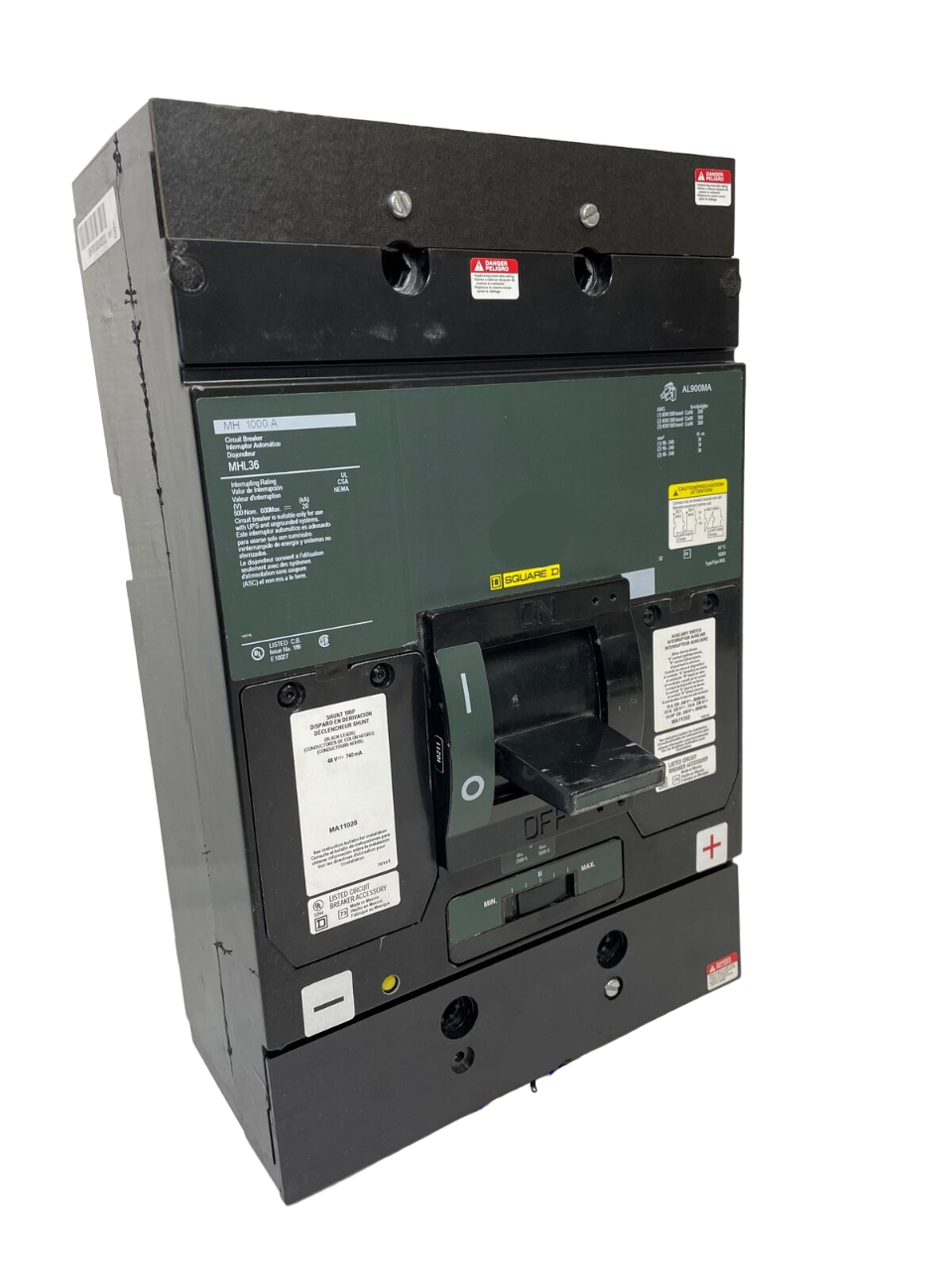

MHL3680036DC1680 is a 3-pole, 600-volt, 800-amp rated molded case circuit breaker from Square D / Schneider Electric, designed for industrial power distribution applications.
This thermal-magnetic circuit breaker features a bolt-on mounting style and is engineered for reliable overcurrent protection in medium to high-amperage systems. The unit is manufactured in the United States and is part of the MHL series, offering proven performance in demanding electrical environments. Compatible with auxiliary and shunt trip attachments for enhanced control capabilities.
- Amperage Rating: 800 Amps
- Voltage Rating: 600V Maximum
- Number of Poles: 3
- Type: Molded Case, Thermal-Magnetic
- Mounting Style: Bolt-On
- Series: MHL
- Interrupt Rating: 20kA @ 500VDC
- Magnetic Trip Range: 2000-4000A
- Dimensions: 9 inch W x 6.5 inch D x 14 inch H
- Weight: 28 lbs
- Country of Origin: United States
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MHL3680036DC1680
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MHL Series
- Type : MHL
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 20kA@500VDC
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
Product Data
- Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
- Weight : 40
