Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
MHL3680036DC

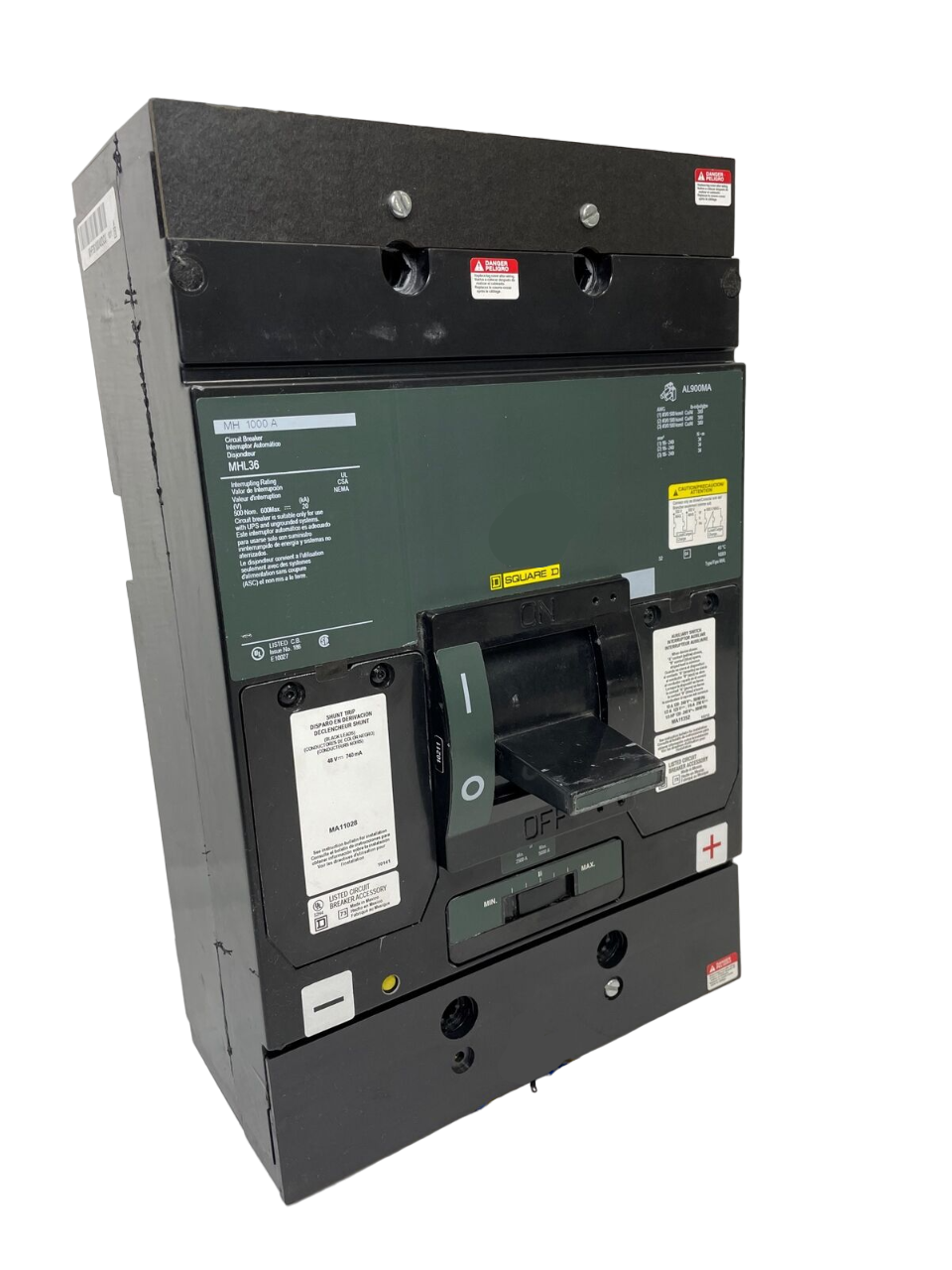

MHL3680036DC is a 3 pole, 800A, 600V molded case circuit breaker designed for feed-thru applications with thermal magnetic protection. This Square D MHL3680036DC breaker features a feed-thru design for easy installation and reliable circuit protection in demanding environments. It is rated for 800 amps at 600 volts AC and 500 volts DC, with a 20kA interrupting rating at 500VDC. The breaker is part of the MHL series and utilizes a thermal magnetic trip unit for long-time and instantaneous protection. Suitable for use in industrial and commercial power distribution systems.
- Part Number: MHL3680036DC
- Manufacturer: Square D
- Amperage: 800A
- Voltage: 600VAC / 500VDC
- Poles: 3
- Mounting Type: Feed-Thru
- Interrupt Rating: 20kA @ 500VDC
- Series/Frame: MHL
- Protection Type: Thermal Magnetic
- Functions: Long Time and Instantaneous Trip
- Certifications: UL 489, CSA C22.2 No. 5-02
- Connection Type: Lugs Both Ends
Specifications
- Part Number: MHL3680036DC
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MHL Series
- Type : MHL
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 20kA@500VDC
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
Product Data
- Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
- Weight : 40
