Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG24544

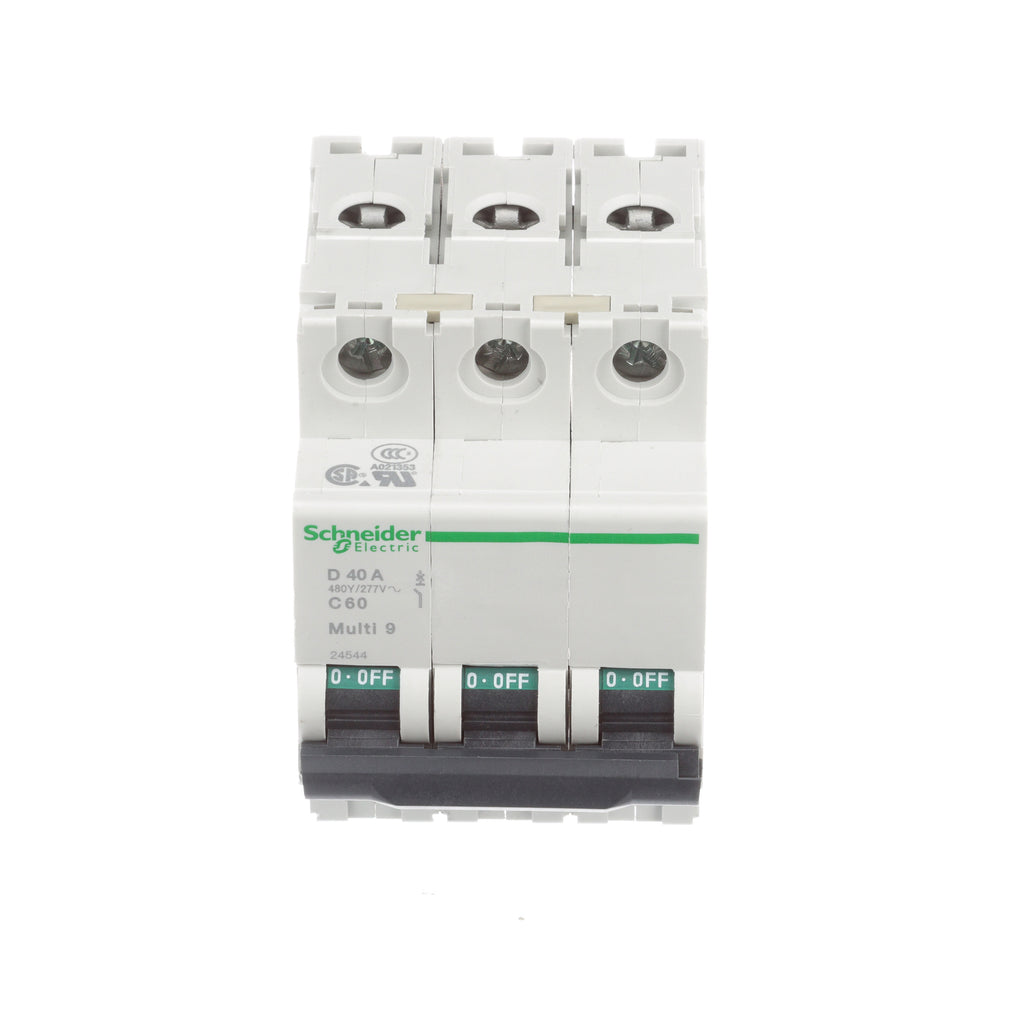

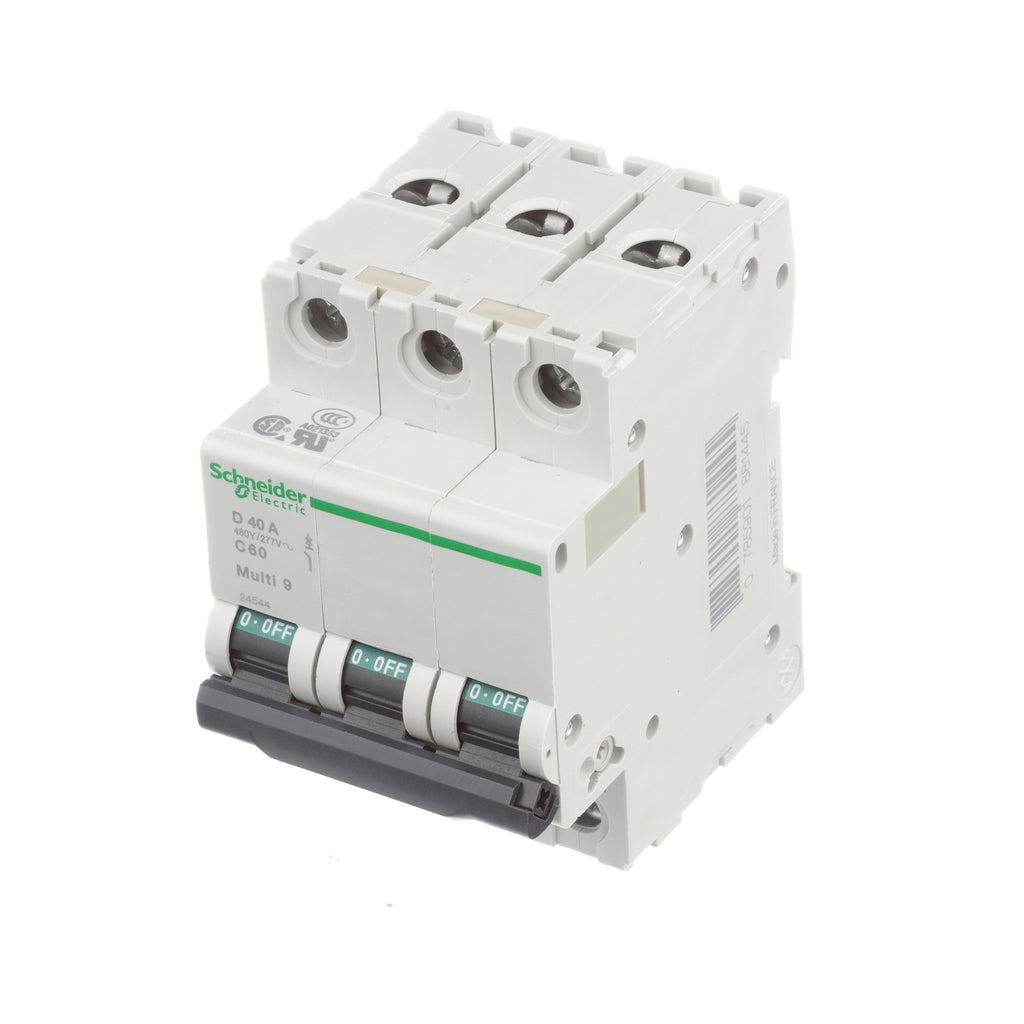

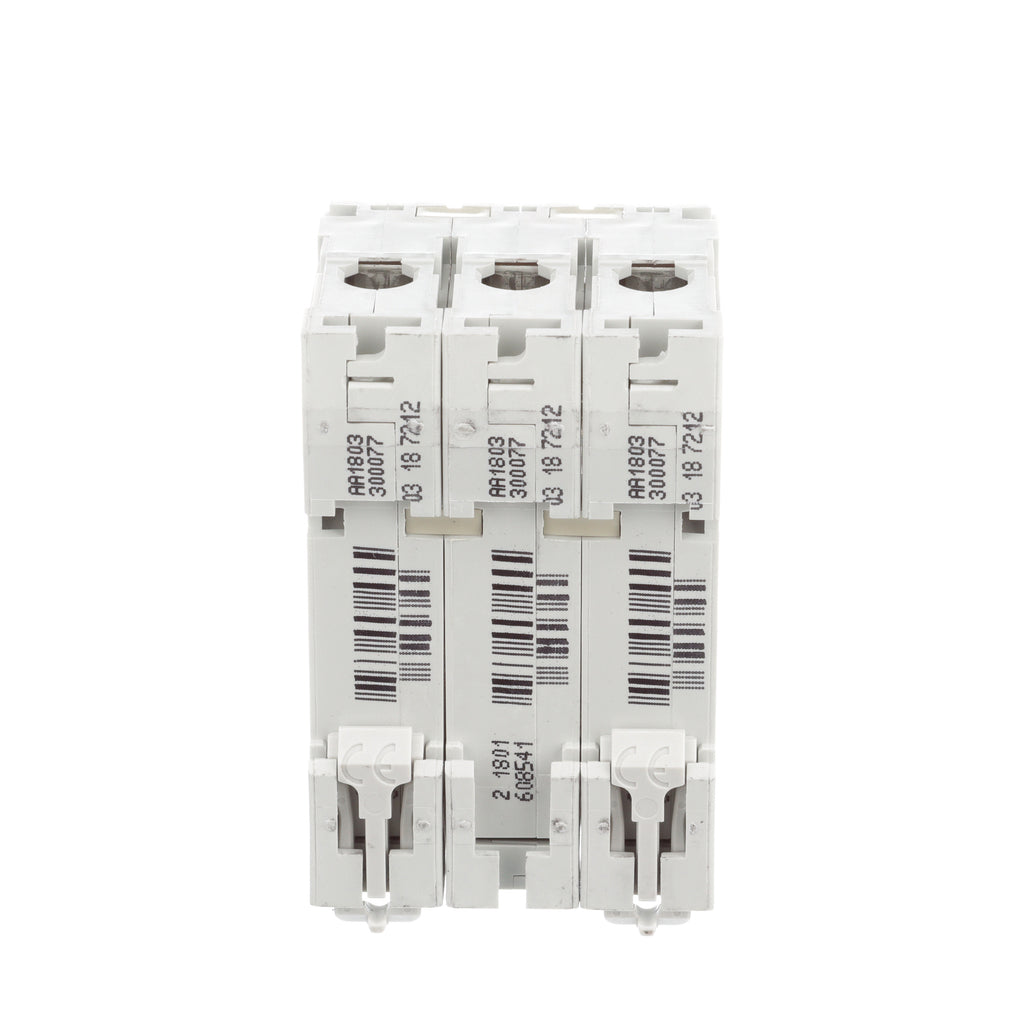

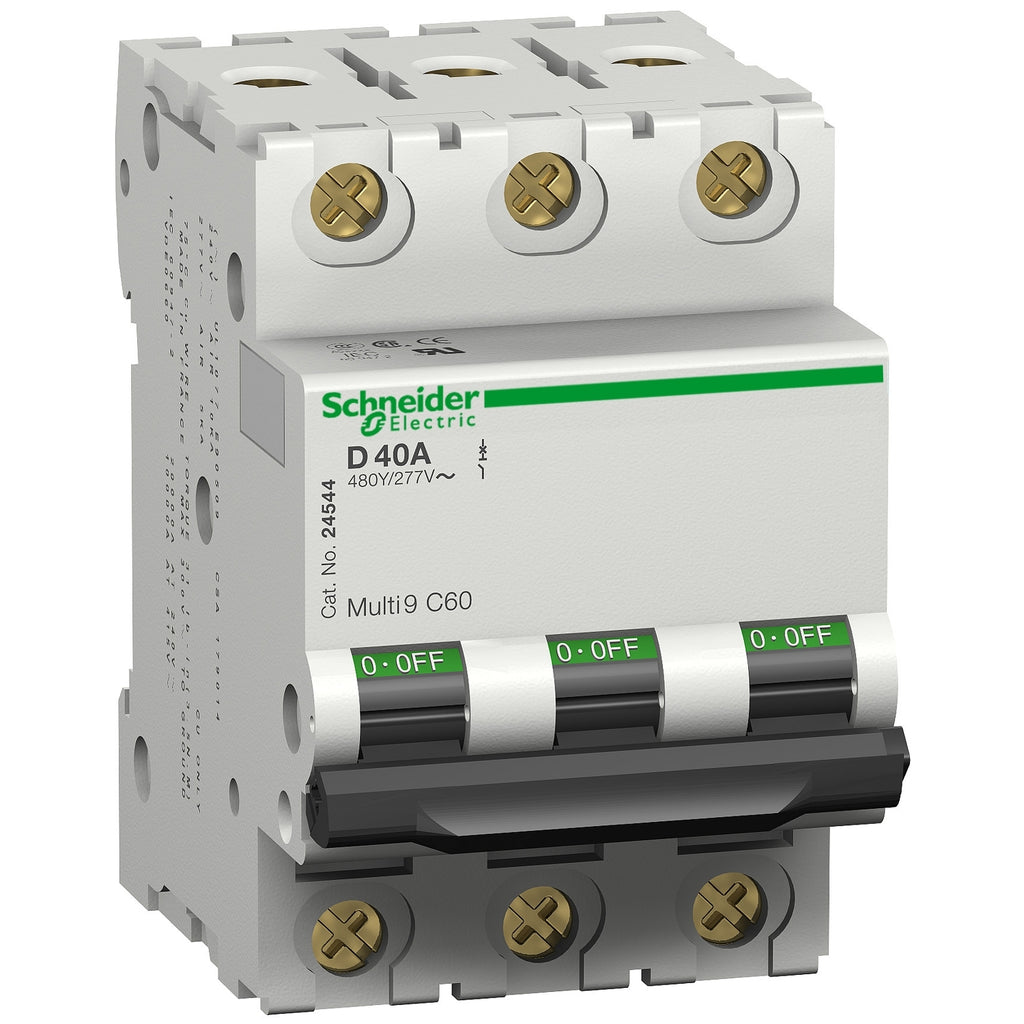

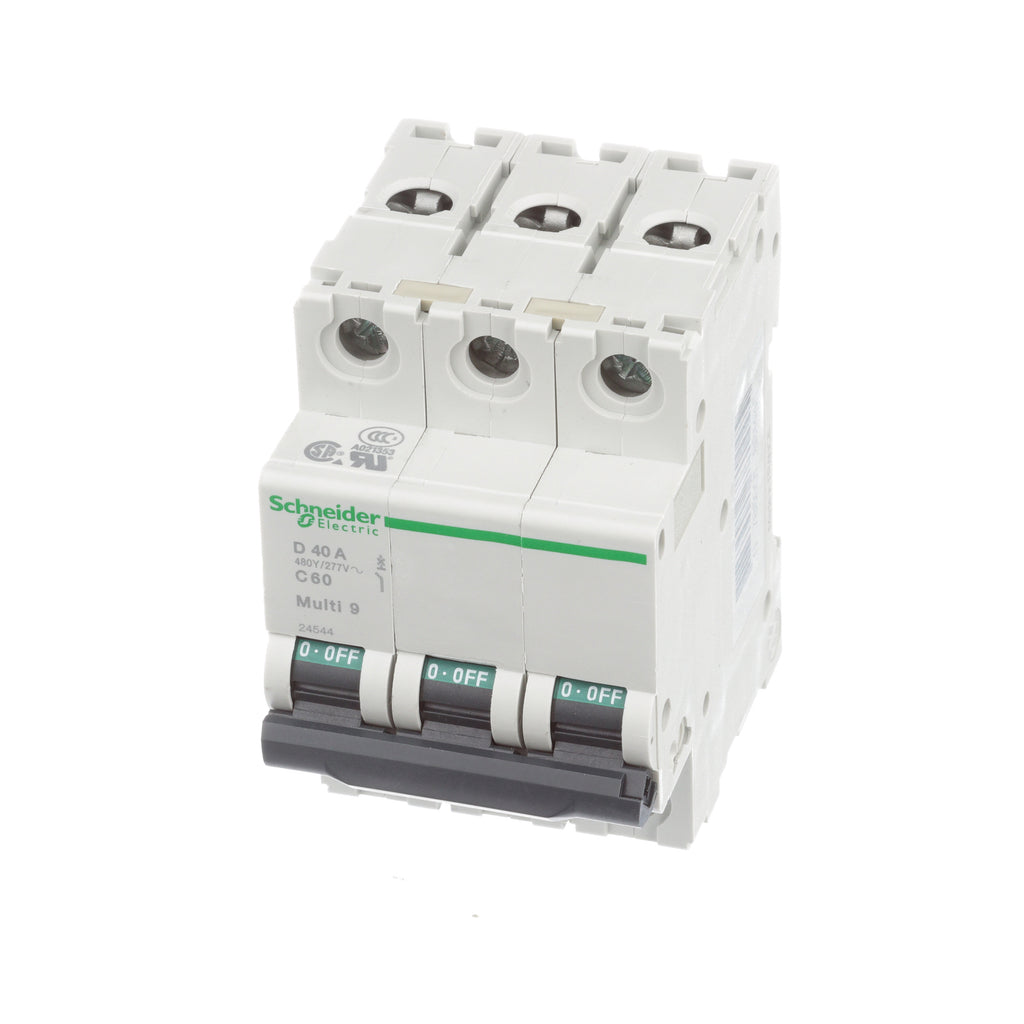

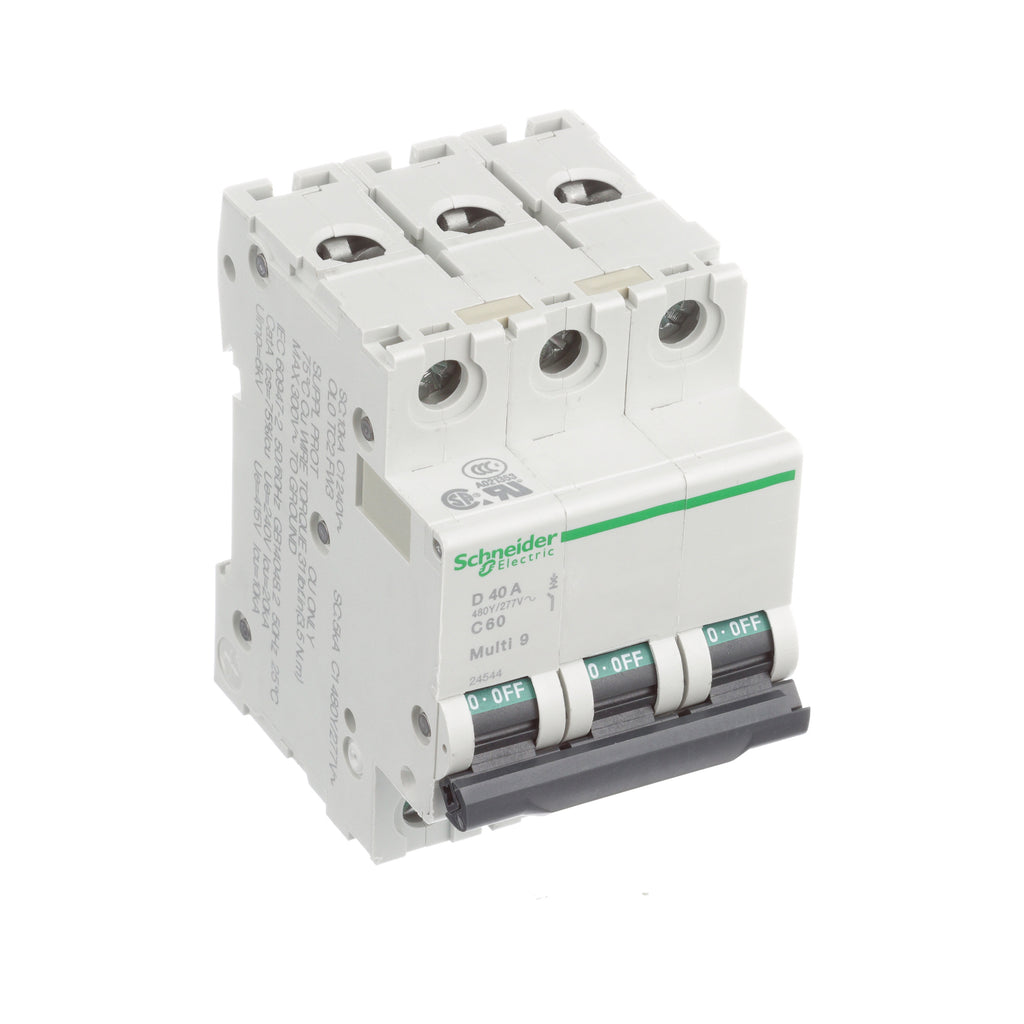

MG24544 is a 3 pole, 240 Volt, 40 Amp rated bolt-on circuit breaker from Schneider Electric's Multi9 family, featuring thermal-magnetic trip protection and a 10kA interrupt rating at 240V.
This molded case circuit breaker is designed for reliable overcurrent protection in industrial and commercial applications. The MG24544 combines compact design with proven performance, offering thermal-magnetic trip characteristics for both overload and short-circuit protection. Built to withstand demanding electrical environments, this breaker delivers consistent performance and safety.
- Part Number: MG24544
- Manufacturer: Schneider Electric
- Poles: 3
- Amperage: 40 Amps
- Voltage: 240V AC
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 10kA at 240V
- Series: Multi9
- Certifications: UL 1077, EN/IEC 60947-2, CSA C22.2 No 235
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MG24544
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Multi9
- Type : MG
- Voltage : 240
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- Dimensions : 3.2 in (81 mm) x 2.1 in (54 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 0.82
- Certification : UL, CSA, EN/IEC, CCC, EAC, GB, UR, CE
