Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG24485

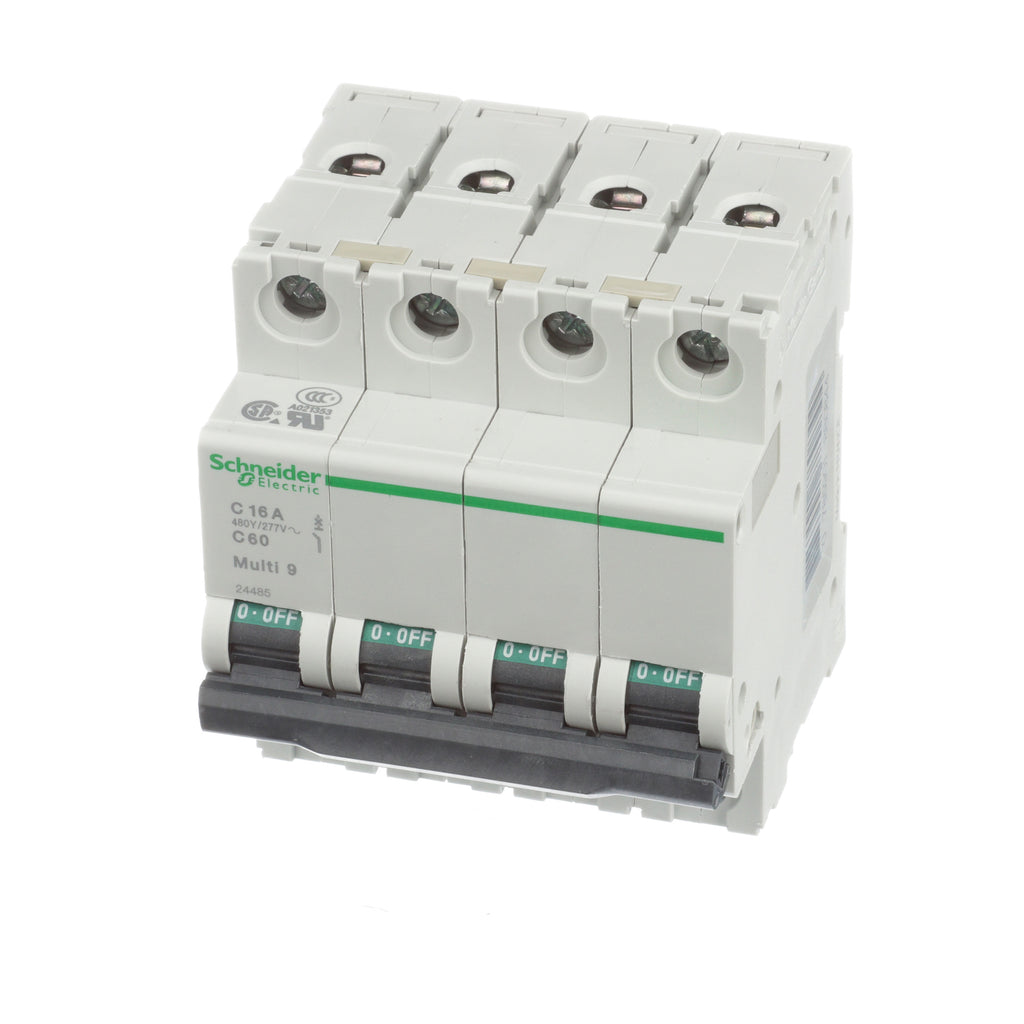

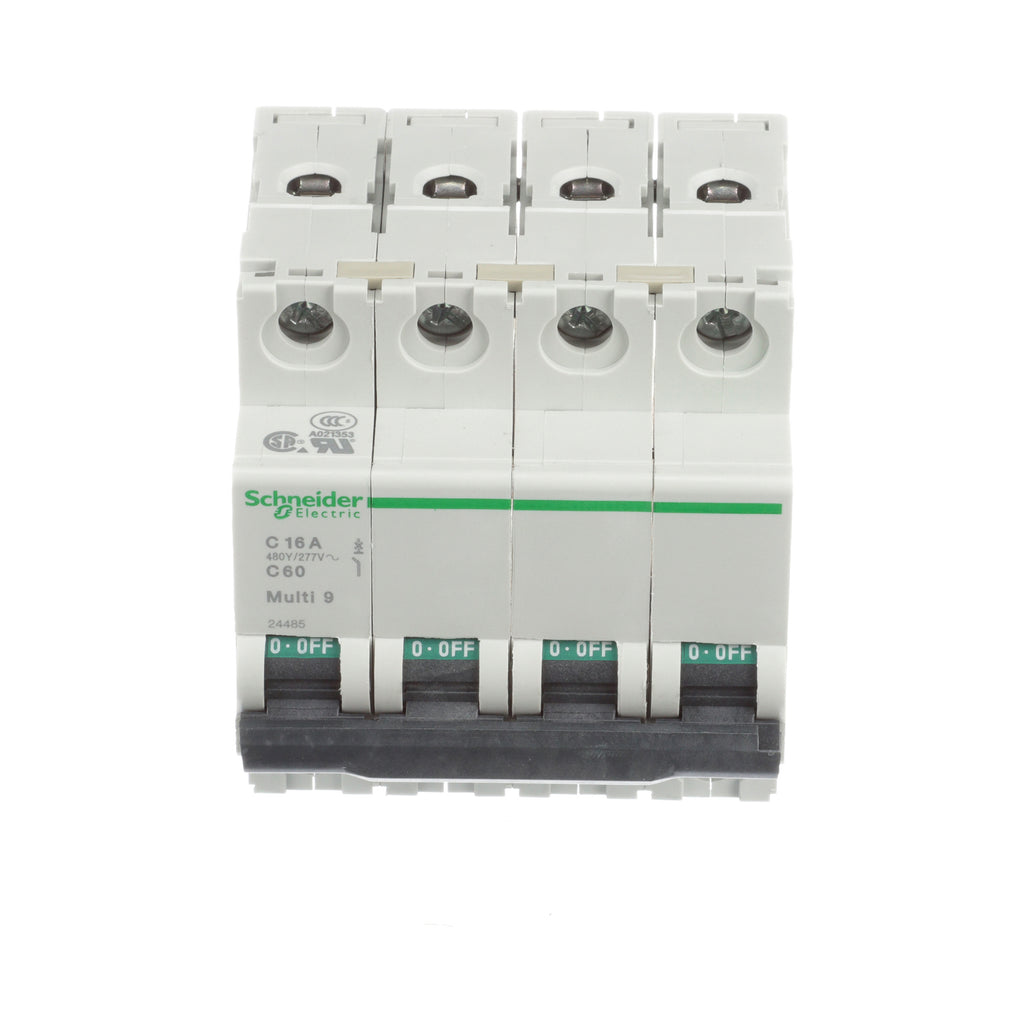

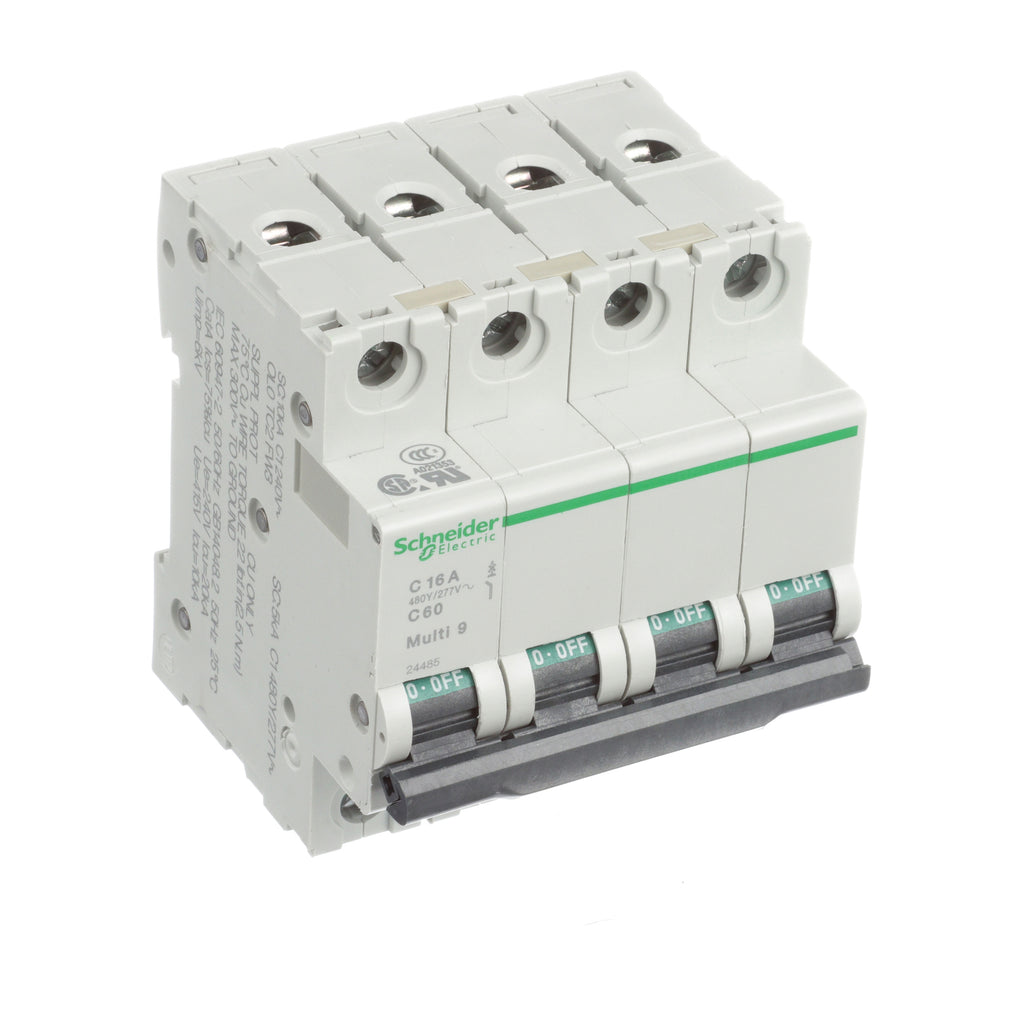

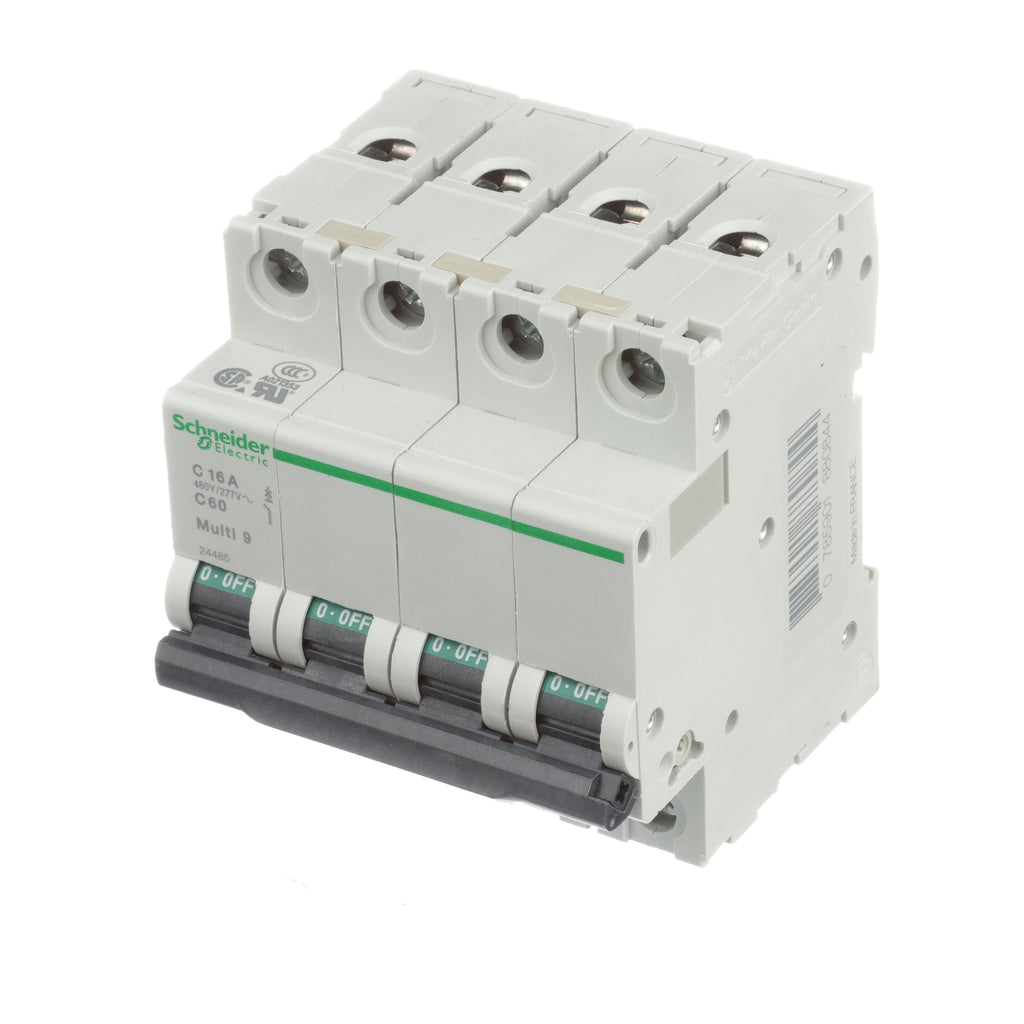

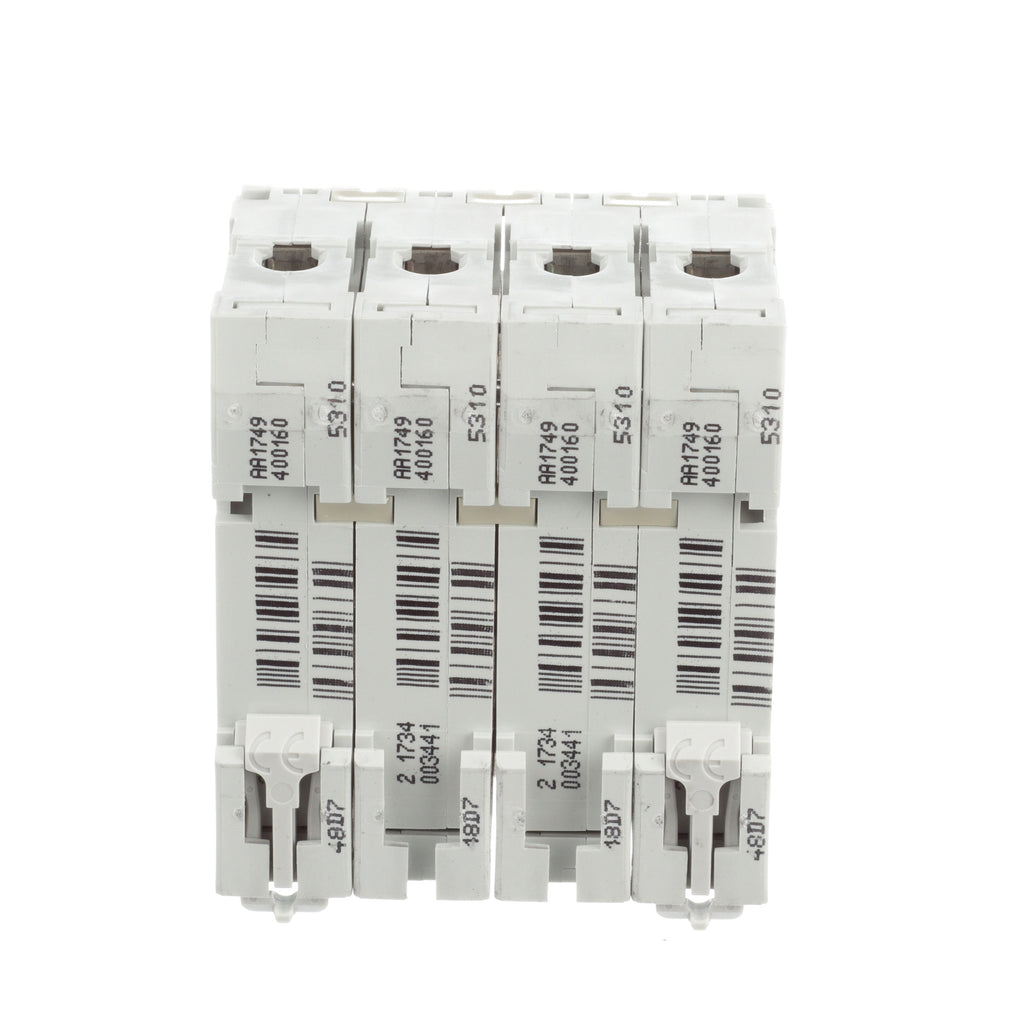

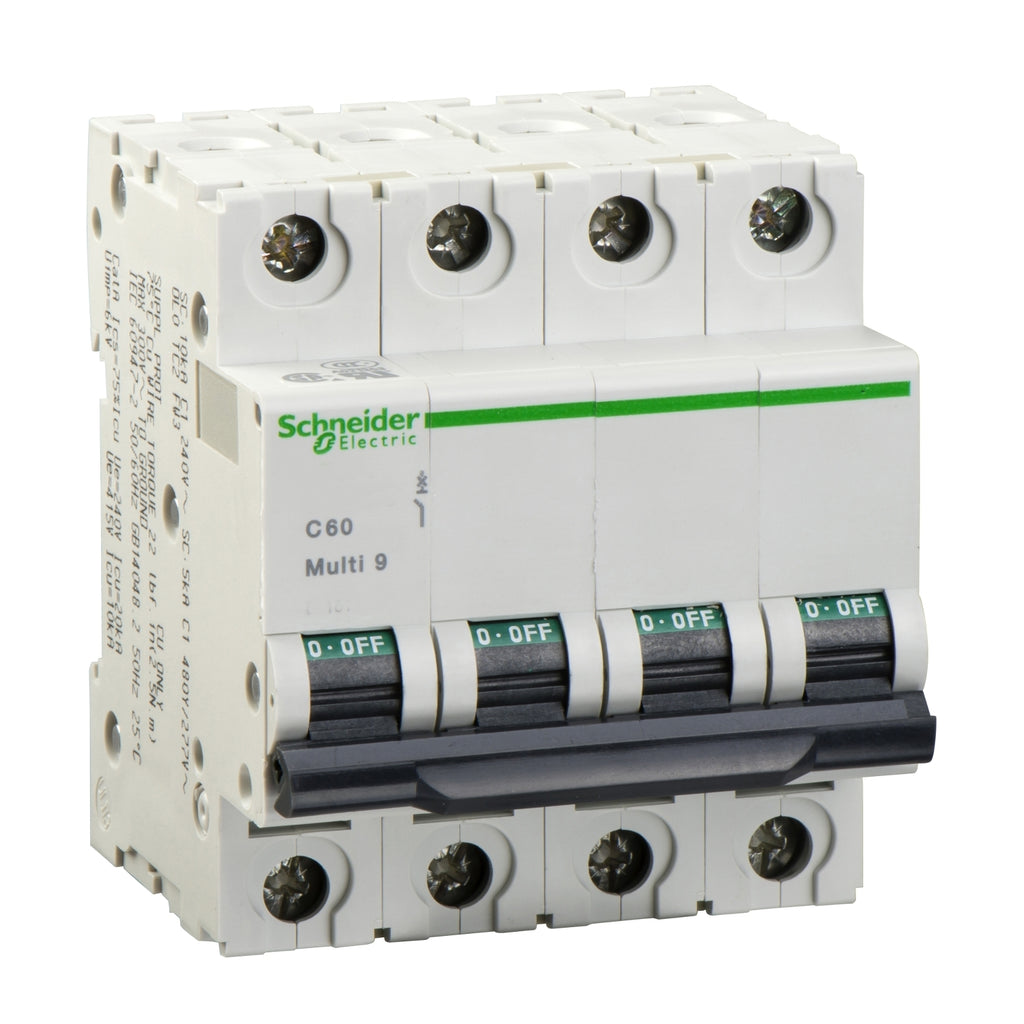

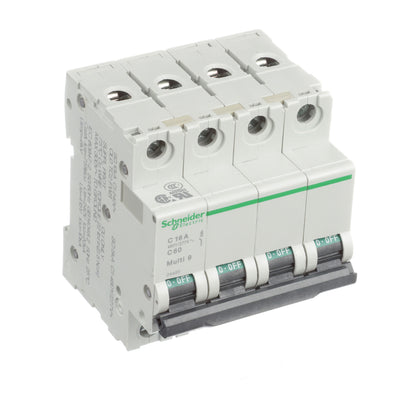

MG24485 is a Schneider Electric 4-pole circuit breaker rated for 16 amps and 480Y/277 volts with thermal magnetic trip protection.
This Multi9 series MG24485 circuit breaker features a C curve trip unit, bolt-on mounting, and is designed for AC applications. It has a 6 kA interrupt rating at 440 V AC and complies with EN/IEC 60947-2, UL 1077, and CSA C22.2 No 235 certifications. This breaker is suitable for three-phase systems and provides reliable protection with thermal magnetic trip technology.
- Amperage: 16 A
- Voltage: 480Y/277 V AC
- Poles: 4
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic, C Curve
- Interrupt Rating: 6 kA at 440 V AC
- Series/Frame: Multi9 MG
- Certifications: EN/IEC 60947-2, UL 1077, CSA C22.2 No 235
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MG24485
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Multi9
- Type : MG
- Voltage : 240
- Amperage : 16
- Phase : 3
- Poles : 4
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Country of Origin : France
- Dimensions : 3.2 in (81 mm) x 2.8 in (72 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 1.02
