Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG24474

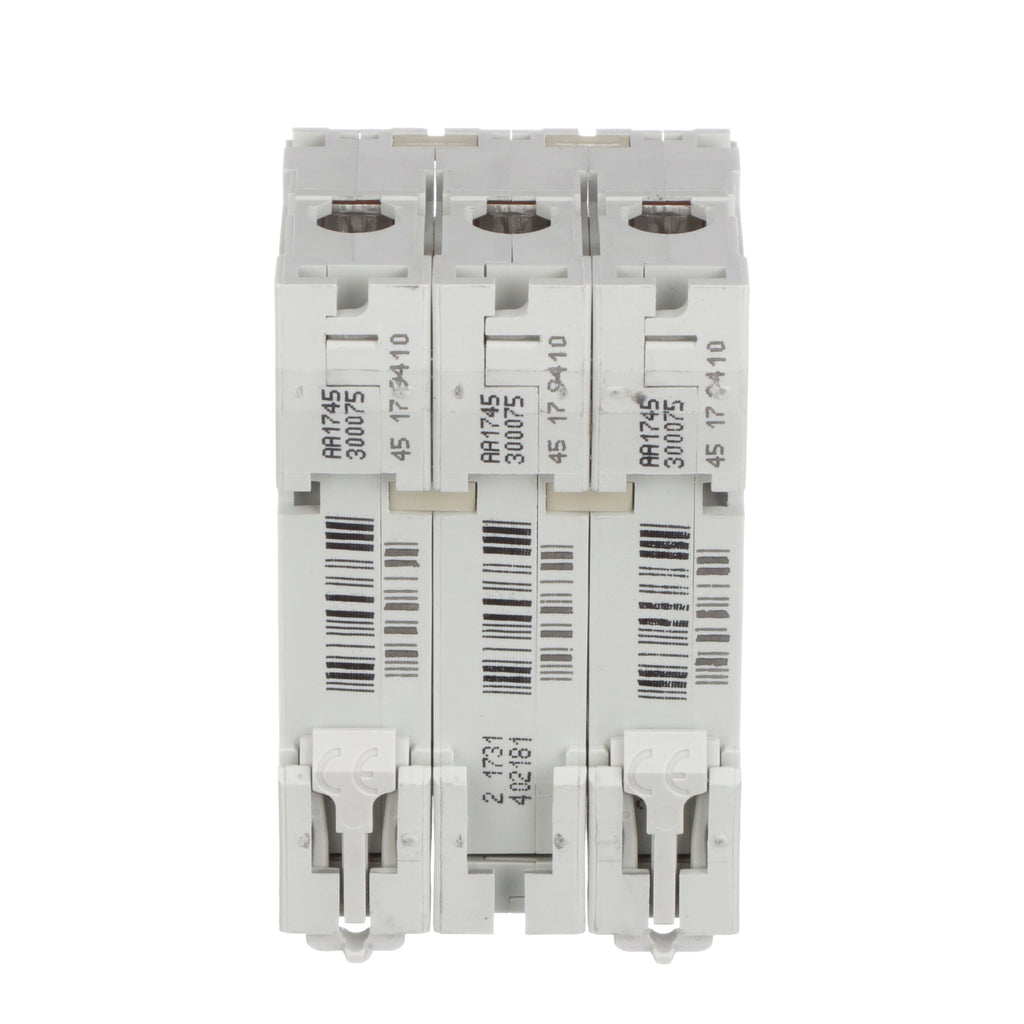

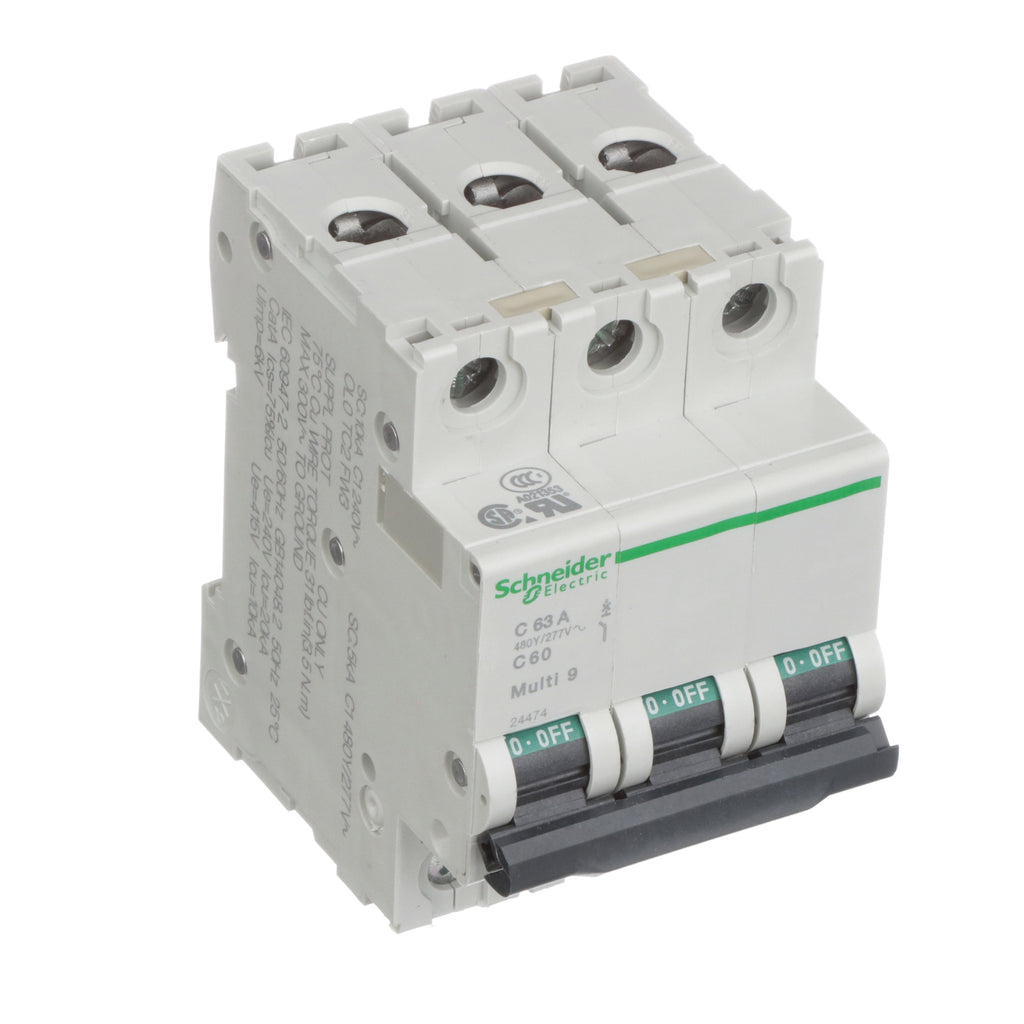

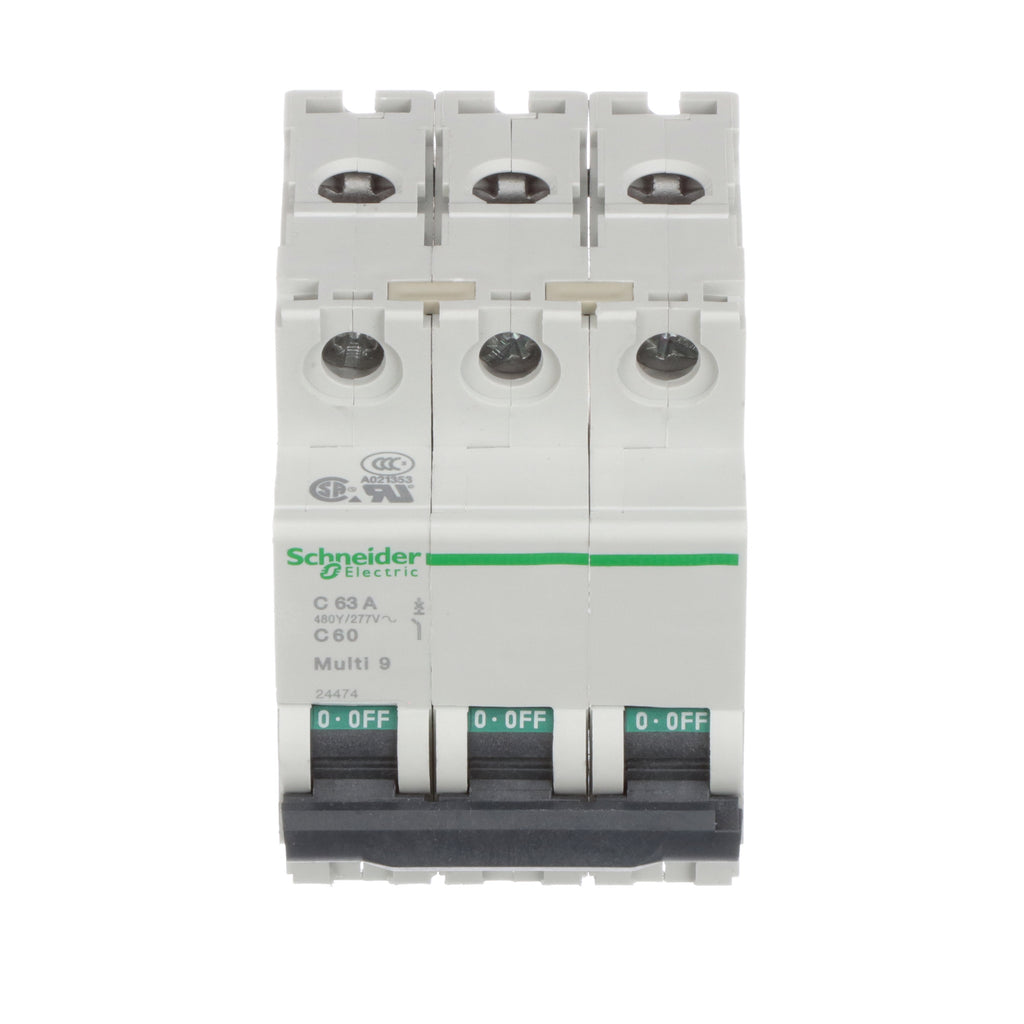

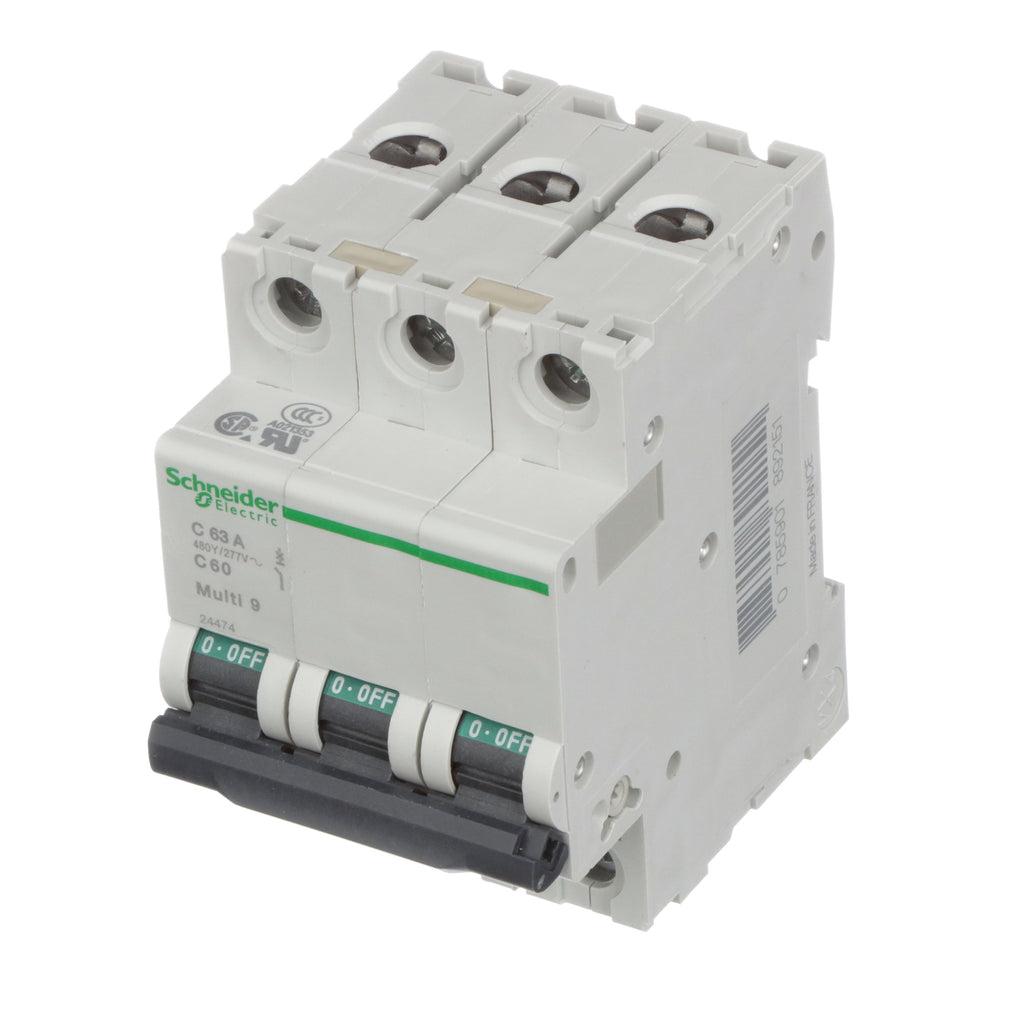

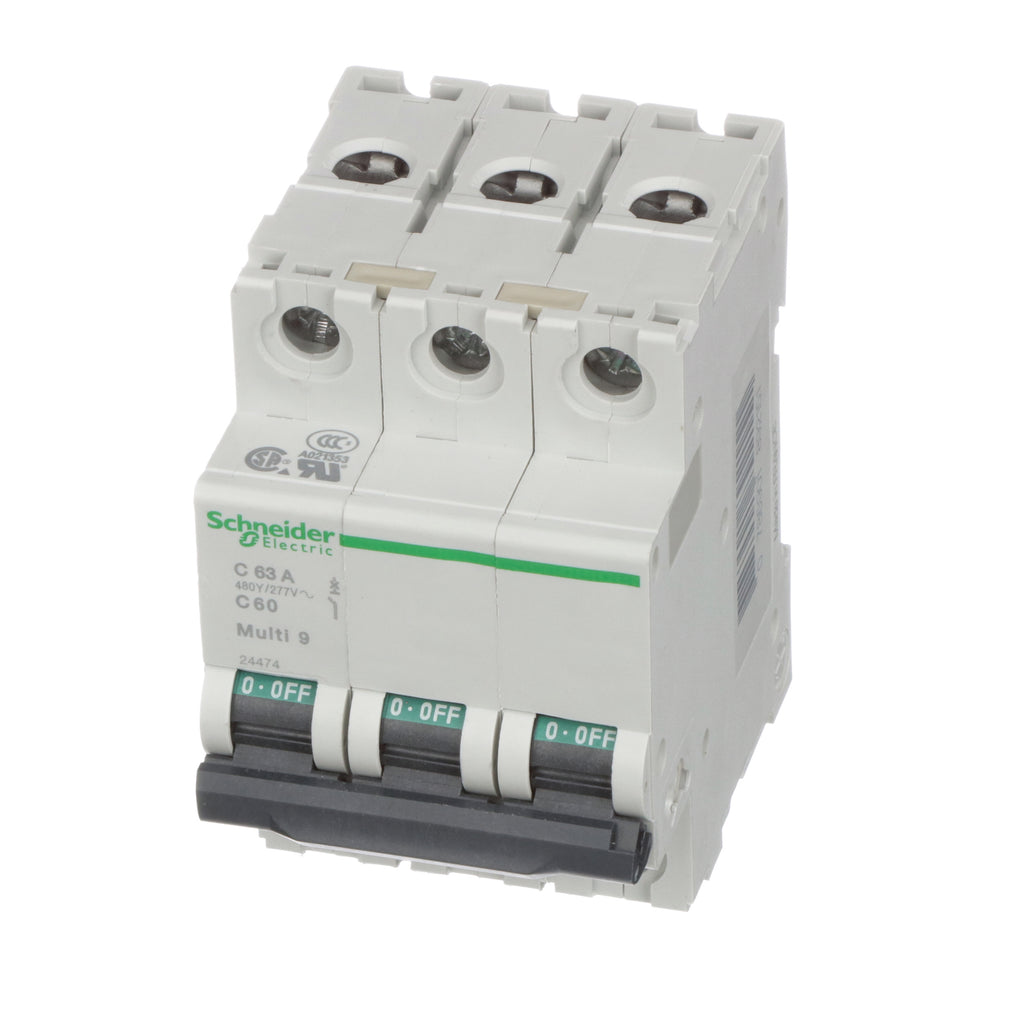

MG24474 is a Schneider Electric molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.This 3 pole breaker is rated for 63 amps and 480Y/277 volts AC, featuring a C curve thermal-magnetic trip unit. It offers a 5 kA interrupting rating (UL1077) and complies with IEC/EN 60947-2 standards. The breaker is part of the Multi9 C60 series and is suitable for bolt-on mounting.
- Key Specifications
- Amperage: 63 A
- Voltage: 480Y/277 V AC
- Poles: 3
- Trip Curve: C Curve (thermal-magnetic)
- Interrupt Rating: 5 kA (UL1077)
- Series/Frame: Multi9 C60
- Mounting Type: Bolt-On
- Certifications: UL1077, IEC/EN 60947-2
- Discontinued: Yes, replaced by M9F22363
- Part Number: MG24474
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 240
- Amperage : 63
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 785901892151
- GTIN : 785901892151
- Dimensions : 3.2 in (81 mm) x 2.1 in (54 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 0.86
- Certification : UL Listed and CSA Certified
