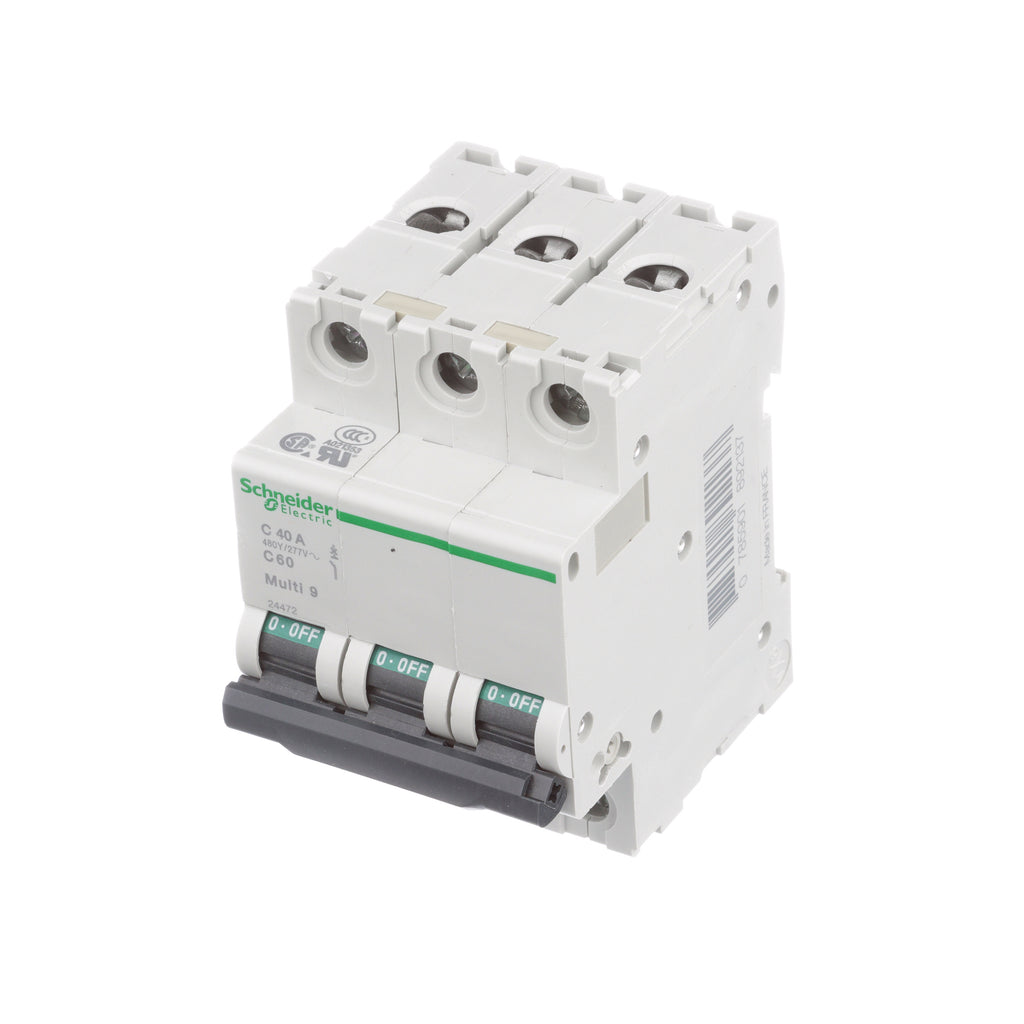

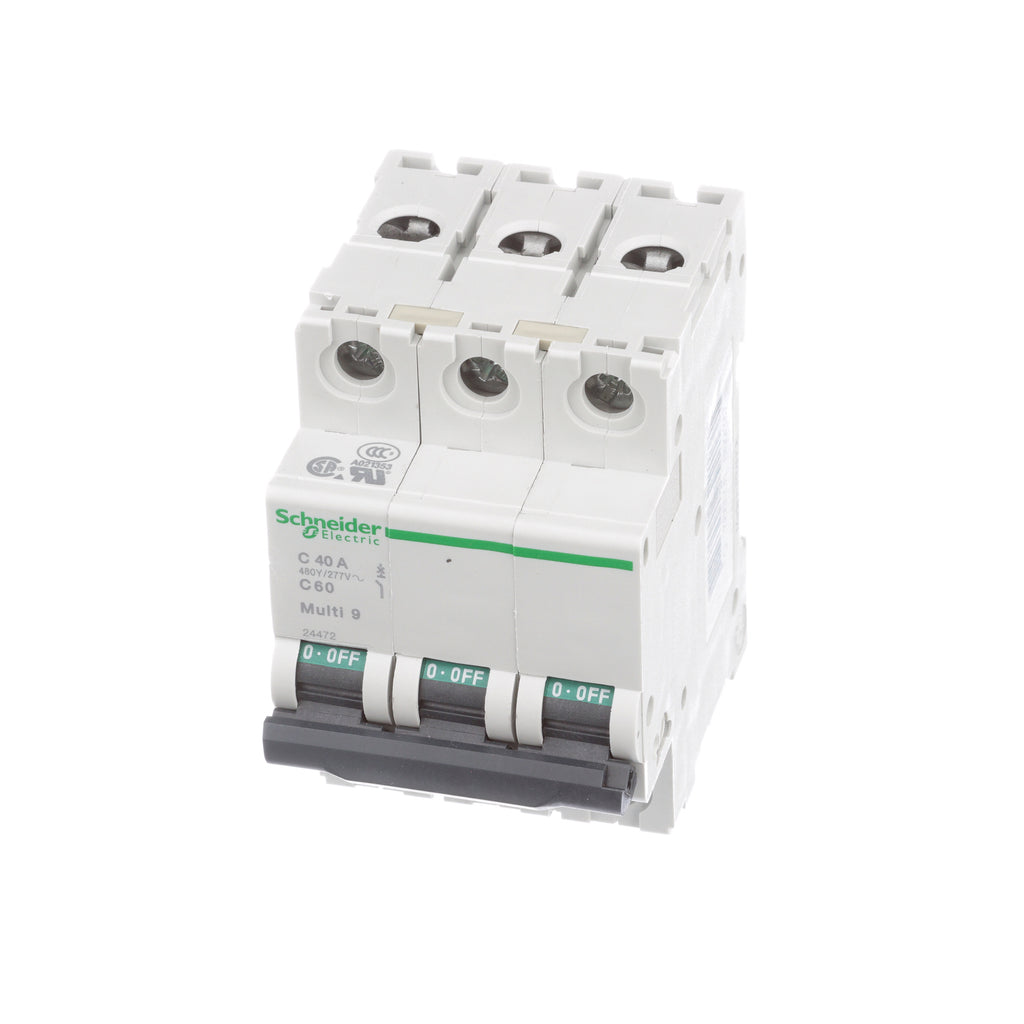

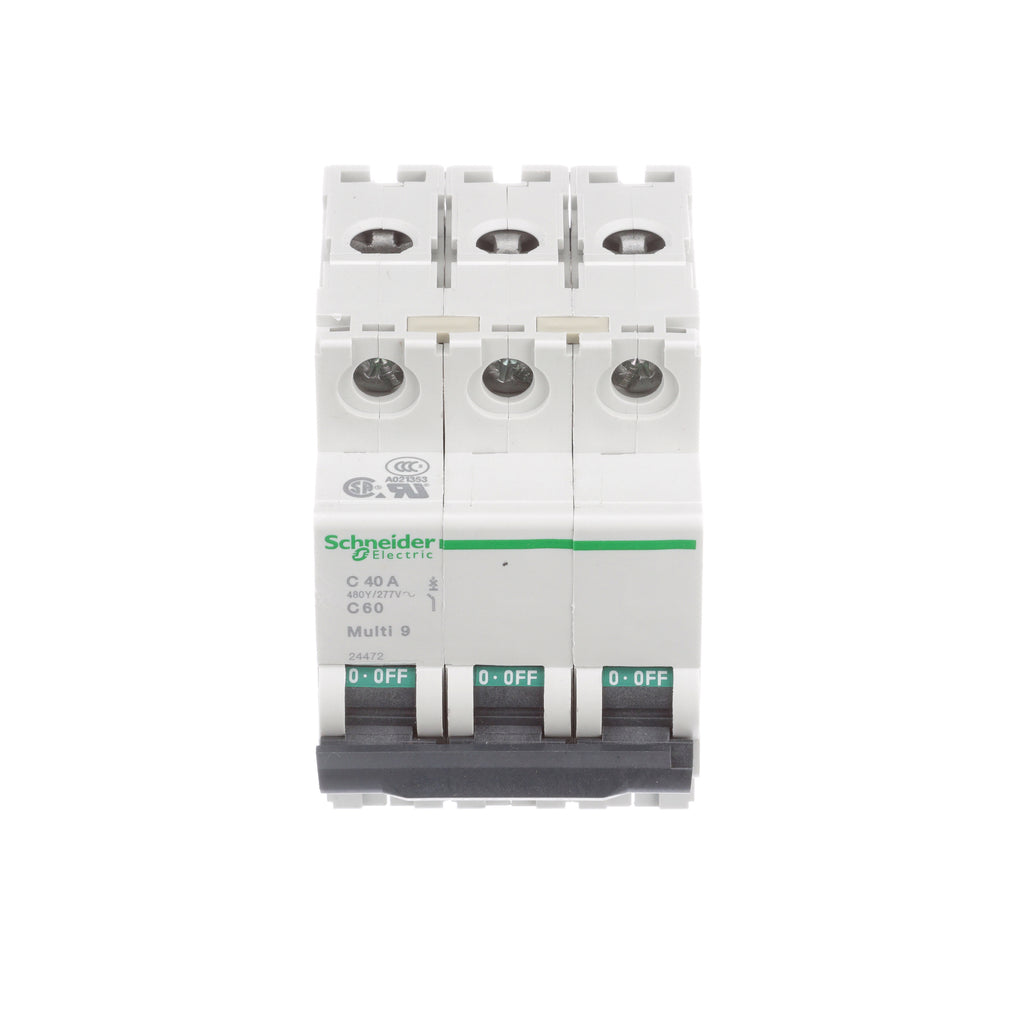

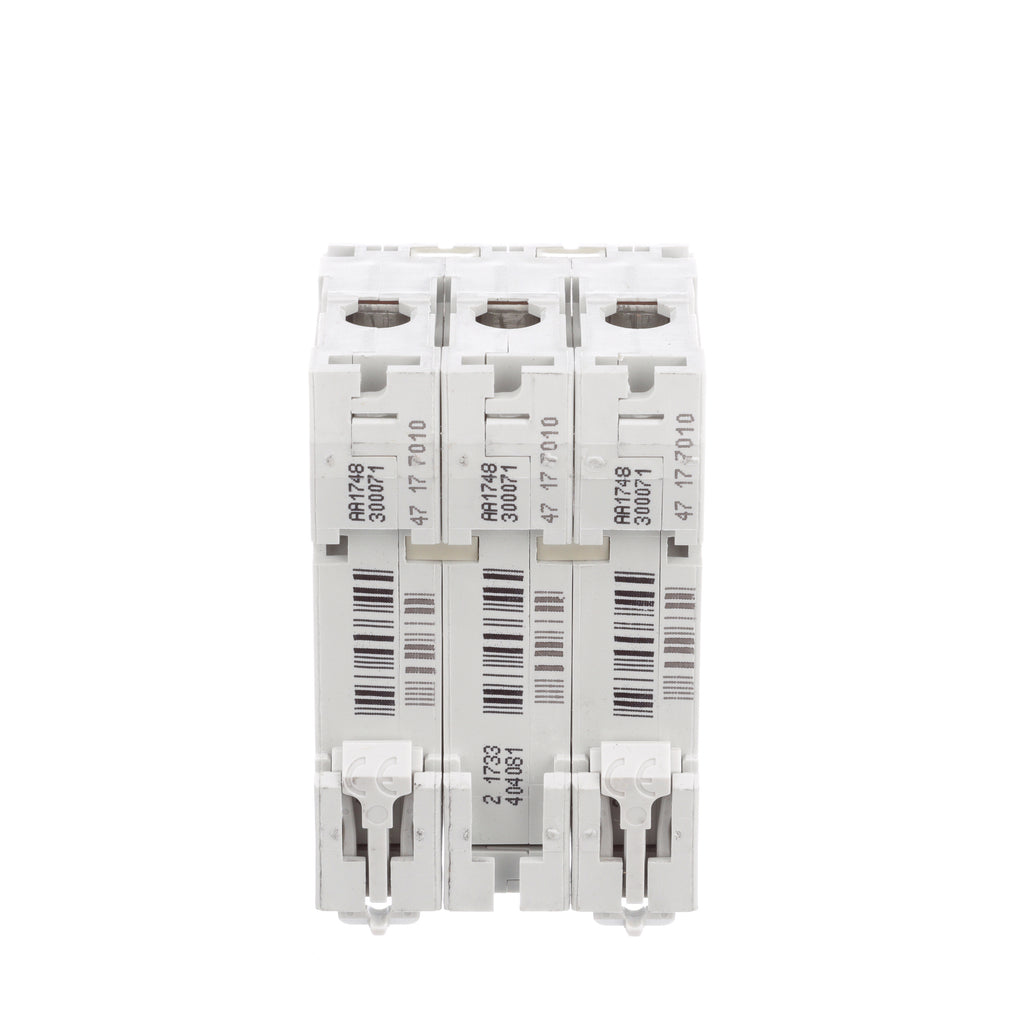

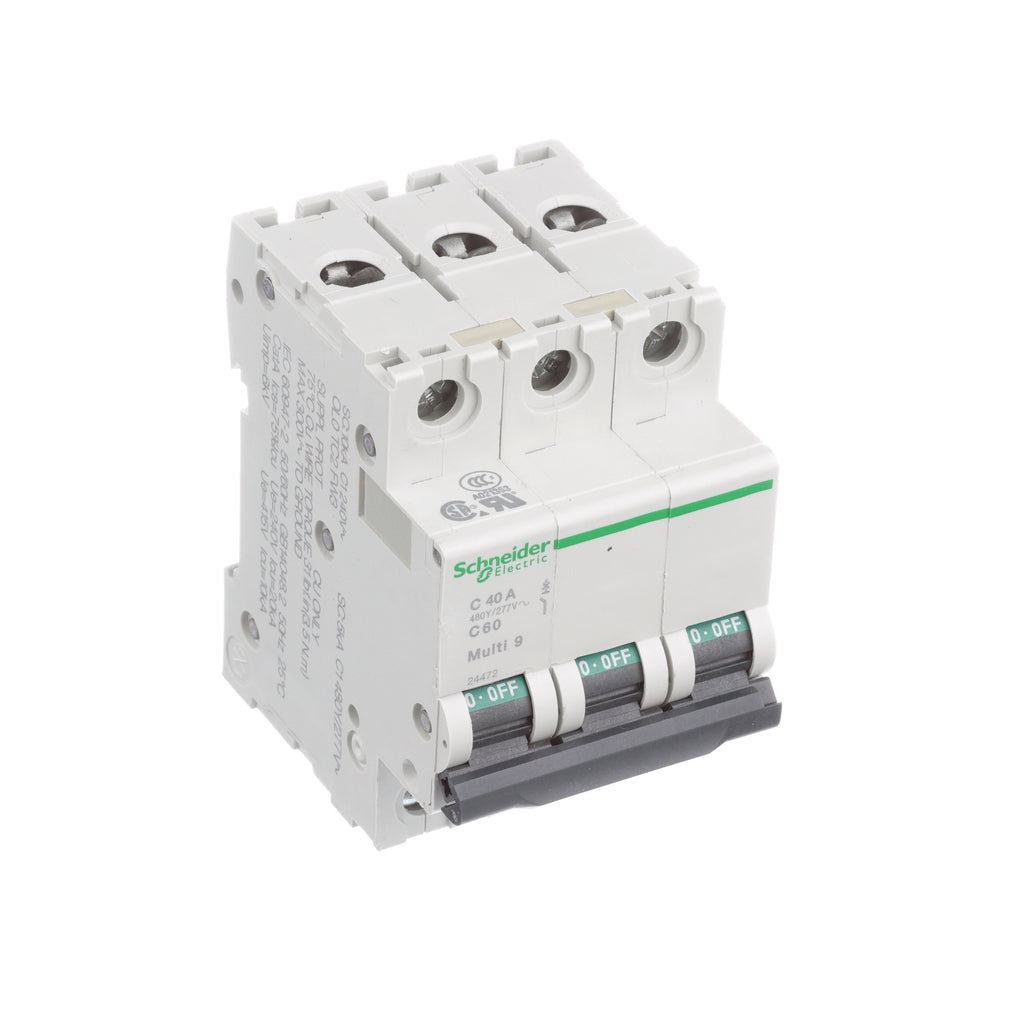

MG24472 - Schneider Electric Multi9 C60 3 Pole 40 Amp 240V Bolt-On Circuit Breaker

MG24472

MG24472 is a 3 pole, 40 amp, 240 volt bolt-on circuit breaker from the Schneider Electric Multi9 C60 series, designed for reliable protection in commercial and industrial applications. This thermal-magnetic circuit breaker features a C-trip curve and is rated for 10kA interrupt at 240V. It is suitable for use in control panels and distribution boards, offering robust protection for branch circuits. The bolt-on mounting design ensures secure installation, while the tunnel type terminals support a wide range of wire sizes.

• 3 Pole
• 40 Amp
• 240 Volt
• Bolt-On Mounting
• Thermal-Magnetic Trip Unit
• C-Trip Curve
• 10kA Interrupt Rating at 240V
• Multi9 C60 Series
• UL1077 Listed
• Tunnel Type Terminals
• Padlockable
• 20,000 Electrical Cycles

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MG24472
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Multi9
• Type : MG
• Voltage : 240
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : 3.2 in (81 mm) x 2.1 in (54 mm) x 2.9 in (73 mm) (Height x Width x Depth)
• Weight : 0.83
• Certification : UL, CSA, EN/IEC, CCC, EAC, GB, UR
