Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG24470

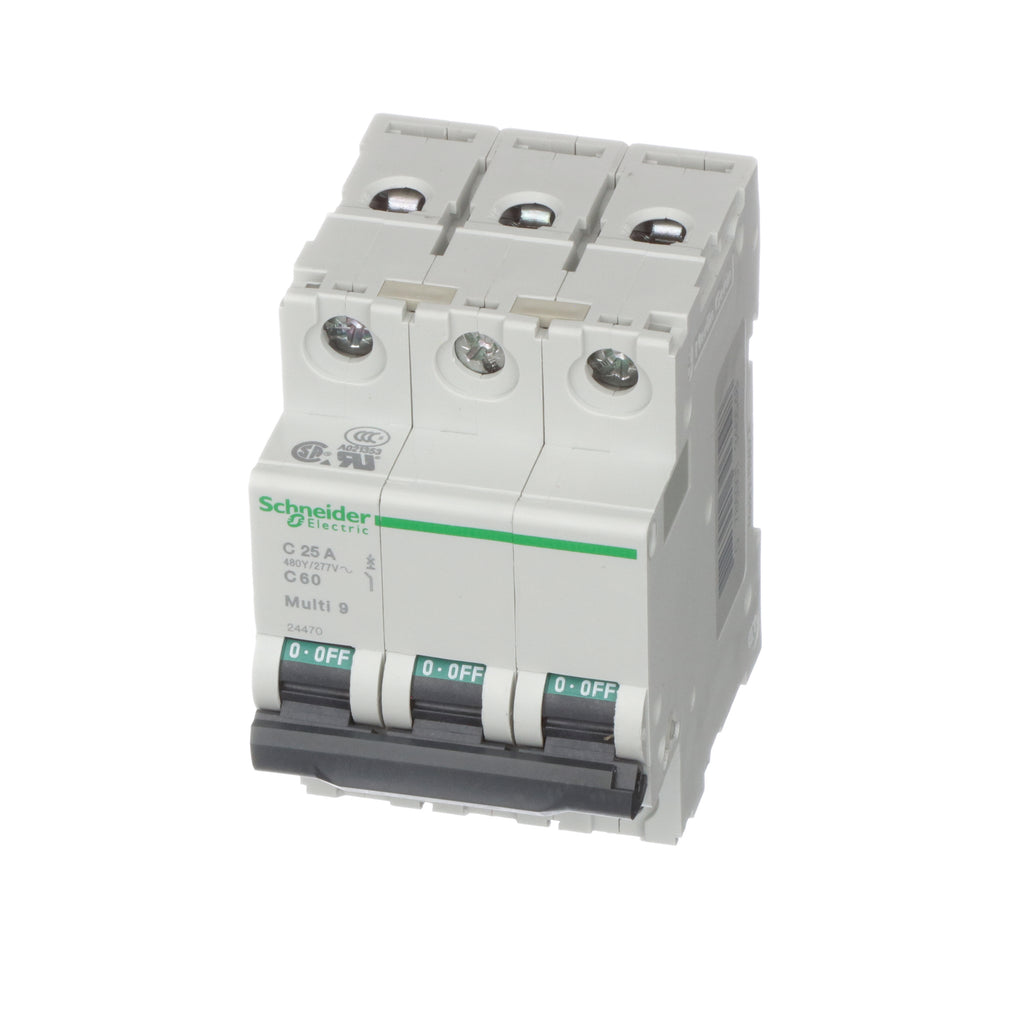

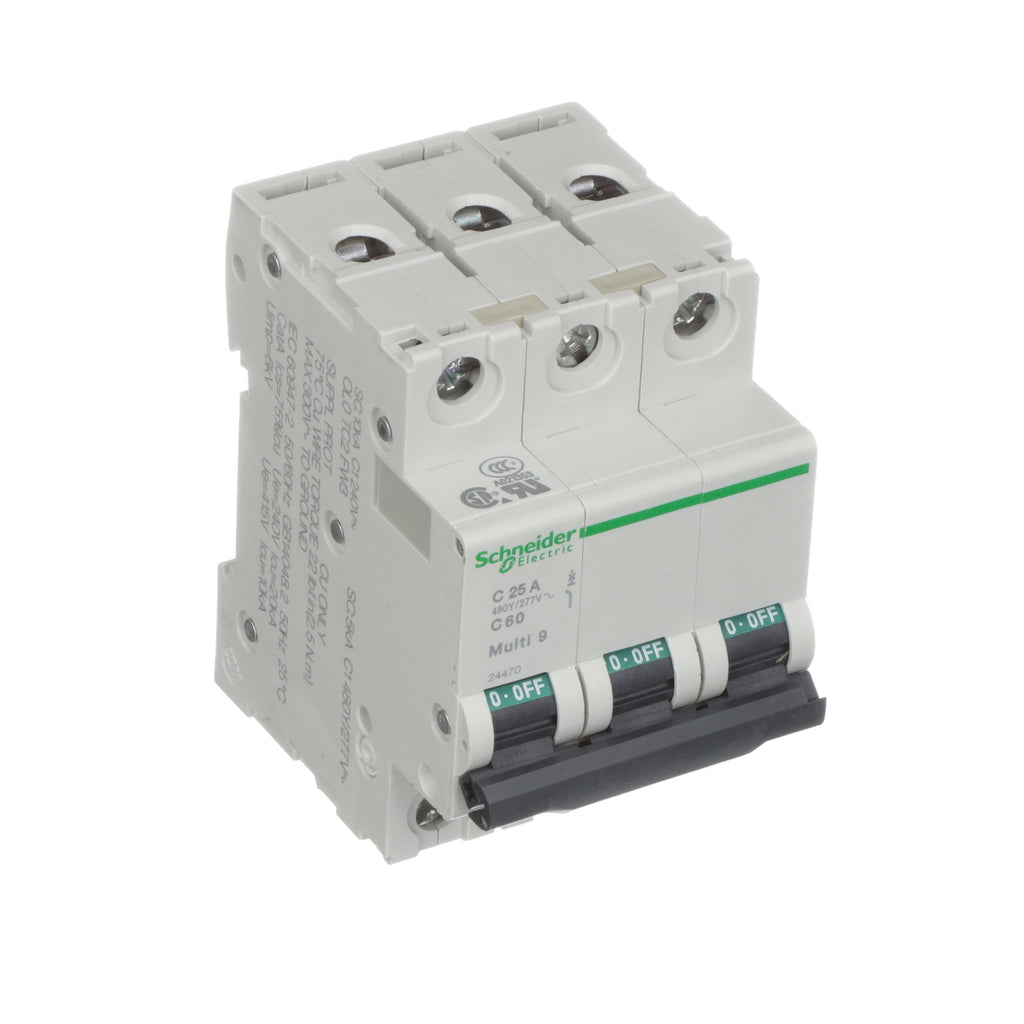

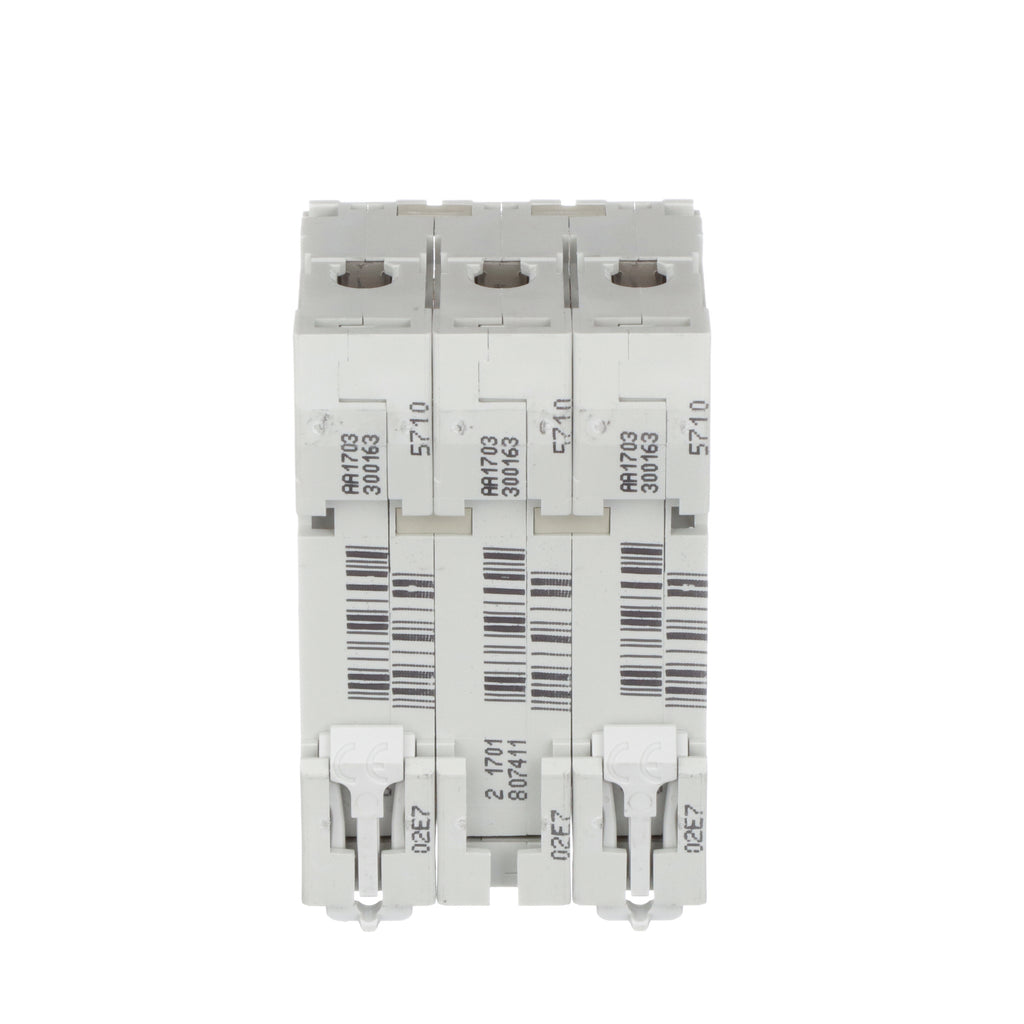

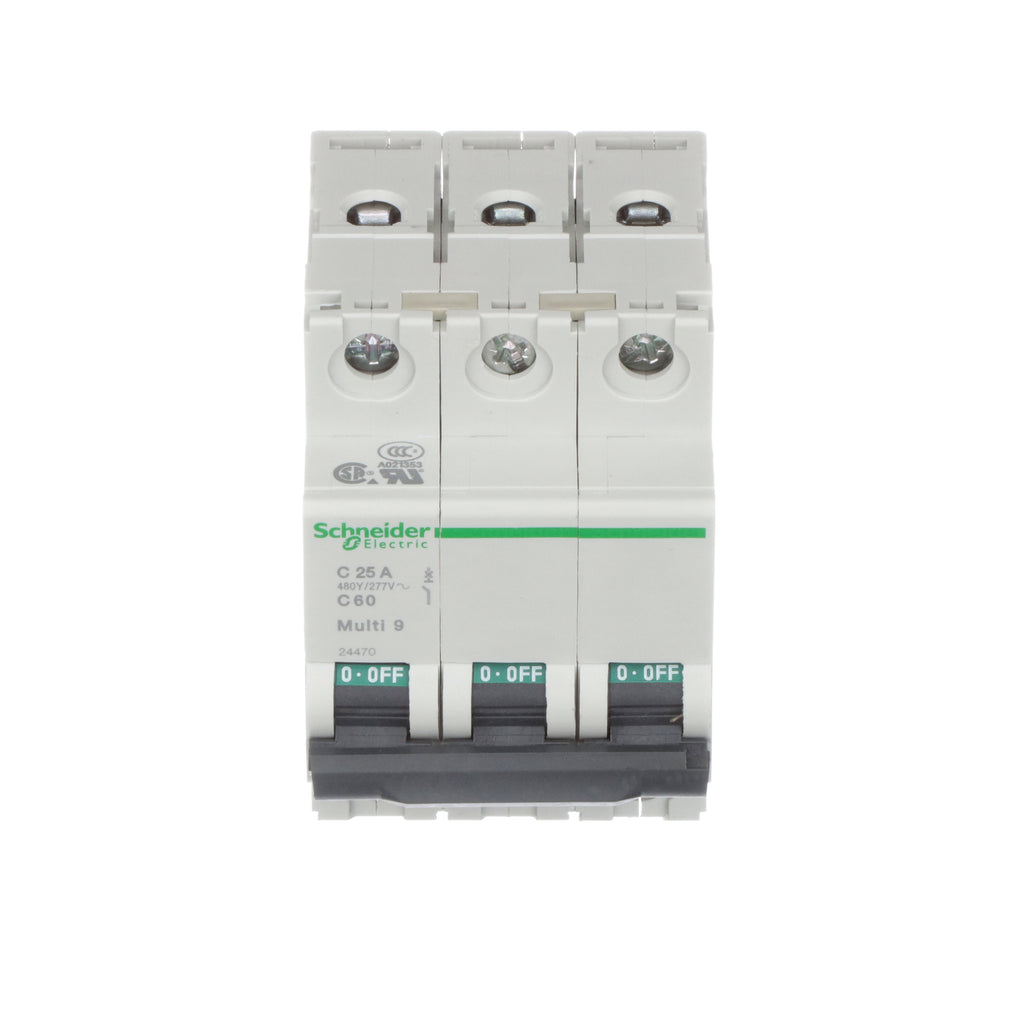

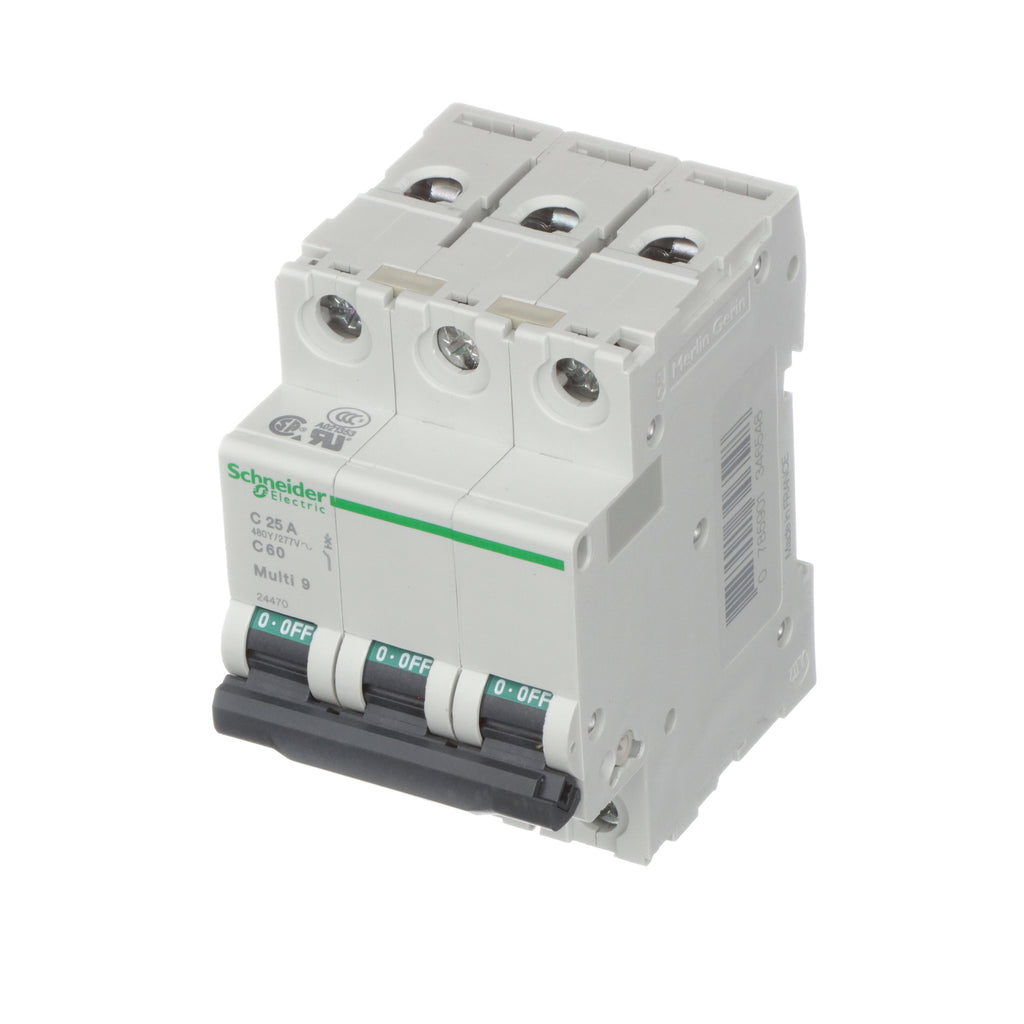

MG24470 is a Schneider Electric Multi9 C60 miniature circuit breaker designed for reliable protection in commercial and industrial applications. This 3-pole breaker features a 25A current rating and is suitable for use with system voltages up to 240V AC and 480Y/277V AC. The MG24470 is part of the Multi9 C60 series and is engineered for clip-on DIN rail mounting. It features a C-trip curve for general-purpose protection and is rated for an interrupt capacity of 10kA at 240V. The breaker is UL listed and CSA certified for safety and compliance in North American installations.
- Part Number: MG24470
- Manufacturer: Schneider Electric
- Series: Multi9 C60
- Amperage: 25A
- Poles: 3P
- System Voltage: 240V AC, 480Y/277V AC
- Mounting Type: Clip-on DIN rail
- Interrupt Rating: 10kA @ 240V
- Curve Type: C
- Certifications: UL listed, CSA certified
Specifications
- Part Number: MG24470
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Multi9
- Type : MG
- Voltage : 240
- Amperage : 25
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Dimensions : 3.2 in (81 mm) x 2.1 in (54 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 0.79
