Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG24469

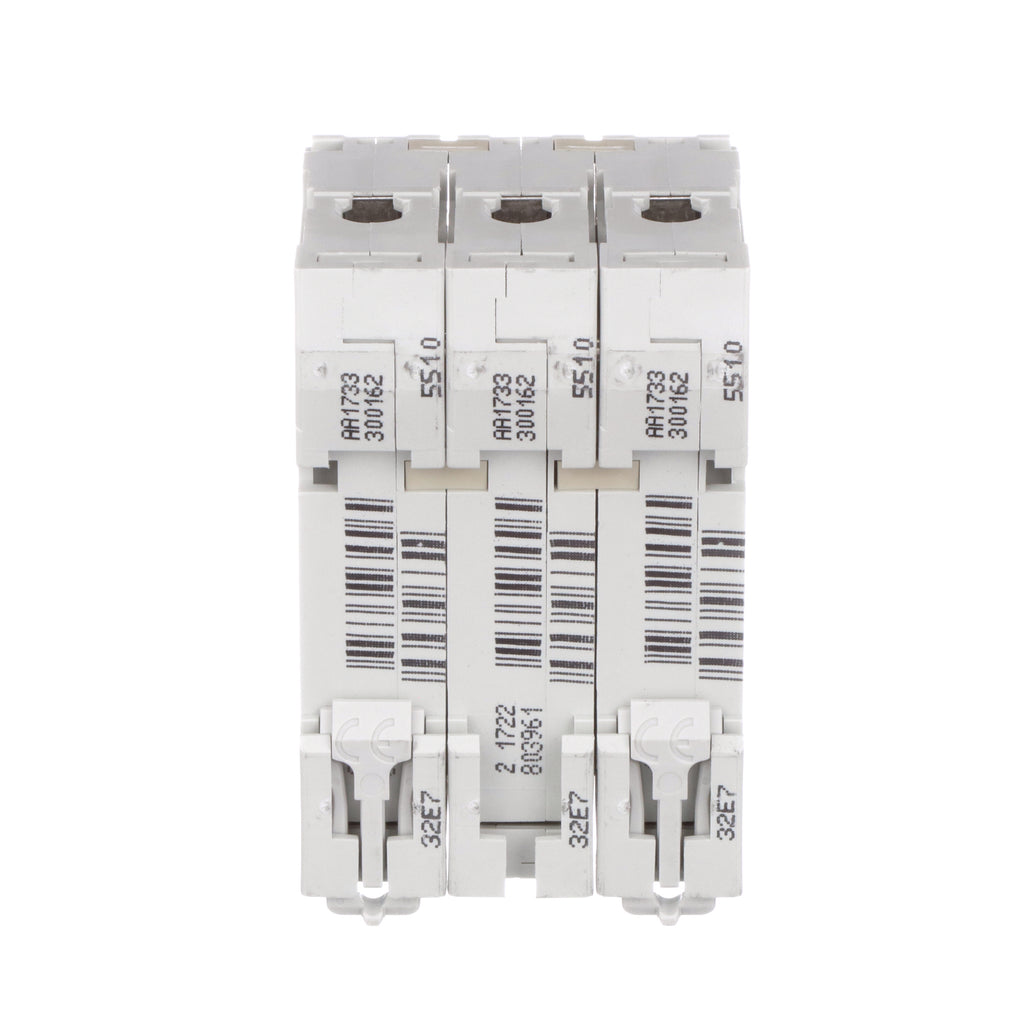

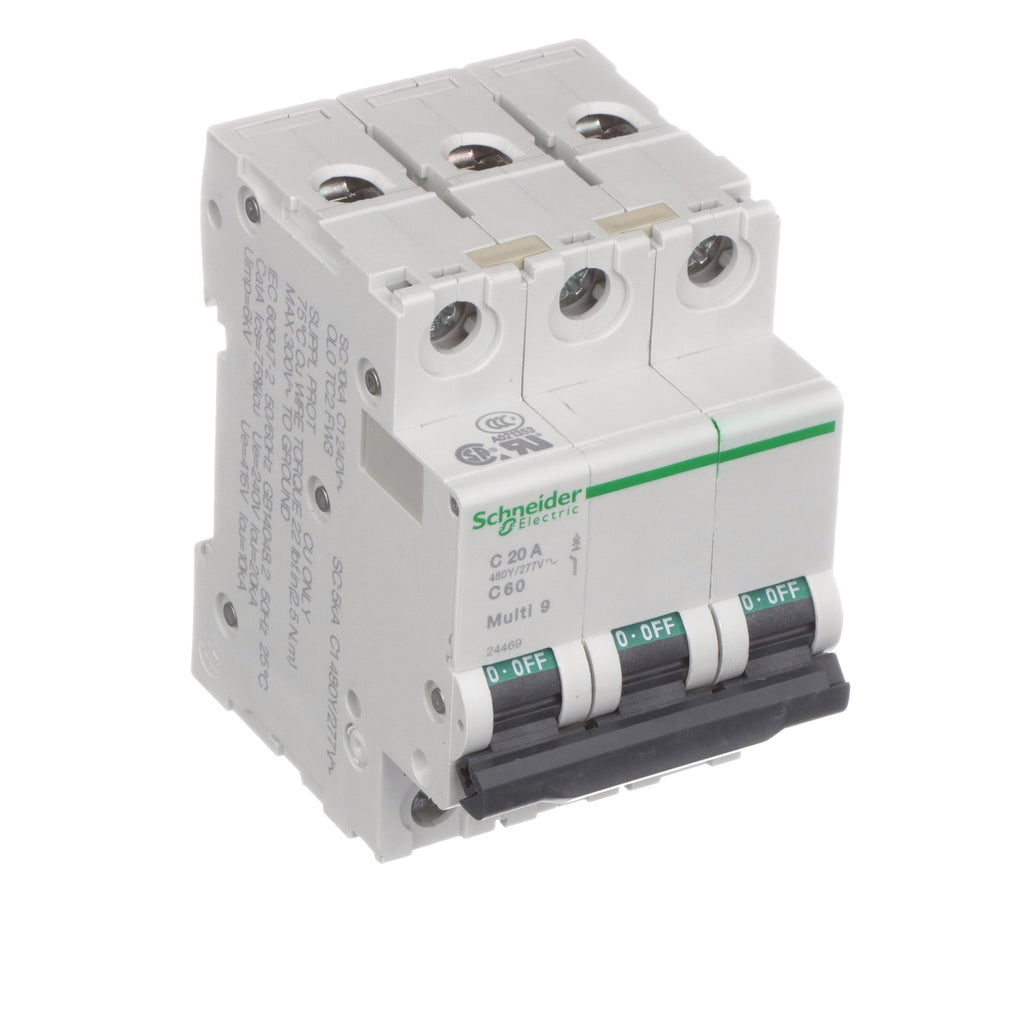

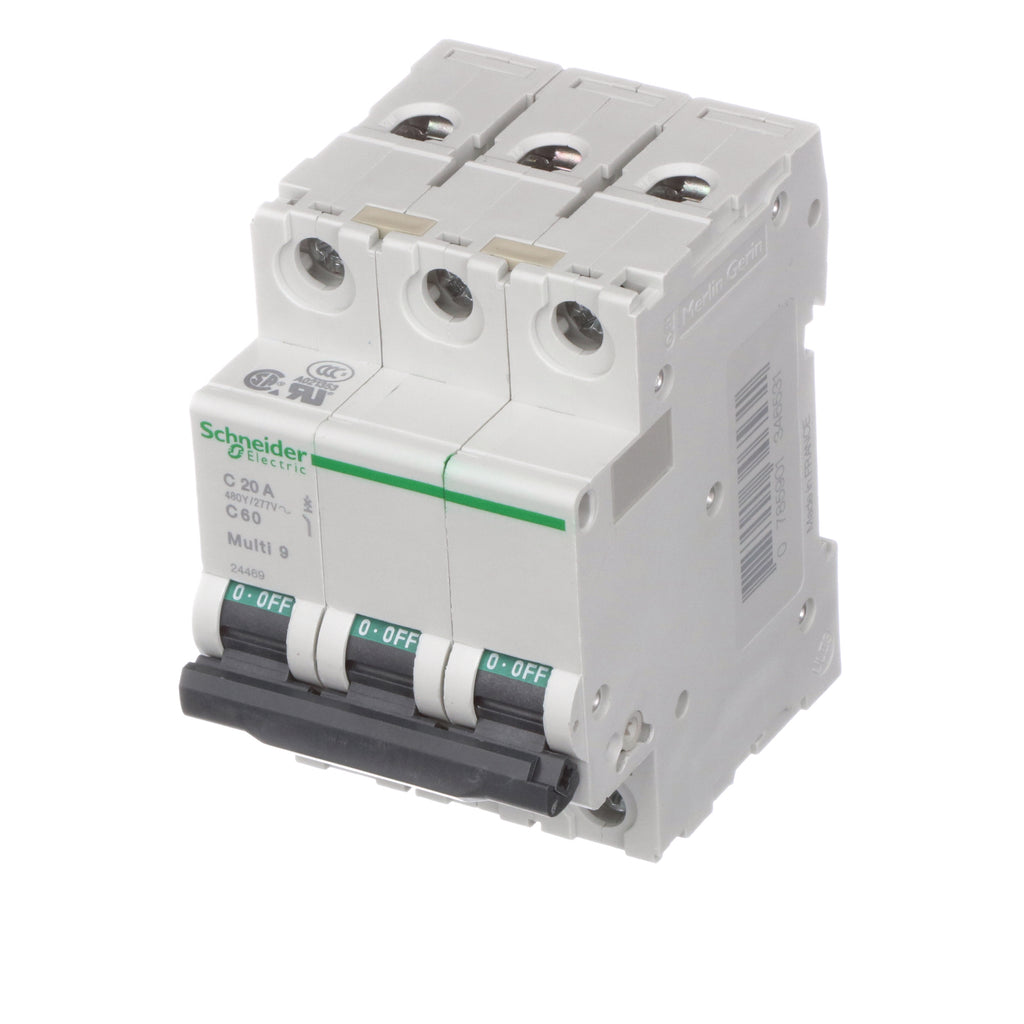

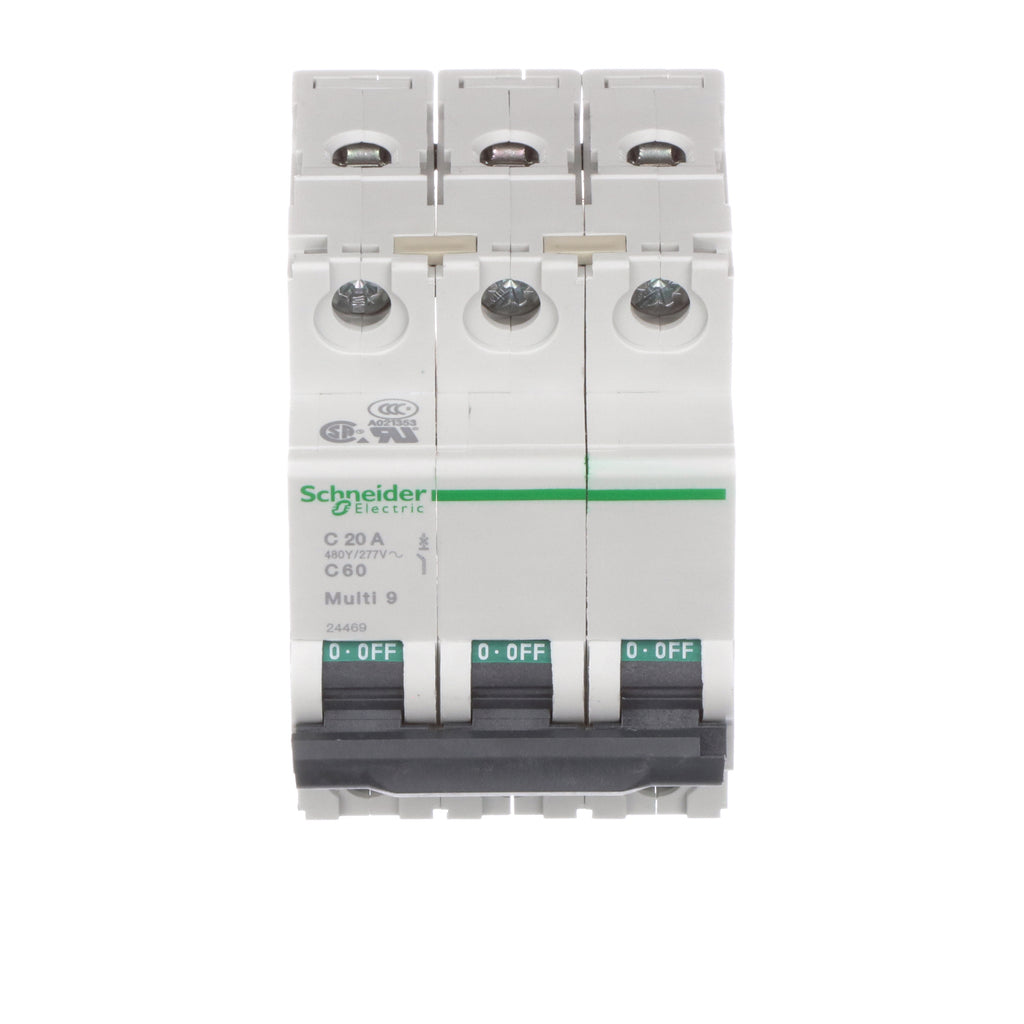

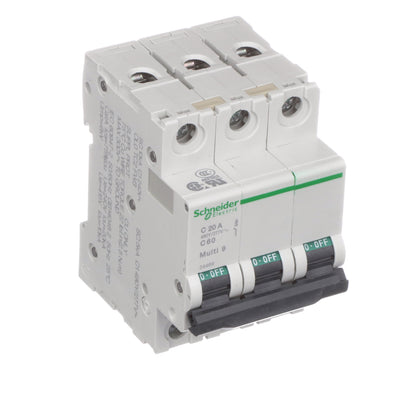

MG24469 is a Schneider Electric Multi9 C60 UL1077 circuit breaker designed for reliable protection in electrical distribution systems.
This 3-pole supplementary protector features a 20 ampere rating and operates at 480Y/277 volts AC. It has a thermal magnetic trip unit and a 5 kiloampere interrupt rating, suitable for DIN rail mounting with clip-on installation. The breaker complies with UL 1077 and EN/IEC 60947-2 standards, providing robust circuit protection with a C curve trip characteristic.
- Amperage: 20 A
- Voltage: 480Y/277 V AC
- Poles: 3
- Mounting Type: DIN Rail Clip-On
- Interrupt Rating: 5 kA
- Trip Unit: Thermal Magnetic
- Series/Frame: Multi9 C60 UL1077
- Standards: UL 1077, EN/IEC 60947-2
- Trip Curve: C Curve
- Terminal Type: Tunnel type top or bottom
- Cycle Life: 20,000 mechanical, 10,000 electrical
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MG24469
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Multi9
- Type : MG
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Dimensions : 3.2 in (81 mm) x 2.1 in (54 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 0.73
