Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG24466

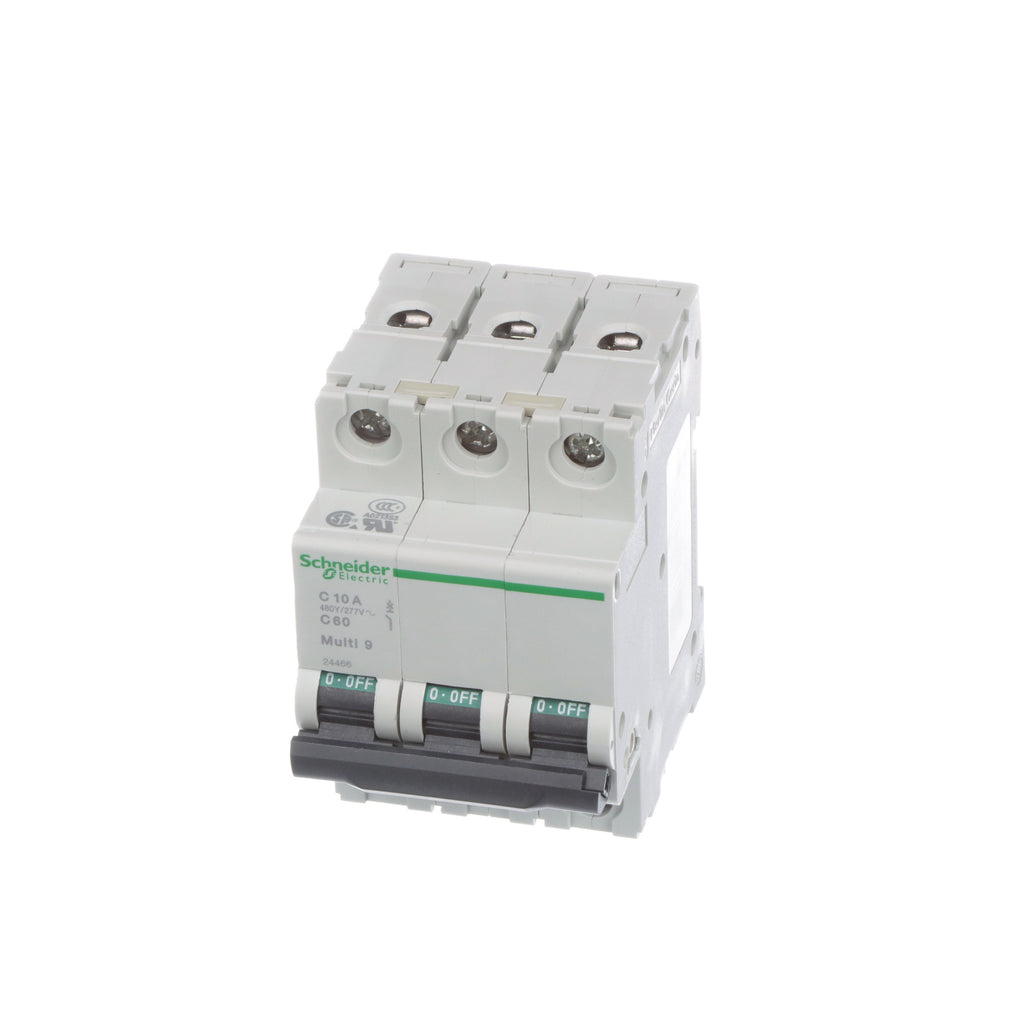

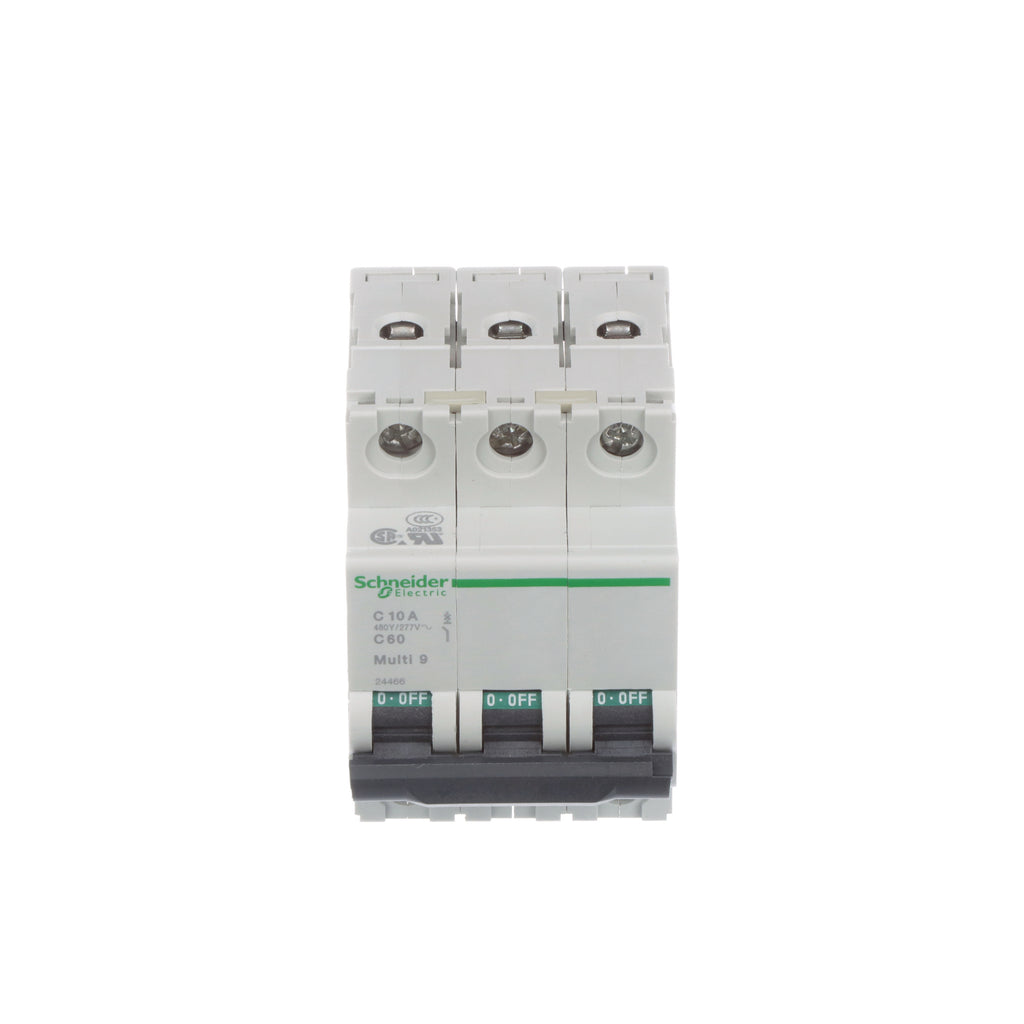

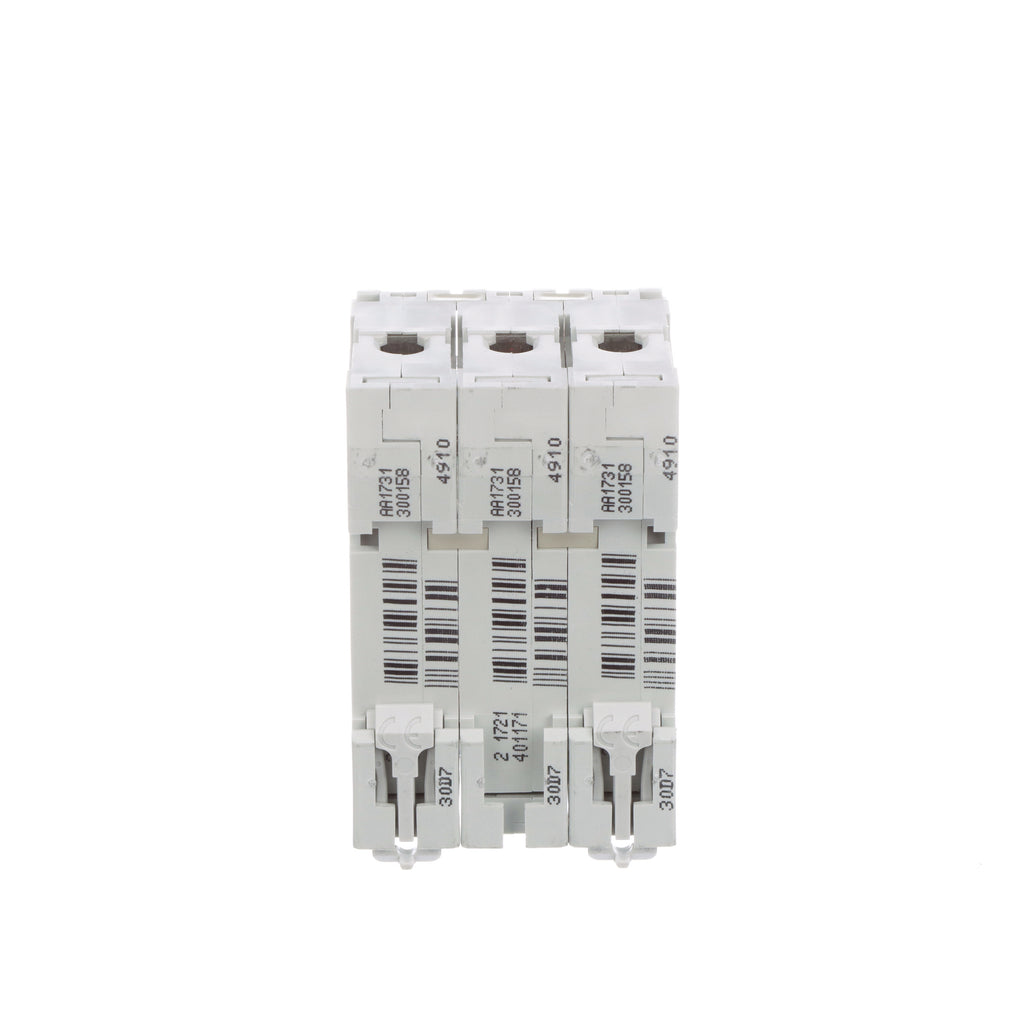

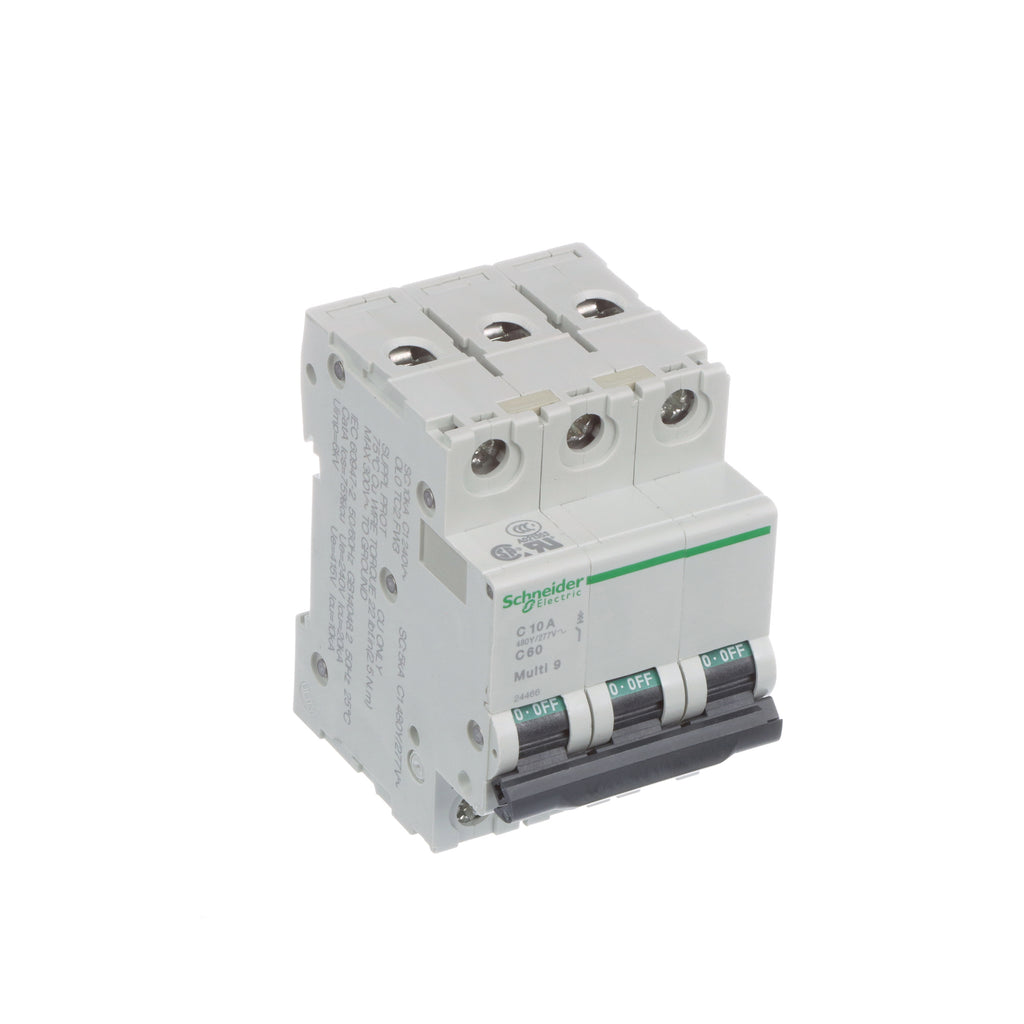

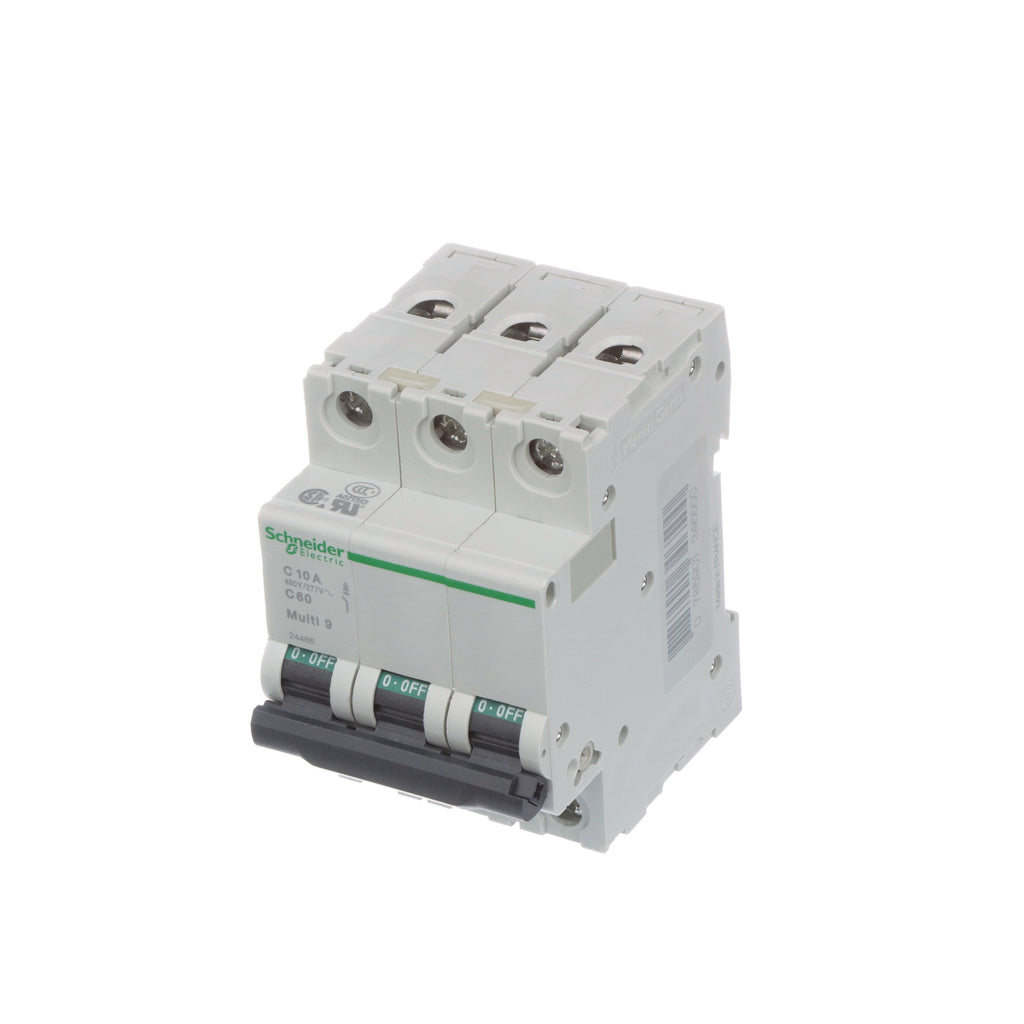

MG24466 is a 3-pole, 10A, 240V bolt-on miniature circuit breaker from the Schneider Electric Multi9 family, designed for reliable protection in commercial and industrial applications.This MG24466 circuit breaker features a C curve trip unit and a 10kA interrupt rating at 240V, making it suitable for a wide range of branch circuit protection needs. It is UL listed and CSA certified, and supports both top and bottom tunnel type terminals for flexible installation. The breaker is padlockable for added safety and is designed for use in standard control panels and distribution boards.
- Part Number: MG24466
- Manufacturer: Schneider Electric
- Series: Multi9
- Type: MG
- Poles: 3
- Amperage: 10A
- Voltage: 240V
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA @ 240V
- Curve: C
- Protection Type: Thermal Magnetic
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: MG24466
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Multi9
- Type : MG
- Voltage : 240
- Amperage : 10
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- Dimensions : 3.2 in (81 mm) x 2.1 in (54 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 0.75
- Certification : UL, CSA, EN/IEC, CCC, EAC, GB, UR
