Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG24447

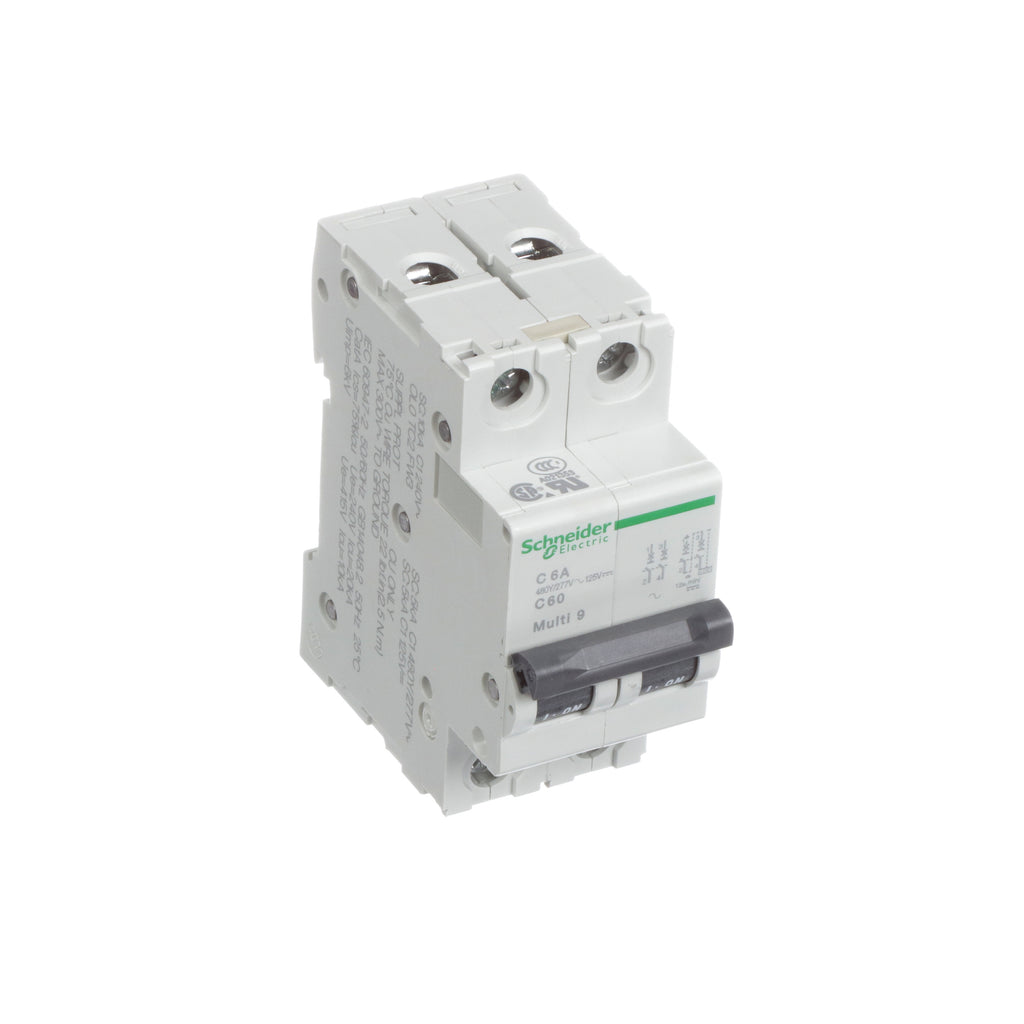

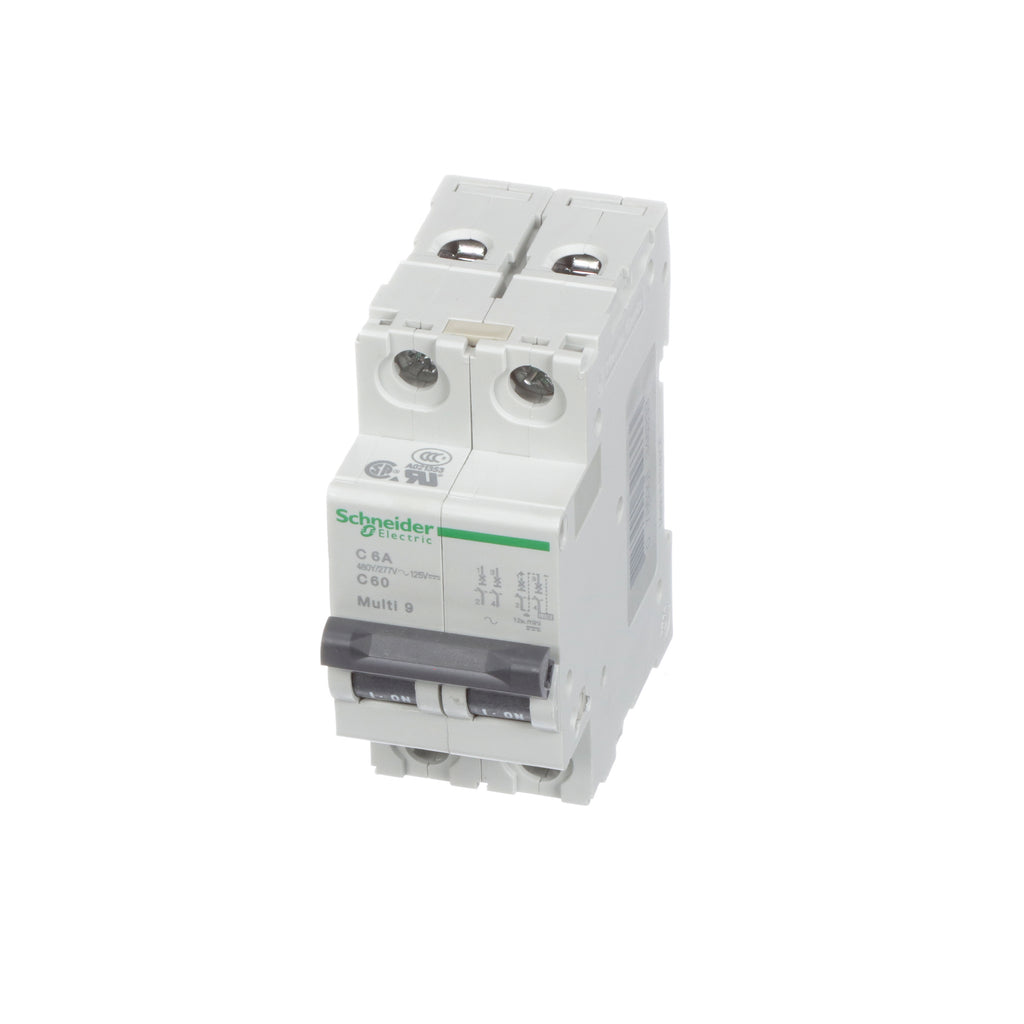

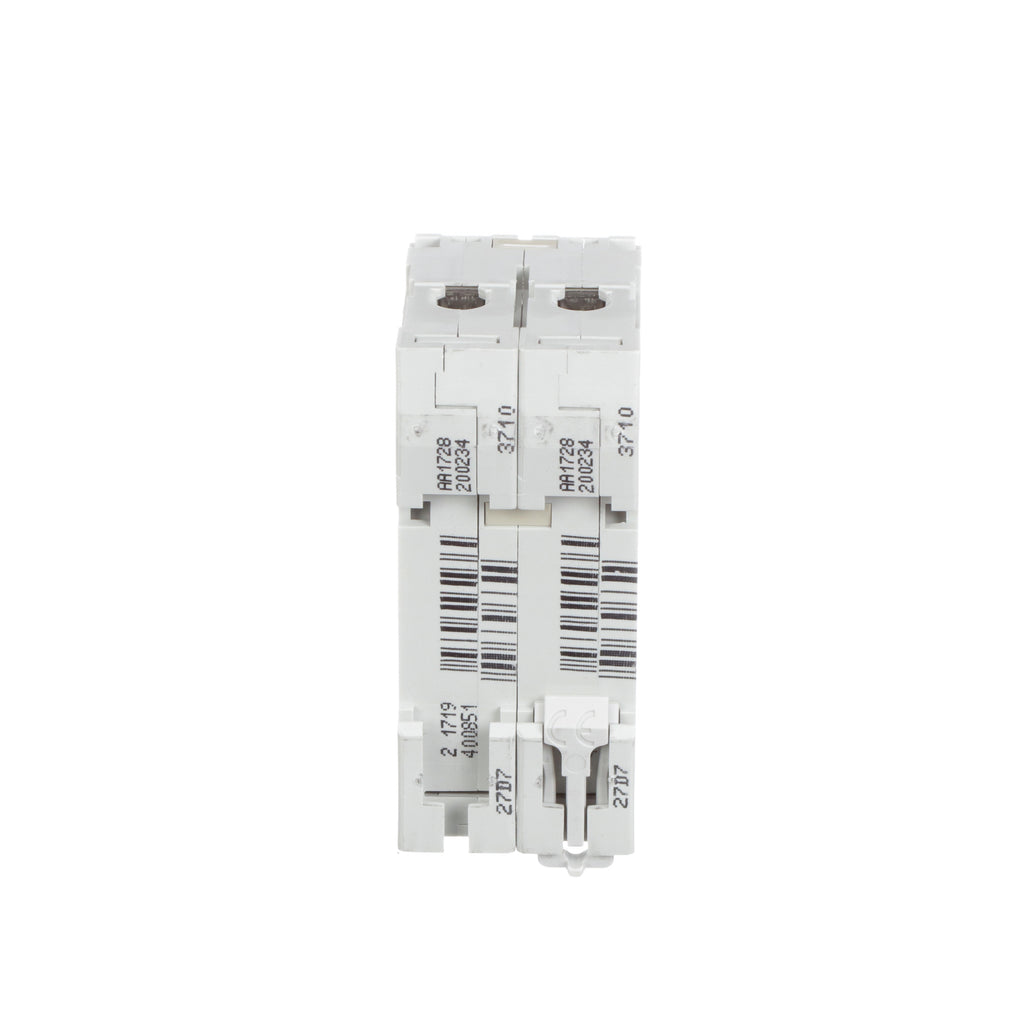

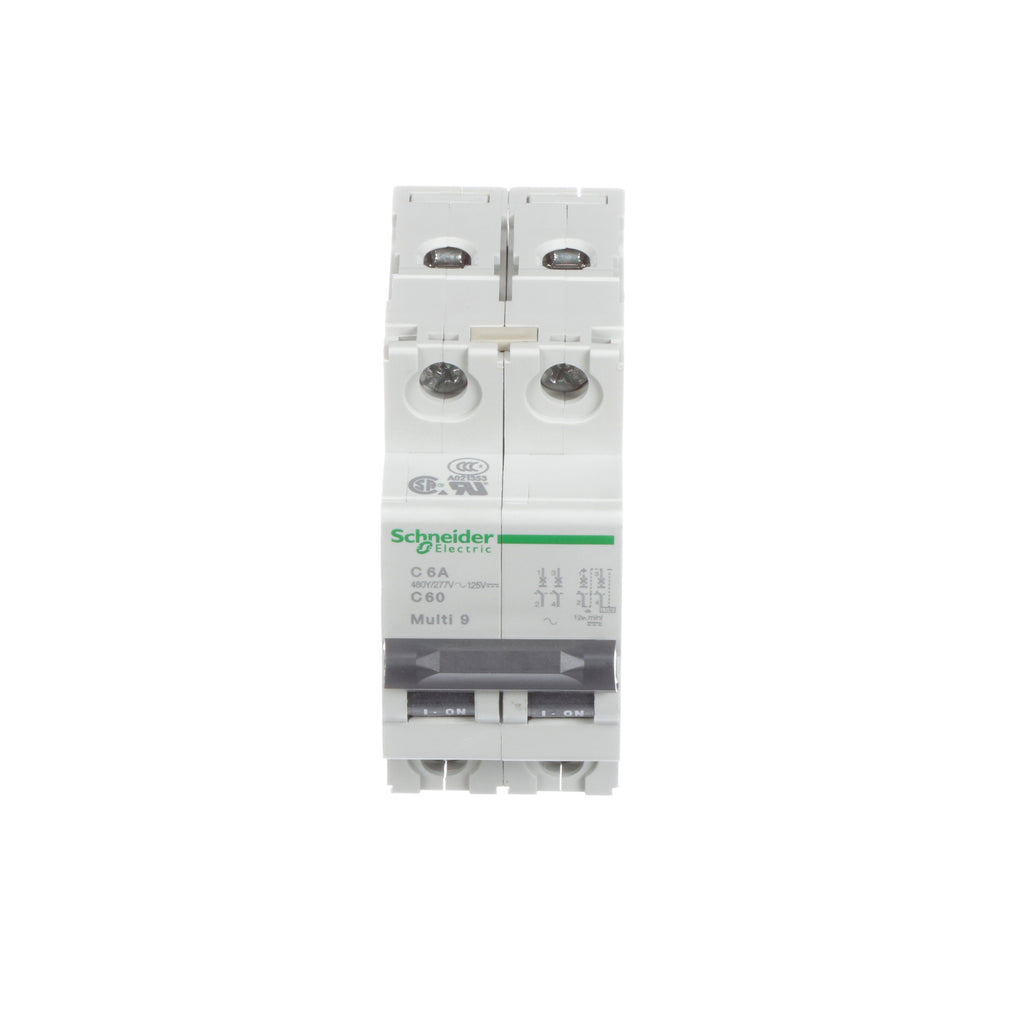

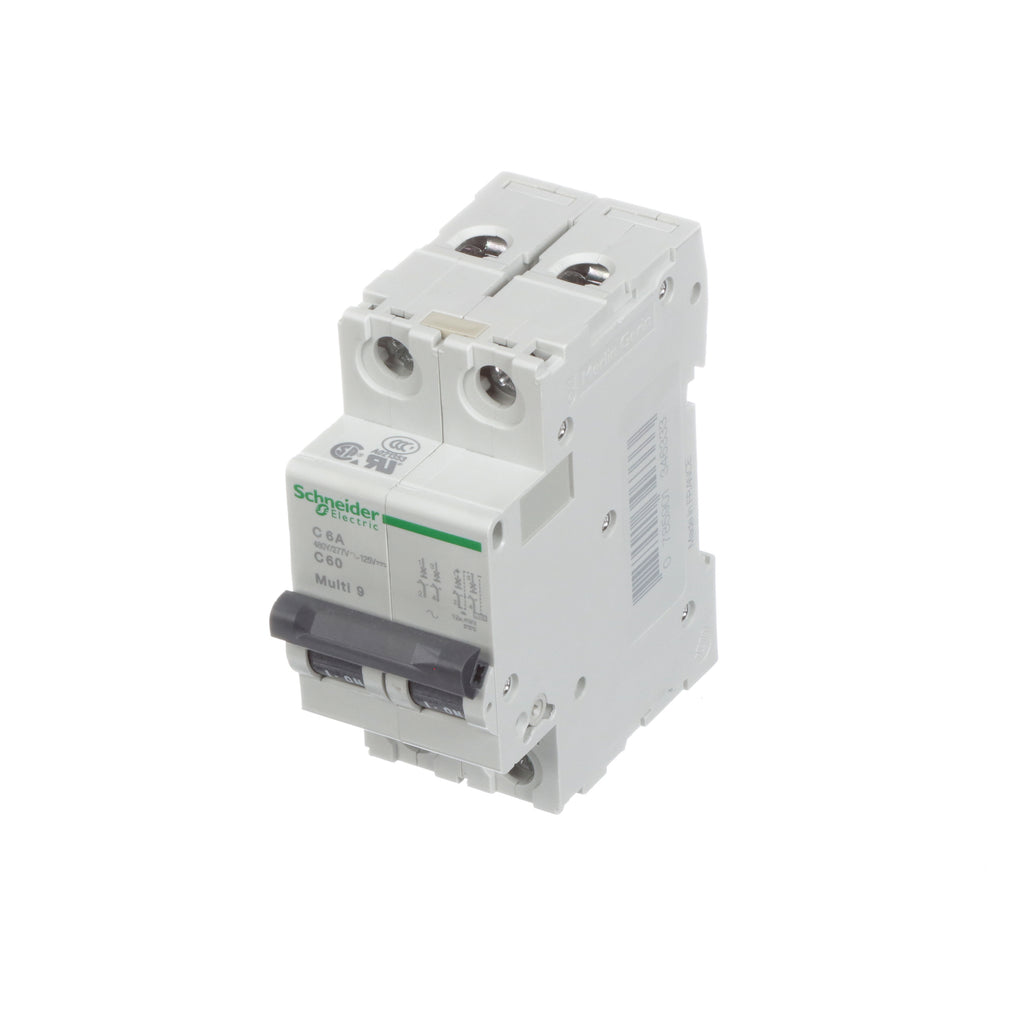

MG24447 is a Schneider Electric 6 amp, 2 pole thermal magnetic circuit breaker from the Multi 9 C60N series designed for 480Y/277 VAC applications.This circuit breaker features a 10kA interrupt rating at 240V and is suitable for supplementary protection with a C curve trip unit.
- Key Specifications
- Amperage: 6 A
- Voltage Rating: 480Y/277 VAC
- Number of Poles: 2
- Interrupt Rating: 10kA at 240V
- Series/Frame: Multi 9 C60N
- Trip Unit: Thermal Magnetic, C Curve
- Mounting Type: Bolt-On / DIN Rail Compatible
- Certifications: UL1077, EN/IEC 60947-2
- Discontinued by Manufacturer
Specifications
- Part Number: MG24447
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 240
- Amperage : 6
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Dimensions : 3.2 in (81 mm) x 1.4 in (36 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 0.5
