Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG24432

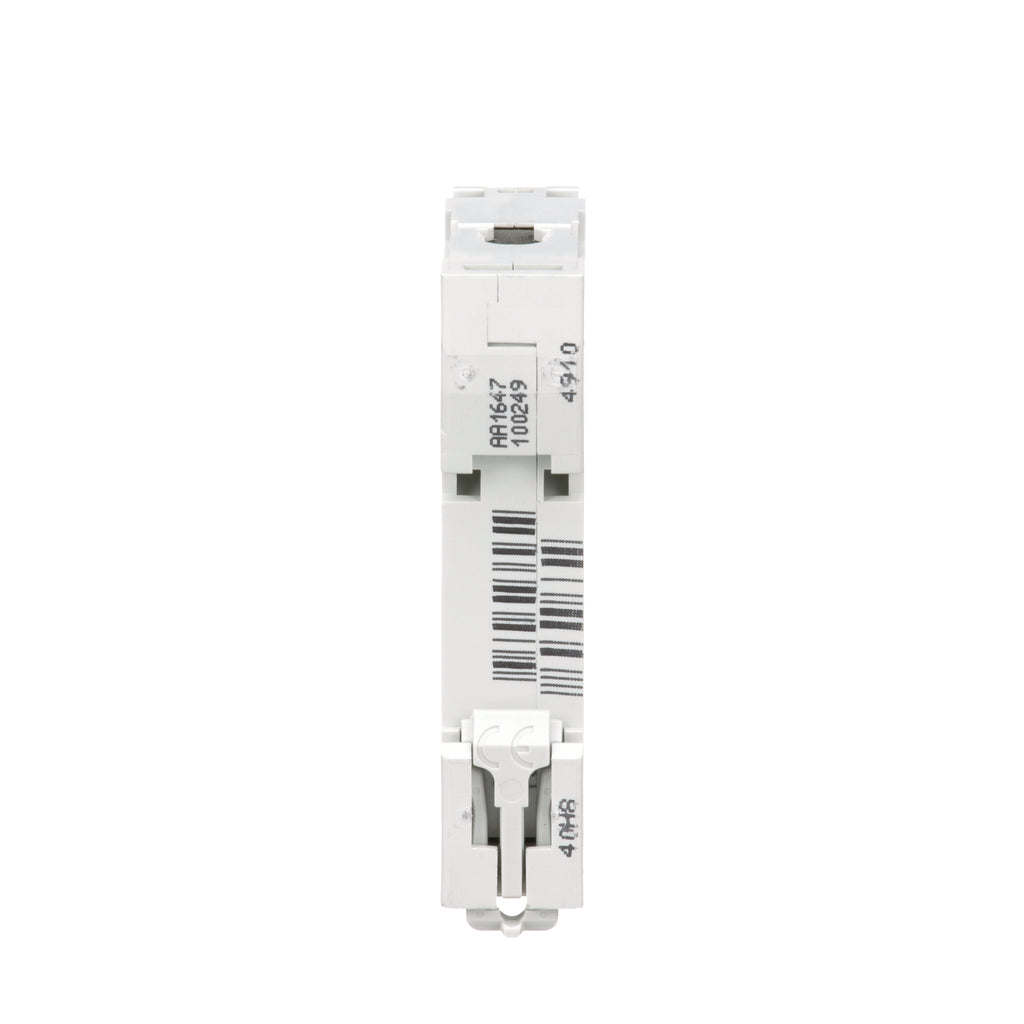

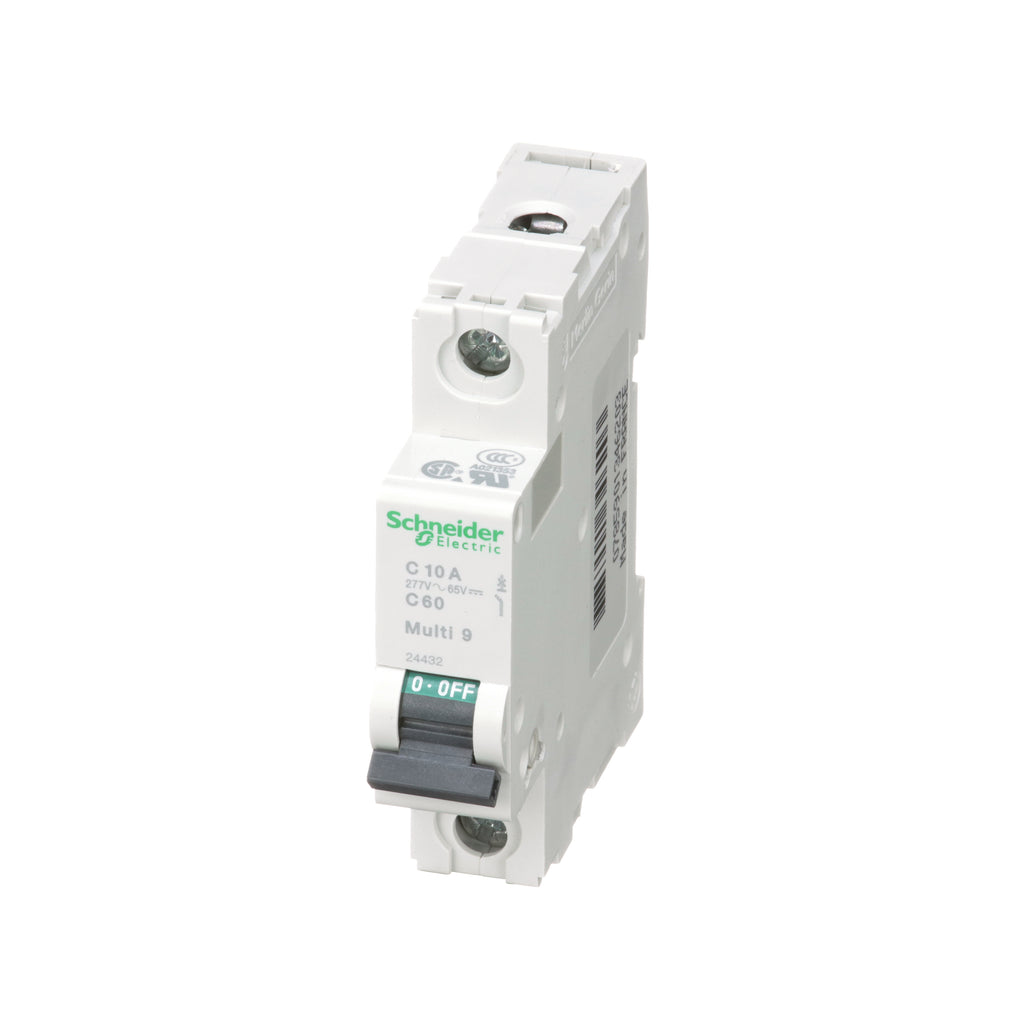

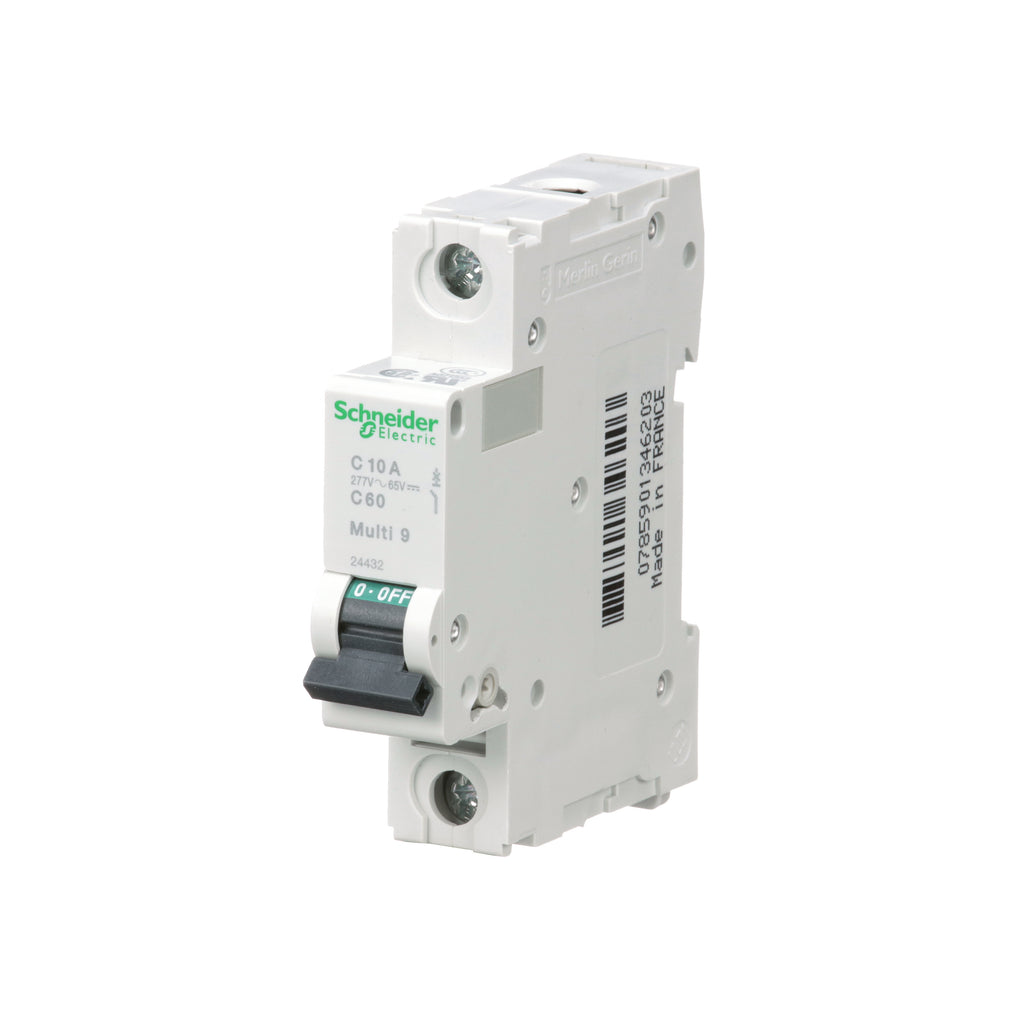

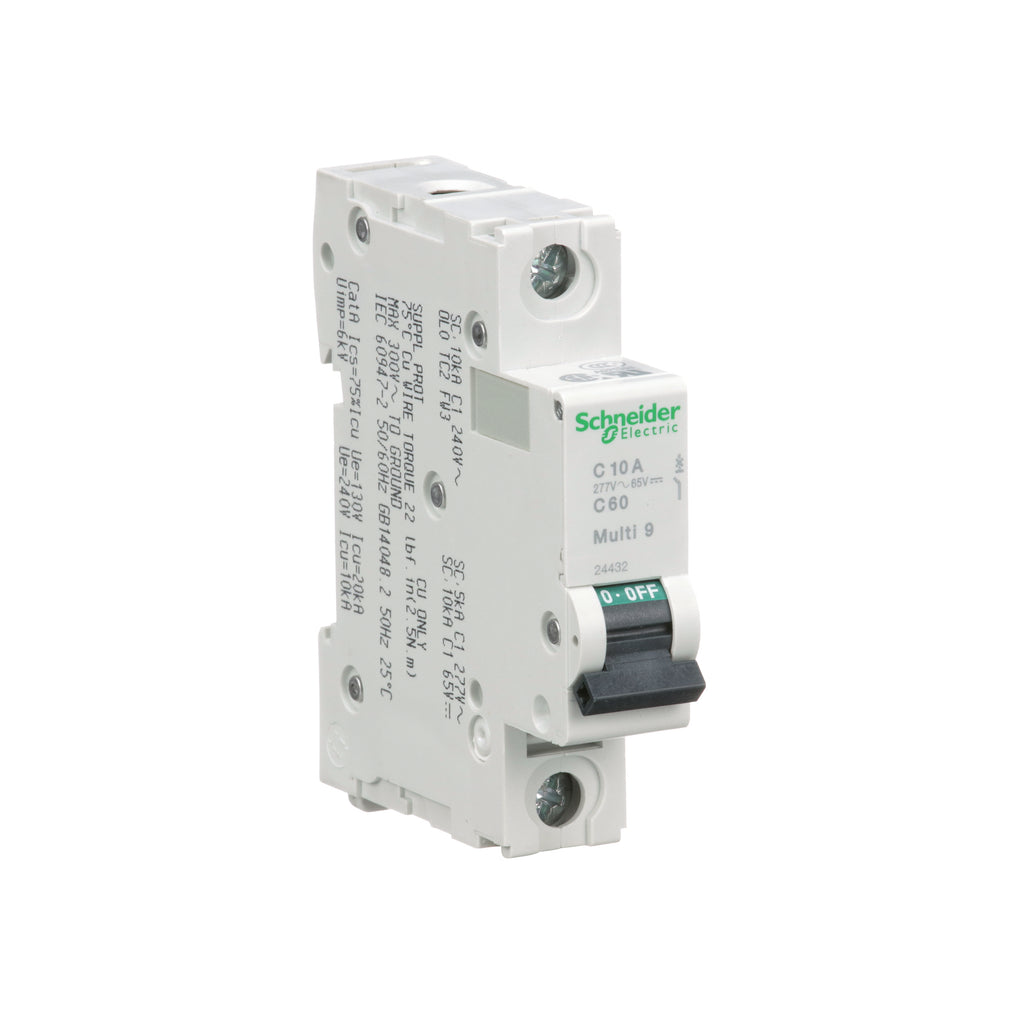

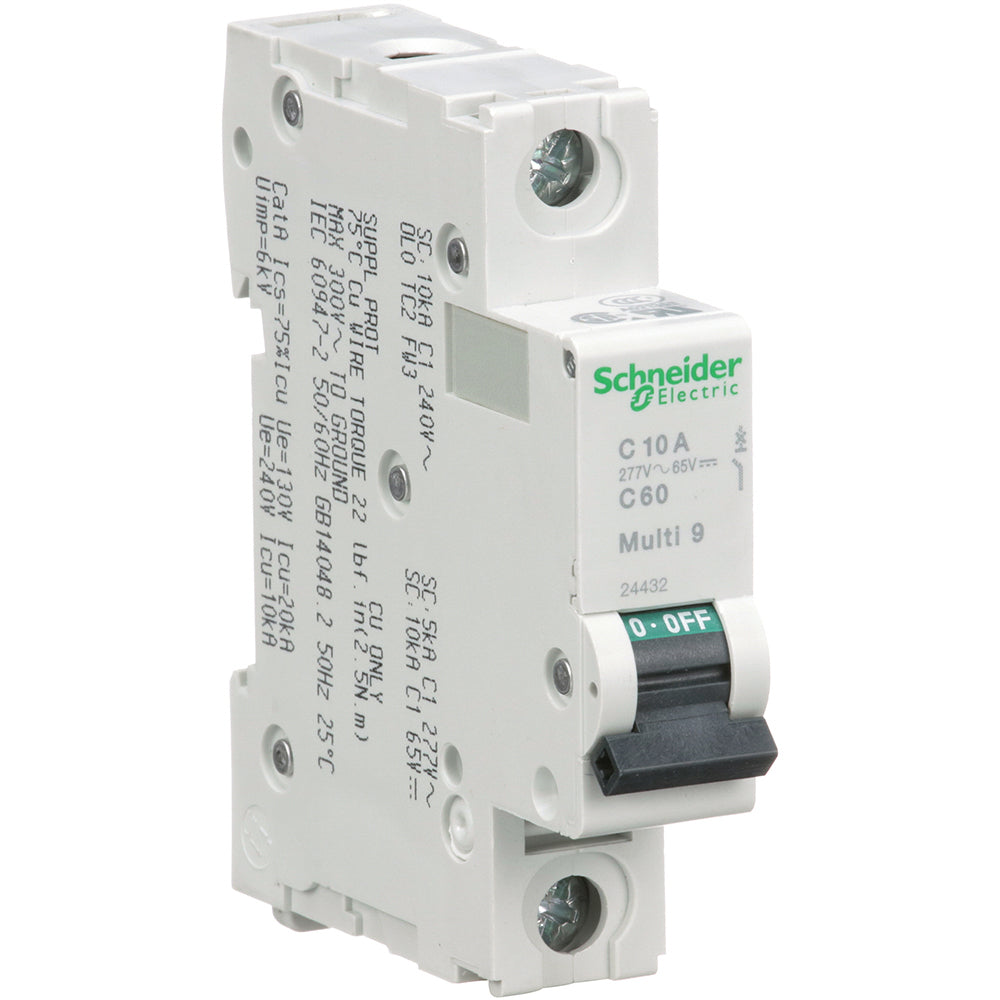

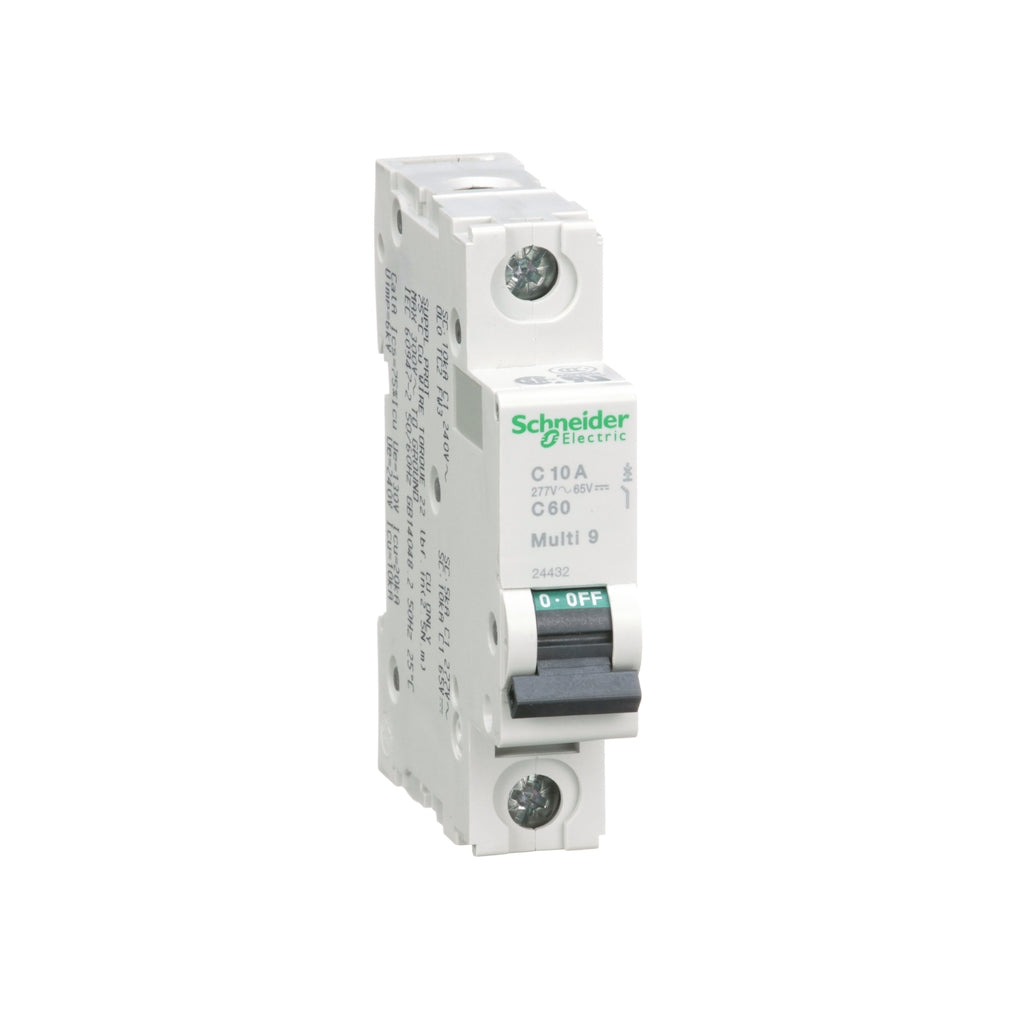

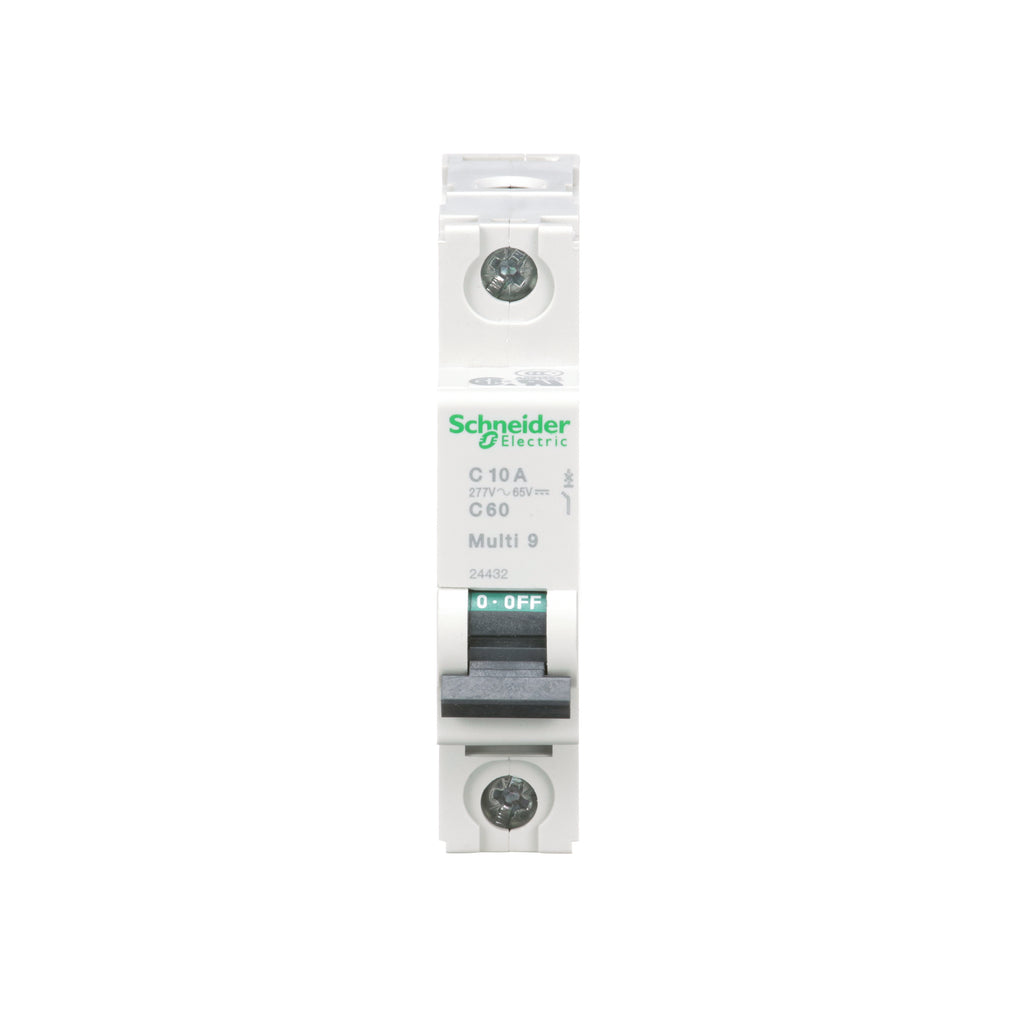

MG24432 is a Schneider Electric Multi9 C60 UL1077 miniature circuit breaker designed for supplementary protection in electrical installations.
This 1-pole circuit breaker is rated for 10 amps and 277 volts AC, featuring a C curve trip characteristic and a breaking capacity of 5 kA. It is part of the Multi9 family and complies with UL1077 standards, suitable for bolt-on mounting applications.
- Key Specifications
- Amperage: 10 A
- Voltage Rating: 277 V AC
- Poles: 1
- Trip Curve: C Curve
- Interrupt Rating: 5 kA
- Mounting Type: Bolt-On
- Series/Frame: Multi9 C60 UL1077
- Certifications: UL1077 Listed
- Part Number: MG24432
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Multi9
- Type : MG
- Voltage : 240
- Amperage : 10
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Dimensions : 3.2 in (81 mm) x 0.7 in (18 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 0.26
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
