Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG24427

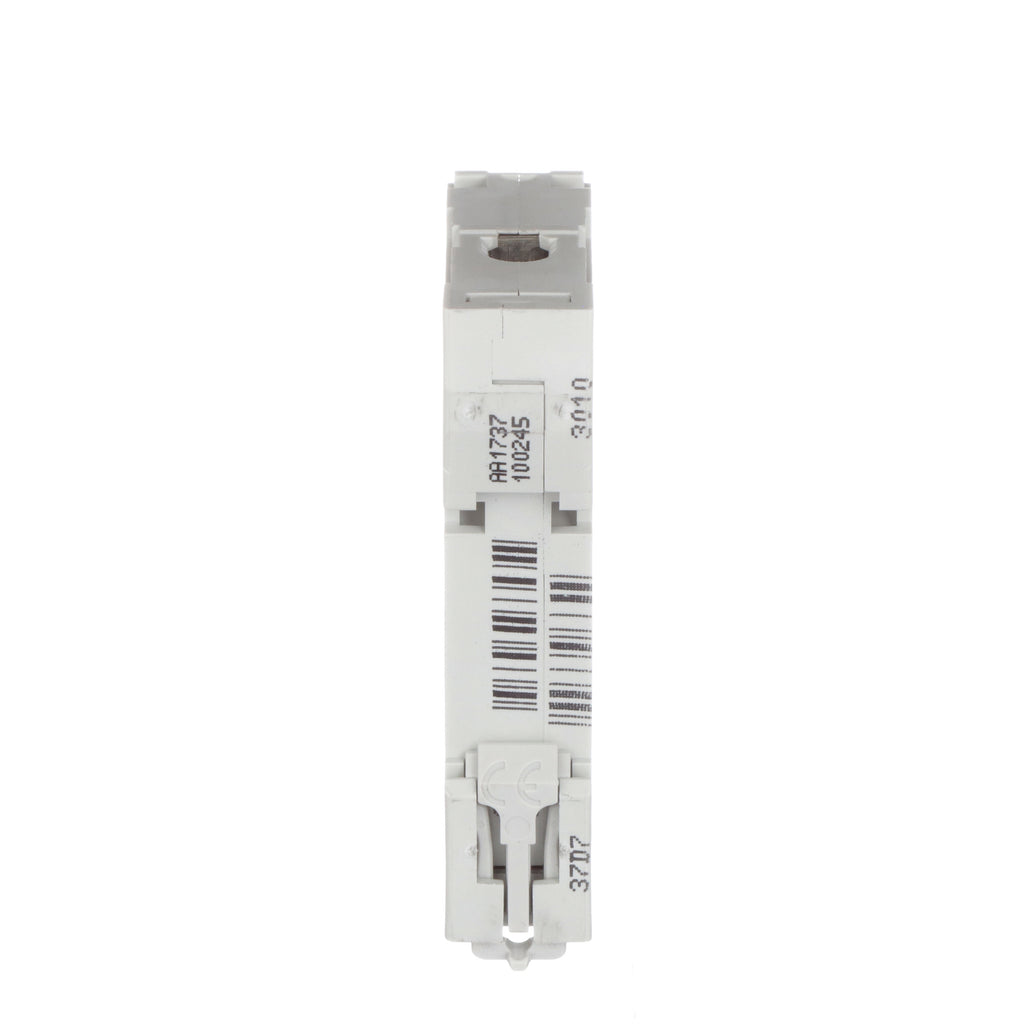

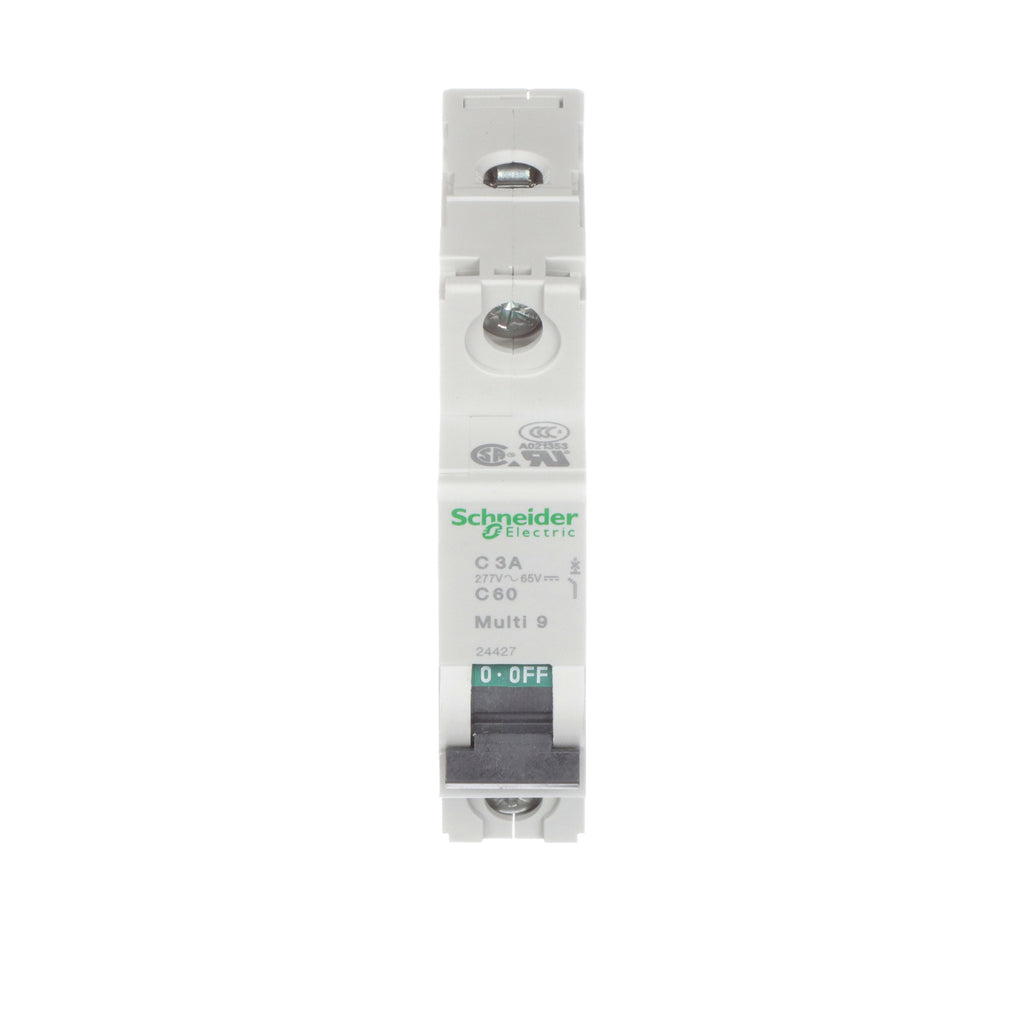

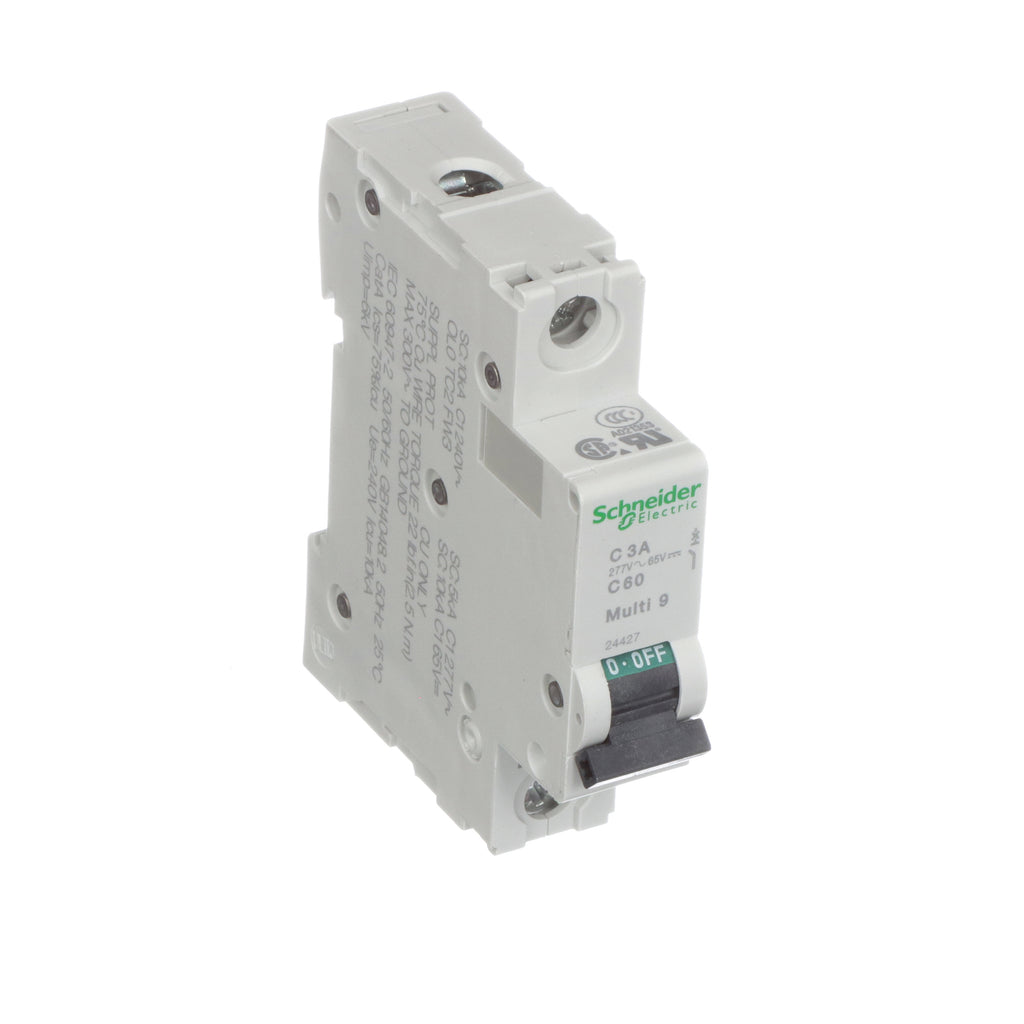

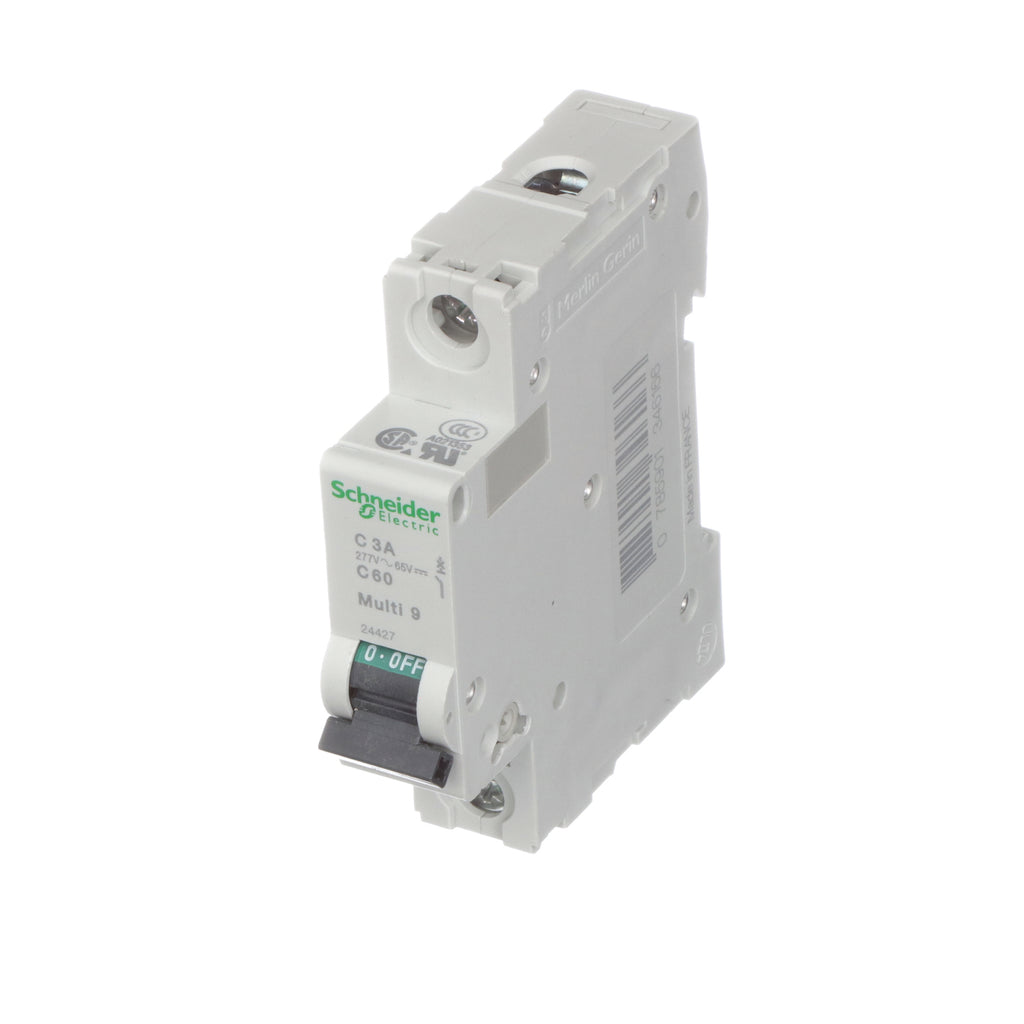

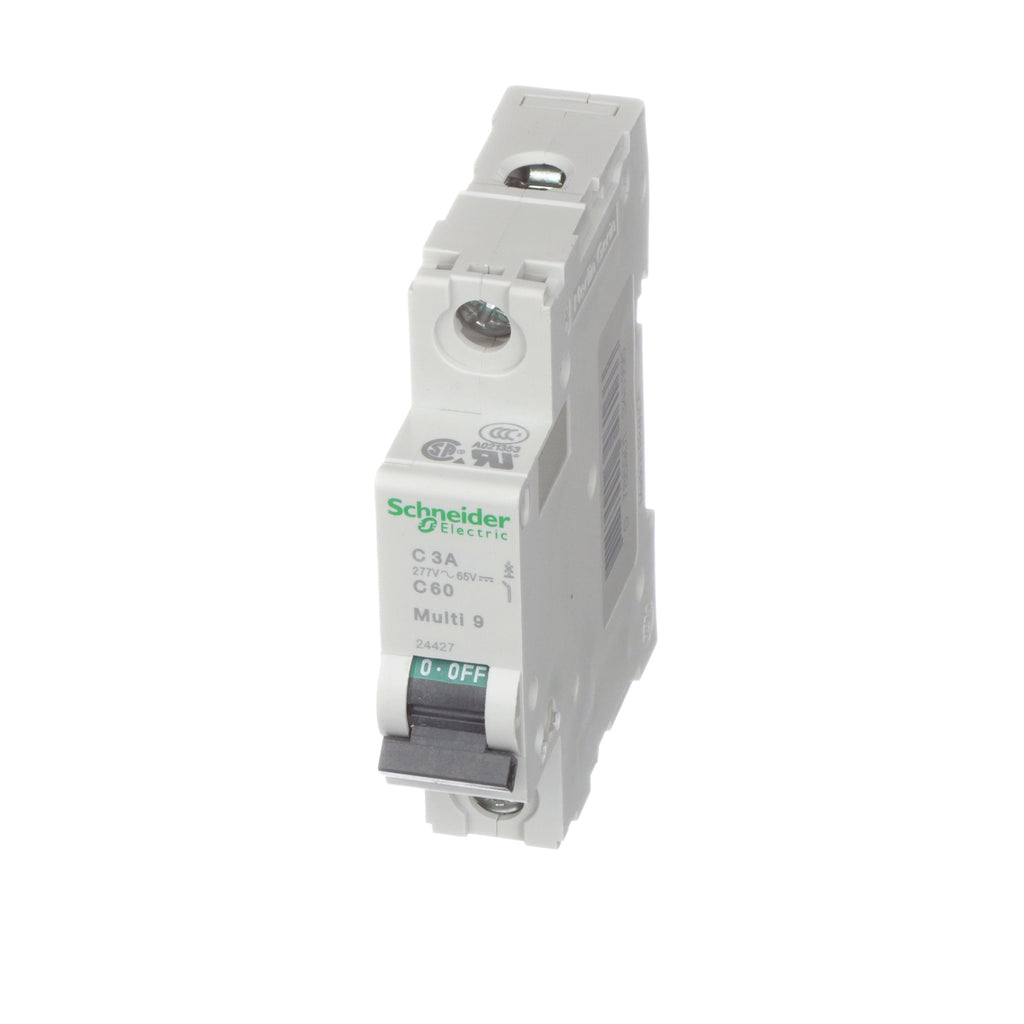

MG24427 is a Schneider Electric 3 amp, 1-pole thermal magnetic circuit breaker from the Multi9 family designed for 240 Volt applications.
This circuit breaker features a 10kA interrupting rating at 240V, suitable for protecting electrical circuits against overload and short circuits. It has a thermal-magnetic trip unit with a C curve characteristic, making it ideal for general-purpose protection. The breaker mounts on DIN rail and supports tunnel type terminals for top or bottom wiring, accommodating wire sizes from AWG 14 to AWG 4. It is UL1077 certified and designed for reliable performance with up to 20,000 mechanical cycles.
- Amperage: 3 Amps
- Voltage Rating: 240 Volts
- Poles: 1 Pole
- Interrupt Rating: 10kA at 240V
- Trip Unit: Thermal Magnetic, C Curve
- Mounting Type: DIN Rail
- Terminal Type: Tunnel type, top or bottom
- Wire Size Range: AWG 14 to AWG 4
- Series/Frame: Multi9
- Certifications: UL1077
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MG24427
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Multi9
- Type : MG
- Voltage : 240
- Amperage : 3
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901346166
- Dimensions : 3.2 in (81 mm) x 0.7 in (18 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 0.26
