MG17474 - Schneider Electric 60A 3-Pole Circuit Breaker D Curve 480Y/277V UL1077

MG17474

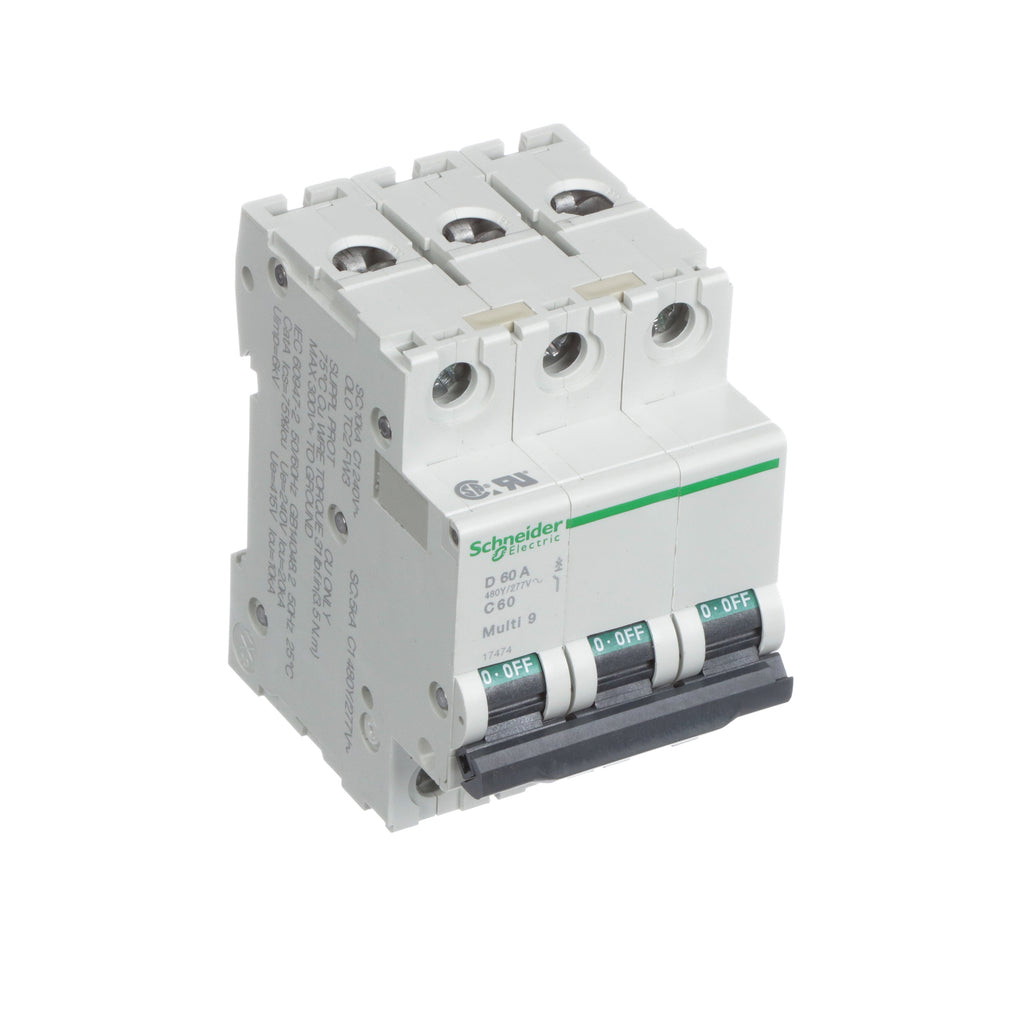

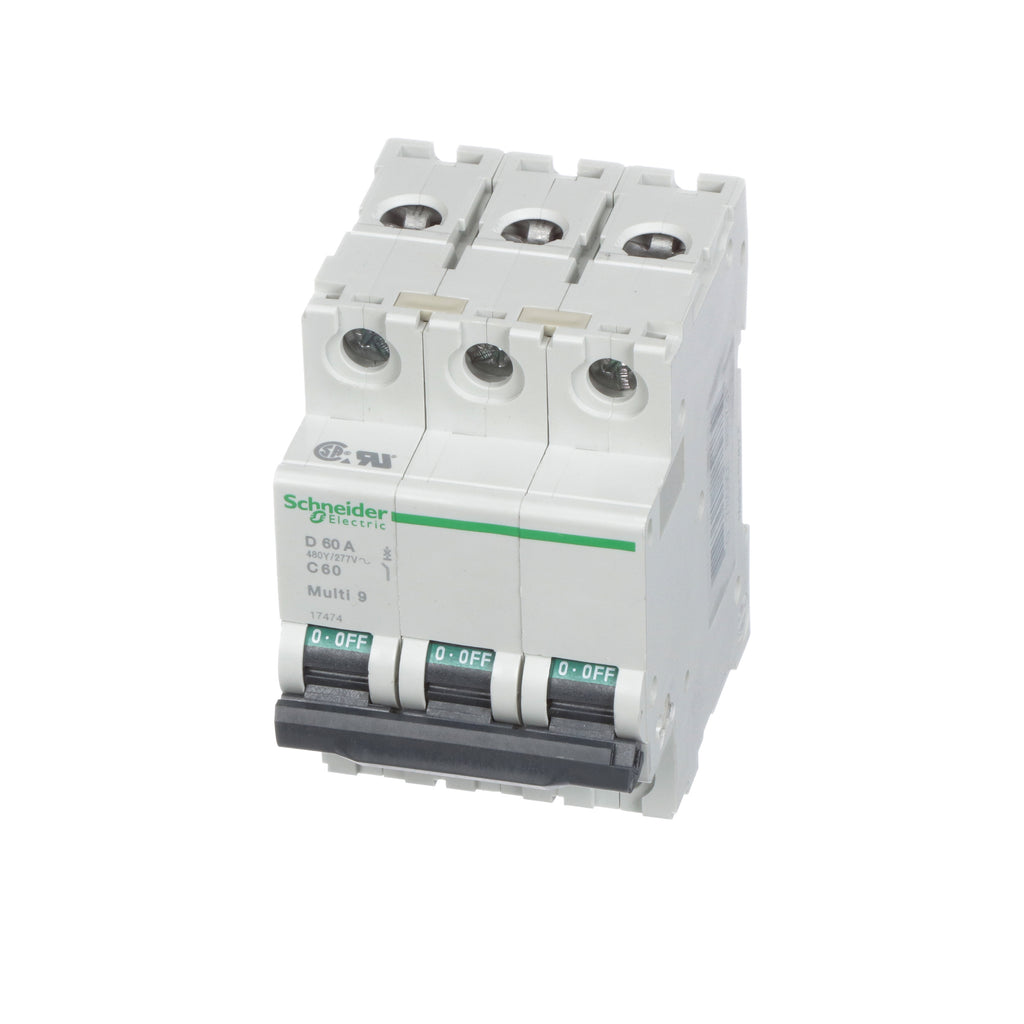

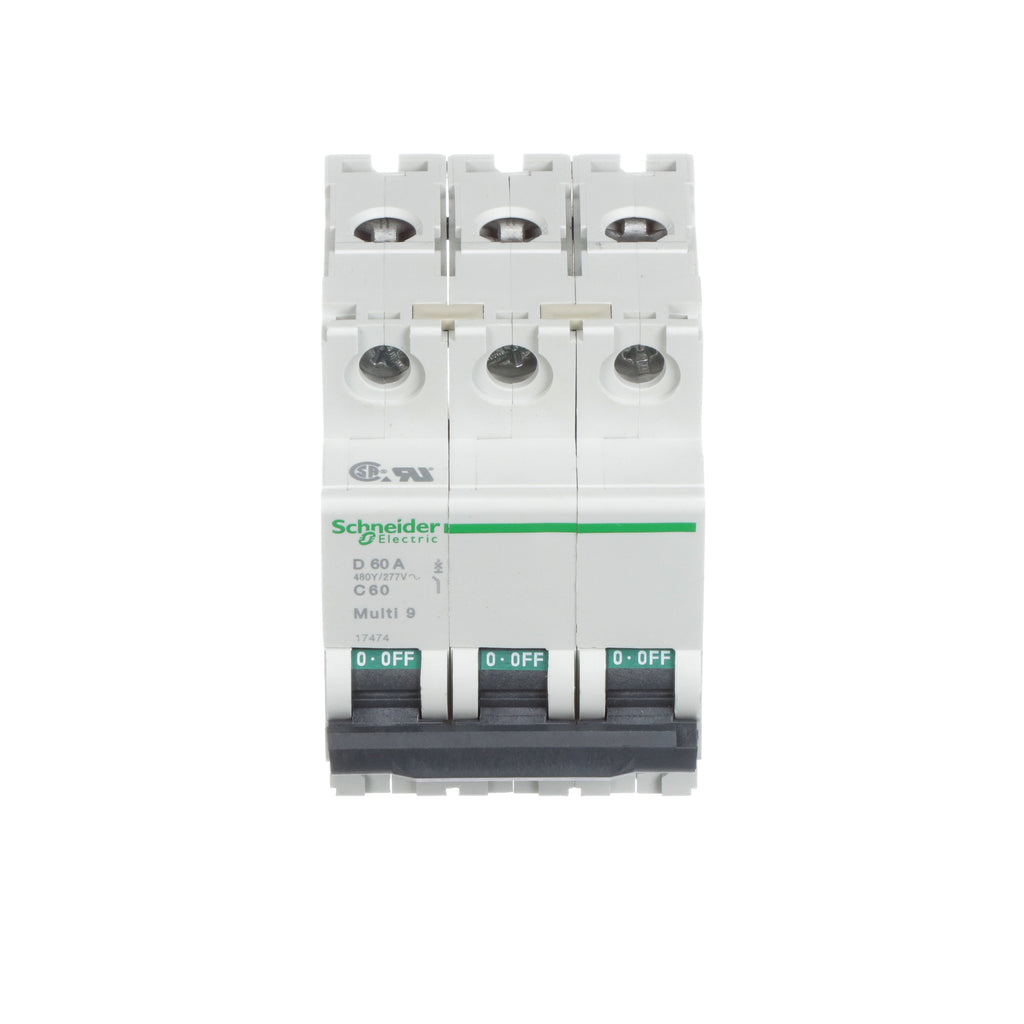

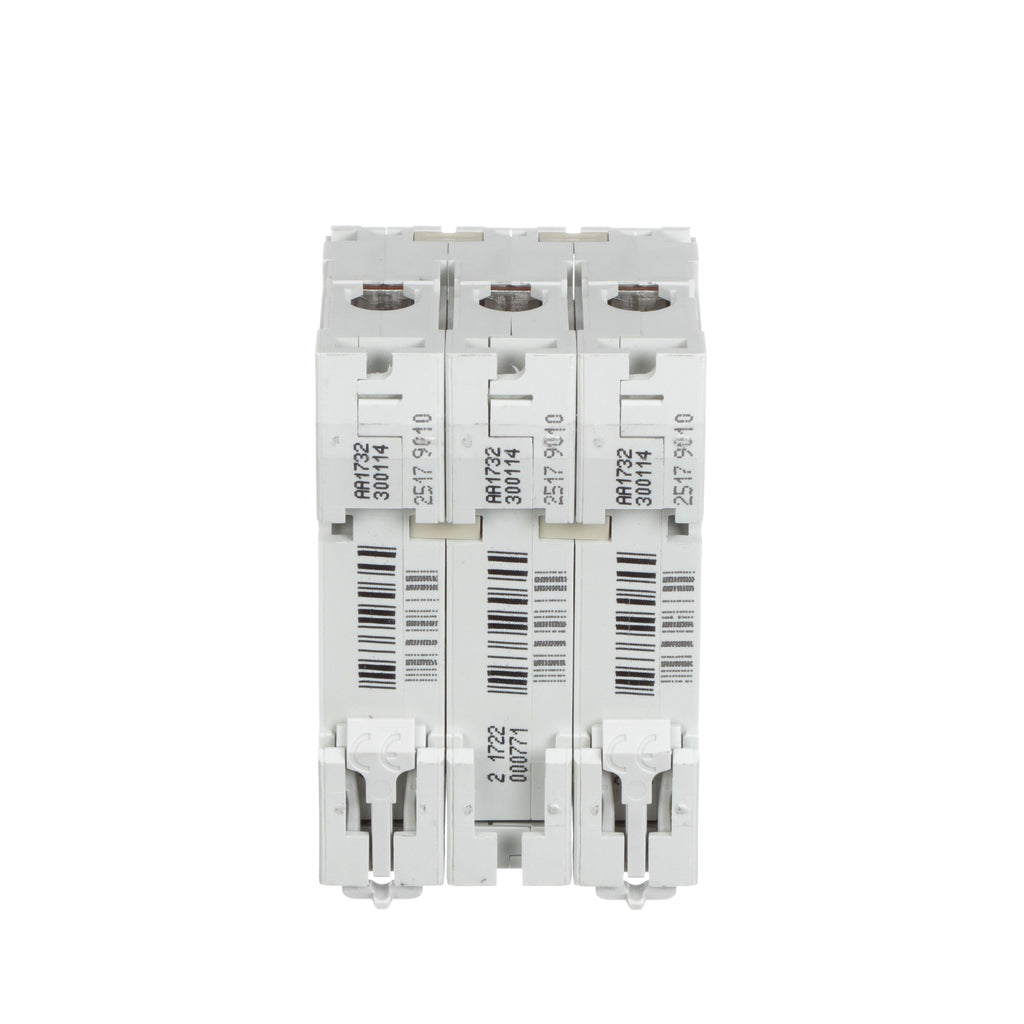

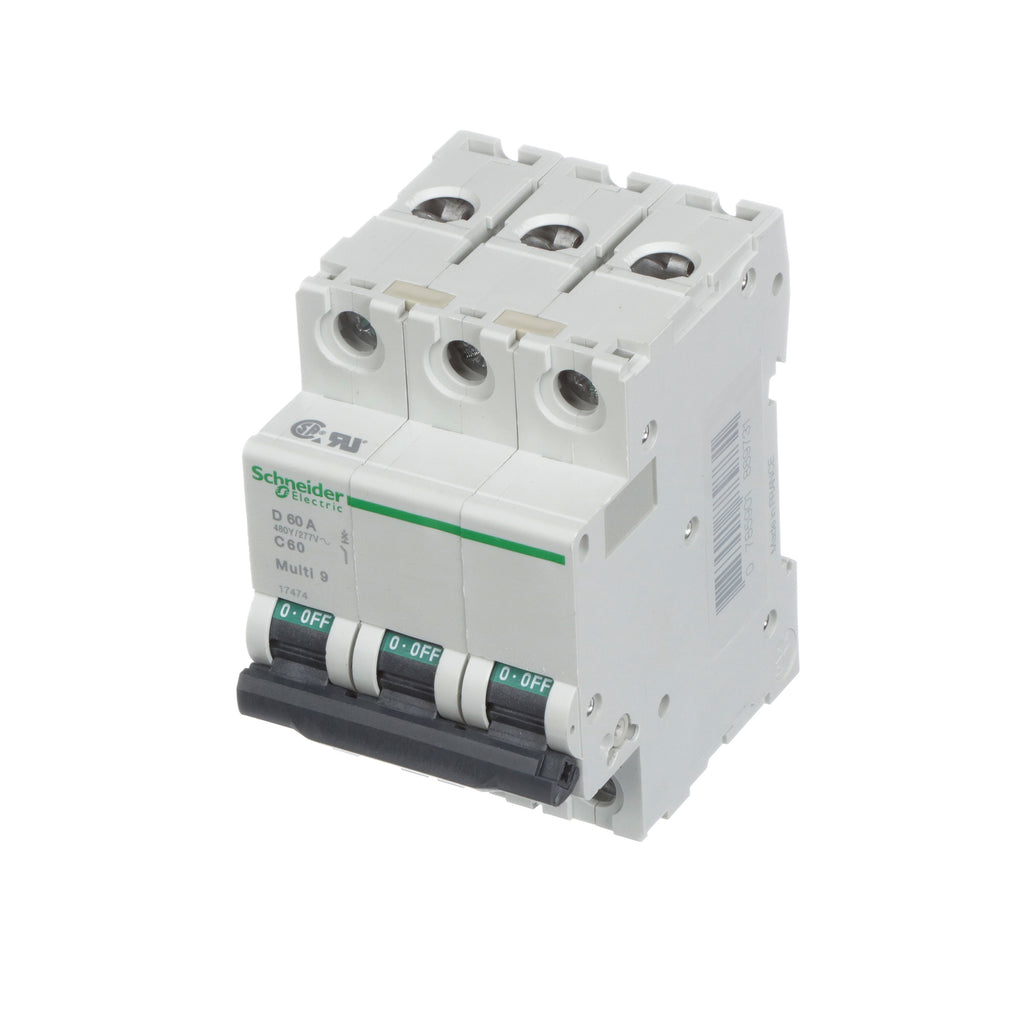

MG17474 is a Schneider Electric 3-pole circuit breaker with 60 ampere rating and D curve trip characteristic designed for DIN rail mounting.MG17474 features thermal-magnetic trip unit technology, suitable for AC applications up to 480Y/277 volts. It complies with UL 1077, EN/IEC 60947-2, and CSA C22.2 No 235 certifications, providing reliable supplementary protection with a 5 kA interrupt rating. This breaker is part of the Multi9 C60 series and is designed for industrial and commercial electrical distribution systems.

Key Specifications
• Amperage: 60 A
• Poles: 3
• Voltage Rating: 480Y/277 V AC
• Trip Unit: Thermal-magnetic, D curve
• Mounting Type: DIN rail
• Interrupt Rating: 5 kA
• Series/Frame: Multi9 C60
• Certifications: UL 1077, EN/IEC 60947-2, CSA C22.2 No 235
• Discontinued: Yes (No direct replacement)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MG17474
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 240
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• Dimensions : 3.2 in (81 mm) x 2.1 in (54 mm) x 2.9 in (73 mm) (Height x Width x Depth)
• Weight : 0.85
