Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG17472

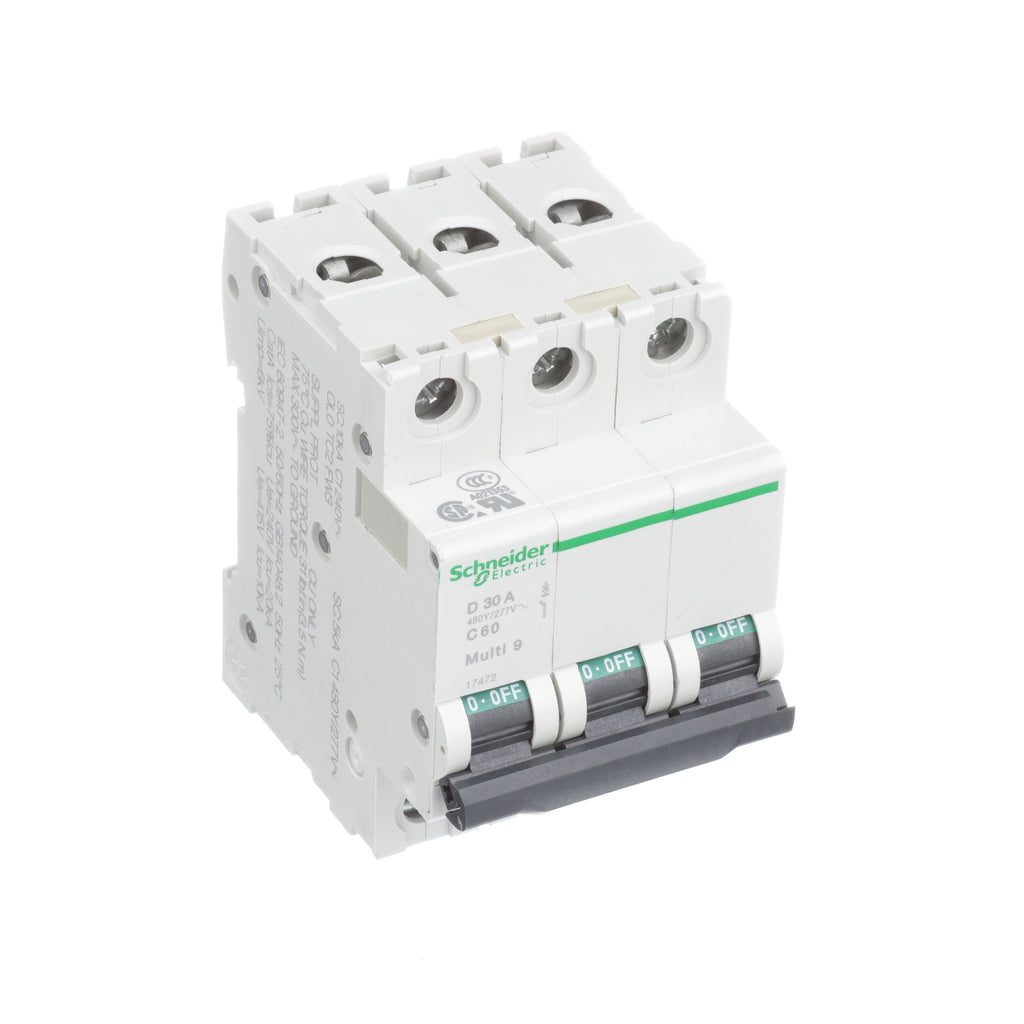

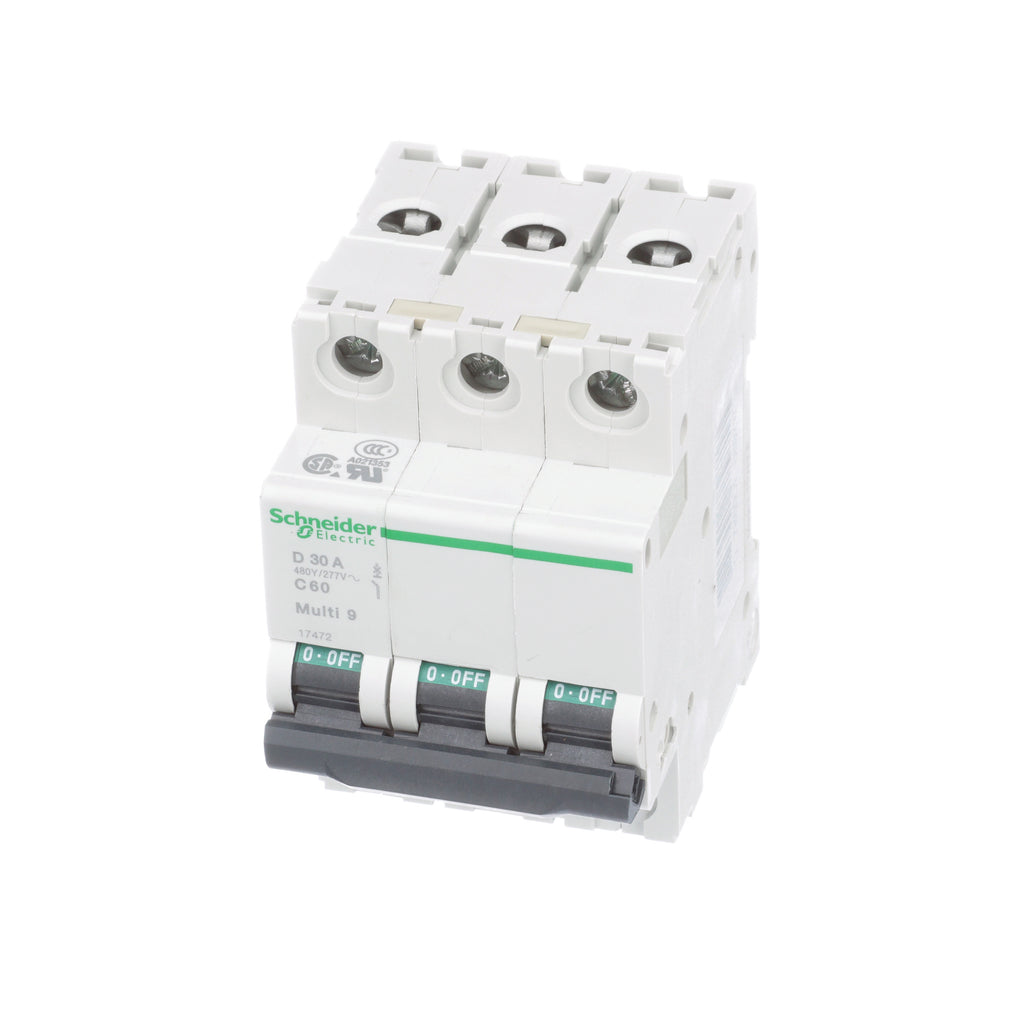

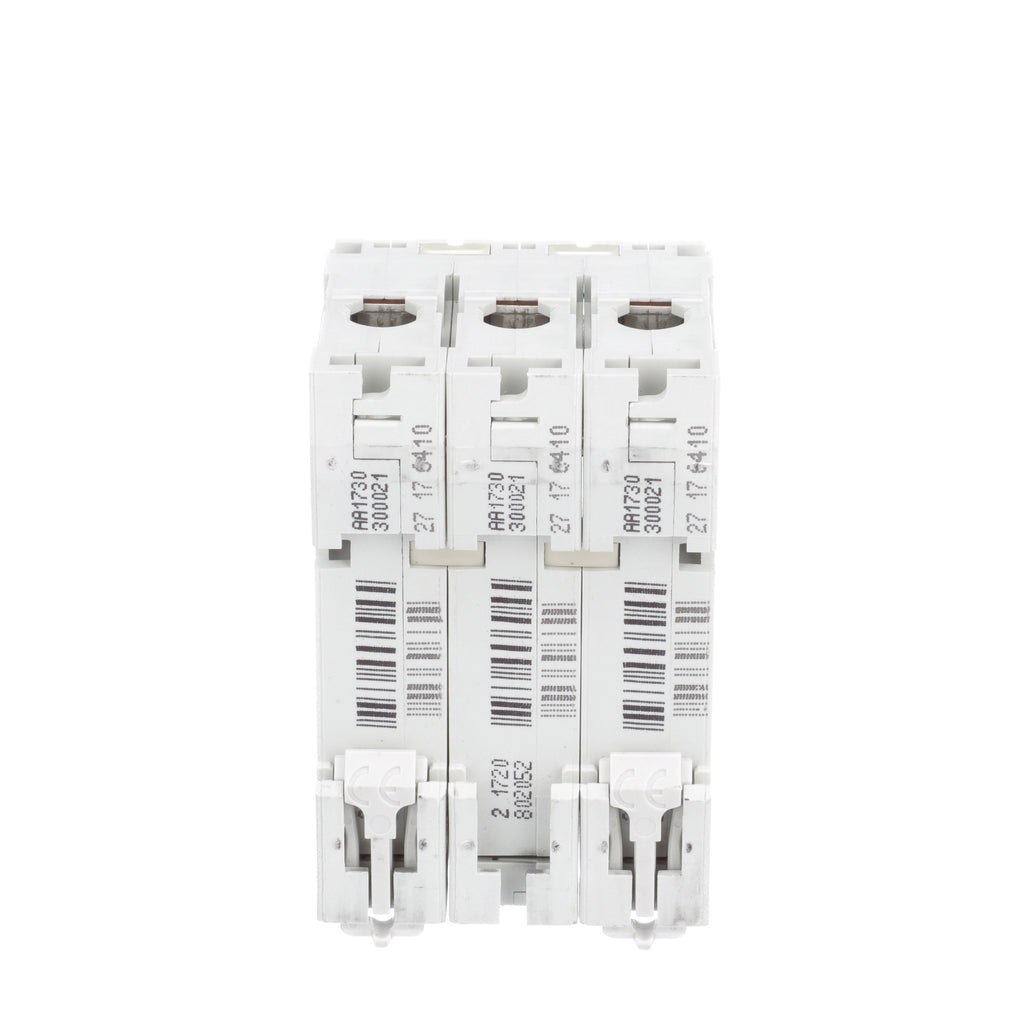

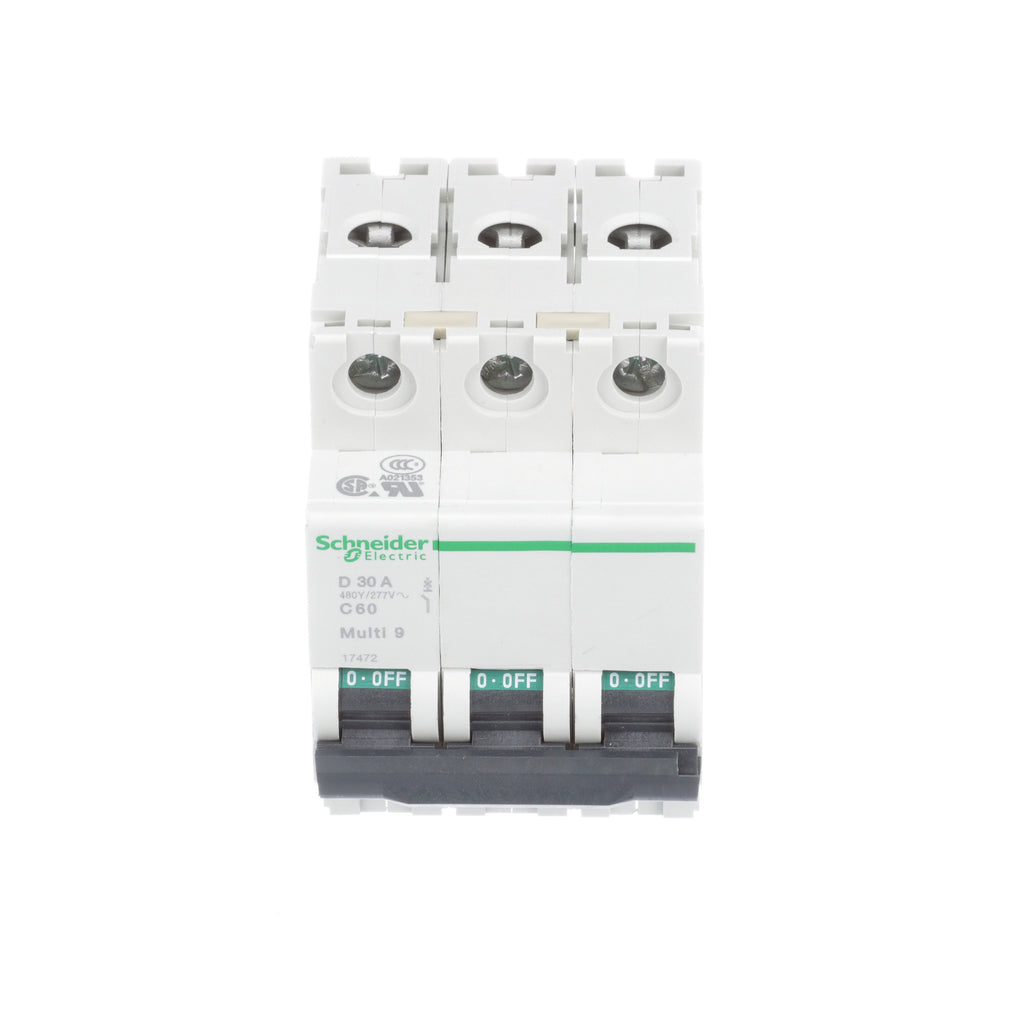

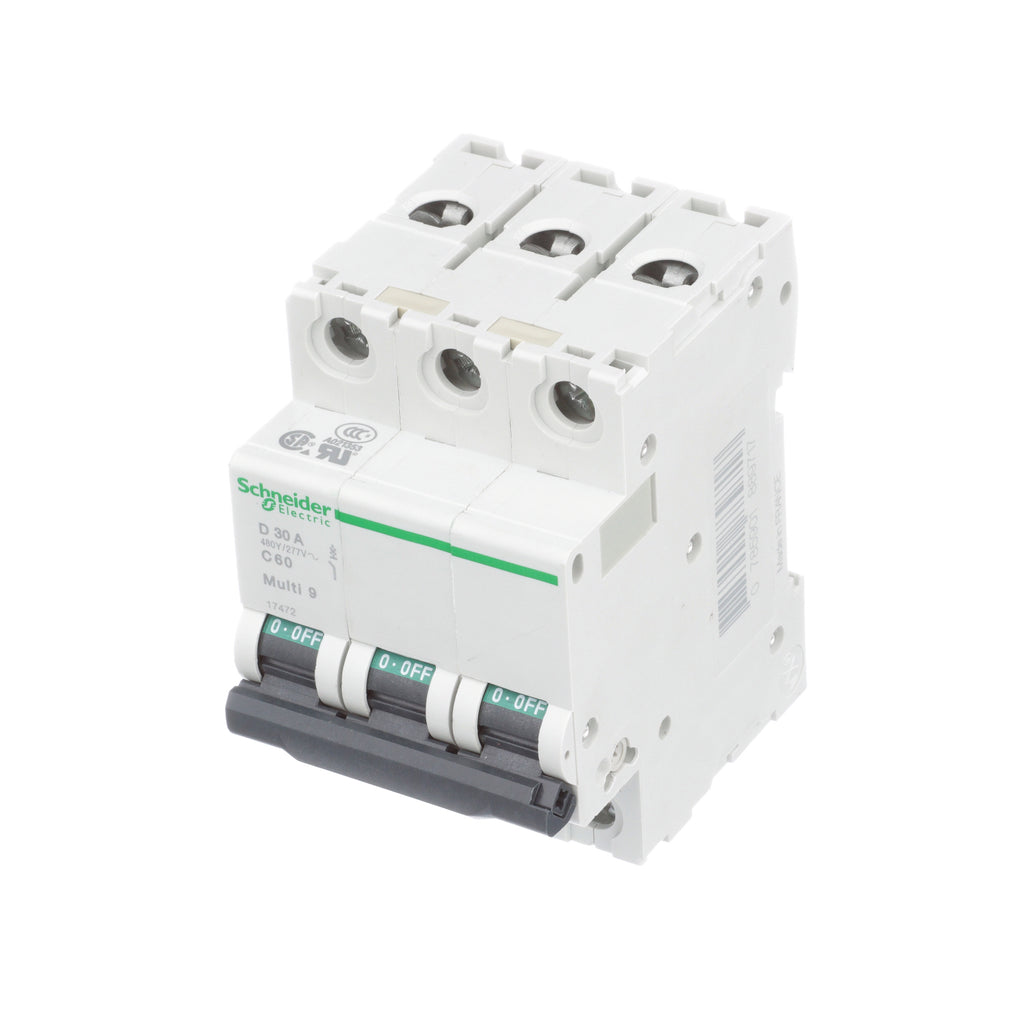

MG17472 is a Schneider Electric molded case circuit breaker designed for reliable circuit protection. It features a 30 amp rating and 3 poles for three-phase applications.The MG17472 circuit breaker supports 240 volts AC operation with a thermal-magnetic trip unit and a 10kA interrupting rating at 240 VAC (UL/CSA). It mounts on DIN rails and is suitable for industrial and commercial electrical panels. This breaker is part of the Multi9 series and is UL and IEC certified.
- Amperage: 30 Amps
- Voltage: 240 VAC
- Poles: 3 Pole
- Mounting Type: DIN Rail
- Interrupt Rating: 10 kA at 240 VAC (UL/CSA), 20 kA IEC
- Trip Unit: Thermal-Magnetic
- Series/Frame: Multi9
- Certifications: UL, IEC
- Discontinued by manufacturer
- Depth: 3 inches
- Height: 3.19 inches
Specifications
- Part Number: MG17472
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 240
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- Dimensions : 3.2 in (81 mm) x 2.1 in (54 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 0.83
- Certification : UR, CSA, CCC, IEC, UL, EN, GB
- Wire Size : AWG 14 to AWG 2
