Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG17417

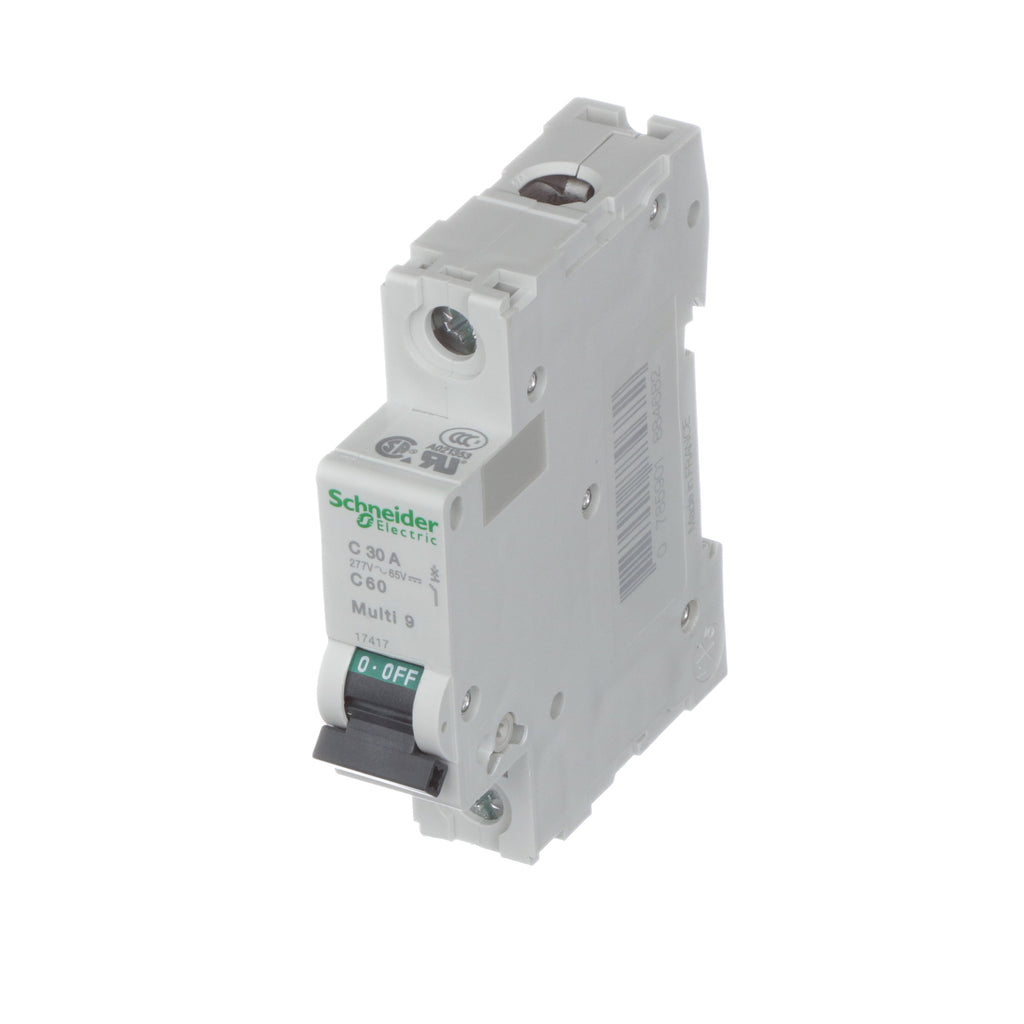

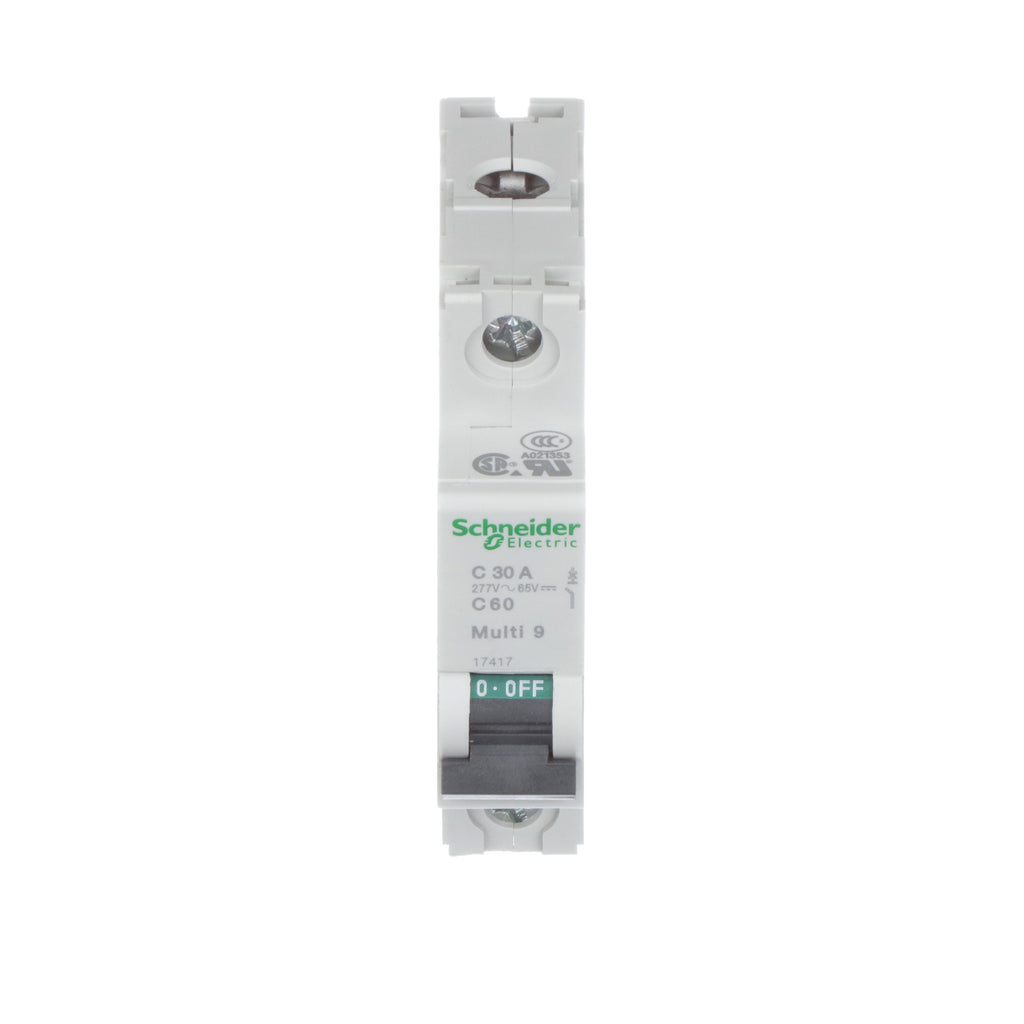

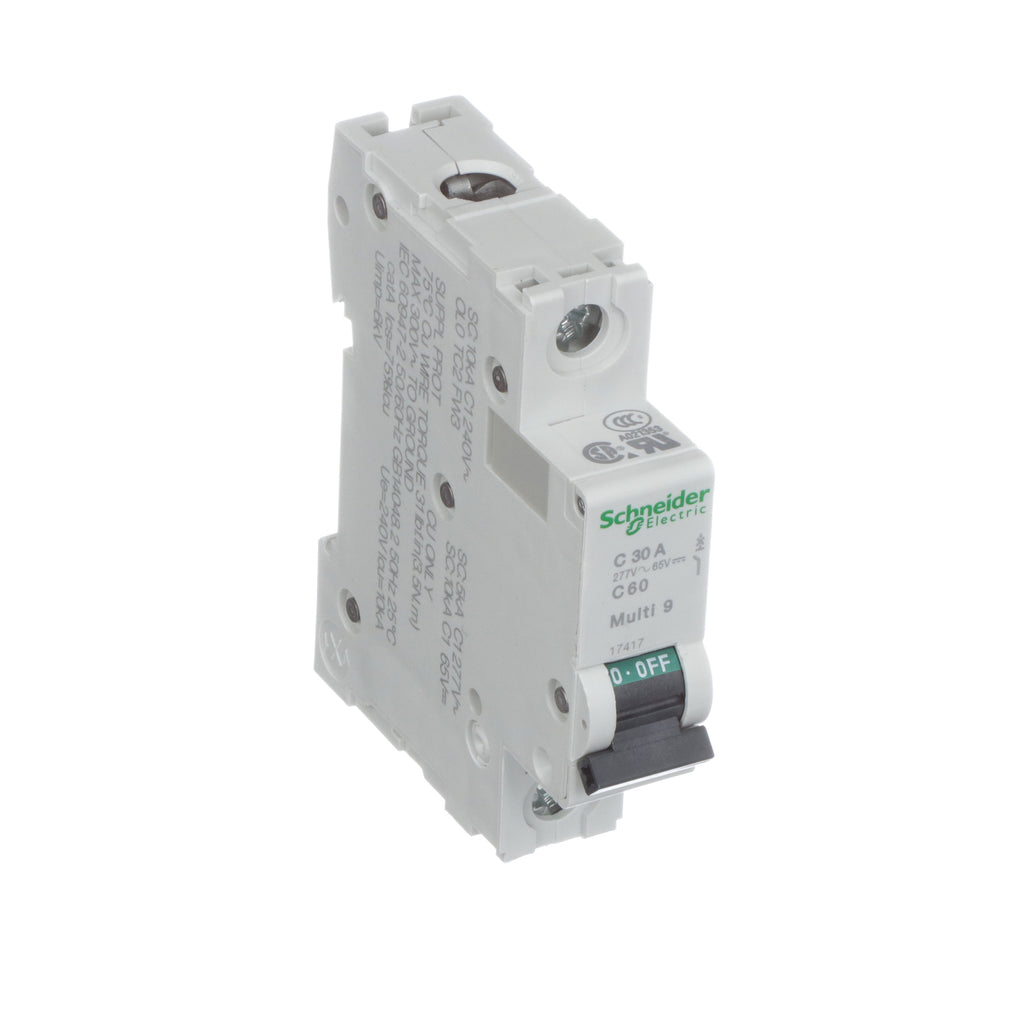

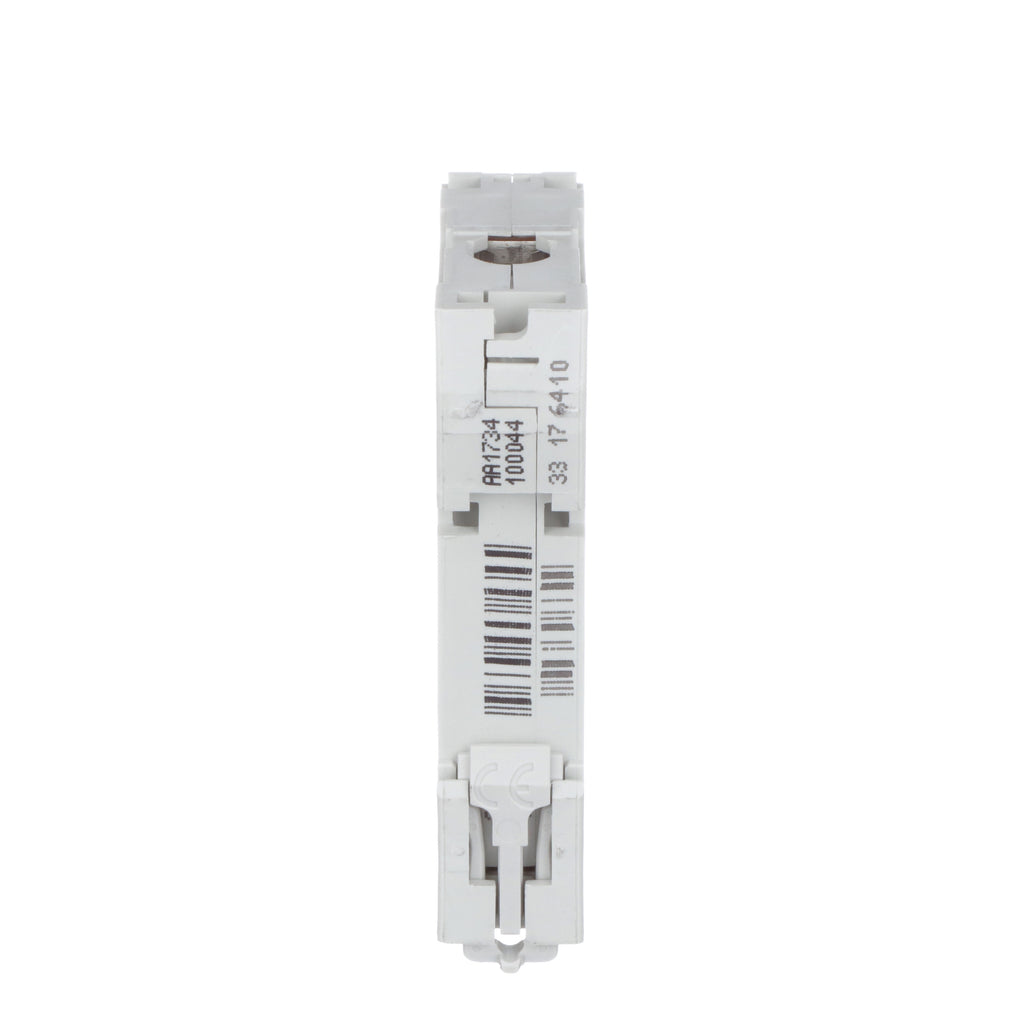

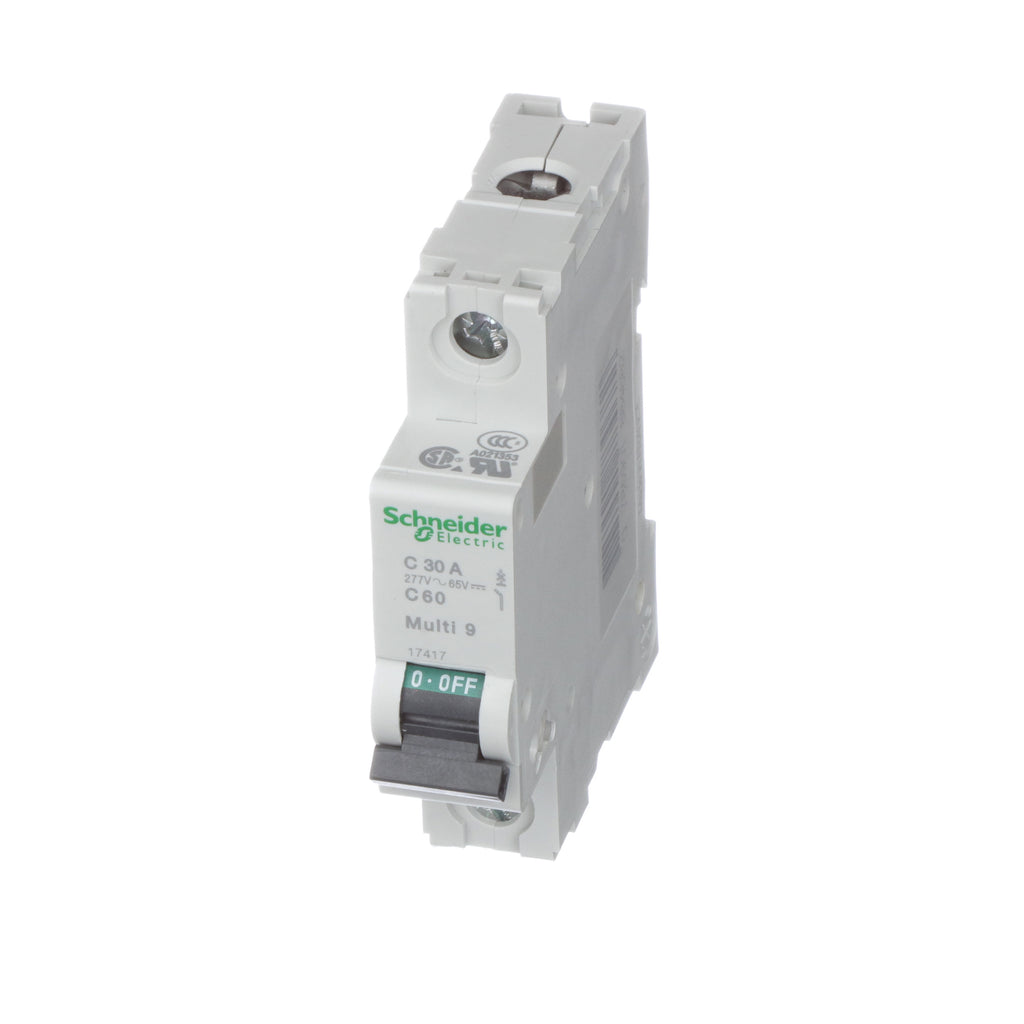

MG17417 is a Schneider Electric 30 Amp 1-Pole Thermal Magnetic Circuit Breaker designed for reliable circuit protection in electrical systems.
This circuit breaker features a C curve trip characteristic suitable for general purpose applications. It is rated for 30 amps and supports voltages up to 277 volts AC. The breaker is a single-pole type with bolt-on mounting and complies with UL 1077 standards. It offers a 5 kA interrupt rating and conforms to EN/IEC 60947-2 certification requirements, ensuring safety and performance in industrial and commercial environments.
- Manufacturer: Schneider Electric
- Part Number: MG17417
- Current Rating: 30 Amps
- Voltage Rating: 277 Volts AC
- Number of Poles: 1
- Trip Unit: Thermal Magnetic, C Curve
- Mounting Type: Bolt-On
- Interrupt Rating: 5 kA
- Certifications: UL 1077, EN/IEC 60947-2
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MG17417
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Multi9
- Type : MG
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Dimensions : 3.2 in (81 mm) x 0.7 in (18 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 0.28
