Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MG17414

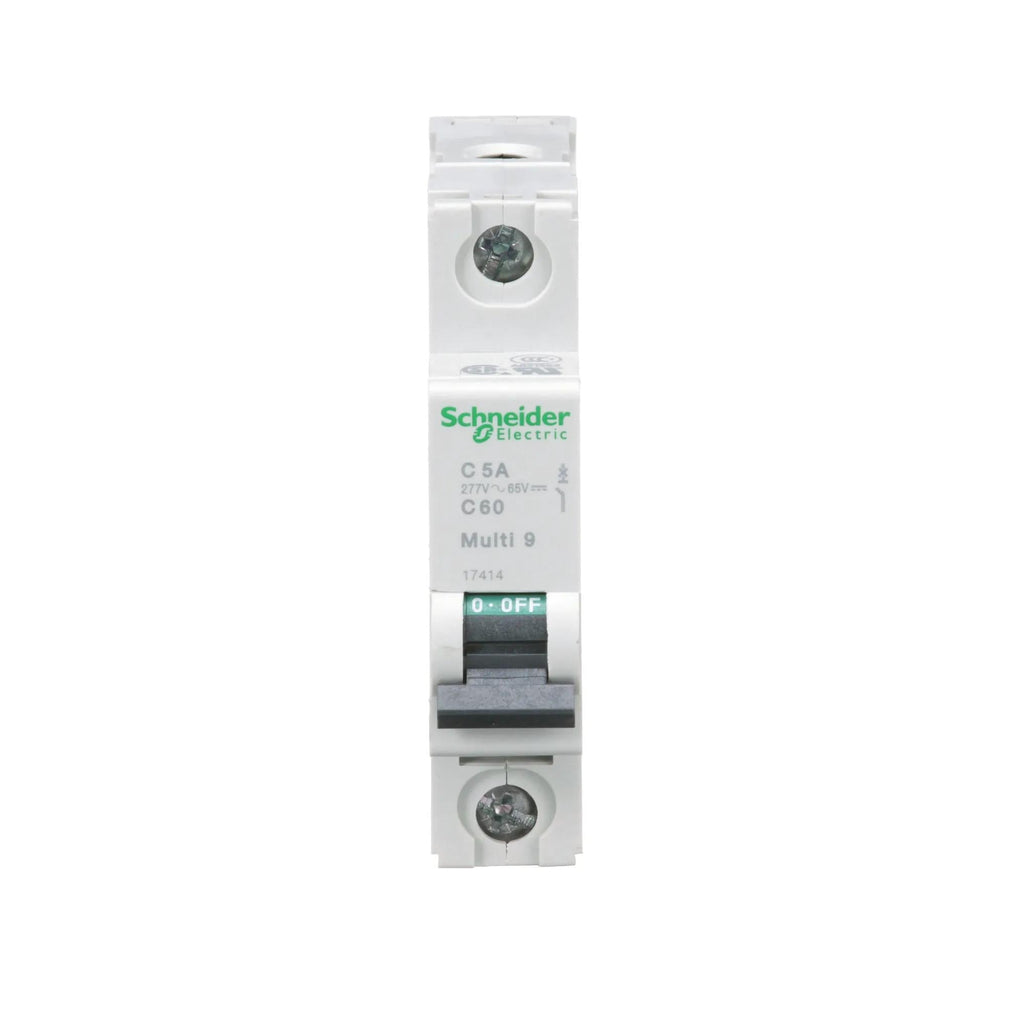

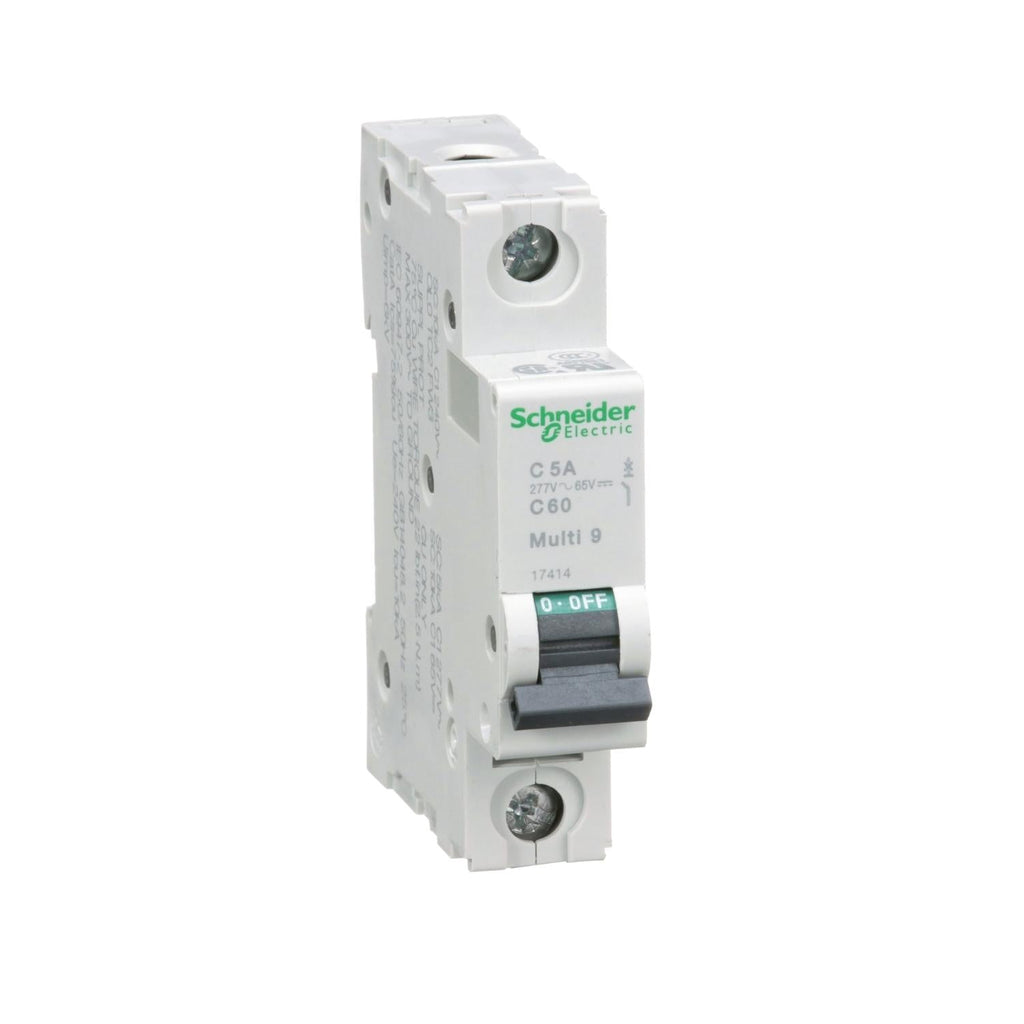

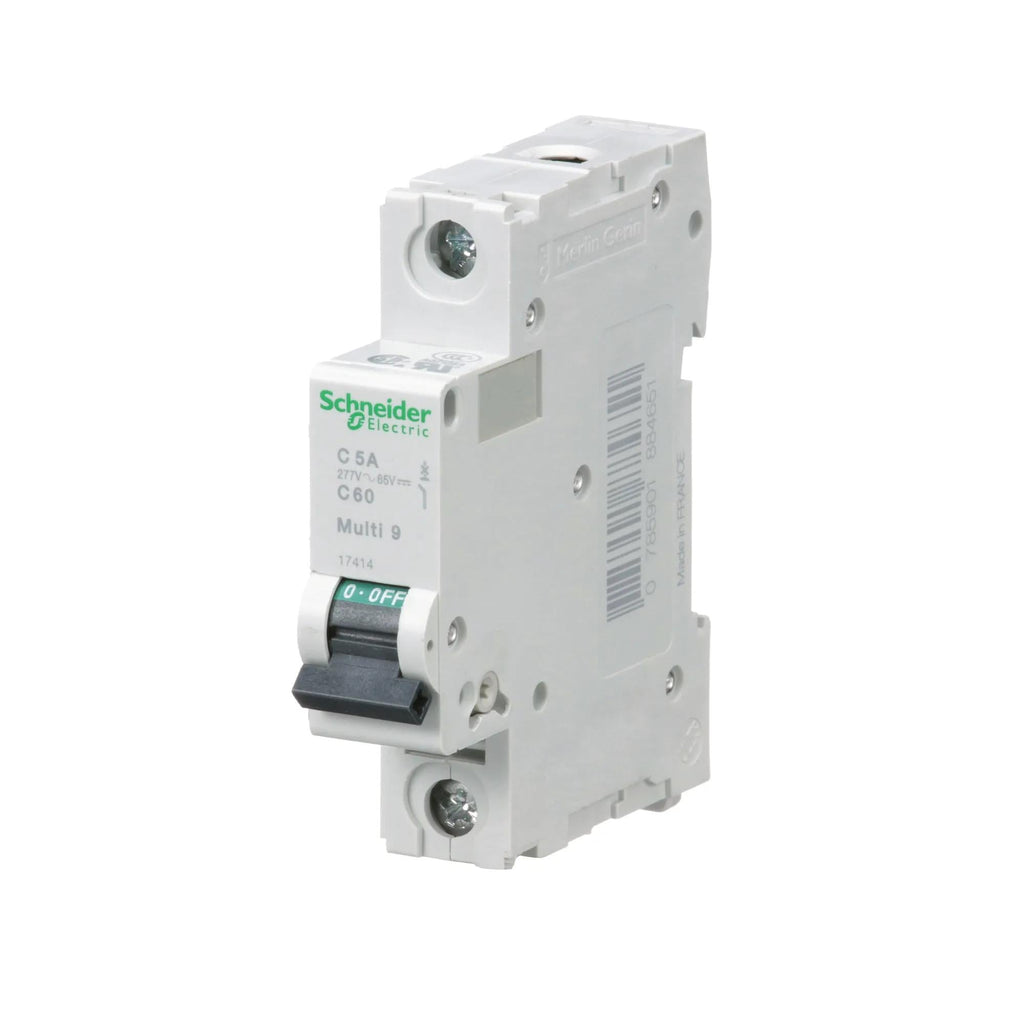

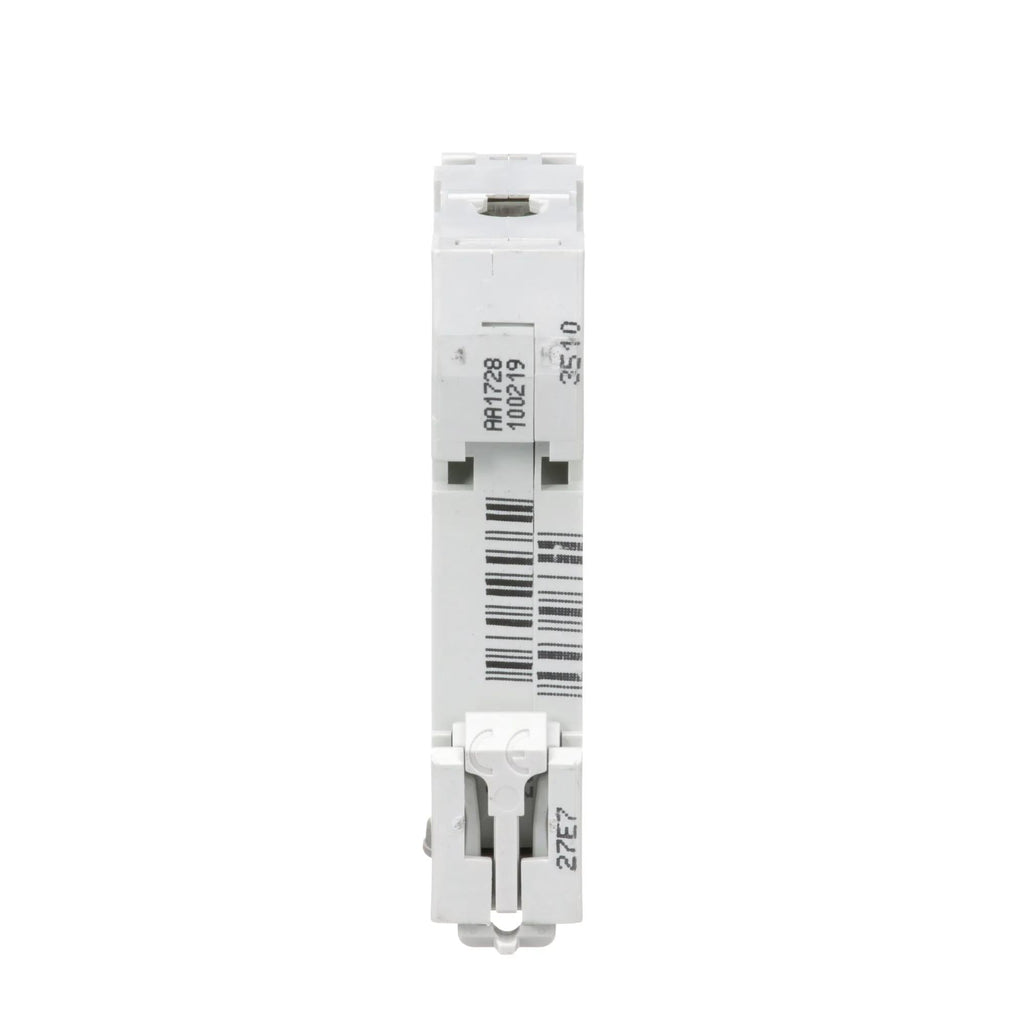

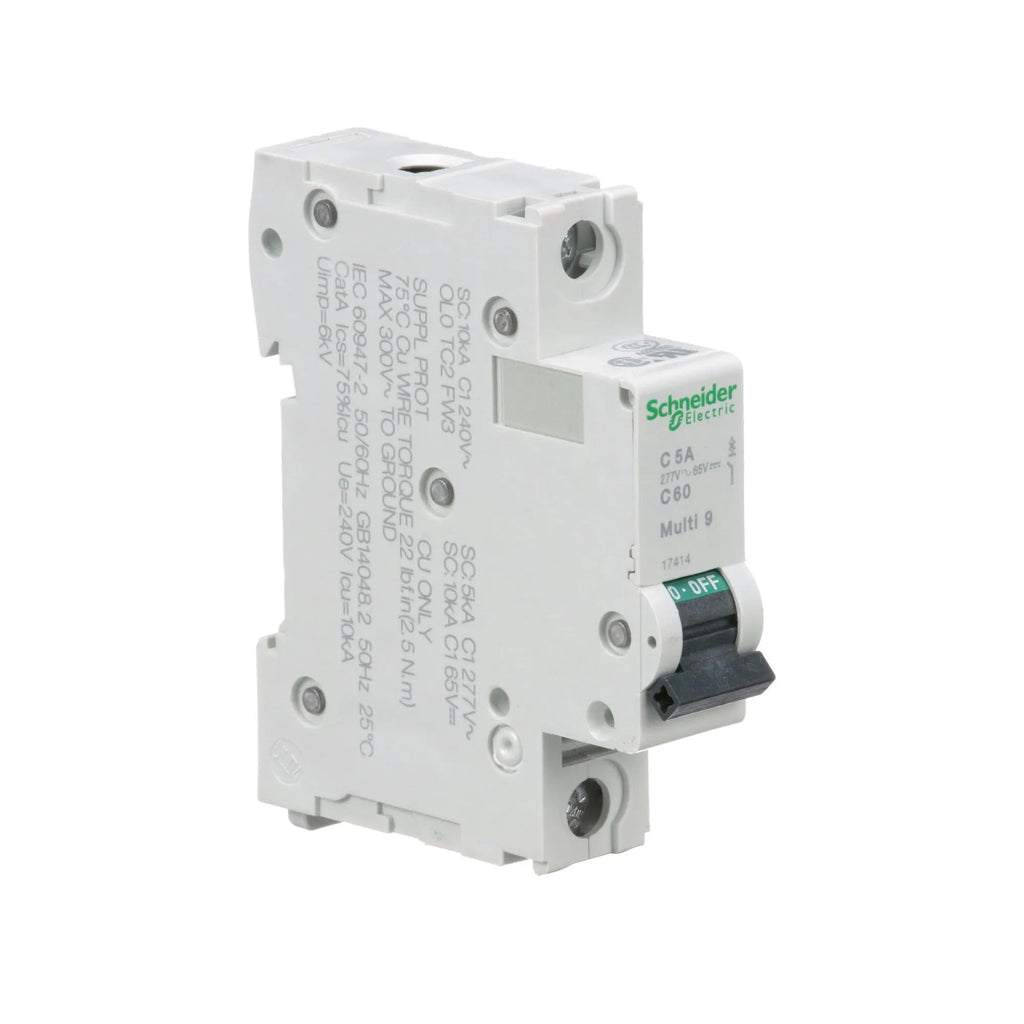

MG17414 is a Schneider Electric Multi9 miniature circuit breaker rated for 5 amps and 277 volts with a single pole configuration.
This circuit breaker features a C curve trip unit and a bolt-on mounting type. It has an interrupt rating of 5 kA at 277 V and 10 kA at 240 V, providing reliable protection for electrical circuits. The MG17414 is UL1077 listed and CSA certified, ensuring compliance with safety standards.
- Manufacturer: Schneider Electric
- Series: Multi9
- Amperage: 5 A
- Voltage Rating: 277 V AC / 60 V DC
- Poles: 1
- Trip Unit: C Curve
- Interrupt Rating: 5 kA @ 277 V, 10 kA @ 240 V
- Mounting Type: Bolt-On
- Certifications: UL1077, CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: MG17414
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Multi9
- Type : MG
- Voltage : 240
- Amperage : 5
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 785901884651
- GTIN : 785901884651
- Country of Origin : France
- Dimensions : 3.2 in (81 mm) x 0.7 in (18 mm) x 2.9 in (73 mm) (Height x Width x Depth)
- Weight : 0.26
