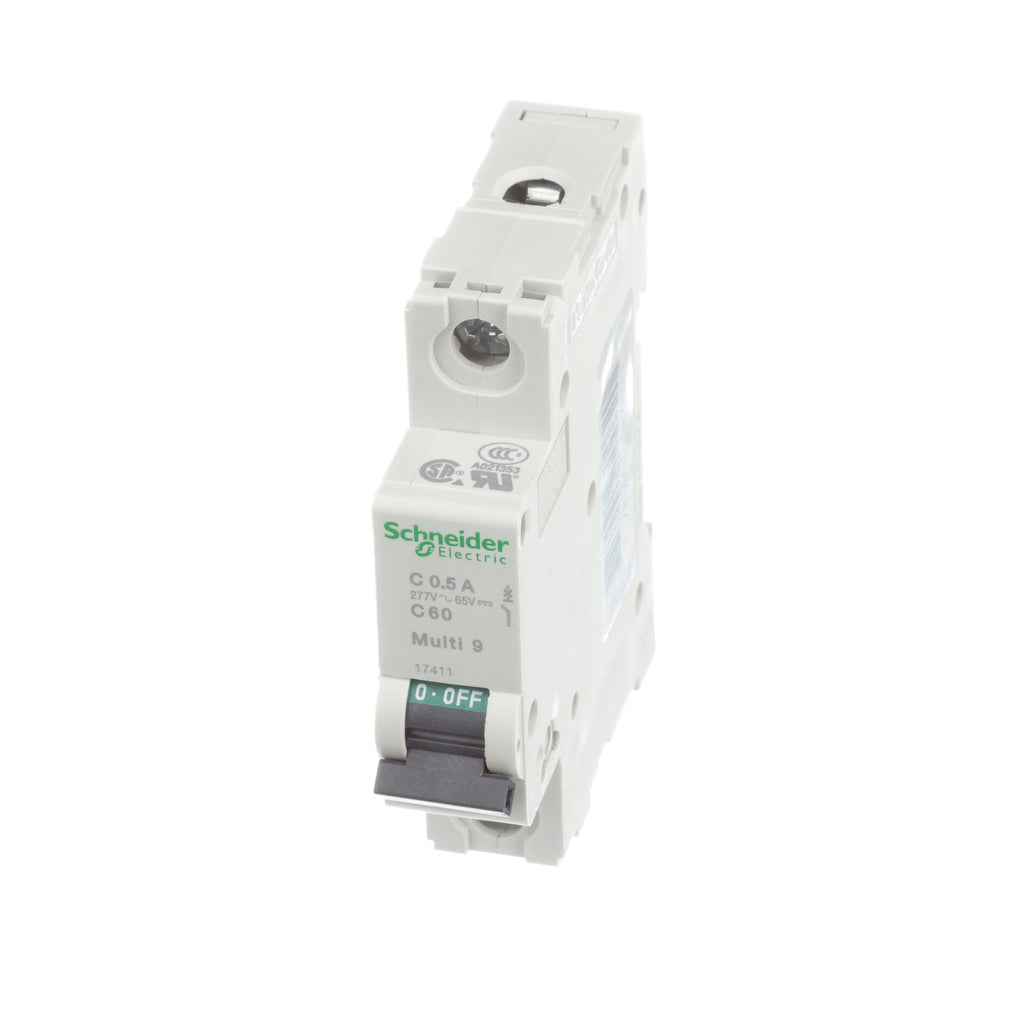

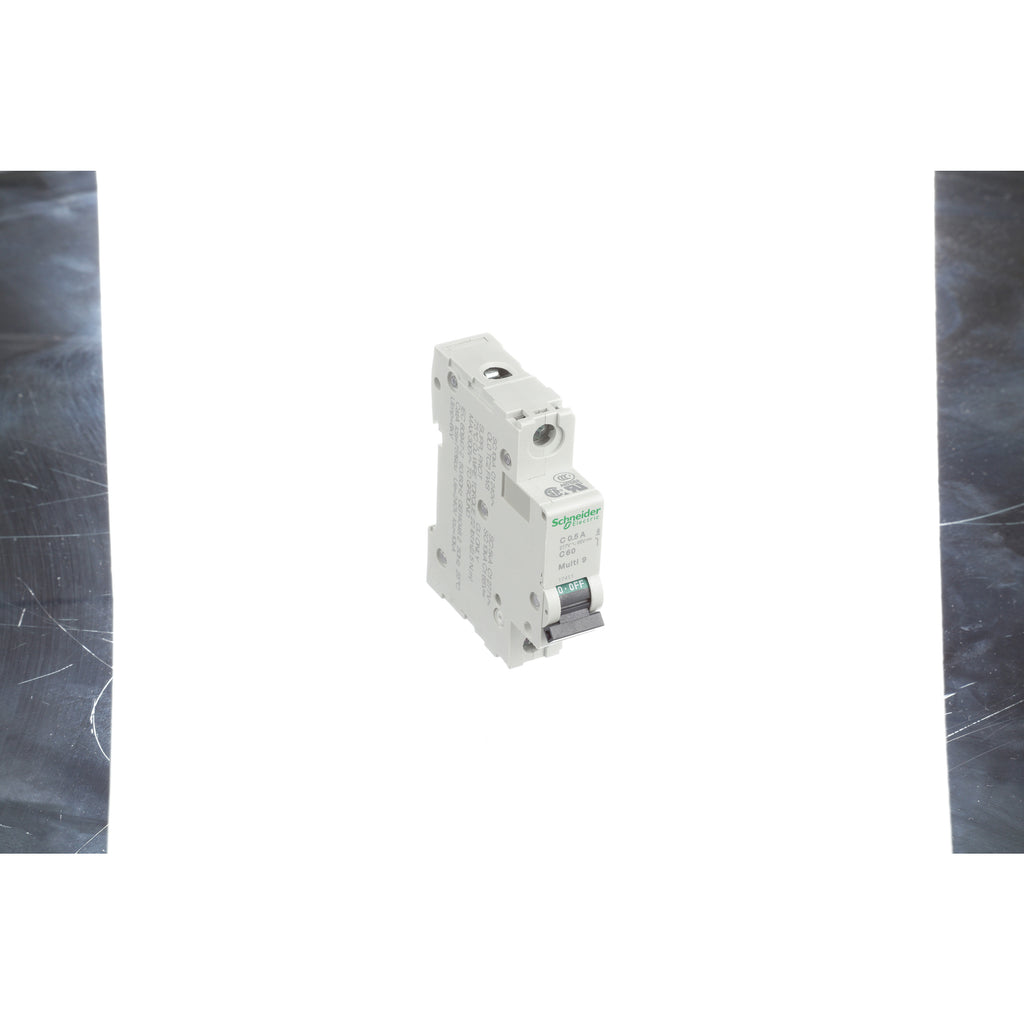

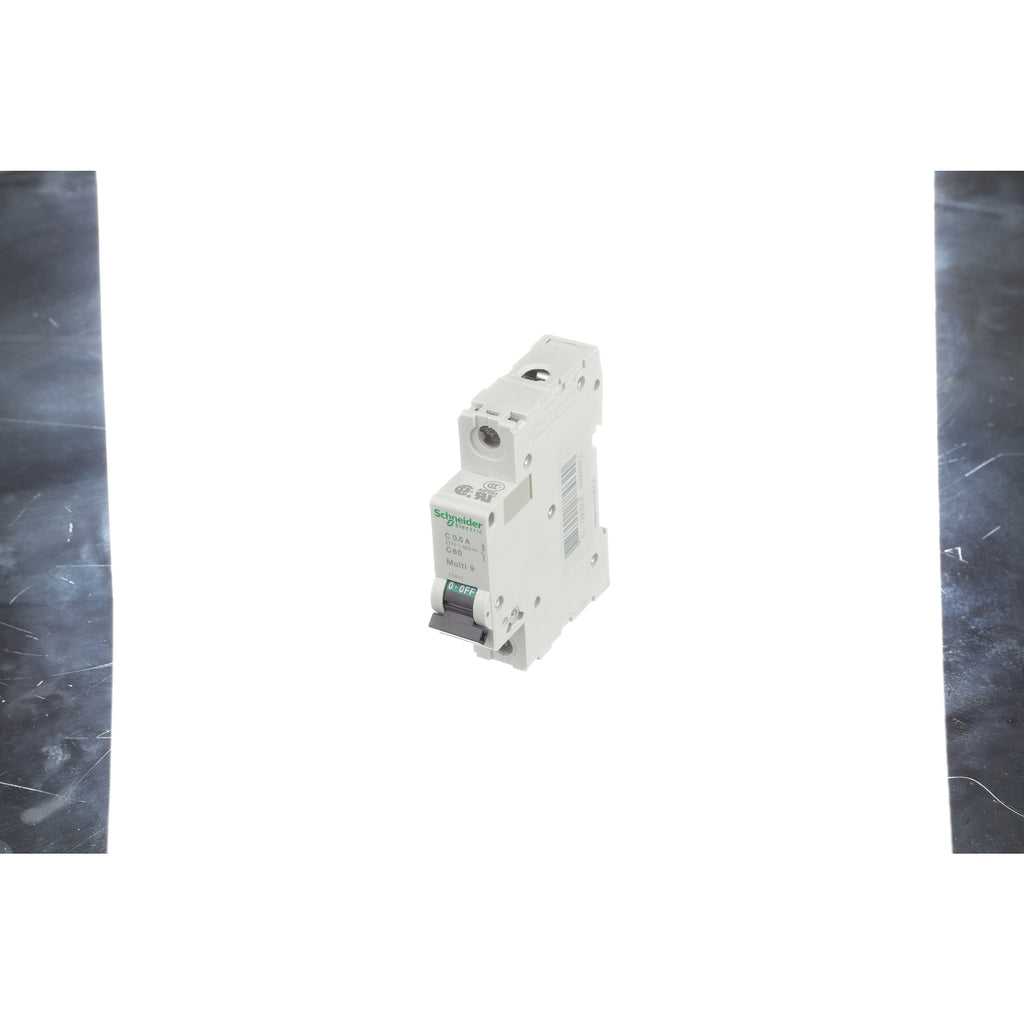

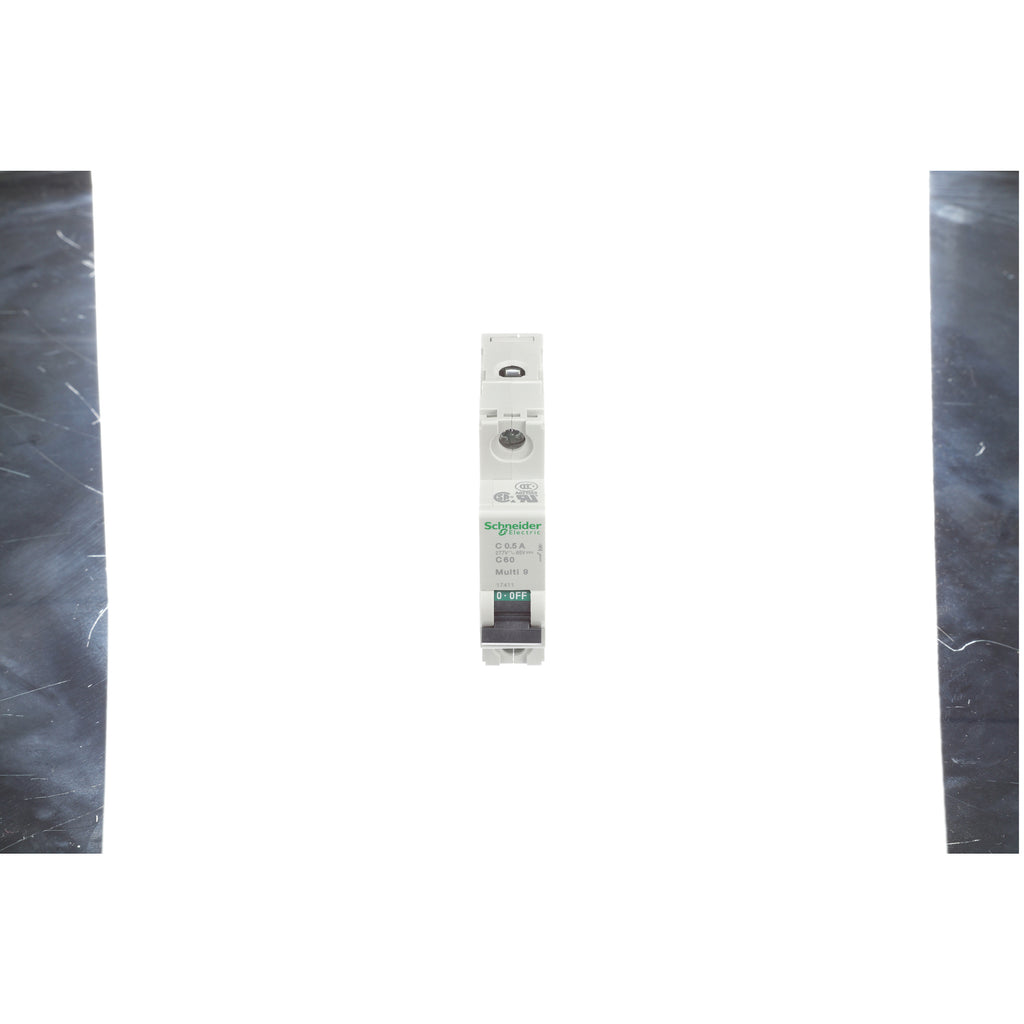

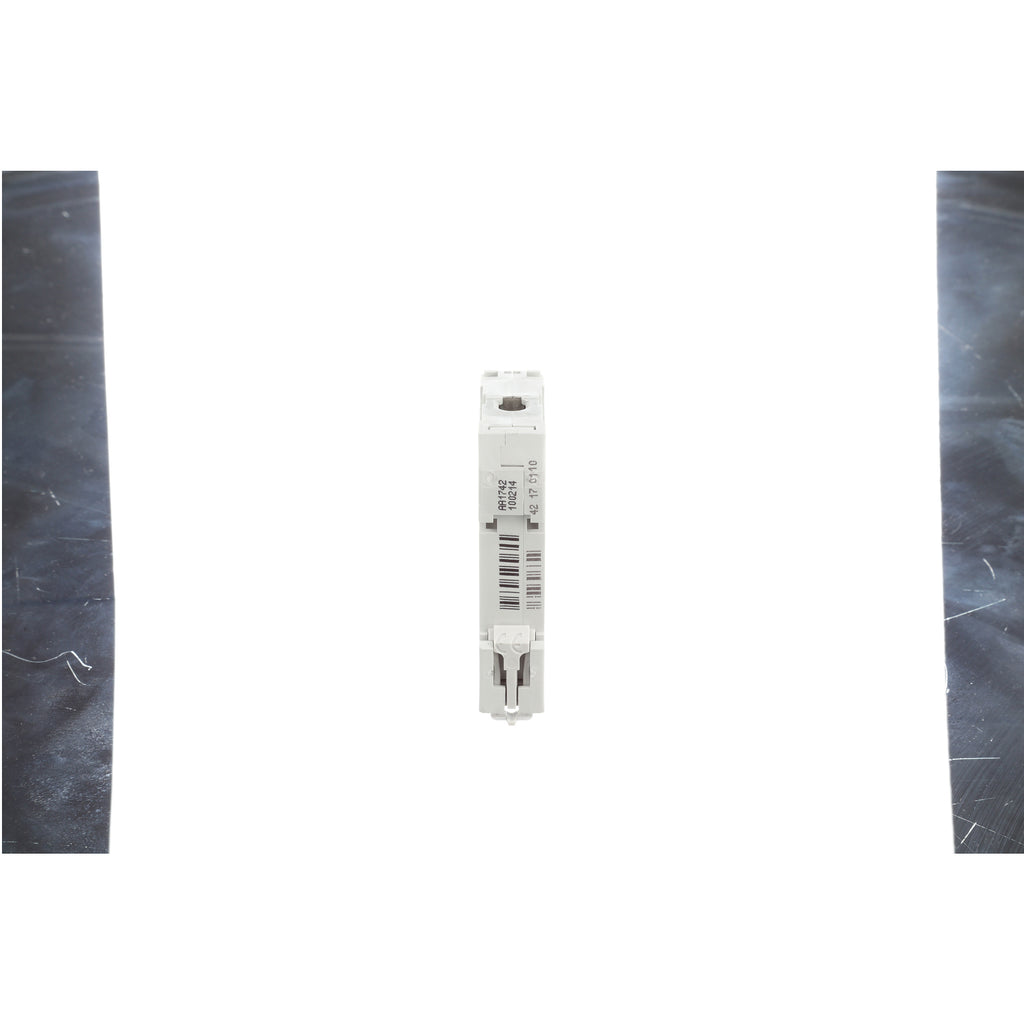

MG17411 - Square D C60 1-Pole 0.5 Amp 277 VAC Miniature Circuit Breaker DIN Rail Mount

MG17411

MG17411 is a 1-pole miniature circuit breaker from Square D, designed for reliable overcurrent protection in electrical distribution and equipment applications. This C60 series breaker features a trip-free mechanism and positive contact disconnect indication for safety and performance. The unit is DIN rail mountable and suitable for use in a wide range of industrial and commercial environments. The MG17411 provides thermal magnetic protection with a 0.5 amp rating and is rated for 277 VAC. It features a green mechanical indication on the front face to show when all poles are open, and it supports locking in both ON and OFF positions using a padlock attachment. The breaker is designed for reverse feeding and offers magnetic release operation between 7 and 10 times the ampere rating for AC and 7 to 14 times for DC. It is suitable for supplementary protection in appliances and electrical equipment.

• 1-pole miniature circuit breaker
• 0.5 amp current rating
• 277 VAC voltage rating
• DIN rail mounting type
• Interrupt rating: 10 kA at 240 VAC, 3 kA at 415 VAC, 10 kA at 65 VDC
• C60 series
• Thermal magnetic trip unit
• Positive contact disconnect indication
• Green mechanical indication for open poles
• Lockable ON-OFF positions
• Reverse feed capable
• Operating temperature: -30 to 70 deg C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MG17411
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 240
• Amperage : 0,5
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Dimensions : 3.2 in (81 mm) x 0.7 in (18 mm) x 2.9 in (73 mm) (Height x Width x Depth)
• Weight : 0.26
