Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

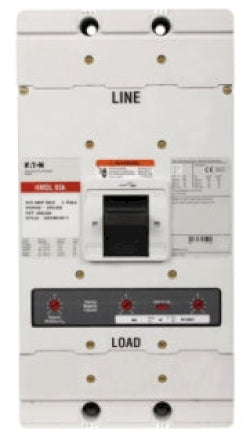

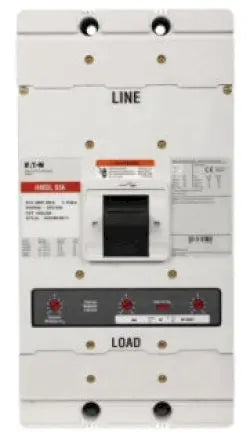

MDLB3800W
MDLB3800W is a molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker features a robust 800A amperage rating, 600VAC/250VDC voltage capacity, and is rated for 50/65kA interrupt. It is a three-pole device with a fixed thermal and fixed magnetic trip unit, suitable for panel mounting applications. The MDLB3800W is part of the Series C M-Frame family, known for durability and performance in demanding environments. This circuit breaker is engineered for use in a variety of electrical systems, including those requiring high interrupt capacity and dependable circuit protection. Its sealed construction and fixed trip settings make it ideal for applications where consistent performance is critical. The device is compatible with standard panel mounting configurations and is widely used in industrial, commercial, and utility installations.
- Part Number: MDLB3800W
- Manufacturer: Eaton / Cutler Hammer / Westinghouse
- Amperage Rating: 800A
- Voltage Rating: 600VAC / 250VDC
- Poles: 3
- Interrupt Rating: 50/65kA
- Series/Frame: Series C M-Frame
- Mounting Type: Panel Mount
- Tripping Unit: Fixed Thermal / Fixed Magnetic
- Certifications: UL Listed, CSA Certified
- Application: Commercial and Industrial Power Distribution
- Weight: 28 lbs
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: MDLB3800W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : MDLB
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 782114371411
- GTIN : 00782114371411
- Country of Origin : United States
- Dimensions : 18 in x 8 in x 11 in (Length/Depth x Height x Width)
- Weight : 26
- Certification : UL Listed
