Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
MDLB3800T33W

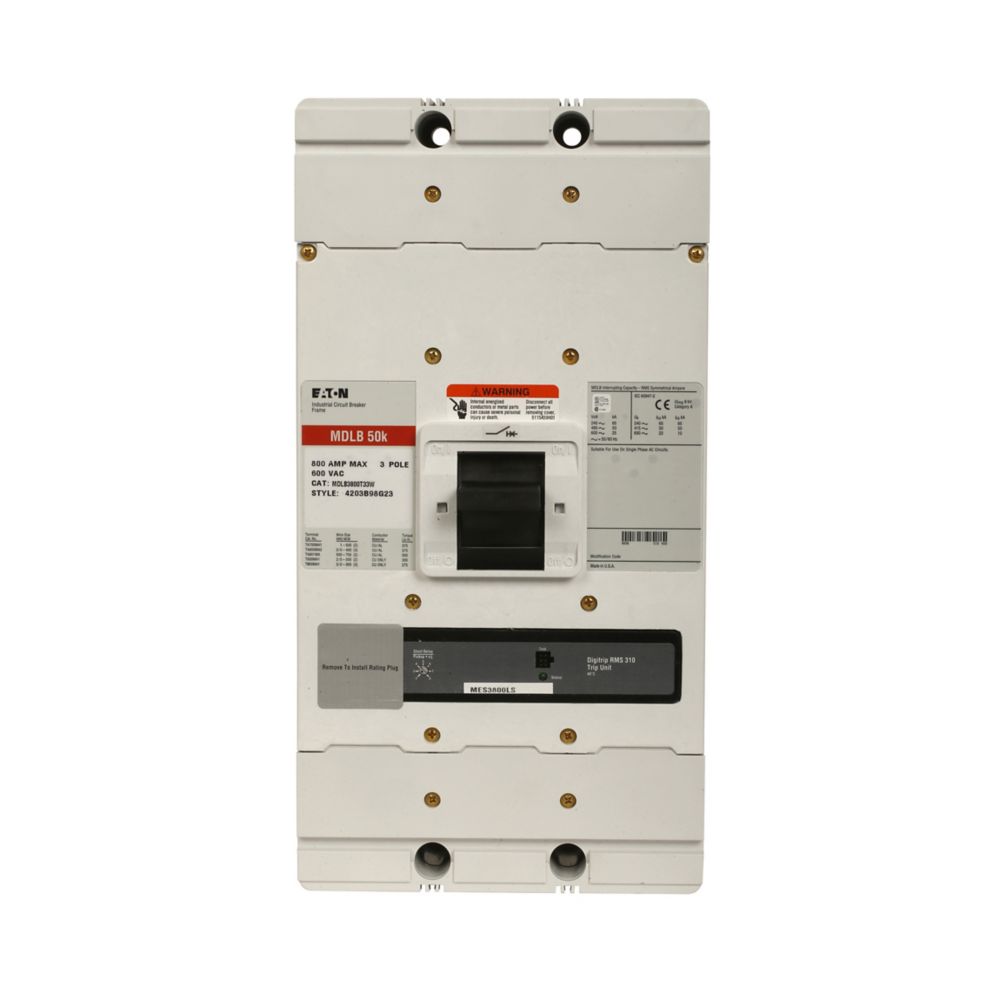

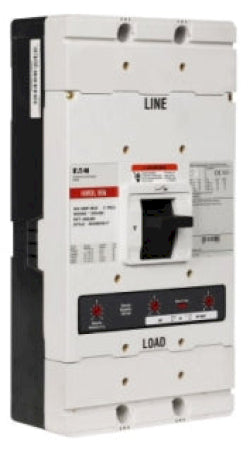

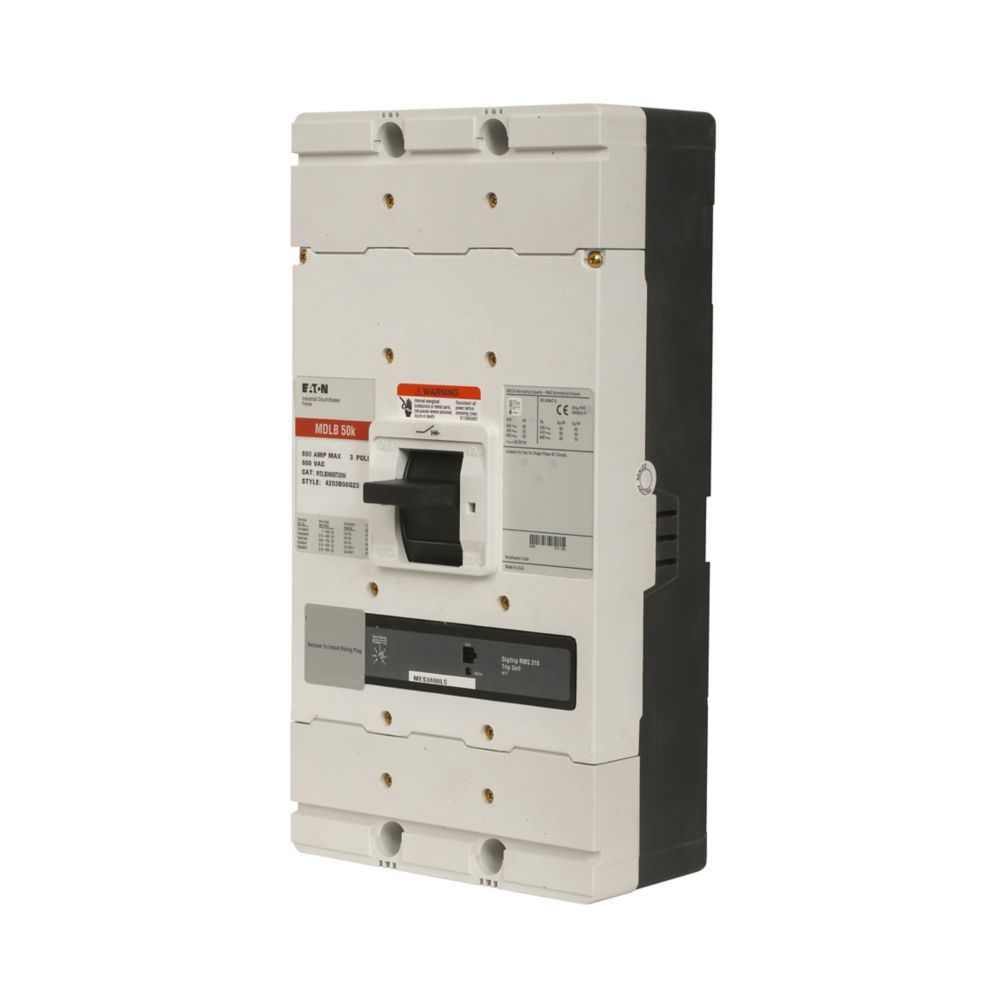

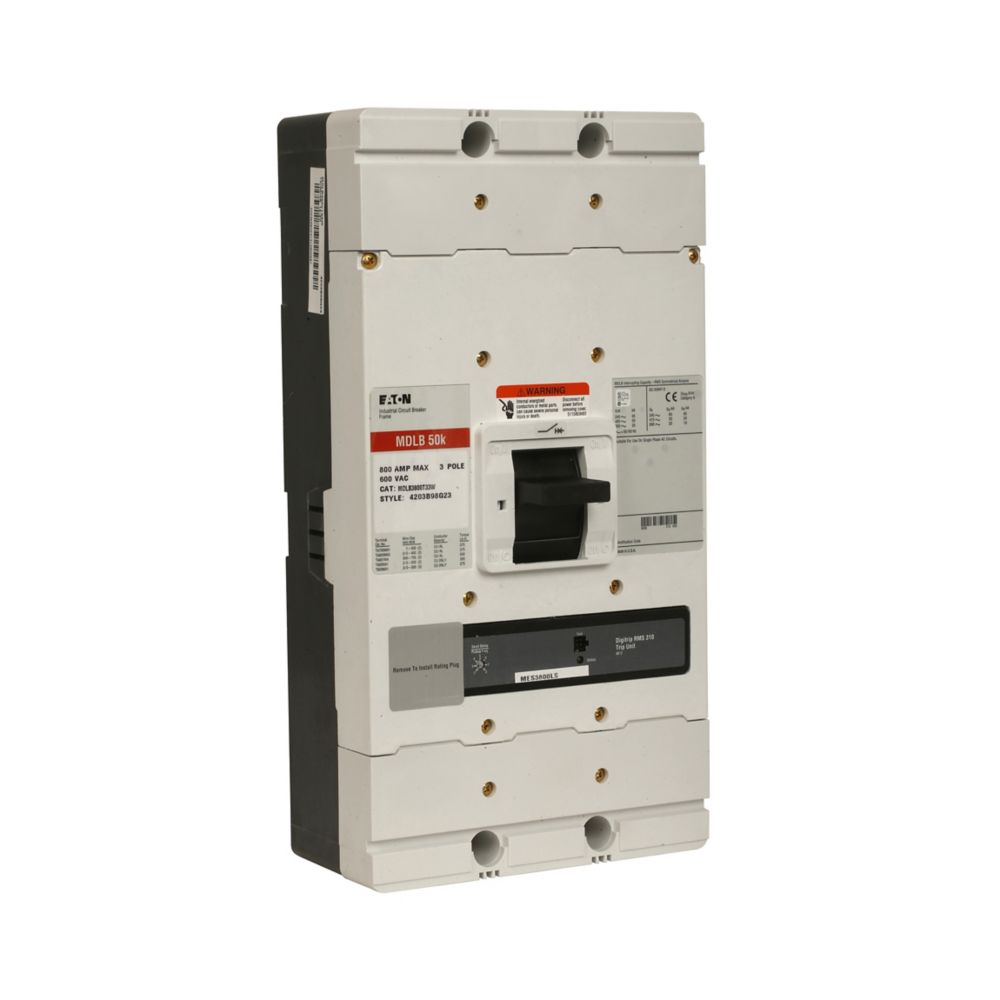

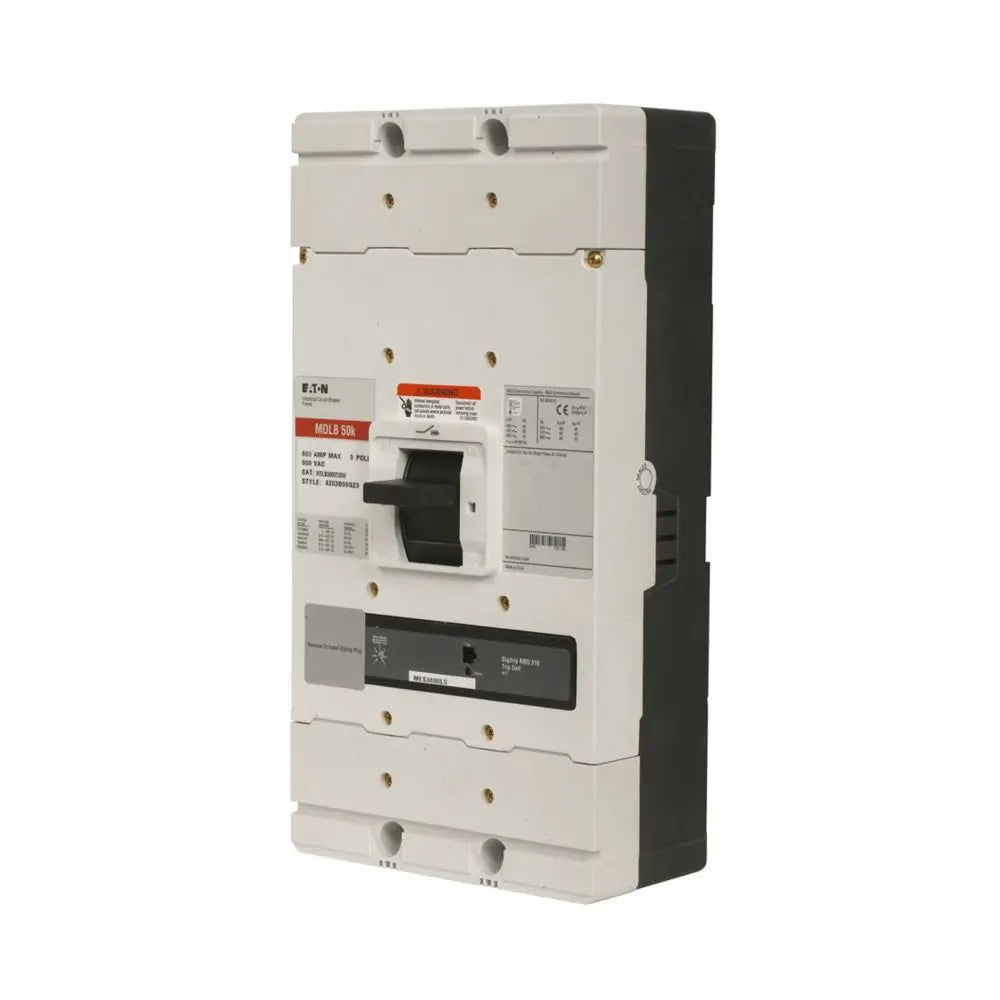

MDLB3800T33W is a 3 pole molded case circuit breaker from Eaton, designed for high current applications with reliable solid state protection.This Eaton circuit breaker features an 800 ampere maximum continuous current rating at 40°C and a 600VAC voltage rating. It is built with an MDL frame and a non-interchangeable trip unit, suitable for reverse feed applications. The breaker offers LS (Long-Time and Short-Time) protection functions and is designed for bolt-on mounting.
- 3 Pole
- 800 Ampere at 40°C
- 600VAC
- Bolt-On Mounting
- Interrupting Rating: 65 kAIC at 480VAC
- MDL Frame
- Non-Interchangeable Trip Unit
- LS Protection Function
- Suitable for Reverse Feed
- Solid State Protection
Specifications
- Part Number: MDLB3800T33W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : MDLB
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LS - Long-Time and Short-Time Trip
- Frame Size : M Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Solid State
Product Data
- UPC : 782114350317
- GTIN : 00782114350317
- Dimensions : 18 in x 8 in x 11 in (Length/Depth x Height x Width)
- Weight : 30
