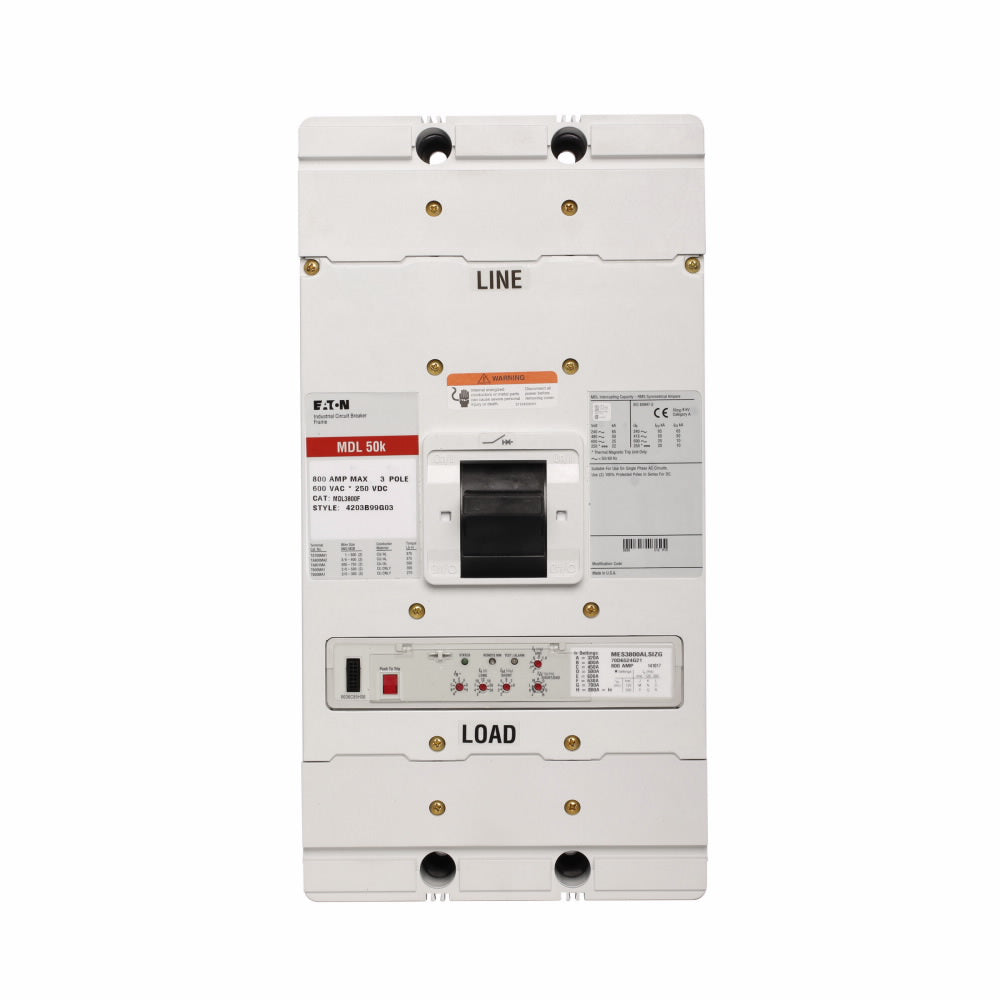

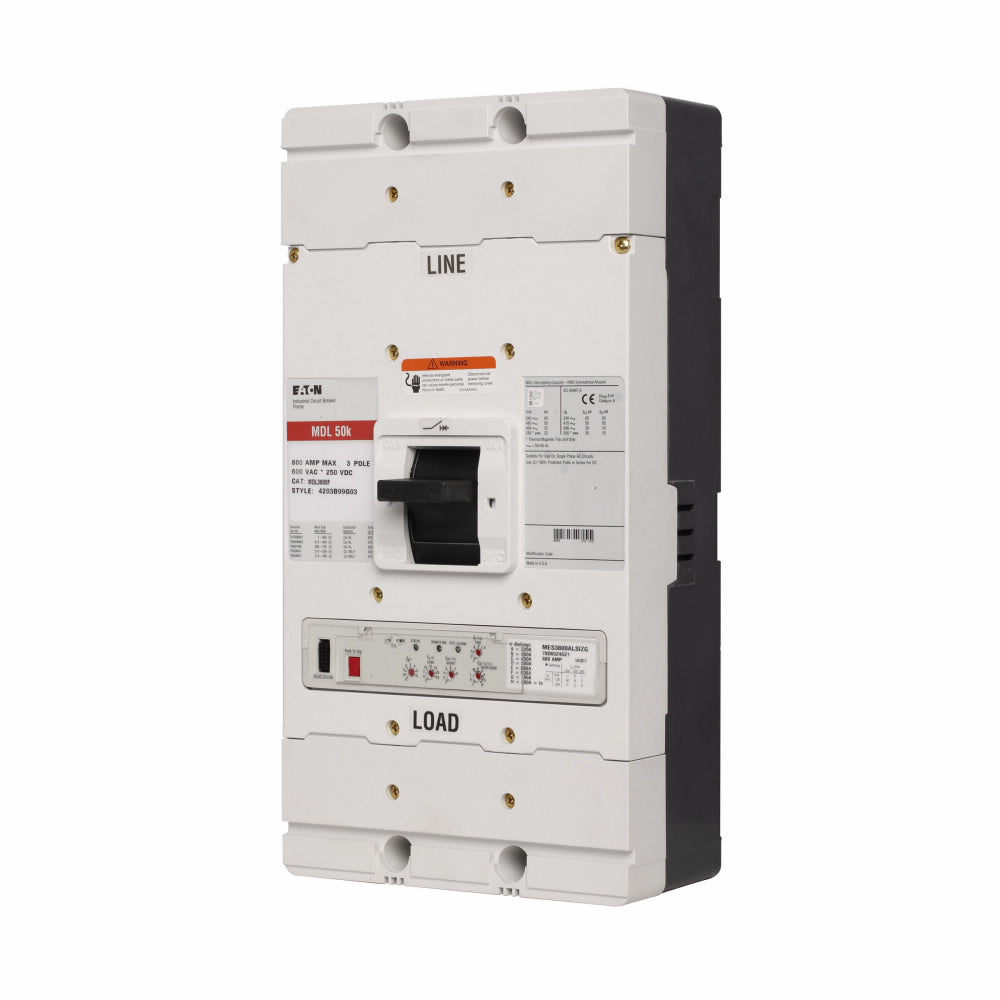

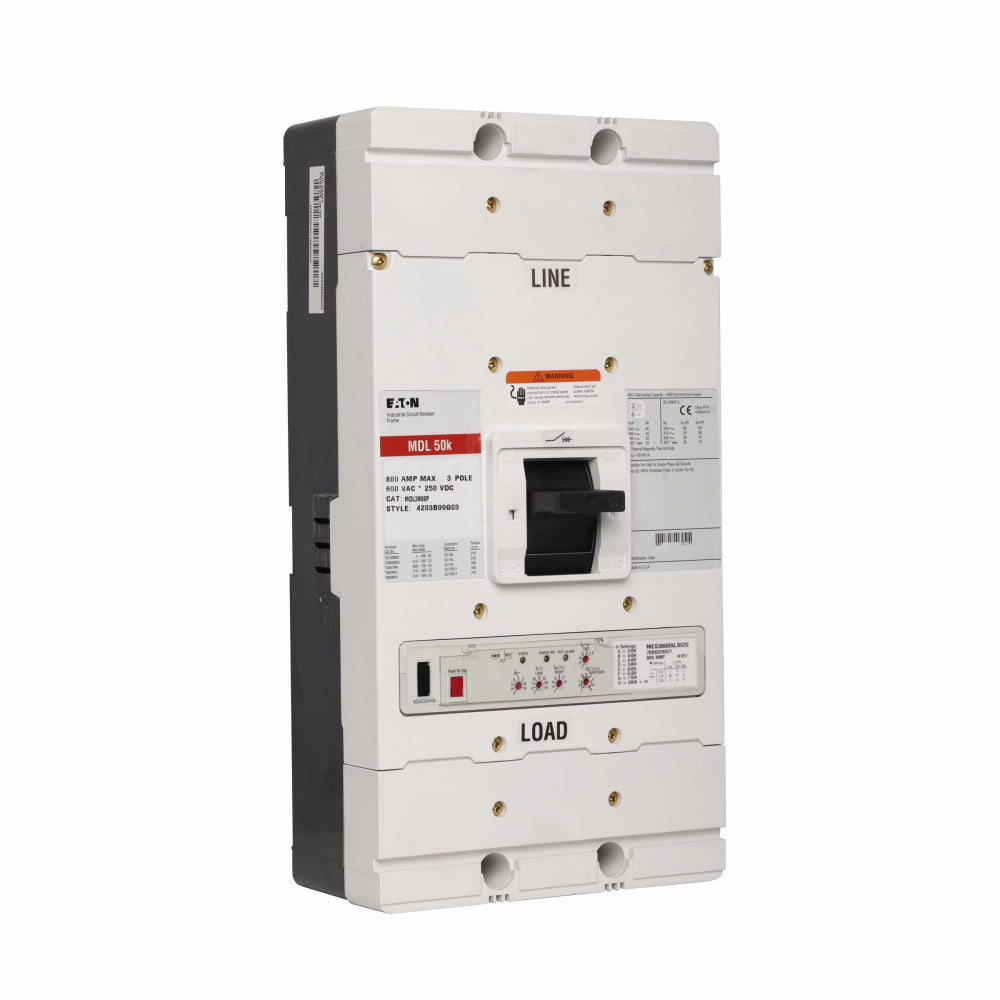

MD3800F - Eaton Series C Molded Case Circuit Breaker Frame 800A 3-Pole 600V

MD3800F

MD3800F is a Series C molded case circuit breaker frame from Eaton, designed for reliable electrical protection in industrial and commercial applications. This frame-only unit features a fixed thermal and fixed magnetic trip type, supporting three-pole configurations with an 800A amperage rating and 600 Vac voltage capability. The MDL-frame construction ensures compatibility with a wide range of accessories and mounting options, making it suitable for demanding environments. The MD3800F is engineered for durability and safety, with a robust interrupt rating of 65 kAIC at 240 Vac and 50 kAIC at 480 Vac. Its design supports both 50 Hz and 60 Hz operation, and it is UL Listed for compliance with industry standards. The breaker is ideal for use in power distribution systems requiring high interrupt capacity and dependable performance.

• Part Number: MD3800F
• Manufacturer: Eaton
• Series: Series C
• Frame Type: MDL-frame
• Amperage Rating: 800 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: Three-pole
• Interrupt Rating: 65 kAIC at 240 Vac, 50 kAIC at 480 Vac
• Frequency: 50/60 Hz
• Trip Type: Fixed thermal, fixed magnetic
• Certifications: UL Listed
• Product Weight: 26.2 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Frame only, Trip unit and lugs not included.

Specifications

• Part Number: MD3800F
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : MD
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Weight : 34
