8MES800T Eaton Series C Accessories Rating Plugs

8MES800T

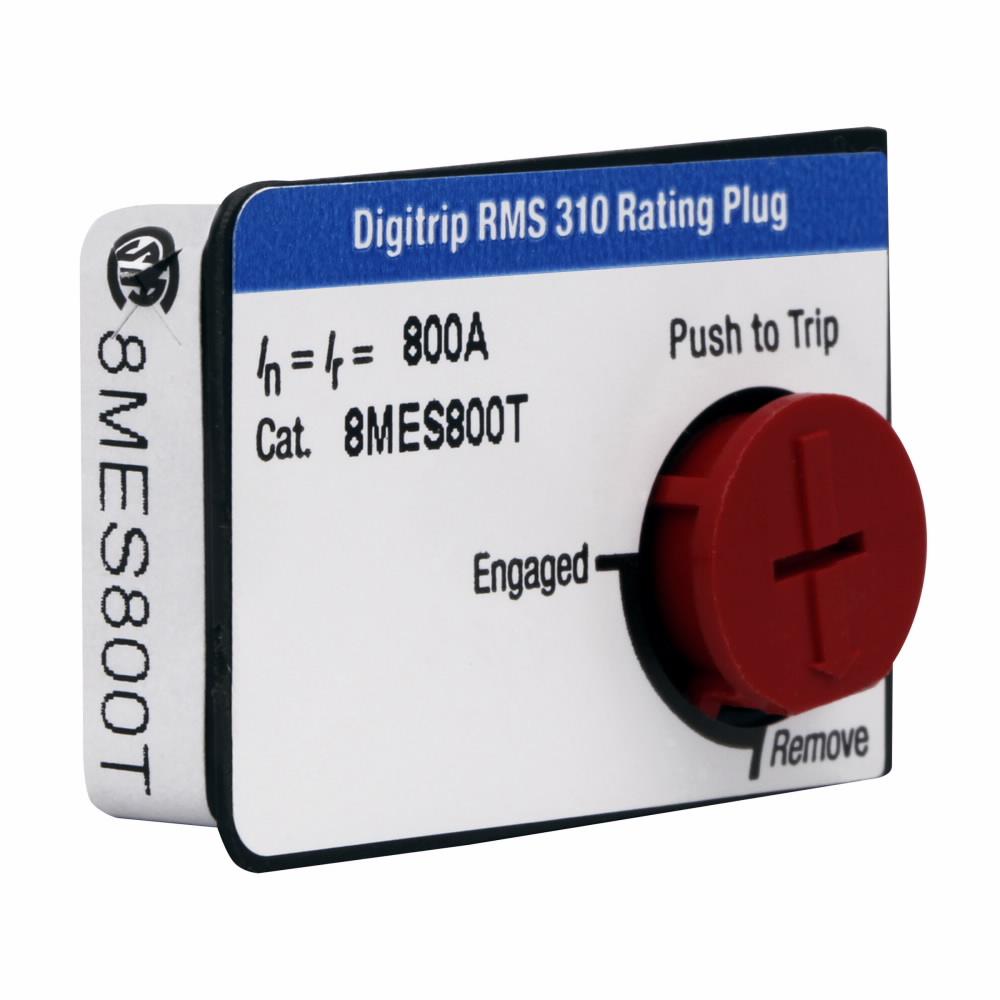

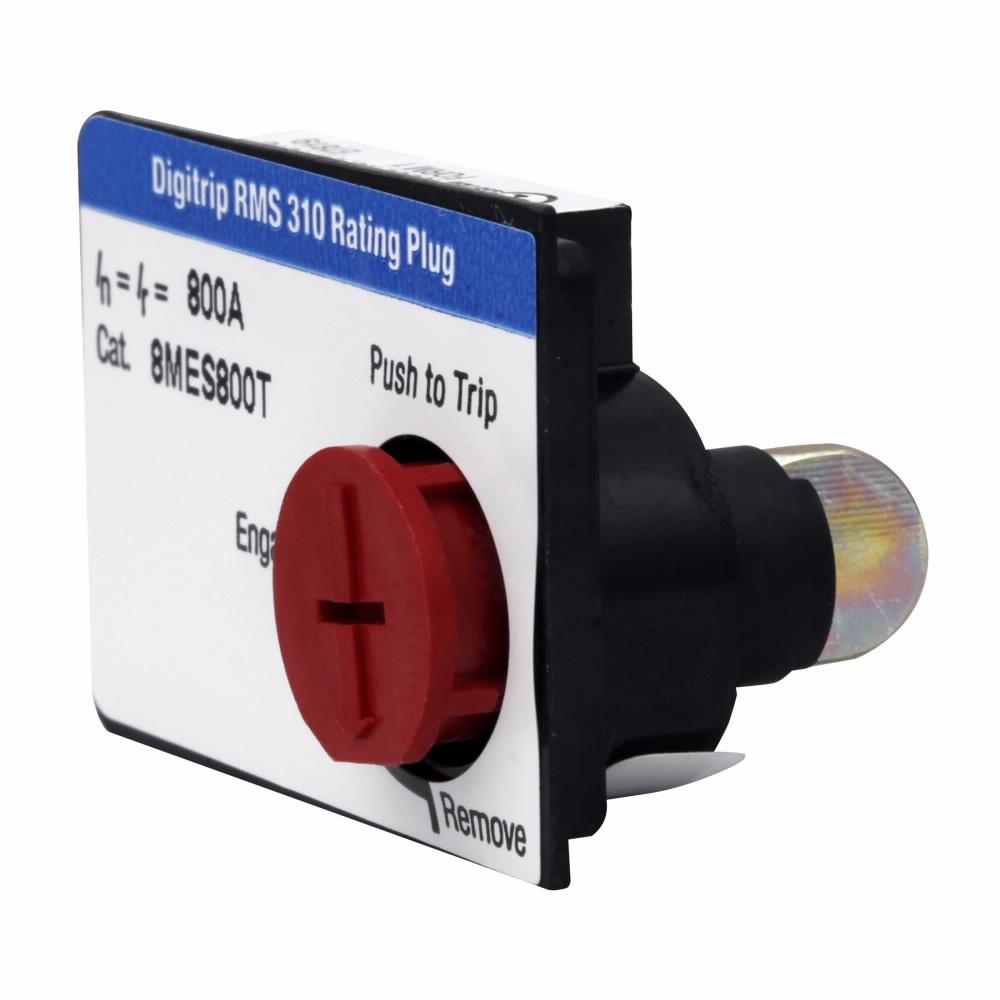

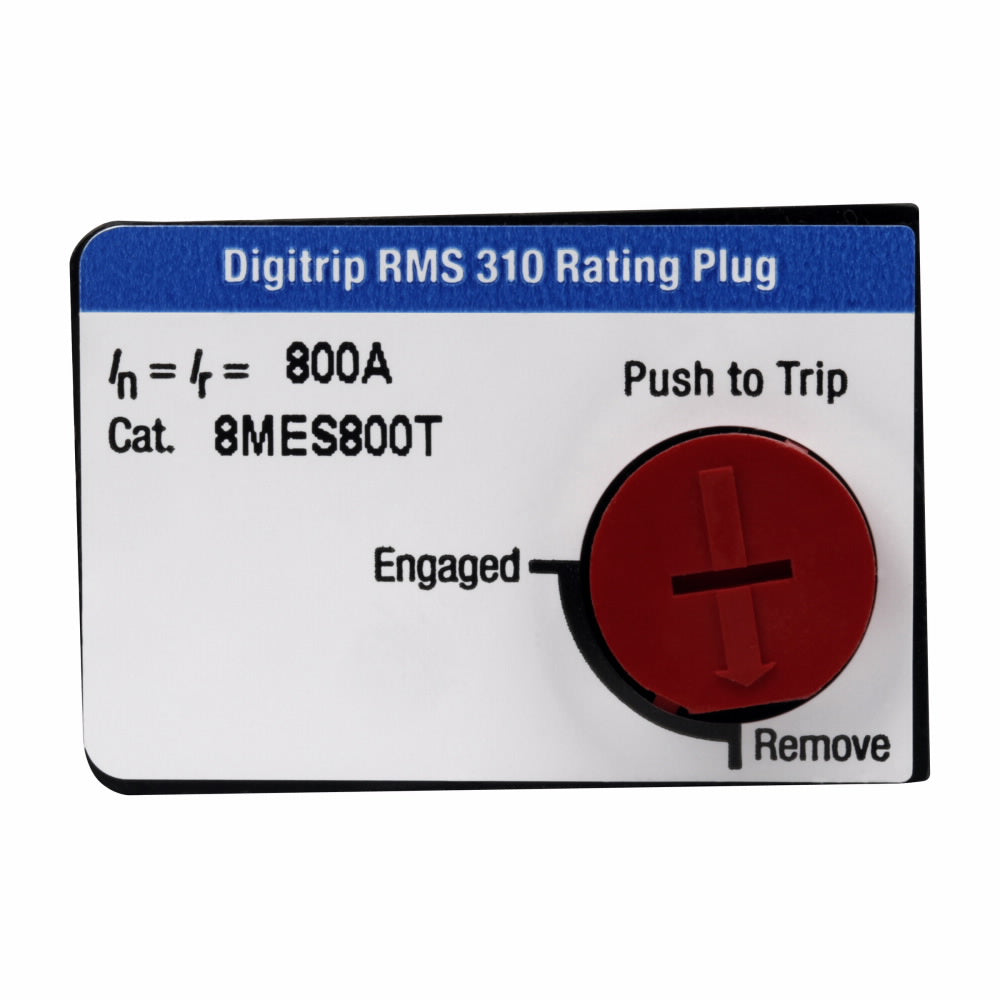

8MES800T is an Eaton fixed-rating plug accessory designed for Series C molded case circuit breakers using the DIGITRIP or RMS310 electronic trip units. This plug is factory calibrated to an 800 A rating and provides a fixed instantaneous trip picking point of approximately 200 % to 800 % of the plug current rating. It is compatible with breaker frames MDL, HMDL, CMDL and CHMDL (Series C) and allows the breaker to be configured for a specific current level without replacing the entire breaker. The compact module installs easily in the trip unit socket and maintains breaker integrity, offering a cost-effective solution for setting higher current thresholds in industrial switchboards and motor control centers.

• Manufacturer: Eaton / Cutler-Hammer
• Series: Series C molded case breakers – DIGITRIP/RMS310/MES trip units
• Type: Fixed Rating Plug (Instantaneous Trip Setting)
• Rated Current: 800 A
• Trip Setting: Fixed instantaneous picking point 200 %–800 % of rating
• Compatible Breaker Frames: MDL, HMDL, CMDL, CHMDL (Series C) size J/K range
• Application: Industrial control panels, switchboards and MCCs where custom trip levels are required

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Digitrip RMS 310; MDL / HMDL / CMDL / CHMDL; JD / JDC / LD / LDC / HLD / CLD / CHLD Series C frames

Specifications

• Part Number: 8MES800T
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Rating Plugs
• Family : Series C Accessories
• Type : Fixed Rating Plug
• Amperage : 800
• Frame Size : 800
• Amperage Maximum : 800
• Amperage Minimum : 800
• Trip Type : DIGITRIP,RMS310,MES

Product Data

• UPC : 786679085325
• GTIN : 00786679085325
• Country of Origin : United States
• Dimensions : 2.3 in x 1.6 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.04
• Certification : UL Listed
