Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
MBK175A

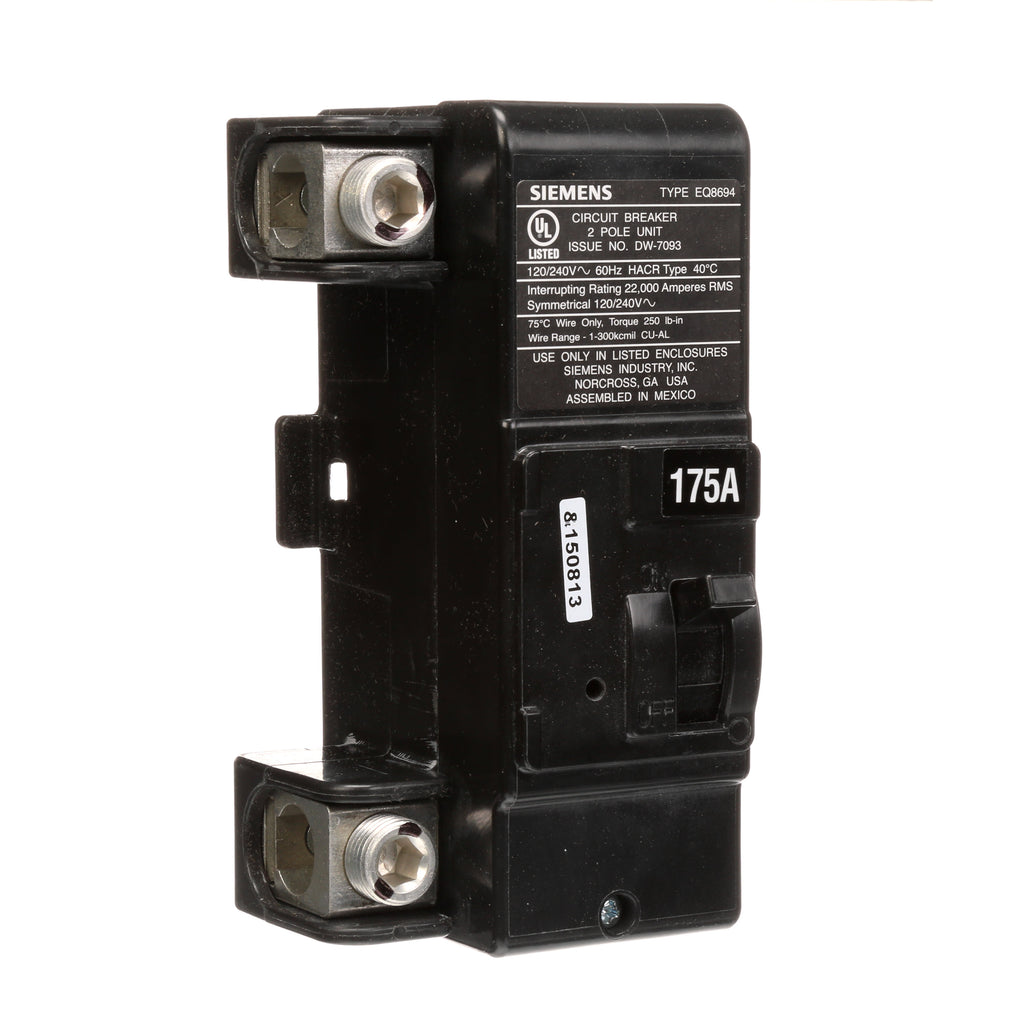

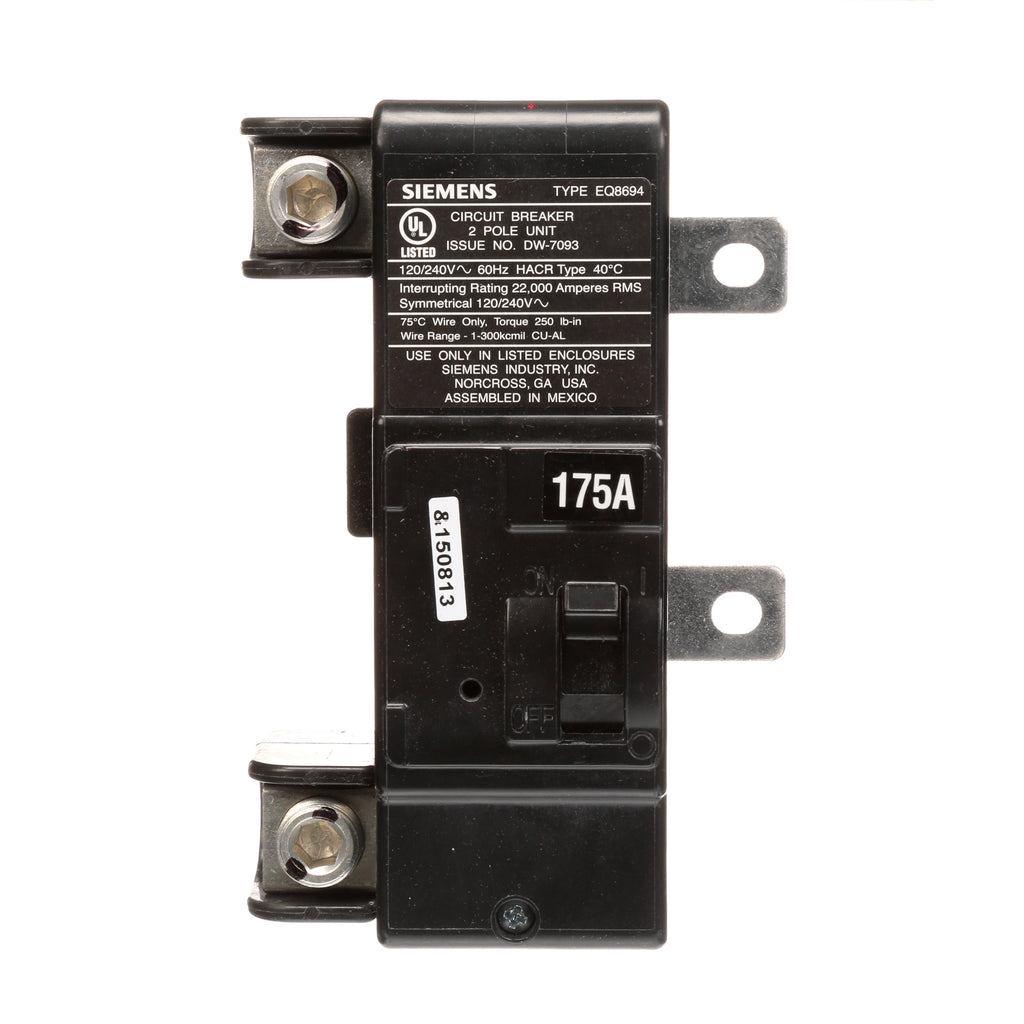

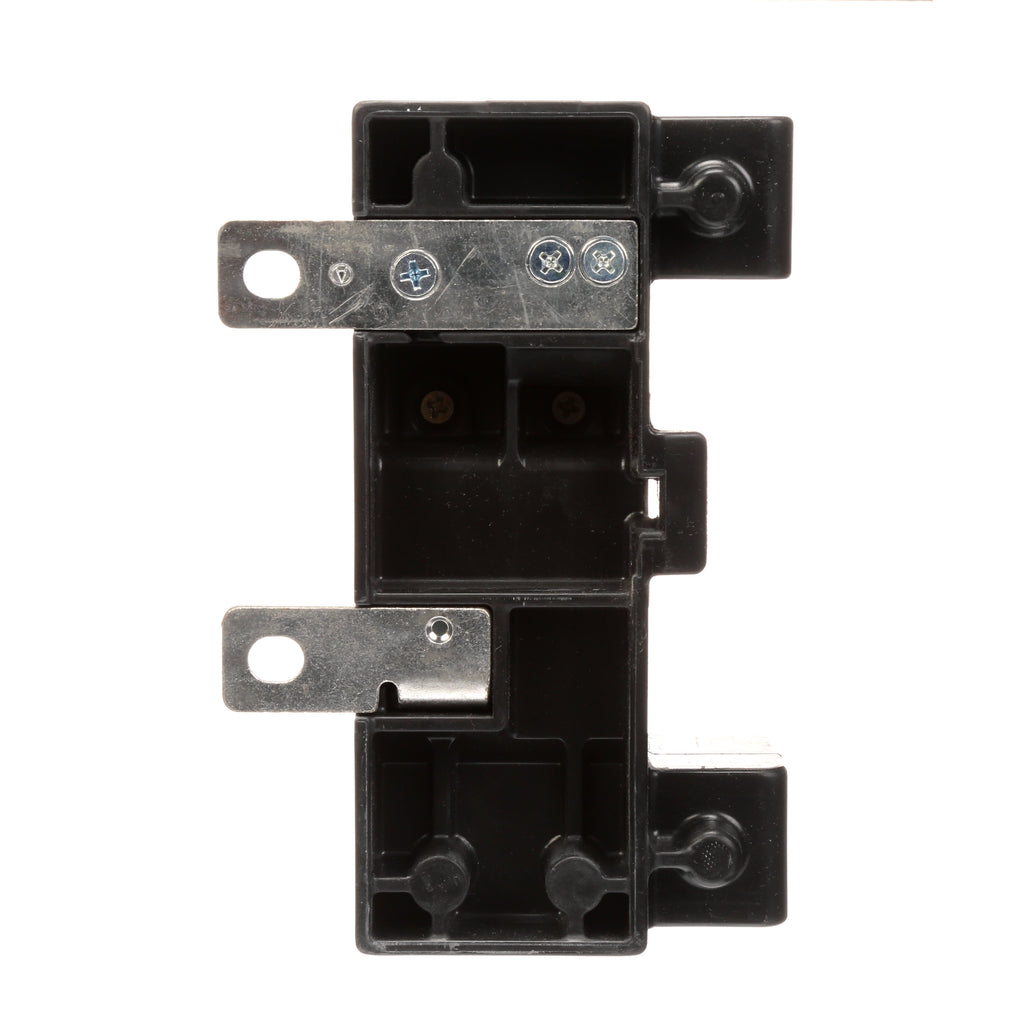

MBK175A is a Siemens Type EQ 2-pole thermal magnetic molded case circuit breaker rated for 175 amps and 120/240 VAC voltage. It provides reliable circuit protection for residential and light commercial applications.MBK175A features a 22 kA interrupt rating, bolt-on mounting, and a thermal magnetic trip unit designed to protect electrical circuits from overloads and short circuits. This breaker is part of Siemens' low voltage residential circuit breaker line, ensuring compliance with industry standards and certifications.
- Key Specifications
- Amperage: 175 A
- Voltage: 120/240 VAC
- Poles: 2
- Interrupt Rating: 22 kA
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-on
- Series/Frame: Type EQ
- Phase: Single Phase
- Ground Fault: No
- Arc Fault: No
- Application: Residential Load Center Main Breaker
Specifications
- Part Number: MBK175A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MBK Series
- Type : MBK
- Voltage : 240
- Amperage : 175
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Plug-In
- Functions : Long Time, Short Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643619883
- GTIN : 00783643619883
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.937 x 3.937 inch
- Weight : 0.71
- Certification : UL
