2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
MBK125M

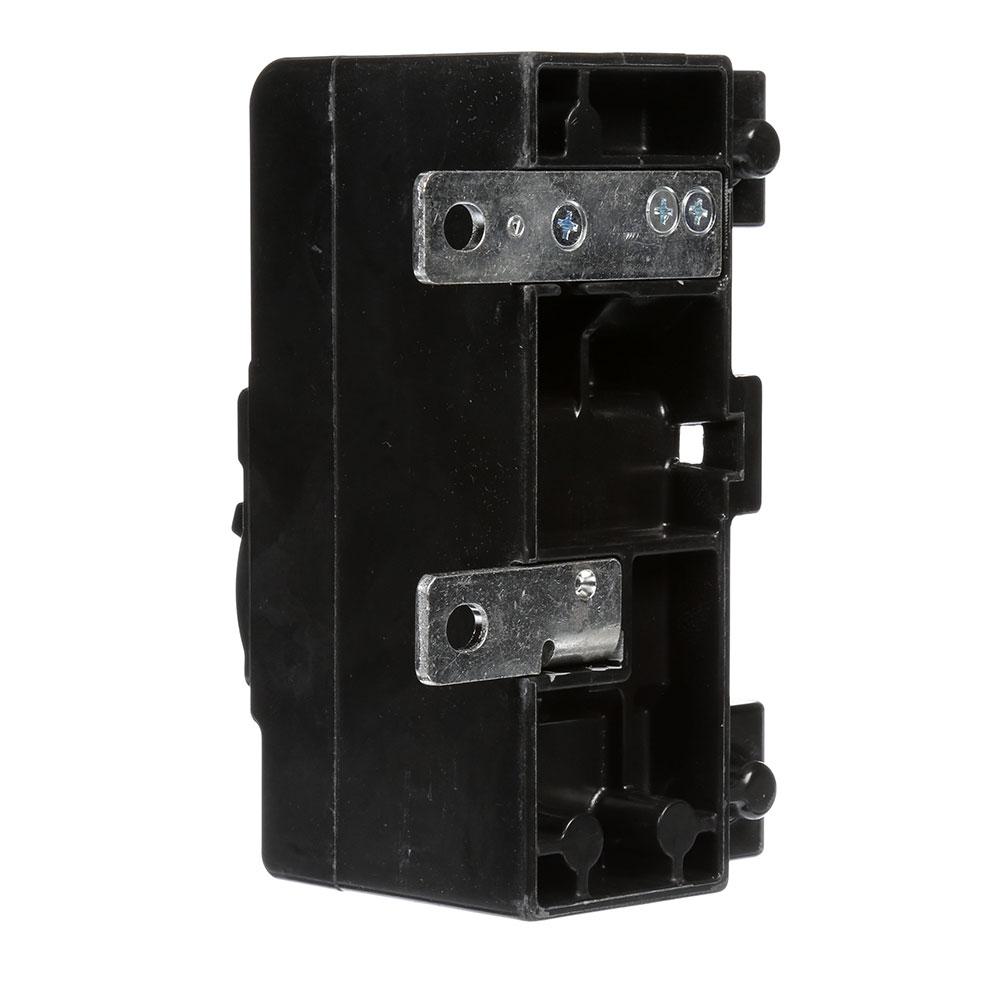

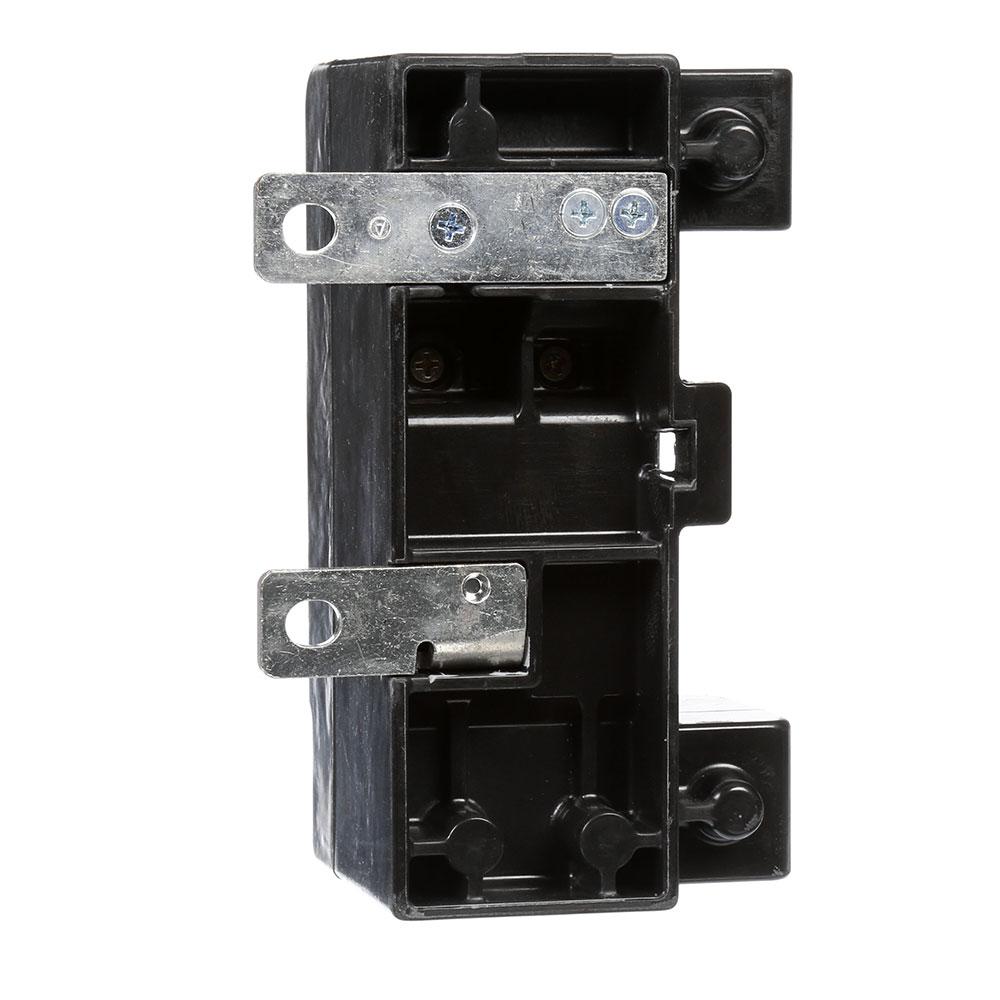

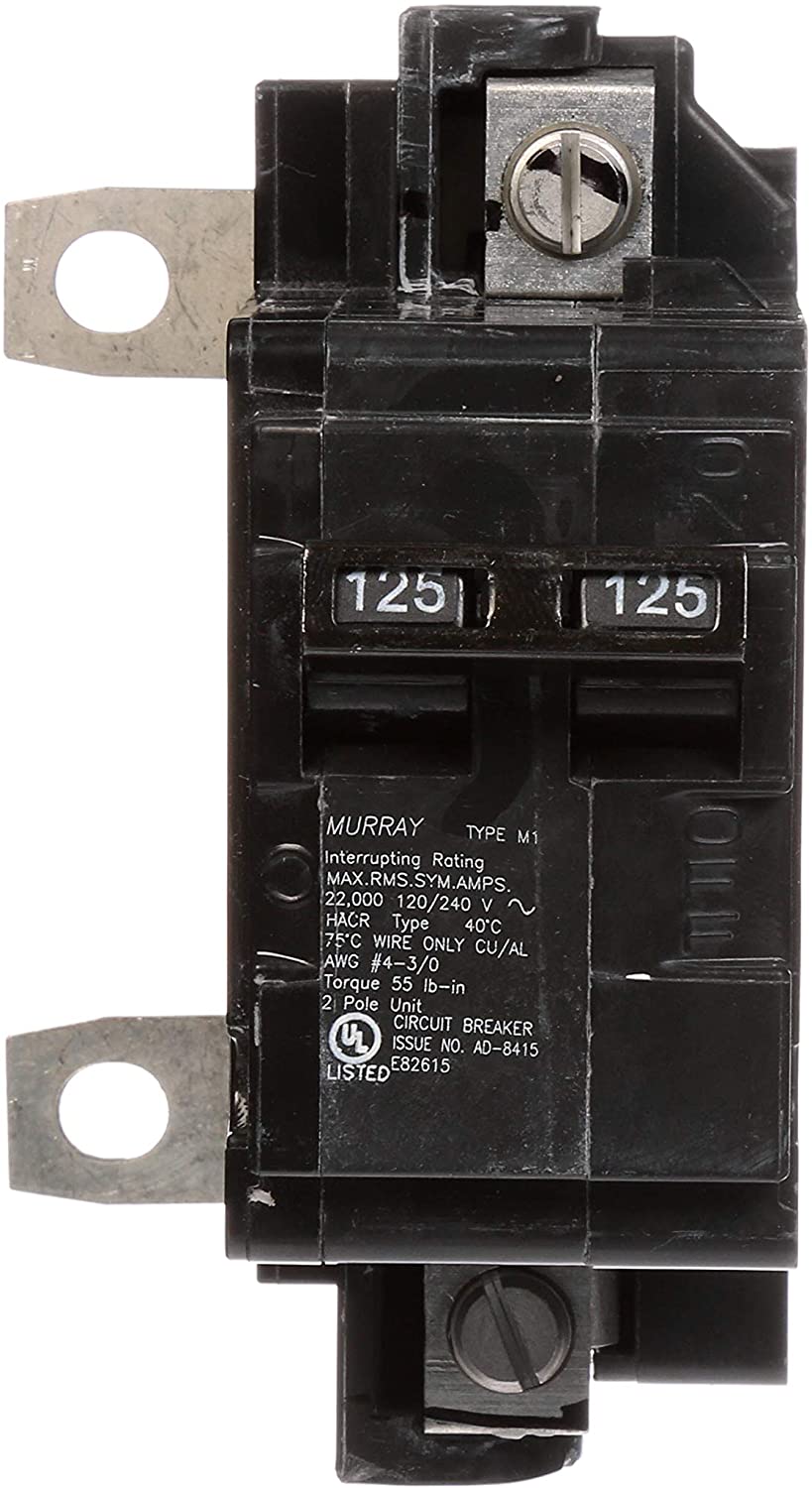

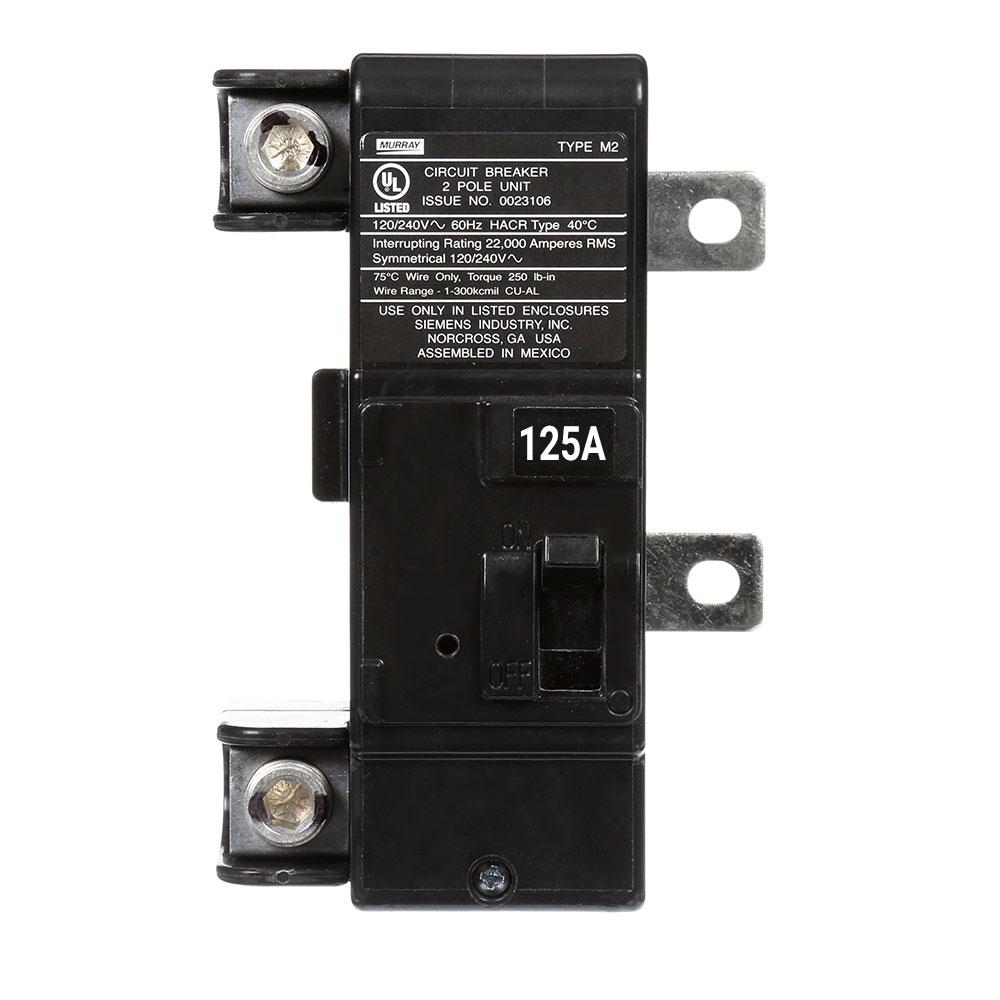

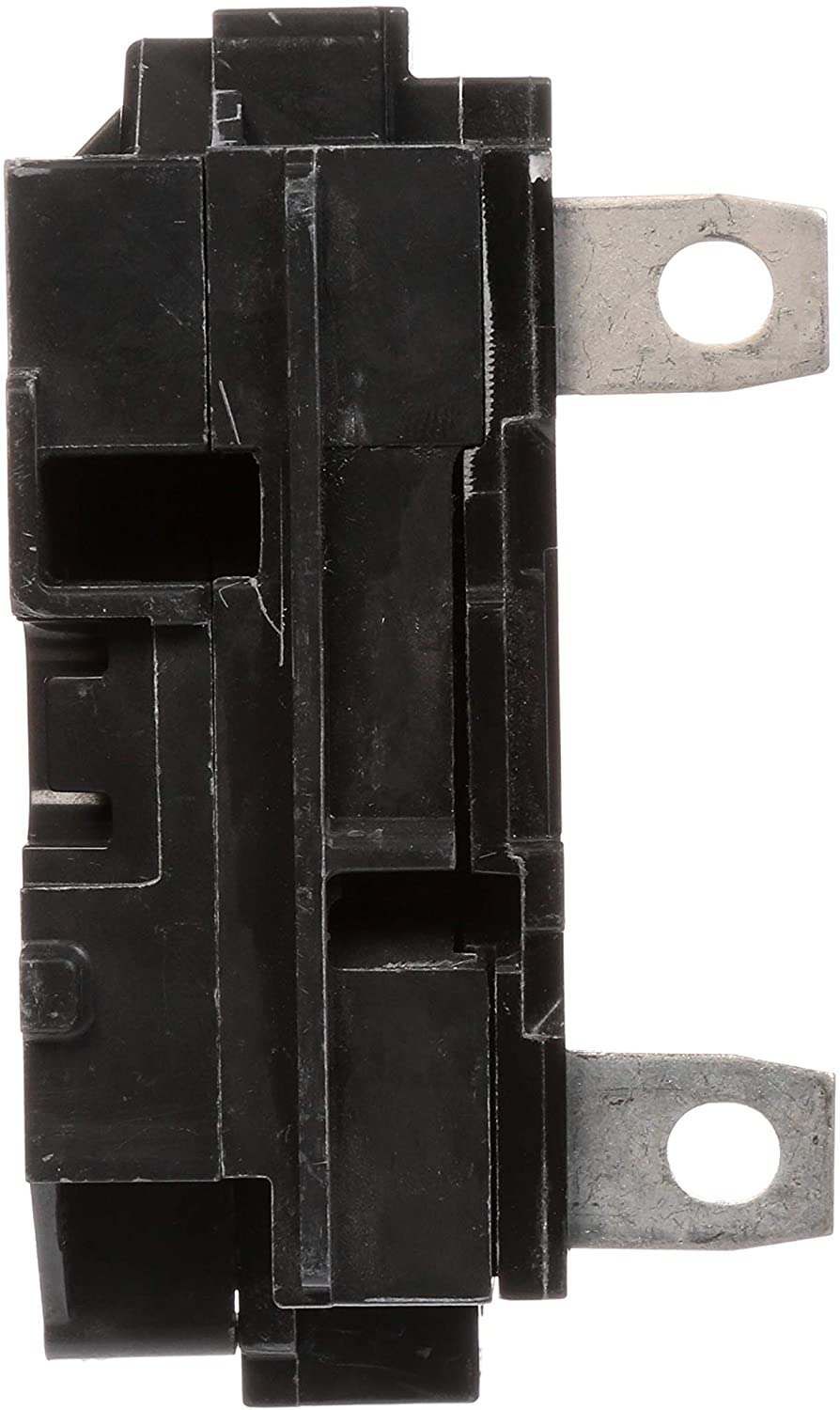

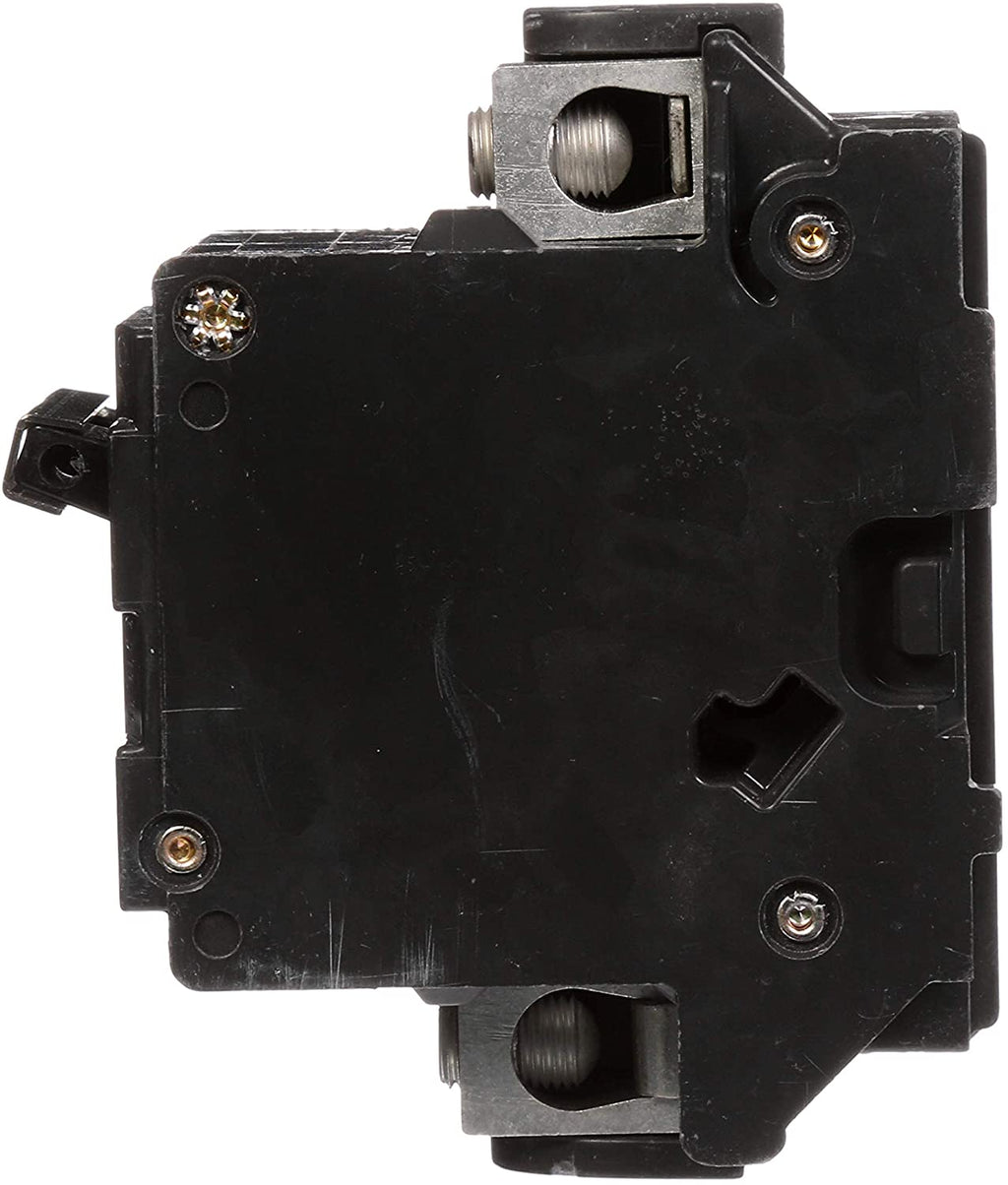

MBK125M is a Siemens 2 pole circuit breaker rated for 125 amps and 240 volts with a 22kA interrupting rating.This Siemens MBK125M circuit breaker features a plug-in mounting type, thermal magnetic trip unit, and is designed for use in single-phase applications. It provides reliable protection with a 22,000 amp interrupting capacity at 240 volts, suitable for main breaker use in EQIII load centers. The breaker complies with active product lifecycle standards and weighs approximately 0.75 lb.
- Amperage: 125A
- Voltage: 120/240 VAC
- Poles: 2
- Interrupt Rating: 22kA at 240V
- Mounting Type: Plug-In
- Trip Unit: Thermal Magnetic
- Series/Frame: MBK
- Phase: Single
- Product Weight: 0.75 lb
- Product Lifecycle: Active (PM300)
Specifications
- Part Number: MBK125M
- Manufacturer : Siemens
- Brand : Murray
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MBK Series
- Type : MBK
- Voltage : 240
- Amperage : 125
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 040892009354
- GTIN : 00040892009354
- Country of Origin : Mexico
- Dimensions : 5.118 x 4.331 x 3.543 inch
- Weight : 0.75 lb
- Certification : Ul Listed
