Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
MBK100A

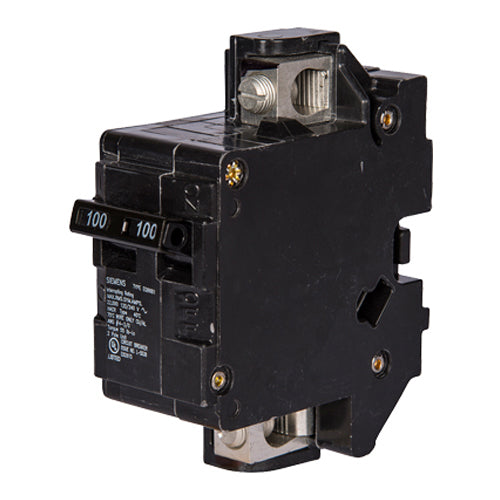

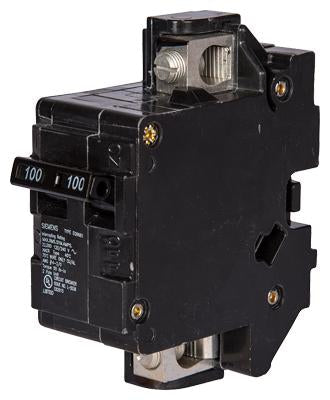

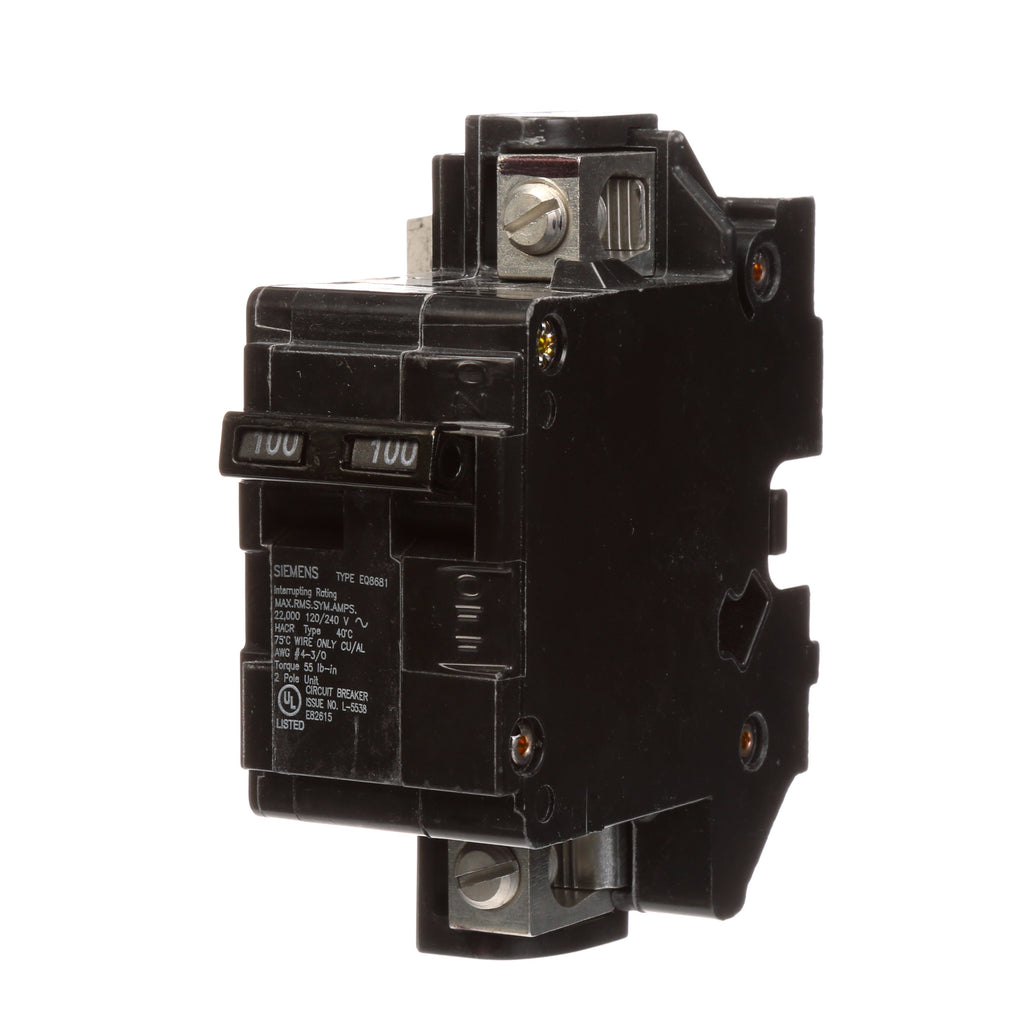

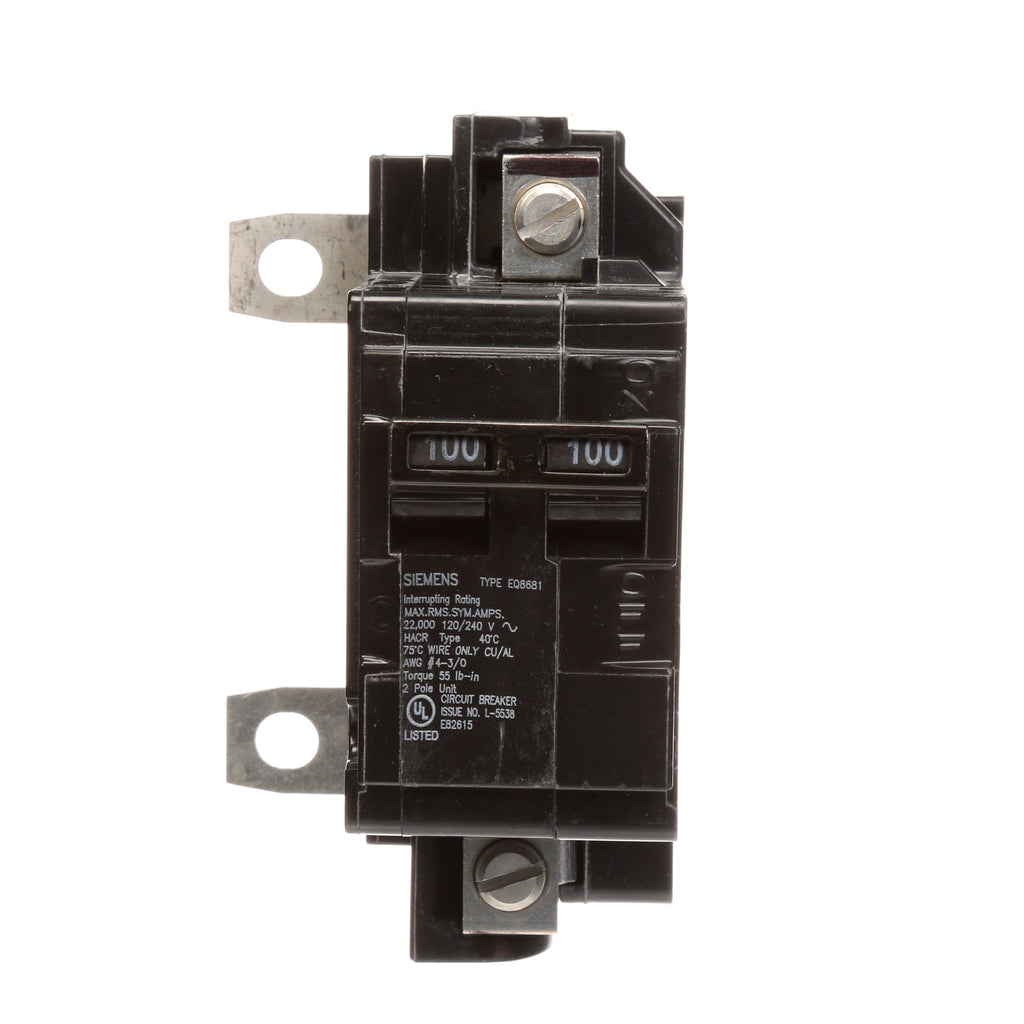

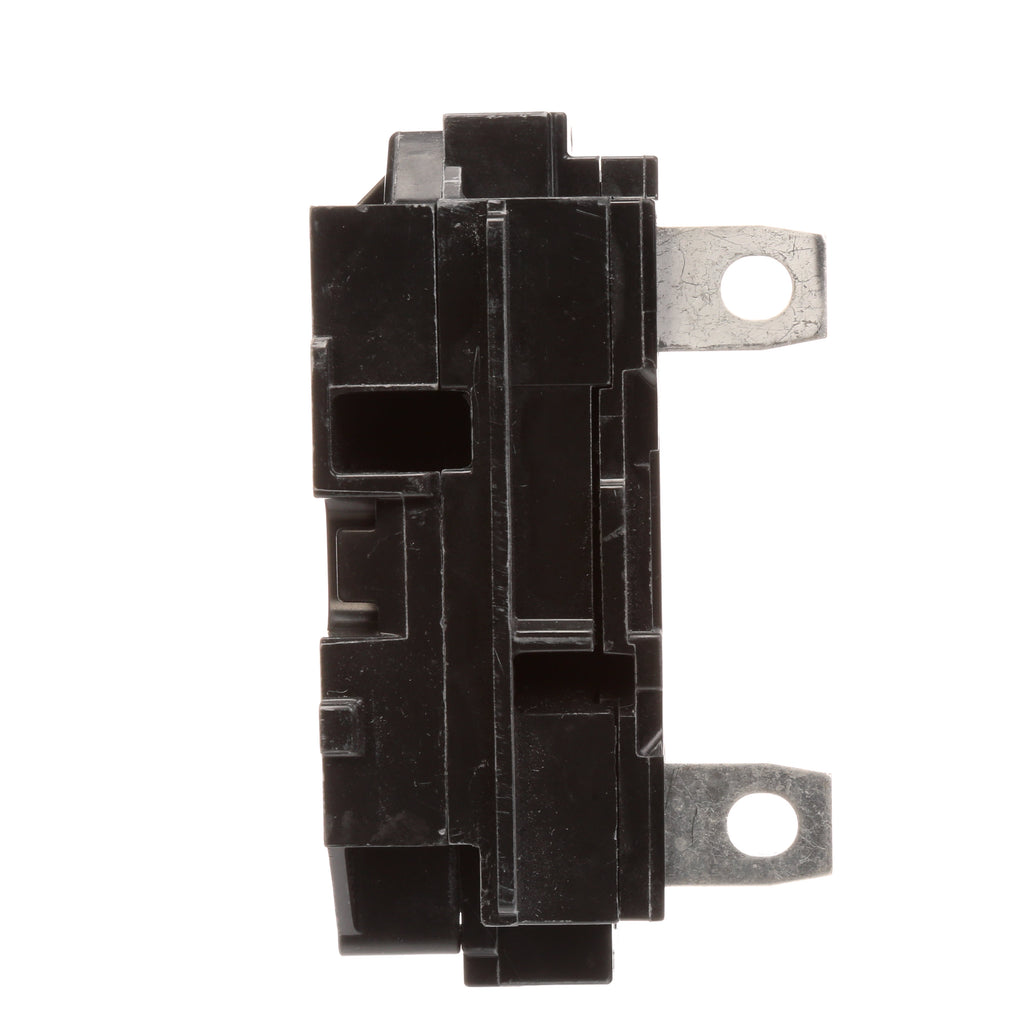

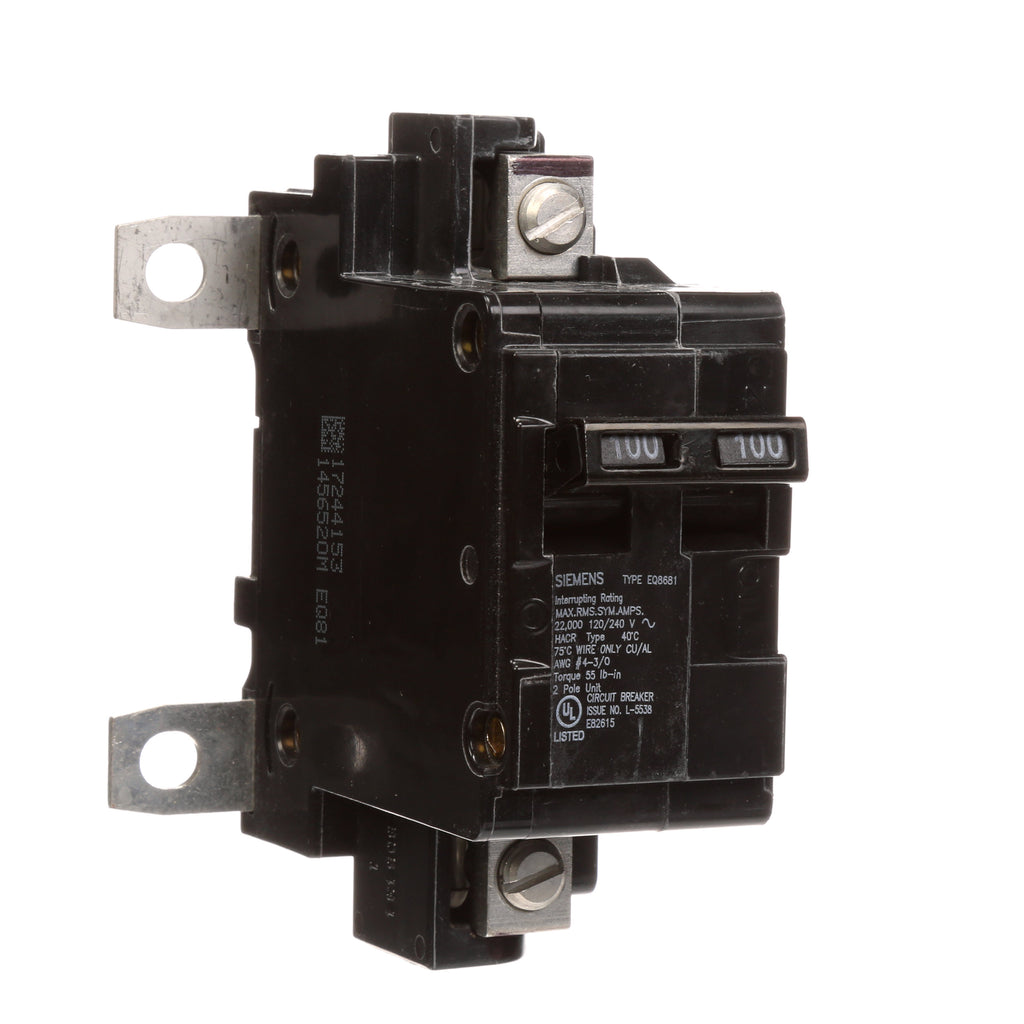

MBK100A is a Siemens 100 Amp main breaker kit designed for 120/240 VAC applications with 2 poles and thermal magnetic trip unit.
This Siemens MBK100A breaker features a 22 kA interrupt rating, EQ frame, and is housed in a NEMA 1 steel enclosure. It is a bolt-on/panel mount type suitable for low voltage transfer switch applications, providing reliable switching from utility to generator power. Certified to UL 489 standards, it supports 1 phase operation and is manufactured in Mexico.
- Key Specifications
- Amperage: 100 Amp
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Phase: 1
- Interrupt Rating: 22 kA
- Frame: EQ
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On/Panel
- Enclosure Type: NEMA 1
- Material: Steel
- Standards: UL 489 Certified
- Country of Origin: Mexico
- Part Number: MBK100A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MBK Series
- Type : MBK
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Din Rail
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 783643387980
- GTIN : 00783643387980
- Country of Origin : Mexico
- Dimensions : 4.331 x 5.512 x 3.543 inch
- Weight : 0.705
- Wire Size : 4-3/0 AWG Cu-Al
