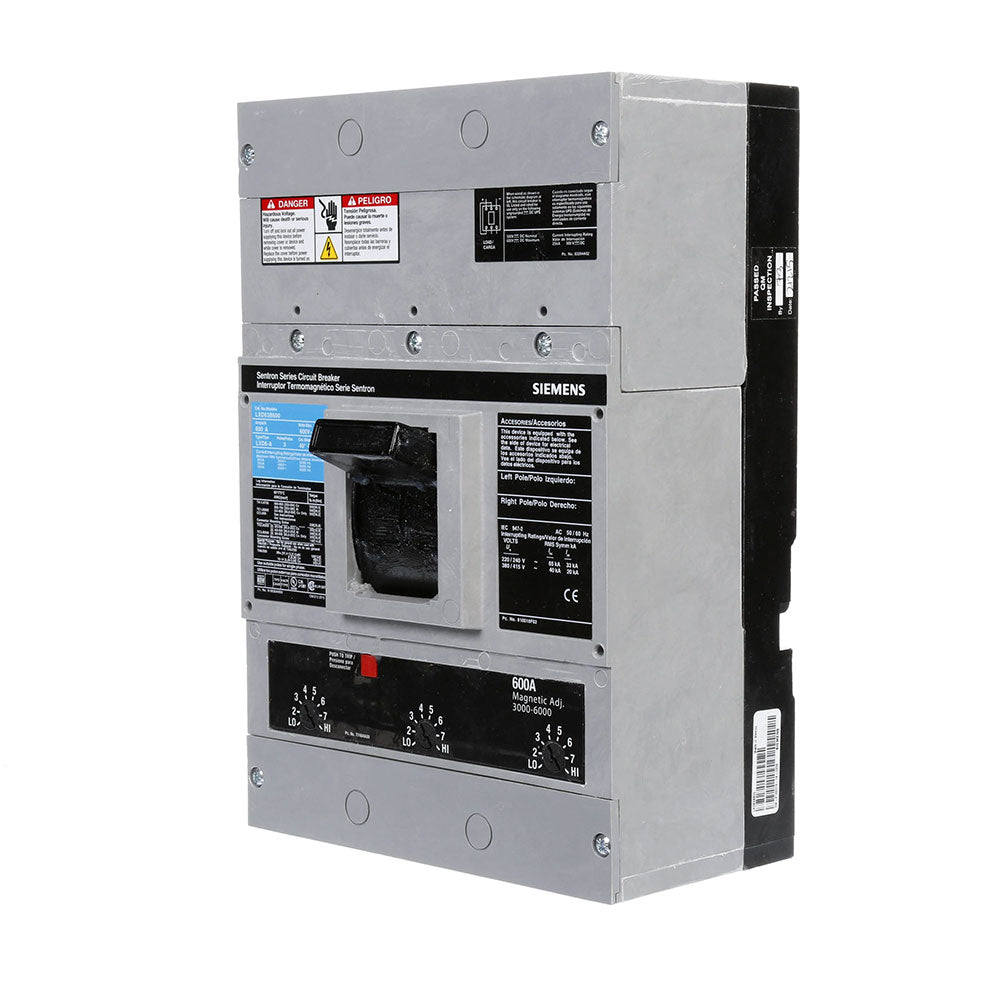

LXD63H600L - Siemens Sentron 600A 600V 3-Pole Molded Case Circuit Breaker

LXD63H600L

LXD63H600L is a Siemens Sentron molded case circuit breaker designed for high-capacity industrial and commercial power distribution applications.

This 3-pole, 600-ampere breaker operates at 600 VAC and features a magnetic instantaneous trip unit with adjustable settings from 3000 to 6000 amperes. The LD frame design provides a 35 kA interrupt rating at 480 VAC, making it suitable for motor circuit protection and feed-through applications. The breaker includes line and load side lug terminals for flexible installation and accepts copper conductors from 3/0 AWG to 500 KCMIL.

• Amperage Rating: 600 A
• Voltage Rating: 600 VAC
• Poles: 3
• Phase: 3-Phase
• Series: Sentron LXD
• Frame: LD
• Trip Unit: Magnetic Instantaneous
• Interrupt Rating: 35 kA at 480 VAC
• Adjustable Trip Range: 3000 to 6000 A
• Terminal Type: Lug (Line and Load Side)
• Conductor Compatibility: 3/0 AWG to 500 KCMIL Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LXD63H600L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : LXD
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : LD Frame
• Temp Rating : -13¡F-158¡F
• Protection : Magnetic Only

Product Data

• UPC : 783643236868
• GTIN : 00783643236868
• Country of Origin : Mexico
• Dimensions : 8.661 x 12.992 x 6.715
• Weight : 20.726
• Certification : Ul Listed
