Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LXD62B450L

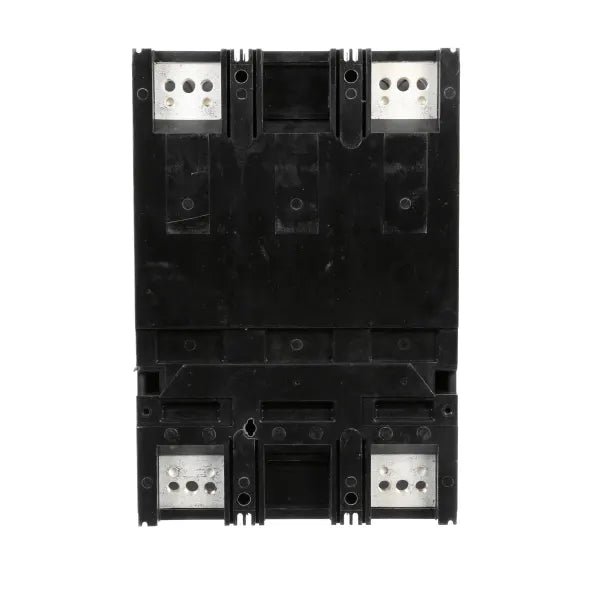

LXD62B450L is a Siemens molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.This circuit breaker features a thermal magnetic trip unit and belongs to the LD frame series. It is rated for 450 amperes at 600 volts AC with 2 poles and includes line/load lugs installed for bolt-on mounting. The breaker supports a maximum voltage of 600 VAC and 250 VDC, providing robust protection with a standard interrupt rating suitable for demanding electrical environments.
- Manufacturer: Siemens
- Part Number: LXD62B450L
- Amperage: 450 A
- Voltage Rating: 600 VAC / 250 VDC
- Number of Poles: 2
- Frame Type: LD
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Line/Load Lugs Installed
- Series: Sentron
Specifications
- Part Number: LXD62B450L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : LXD
- Voltage : 600
- Amperage : 450
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LD Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643011113
- GTIN : 00783643011113
- Country of Origin : Mexico
- Dimensions : 12.992 x 8.661 x 6.693 inch
- Weight : 17.527
- Certification : Ul Listed
