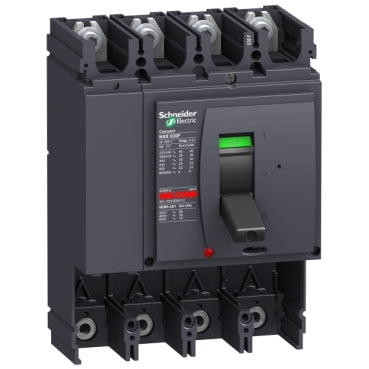

LV432816 - Schneider Electric 630A 690V 4 Pole Circuit Breaker Compact NSX630S Frame

LV432816

LV432816 is a Schneider Electric 4 pole circuit breaker rated for 630 amps and 690 volts, designed as a basic frame without a trip unit.This Compact NSX630S series molded case circuit breaker features a 100kA interrupting rating at 415V AC and complies with IEC 60947-2 standards. It operates at 50/60 Hz frequency and is intended for bolt-on mounting. The breaker is supplied without a trip unit, allowing for customization with compatible trip units as needed.

• Rated current: 630 A
• Voltage rating: 690 V AC
• Number of poles: 4
• Interrupt rating: 100 kA at 415 V AC
• Series/Frame: Compact NSX630S
• Frequency: 50/60 Hz
• Mounting type: Bolt-on
• Trip unit: Not included (basic frame)
• Standards: IEC 60947-2 compliant
• Neutral position: Left

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432816
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Compact NSX
• Type : LV4
• Voltage : 690
• Amperage : 630
• Phase : 3
• Poles : 4
• AIC rating : 100kA@415V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• GTIN : 03606480006982
• Dimensions : Depth 32.99 in (83.8 cm) Width 20.59 in (52.3 cm) Height 59.02 in (149.9 cm)
• Weight : 13.14
• Standards : EN/IEC 60947-2, UL 508
