Description
LV432647

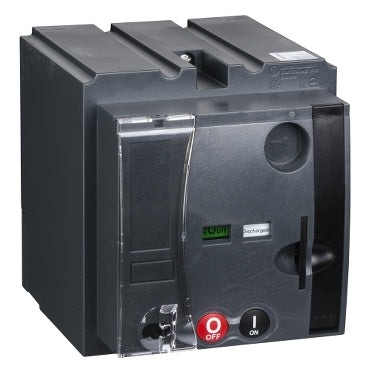

LV432647 is a Schneider Electric motor mechanism module designed for MT400/630 ComPacT NSX circuit breakers with fixed mounting.
This motor mechanism module supports circuit breaker frame rated currents of 400 A and 630 A and operates with a control circuit voltage range of 440 to 480 V AC at 60 Hz. It features automatic spring charging and allows padlocking in the OFF position with 1 to 3 padlocks (Ø 5 to Ø 8). The module provides fast operation times with less than 700 ms to open and less than 80 ms to close.
- Key Specifications
- Manufacturer: Schneider Electric
- Part Number: LV432647
- Type: Motor Mechanism Module
- Compatible Frame: MT400/630 ComPacT NSX
- Rated Current: 400 A and 630 A
- Control Circuit Voltage: 440-480 V AC 60 Hz
- Mounting Mode: Fixed
- Automatic Spring Charging
- Padlocking Capability: 1 to 3 padlocks Ø 5 to Ø 8
- Operation Time: < 700 ms open, < 80 ms close
- Part Number: LV432647
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Motor Operator
- Family : Compact
- Type : LV4
- Control Voltage Minimum : 440
- Compatible Frames : NSX
- Control Voltate Maximum : 480
- GTIN : 03606480020230
- Country of Origin : Italy
- Dimensions : Depth 33.62 in (85.4 cm) Width 20.59 in (52.3 cm) Height 59.02 in (149.9 cm)
- Weight : 6.99
