Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Operator
Description

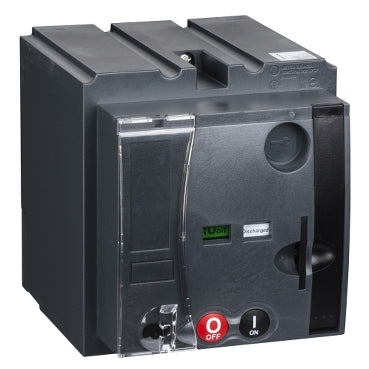

LV432646
LV432646 is a standard motor mechanism module designed for Schneider Electric ComPacT NSX400 and NSX630 circuit breakers, providing reliable motorized operation with a 250 V DC control voltage.This motor mechanism module MT400/630 supports fixed mounting and is compatible with circuit breaker frames rated at 400 A and 630 A. It features an impulse maintained control signal type, ensuring precise and responsive breaker operation with a response time of less than 700 ms to open and less than 80 ms to close. The module is designed for a maximum operating frequency of 4 operations per minute.
- Key Specifications
- Control circuit voltage: 250 V DC
- Compatible breaker frames: 400 A and 630 A
- Mounting type: Fixed
- Control signal type: Impulse Maintained
- Breaker response time: < 700 ms open, < 80 ms close
- Maximum operating frequency: 4 per minute
- Series/Frame: MT400/630 for ComPacT NSX400/630
Specifications
- Part Number: LV432646
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Motor Operator
- Family : Compact
- Type : LV4
- Compatible Frames : NSX
- Control Voltate Maximum : 250
Product Data
- GTIN : 03606480020223
- Country of Origin : France
- Dimensions : Depth 33.62 in (85.4 cm) Width 20.59 in (52.3 cm) Height 59.02 in (149.9 cm)
- Weight : 6.9
