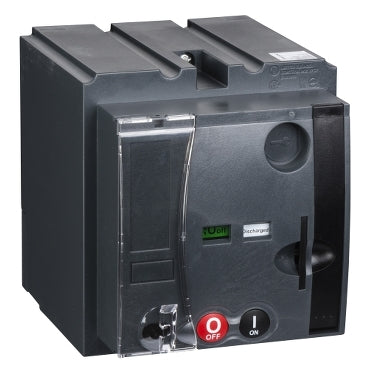

LV432642 - Schneider Electric Motor Mechanism Module MT400/630 ComPacT NSX400/630 380-415VAC 50/60Hz

LV432642

LV432642 is a standard motor mechanism module designed for Schneider Electric MT400/630 and ComPacT NSX400/630 circuit breakers, providing reliable remote operation and control. This module is engineered for fixed mounting and supports circuit breaker frame rated currents of 400 A and 630 A. It operates at a control circuit voltage of 220-240 V AC 50/60 Hz or 208-277 V AC 60 Hz, with a standard impulse control signal type. The module features a fast response time, with less than 700 ms to open and less than 80 ms to close, and can handle up to 4 operations per minute. Maximum power consumption is 500 VA for closing and 500 VA for opening.

• Part Number: LV432642
• Manufacturer: Schneider Electric
• Series/Frame: MT400/630, ComPacT NSX400/630
• Rated Current: 400 A, 630 A
• Control Circuit Voltage: 220-240 V AC 50/60 Hz, 208-277 V AC 60 Hz
• Mounting Type: Fixed
• Control Type: Standard
• Control Signal Type: Impulse
• Response Time: < 700 ms open, < 80 ms closed
• Operating Frequency: 4 per minute
• Power Consumption: 500 VA closing, 500 VA opening
• Voltage Rating: 380-415 V AC 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432642
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Motor Operator
• Family : Compact
• Type : LV4
• Control Voltage Minimum : 380
• Compatible Frames : NSX
• Control Voltate Maximum : 415

Product Data

• GTIN : 03606480020186
• Country of Origin : Italy
• Dimensions : Depth 42.13 in (107 cm) Width 23.62 in (60 cm) Height 79.17 in (201.1 cm)
• Weight : 6.828
