Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Operator
Description

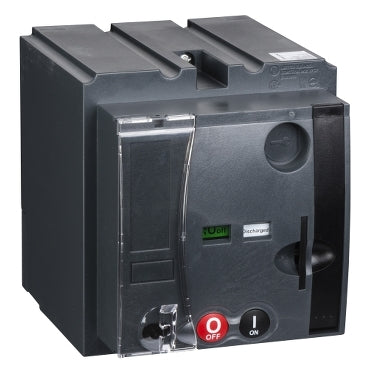

LV432641
LV432641 is a standard motor mechanism module designed for MT400/630 and Compact NSX400/630 circuit breakers, providing reliable automatic device spring-charging and high mechanical endurance for easy opening and closing operations. This module is compatible with Schneider Electric Compact NSX and PowerPact Multistandard H frame devices, featuring a control voltage of 220-240VAC 50/60Hz or 208-277VAC 60Hz. It offers double insulation on the front face, visible and accessible indications, and allows padlocking for added security. The ergonomic front-plate design and toggle make manual operation easier and installation faster for panel builders.
- Part Number: LV432641
- Manufacturer: Schneider Electric
- Series/Frame: MT400/630, Compact NSX400/630
- Rated Current: 400A, 630A
- Control Voltage: 220-240VAC 50/60Hz, 208-277VAC 60Hz
- Control Signal Type: Impulse Maintained
- Mounting Type: Fixed
- Response Time: < 700 ms open, < 80 ms closed
- Consumption: < 500VA
- Double Insulation: Yes
- Padlocking: Yes
- Ergonomic Design: Yes
Specifications
- Part Number: LV432641
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Motor Operator
- Family : Compact
- Type : LV4
- Control Voltage Minimum : 220
- Compatible Frames : NSX
- Control Voltate Maximum : 240
Product Data
- GTIN : 03606480020179
- Country of Origin : Italy
- Dimensions : Depth 14.84 in (377 mm) Width 44.09 in (1120 mm) Height 54.72 in (1390 mm)
- Weight : 6.843
