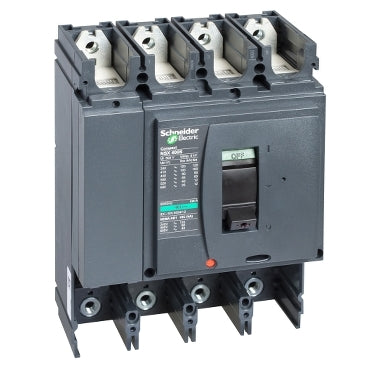

LV432410 - Schneider Electric Compact NSX400L 400A 4-Pole 690V Circuit Breaker

LV432410

LV432410 is a circuit breaker basic frame from Schneider Electric's Compact NSX400L series, designed for industrial power distribution applications requiring high interrupt capacity and reliable thermal-magnetic protection.LV432410 is a 4-pole circuit breaker rated for 400 amperes at 40°C with a maximum voltage rating of 690V AC (50/60 Hz). This bolt-on mounted breaker features a 150 kA interrupt rating at 415 VAC and comes without a trip unit, allowing for customized trip configurations. The breaker utilizes thermal-magnetic protection technology and complies with international standards including IEC 60947, CCC, EAC, and marine specifications.

Rated Current: 400 A at 40°C
• Voltage Rating: 690V AC, 50/60 Hz
• Number of Poles: 4
• Interrupt Rating: 150 kA at 415 VAC
• Mounting Type: Bolt-On
• Series: Compact NSX400L
• Trip Unit: Without trip unit
• Protection Type: Thermal Magnetic
• Insulation Voltage: 800V AC, 50/60 Hz
• Dimensions: 185mm x 255mm x 110mm
• Standards: IEC 60947, CCC, EAC, Marine

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432410
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Compact NSX
• Type : LV4
• Voltage : 690
• Amperage : 400
• Phase : 3
• Poles : 4
• AIC rating : 150kA@415V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• GTIN : 03606480006968
• Dimensions : Depth 19.69 in (500 mm) Width 51.18 in (1300 mm) Height 82.68 in (2100 mm)
• Weight : 12.95
• Standards : EN/IEC 60947-2, UL 508
