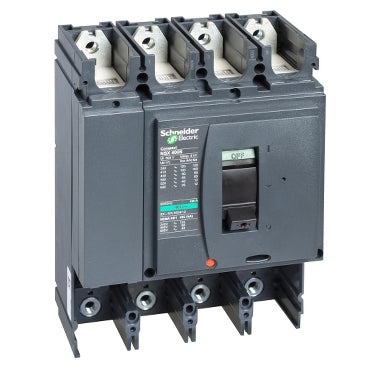

LV432409 - Schneider Electric 400A 4-Pole Molded Case Circuit Breaker Compact NSX400H Frame 70kA@415V No Trip Unit

LV432409

LV432409 is a 4-pole, 400A molded case circuit breaker from Schneider Electric's Compact NSX400H series, designed for industrial power distribution applications. This unit is supplied without a trip unit, allowing for flexible configuration based on system requirements. The LV432409 circuit breaker frame is rated for 400A continuous current and provides a high interrupting capacity of 70kA at 415VAC, 50/60 Hz. It is suitable for use in systems requiring robust protection and compliance with international standards. The compact design and standardized mounting facilitate easy integration into control panels and switchgear.

• 400A rated current
• 4 poles
• Compact NSX400H frame
• Without trip unit
• 70kA interrupt rating at 415VAC, 50/60 Hz
• Complies with EN/IEC 60947-2
• Category A
• Mounting type: Standard panel mount
• Dimensions: 185mm x 255mm x 110mm
• CCC, EAC, and marine certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432409
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Compact NSX
• Type : LV4
• Voltage : 690
• Amperage : 400
• Phase : 3
• Poles : 4
• AIC rating : 70kA@415V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• GTIN : 03606480006920
• Dimensions : Depth 36.42 in (92.5 cm) Width 20.59 in (52.3 cm) Height 59.02 in (149.9 cm)
• Weight : 12.948
• Standards : EN/IEC 60947-2, UL 508
