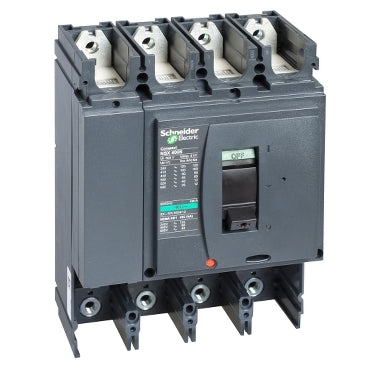

LV432408 - Schneider Electric ComPact NSX400N Circuit Breaker Basic Frame 400A 4P 50kA 415VAC Without Trip Unit

LV432408

LV432408 is a Schneider Electric ComPact NSX400N circuit breaker basic frame designed for distribution applications.LV432408 features a 400 ampere rated current with 4 poles and operates at a rated operational voltage of up to 690 V AC at 50/60 Hz. It has a rated ultimate short-circuit breaking capacity of 50 kA at 415 V AC and is supplied without a trip unit. This device conforms to IEC 60947-2 standards and is suitable for isolation.

Key Specifications
• Rated Current: 400 A at 65 °C
• Poles: 4P
• Rated Operational Voltage: 690 V AC 50/60 Hz
• Rated Ultimate Short-Circuit Breaking Capacity: 50 kA at 415 V AC
• Rated Insulation Voltage: 800 V AC
• Rated Impulse Withstand Voltage: 8 kV
• Mechanical Durability: 15,000 cycles
• Utilization Category: Category A
• Neutral Position: Left
• Series/Frame: ComPact NSX400N
• Device Type: Basic Frame Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432408
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Compact NSX
• Type : LV4
• Voltage : 690
• Amperage : 400
• Phase : 3
• Poles : 4
• AIC rating : 50kA@415V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• GTIN : 03606480006906
• Dimensions : Depth 36.42 in (92.5 cm) Width 20.59 in (52.3 cm) Height 59.02 in (149.9 cm)
• Weight : 12.8
• Standards : EN/IEC 60947-2, UL 508
