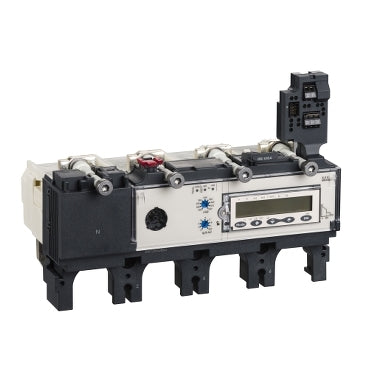

LV432112 - Schneider Electric MicroLogic 6.3E Trip Unit 400A 4P 4D for Compact NSX 400/630 Circuit Breakers

LV432112

LV432112 is a MicroLogic 6.3E electronic trip unit designed for use with Schneider Electric Compact NSX 400/630 circuit breakers. This trip unit provides advanced protection and monitoring for electrical distribution systems. The LV432112 trip unit features a 400A rating and is configured for 4 poles (4P) with 4D mounting. It is compatible with Compact NSX 400/630 series circuit breakers and supports LSIG (Long-time, Short-time, Instantaneous, Ground fault) protection. The unit is engineered for reliable operation in demanding electrical environments.

• Part Number: LV432112
• Manufacturer: Schneider Electric
• Series/Frame: Compact NSX 400/630
• Amperage: 400A
• Poles: 4P
• Mounting Type: 4D
• Application: Distribution
• Protection Type: LSIG
• Frequency: 50/60 Hz
• Rated Voltage: 690V AC
• Protected Poles: 3t + 1.6 N
• Mounting Compatibility: Compact NSX 400/630

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432112
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Amperage Maximum : 400
• Amperage Minimum : 400
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 6.3 E

Product Data

• GTIN : 03606480017230
• Country of Origin : France
• Dimensions : Depth 31.50 in (80 cm) Width 78.74 in (200 cm) Height 78.74 in (200 cm)
• Weight : 4.01
• Standards : UL 508, EN/IEC 60947-2
