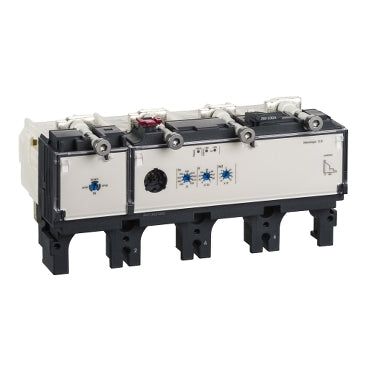

LV432084 - Schneider Electric MicroLogic 2.3 Trip Unit 630A 4-Pole

LV432084

LV432084 is a MicroLogic 2.3 electronic trip unit designed for Compact NSX 630 circuit breakers with a 630A rating and 4-pole 4d configuration.LV432084 is an electronic trip unit engineered for use with Compact NSX 630 circuit breakers. This MicroLogic 2.3 series unit delivers advanced protection with LSoI (Long Short Overload Instantaneous) trip unit protection functions. The 630A electronic rating at 40°C provides reliable overcurrent protection in industrial and commercial power distribution applications. The 4-pole 4d design ensures compatibility with three-phase plus neutral circuit configurations.

• Trip Unit Series: MicroLogic 2.3
• Trip Unit Technology: Electronic
• Amperage Rating: 630A at 40°C
• Poles: 4 poles 4d
• Protection Functions: LSoI (Long Short Overload Instantaneous)
• Application: Compact NSX 630 Circuit Breakers
• Manufacturer: Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432084
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Amperage Maximum : 630
• Amperage Minimum : 630
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 2.3

Product Data

• UPC : 606480016342
• GTIN : 03606480016349
• Dimensions : Depth 19.69 in (500 mm) Width 51.18 in (1300 mm) Height 82.68 in (2100 mm)
• Weight : 3.942
• Standards : EN/IEC 60947-2, UL 508
