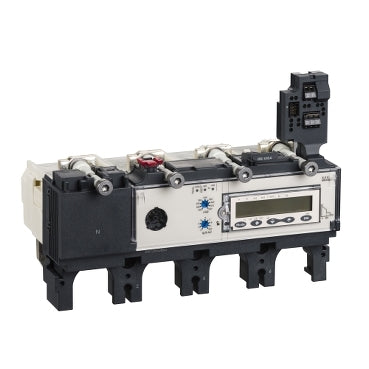

LV432111 - Schneider Electric Micrologic 6.3 E Trip Unit for Compact NSX 630 Circuit Breakers, 630A, 4 Pole, 4d, Electronic

LV432111

LV432111 is a Micrologic 6.3 E electronic trip unit designed for Compact NSX 630 circuit breakers, providing advanced protection and monitoring capabilities. This trip unit is engineered for reliable performance in demanding electrical environments.The LV432111 features a 630A rating and supports 4 poles (4d), making it suitable for a wide range of industrial and commercial applications. It offers LSIG protection (Long-time, Short-time, Instantaneous, Ground fault) for comprehensive circuit protection. The unit is compatible with Schneider Electric Compact NSX 630 series breakers and is designed for easy installation and configuration.

• Part Number: LV432111
• Manufacturer: Schneider Electric
• Series/Frame: Compact NSX 630
• Amperage: 630A
• Poles: 4 Pole (4d)
• Mounting Type: Plug-in
• Protection Type: LSIG (Long-time, Short-time, Instantaneous, Ground fault)
• Trip Unit: Micrologic 6.3 E (Energy)
• Application: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432111
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Amperage Maximum : 630
• Amperage Minimum : 630
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 6.3 E

Product Data

• GTIN : 03606480017223
• Dimensions : Depth 36.42 in (92.5 cm) Width 14.02 in (35.6 cm) Height 59.02 in (149.9 cm)
• Weight : 4.023
• Standards : EN/IEC 60947-2, UL 508
