LV432109 - Schneider Electric Micrologic 6.3 E Trip Unit 400A 3 Poles for Compact NSX 400/630 Circuit Breakers

LV432109

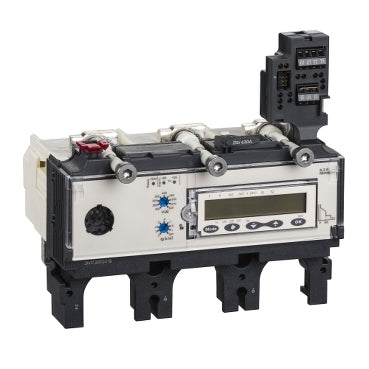

LV432109 is a Micrologic 6.3 E electronic trip unit designed for Schneider Electric Compact NSX 400/630 circuit breakers, rated at 400A with 3 poles.

This trip unit provides comprehensive LSIG (Long-time, Short-time, Instantaneous, Ground fault) protection for Compact NSX 400/630 circuit breakers. It features a 3-pole, 3-dimensional electronic design optimized for precise and reliable circuit protection and energy management in industrial and commercial applications. The LV432109 is part of the ComPact NSX range and supports advanced electronic trip functions to enhance system safety and performance.

• Manufacturer: Schneider Electric
• Part Number: LV432109
• Trip Unit Type: Micrologic 6.3 E (Electronic)
• Amperage Rating: 400A
• Poles: 3 Poles (3d)
• Compatible Circuit Breaker Frame: Compact NSX 400/630
• Protection Functions: LSIG (Long-time, Short-time, Instantaneous, Ground fault)
• Mounting Type: For Compact NSX Circuit Breakers
• Discontinued: Yes (No direct replacement)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432109
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Amperage Maximum : 400
• Amperage Minimum : 400
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 6.3 E

Product Data

• GTIN : 03606480017216
• Dimensions : Depth 36.42 in (92.5 cm) Width 14.02 in (35.6 cm) Height 59.02 in (149.9 cm)
• Weight : 3.358
• Standards : UL 508, EN/IEC 60947-2
