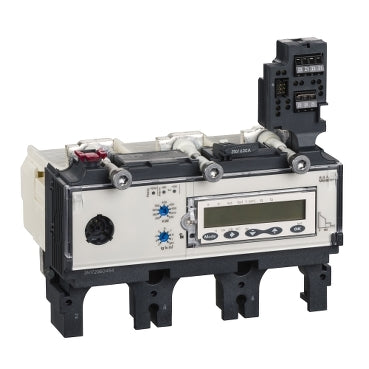

LV432102 - Schneider Electric Micrologic 6.3A Electronic Trip Unit 630A 3 Poles for Compact NSX 630 Circuit Breakers

LV432102

LV432102 is a Micrologic 6.3A electronic trip unit designed for Compact NSX 630 circuit breakers by Schneider Electric.This trip unit features a 630A rating and 3 poles 3d configuration, providing precise electronic protection for overload, short circuit, and ground fault conditions in Compact NSX 630 circuit breakers.

• Manufacturer: Schneider Electric
• Part Number: LV432102
• Trip Unit Name: Micrologic 6.3A
• Trip Unit Rating: 630A
• Poles: 3 Poles 3d
• Type: Electronic Trip Unit
• Compatible with: Compact NSX 630 Circuit Breakers
• Protection: Overload, Short Circuit, Ground Fault
• Frame Type: NSX 400/630 A
• Interrupt Rating: 36kA (typical for Compact NSX series)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432102
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Amperage Maximum : 630
• Amperage Minimum : 630
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 6.3 A

Product Data

• GTIN : 03606480018602
• Dimensions : Depth 32.99 in (83.8 cm) Width 14.02 in (35.6 cm) Height 59.02 in (149.9 cm)
• Weight : 3.17
• Standards : EN/IEC 60947-2, UL 508
